Description

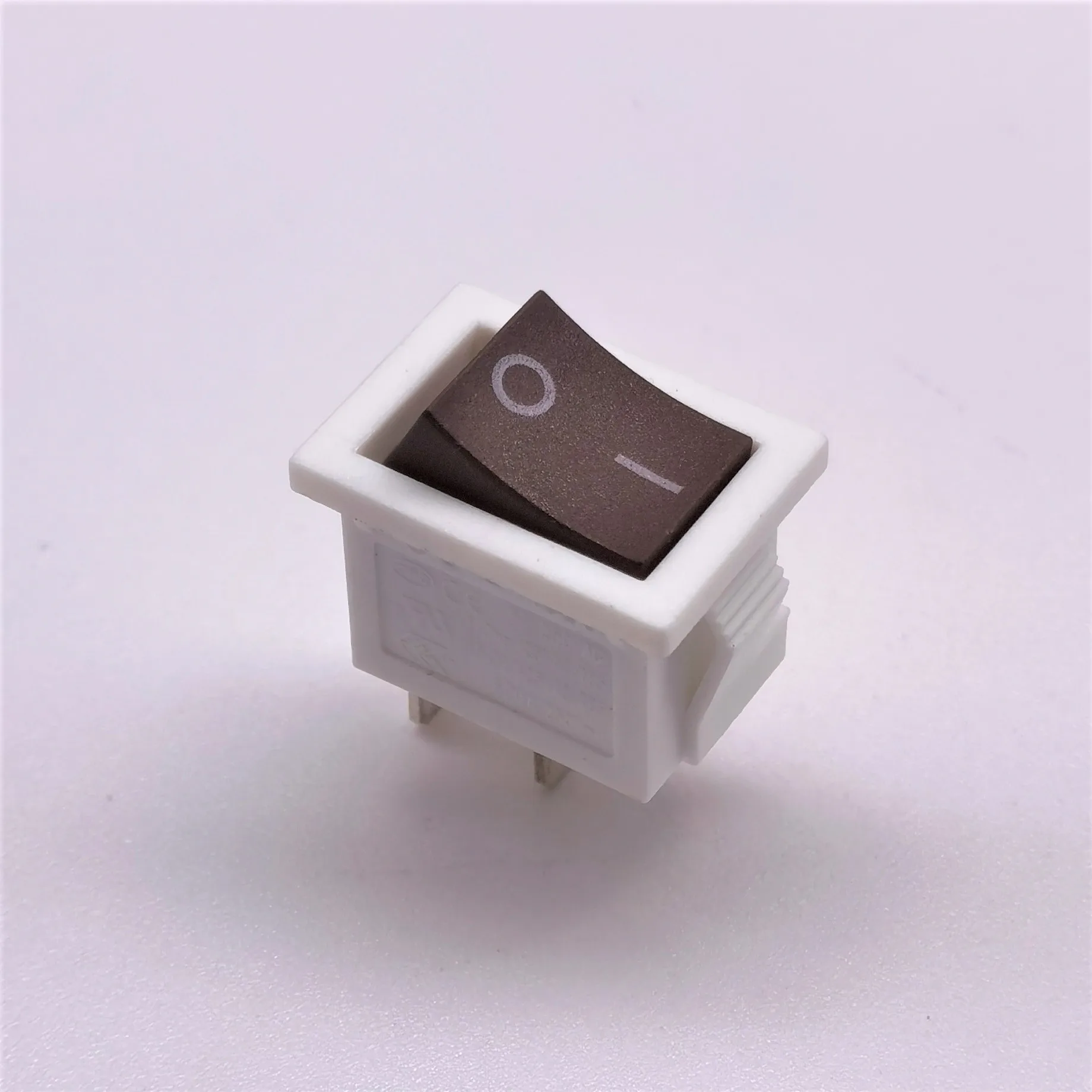

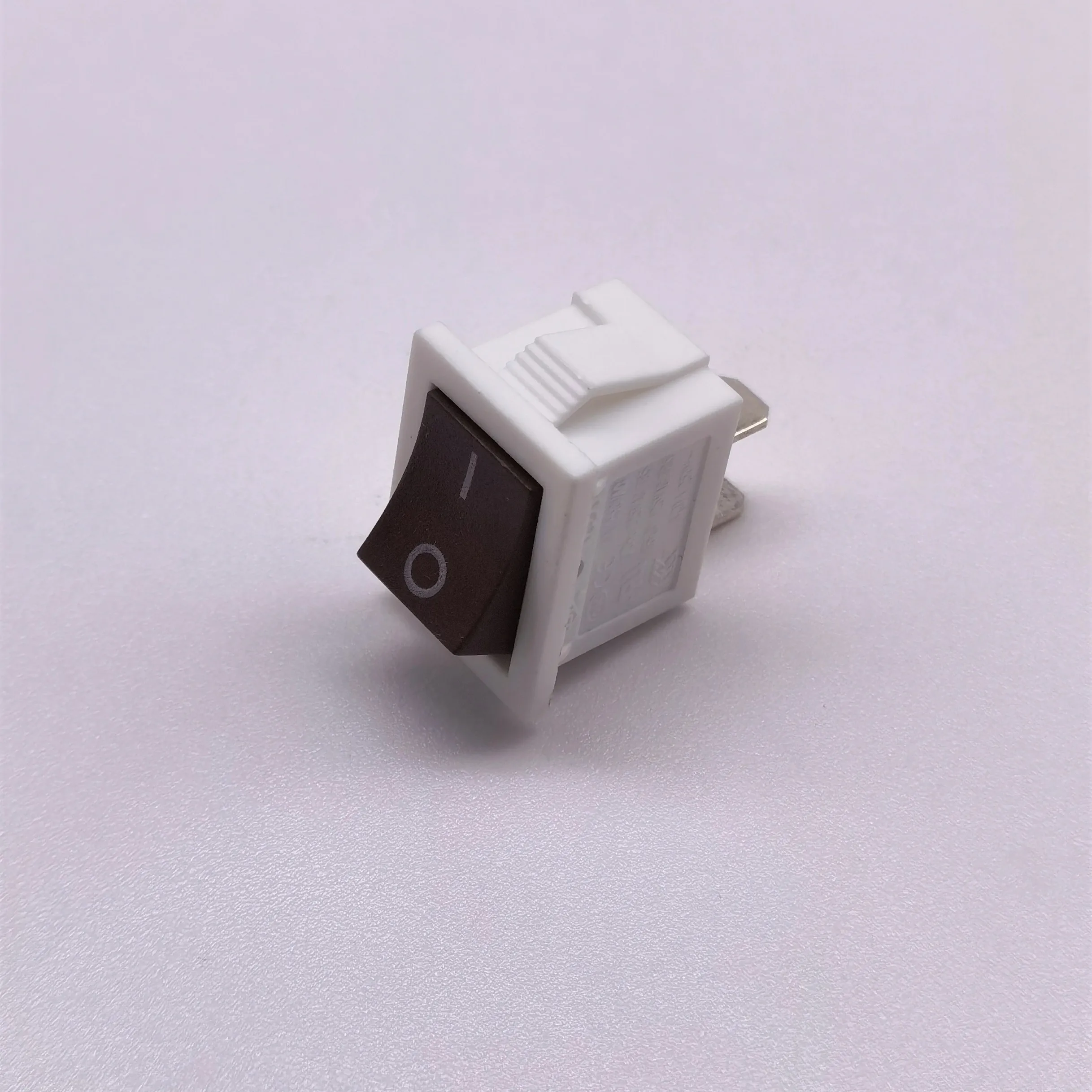

Our KCD 15x21mm 4-Pin Snap-in Mini ON/OFF Rocker Switch is a top-quality electrical component, perfect for appliances. As a factory-direct supplier, we offer wholesale prices and exceptional quality. This switch, with a Model Number of KCD6-21-CB1B-B-B-01(110205-015), boasts a 6A current rating and 250V AC voltage rating, ensuring reliable performance. It features a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, making it highly durable. The switch is certified with CQC, CE, and ROHS, guaranteeing safety and compliance. Its DPST circuit and compact dimension code B1 (15x21mm) make it versatile for various applications. With a contact resistance of ≤50mΩ and insulation resistance of ≥1000MΩ, it ensures efficient and safe operation. The dielectric strength of 1500VAC for 1 minute further enhances its reliability. Our switch stands out with its black housing and black rocker design, offering a sleek and professional look. As a trusted supplier, we provide excellent after-sales service, ensuring customer satisfaction.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD6-21-CB1B-B-B-01(110205-015)
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
DPST
|
|
Dimension Code
|
B1 (15x21mm)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Lamp voltage
|
no lamp
|
Key Features
Our KCD Rocker Switch is designed for durability and reliability, with a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles. It features a 6A current rating and 250V AC voltage rating, making it suitable for a wide range of applications.
Why Choose Us?
As a factory-direct supplier, we offer wholesale prices without compromising on quality. Our switch is certified with CQC, CE, and ROHS, ensuring safety and compliance. With a sleek black housing and black rocker design, it not only performs well but also looks professional.
Applications
This switch is ideal for use in appliances, electrical components, and industrial settings. Its compact size and reliable performance make it a popular choice among manufacturers and DIY enthusiasts alike.
