Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-22N-CA1H-B-R-01
|
|
Current Rating
|
6(3)A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
DPDT
|
|

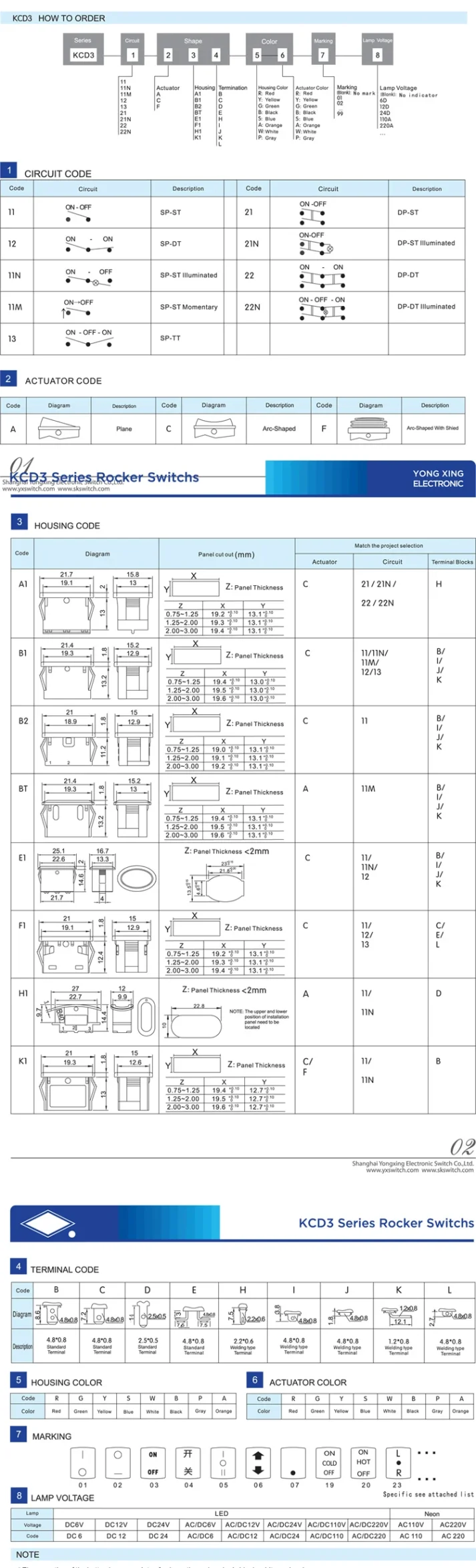

Dimension Code
|
A1 (21.7x15x15.8 , 19.1x13x13)
|
|
Contact Piece Code
|
H (7.5 length, 2.2×0.6 welding type)
|
|
Lamp voltage
|
220VAC or others
|
|
Switch Function
|
On On
|

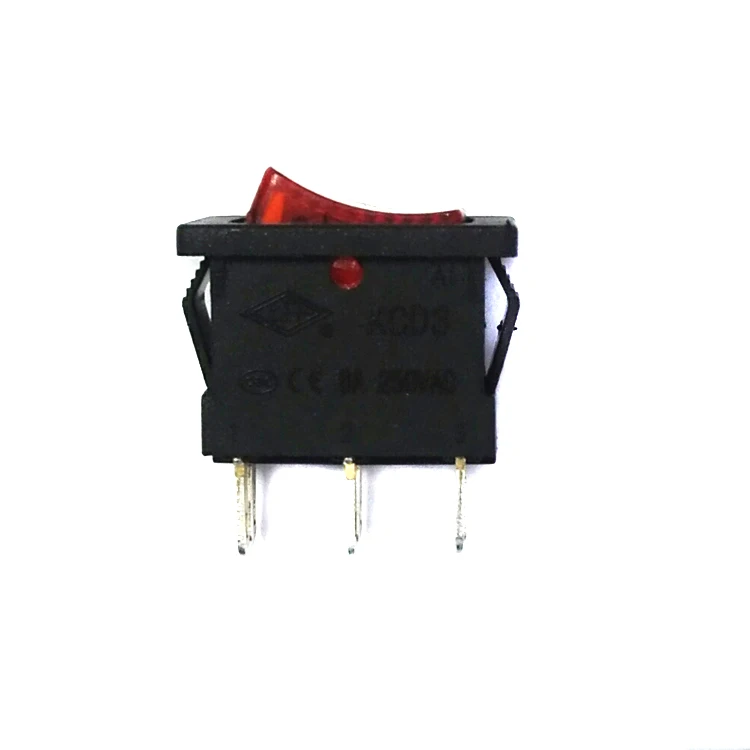

Key Features of Our KCD Rocker Switch

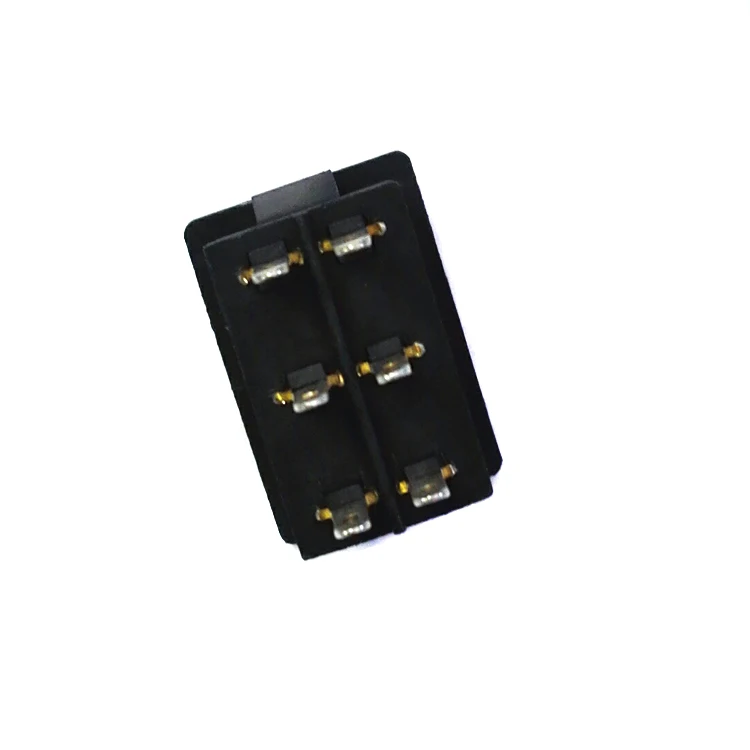

Our KCD rocker switch is designed with a 6-pin DPDT configuration, supporting a current rating of 6A and a voltage rating of 250V AC. This makes it ideal for a variety of electrical systems, ensuring reliable performance and safety.
Why Choose Our Switch?
As a factory supplier, we offer wholesale prices and excellent after-sales service. Our switch is CE-certified, ensuring compliance with international safety standards. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it provides long-lasting durability and reliability.
Customizable and Versatile

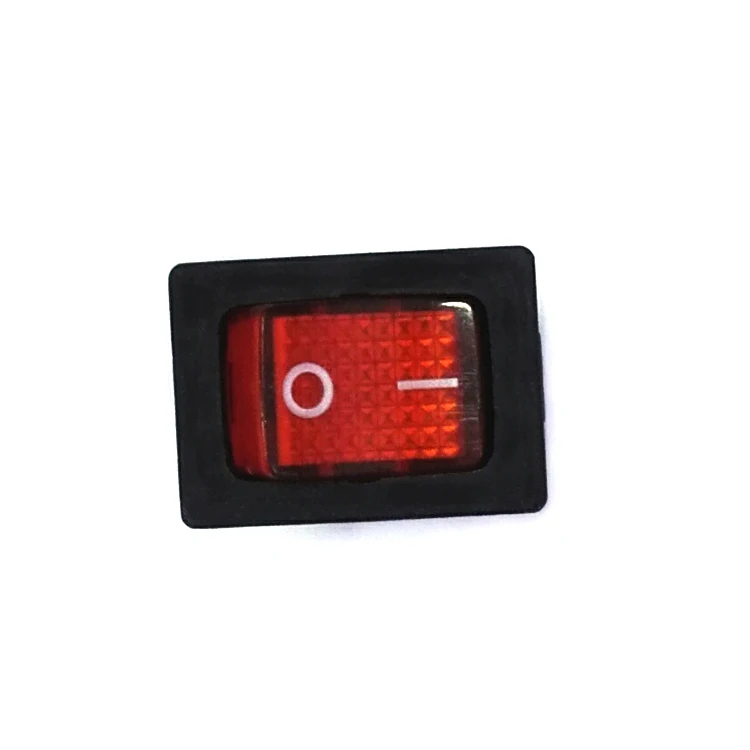

The switch features a red illuminated LED for clear visual indication of its status. The lamp voltage can be customized to 220VAC or other voltages to meet your specific needs. This makes our KCD rocker switch suitable for a wide range of applications, from industrial equipment to home appliances.
