Description

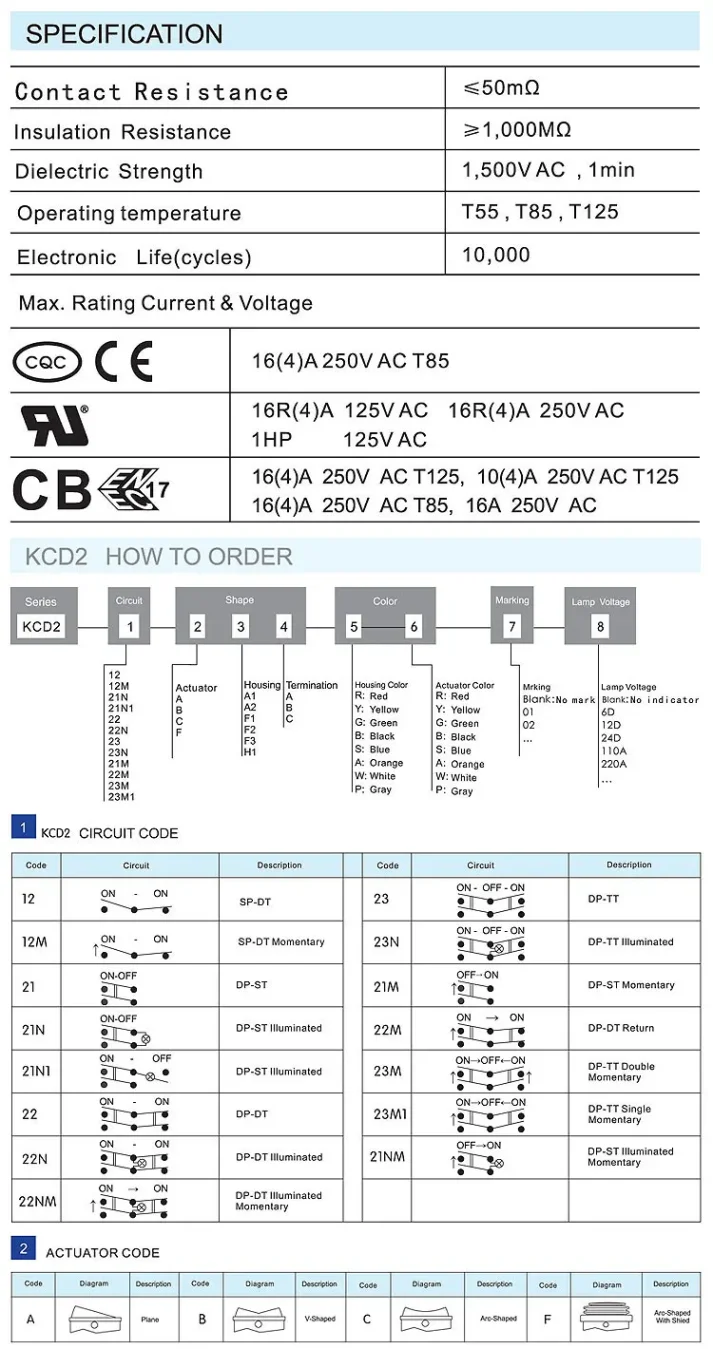

Specifications:
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1,000MΩ
- Dielectric Resistance: 1,500V AC, 1 min
- Electronic Life: 10,000 cycles
- Max. Rating Current & Voltage: Varies by certification (CQC, CE, UL, ENEC, CB)
- Operating Temperature: 25°C to 125°C
- IP Level: IP40
- Colors Available: Blue, Red, White, Black, Yellow
Advantages:
- High mechanical life of 400,000 times
- Waterproof design for added protection
- Multiple lever options for customization
- Wide range of applications including industrial, IoT, telecommunications, electric power, and households
After-Sales Service: We stand behind our products with a comprehensive after-sales service. If you encounter any issues, our dedicated support team is here to assist you promptly.
Don’t miss out on this opportunity to upgrade your electrical systems with our reliable KCD Rocker Switches. Contact us today for more information and to place your wholesale order!
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles momentary rocker switch on off on |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |
Why Choose Our KCD Rocker Switches?
Our KCD Rocker Switches are engineered for excellence, offering reliable on-off control and a high mechanical life of 400,000 times. Their waterproof design and multiple lever options make them suitable for a wide range of applications, ensuring you get the best value for your money.
What Makes Our Switches Stand Out?
Unlike other switches on the market, our KCD Rocker Switches are factory-direct, meaning you get competitive wholesale prices without sacrificing quality. With certifications like CQC, CE, UL, ENEC, and CB, you can trust in their safety and performance.
How Can Our Switches Benefit Your Business?
Whether you're in the industrial, IoT, telecommunications, electric power, or household sector, our KCD Rocker Switches are the perfect choice for upgrading your electrical systems. Their durability, safety, and versatility make them a wise investment for any business looking to enhance their product offerings.
