Description
|
Certification
|
||
|
CQC CE
|
T85 AC 250v 16(4)A
|
|
|
USA
|
AC 125/250v 16R(4)A
AC 125v 1HP
|
|
|
CB ENEC17
|
T125 AC 250v 16(4)A / 10(4)A
T85 AC 250v 16(4)A
AC 250v 16A
|
|
|
Specification
|
||||||||
|
Contact Resistance
|
≤50mΩ
|
|||||||
|
Insulation Resistence
|
≥1000MΩ
|
|||||||
|
Dielectric Strength
|
AC 1500v,1min
|
|||||||
|
Operating Temperation
|
T55,T85,T125
|
|||||||
|
Electrical Life
|
10000
|
|||||||
|
How To Order
|
||||||||
|
Switch Details
|
series number -circuit code -actuator,housing,termination -housing color,actuator color -marking -lamp voltage
|
|||||||
|
Packing
|
||||||||
|
Plastic Box
|
First in plastic box , then in export carton,quantity varies according to switch size.
|
|||||||
|
Plastic Bag
|
Normally 100 pieces in one plastic bag, then in export carton, quantity varies according to switch size.
|
|||||||
|
Lead Time
|
||||||||
|
Quantity(Pieces)
|
1 – 3000
|
>3000
|
||||||
|
Est. Time(days)
|
30
|
To be negotiated
|
||||||
|
Shipping
|
||||||||
|
Port
|
Shanghai
|
|||||||

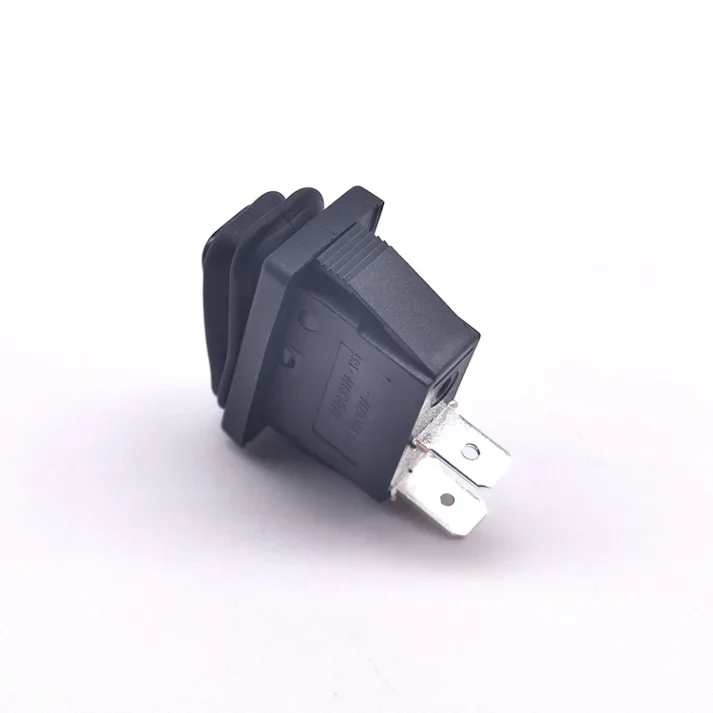

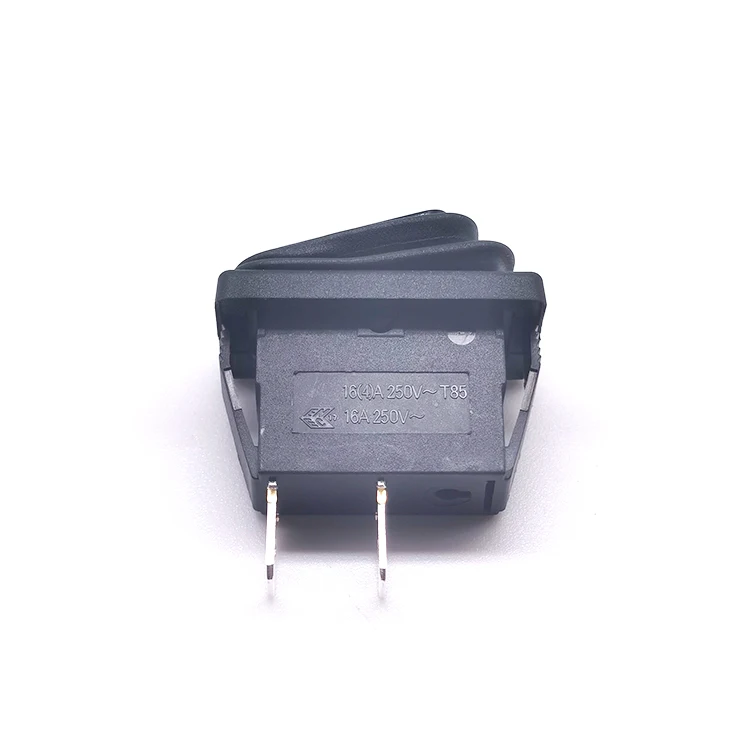

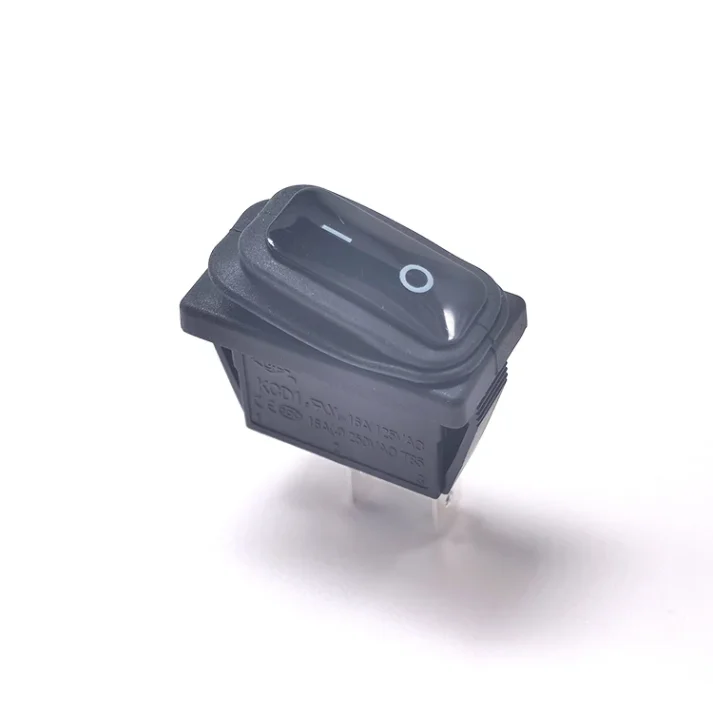

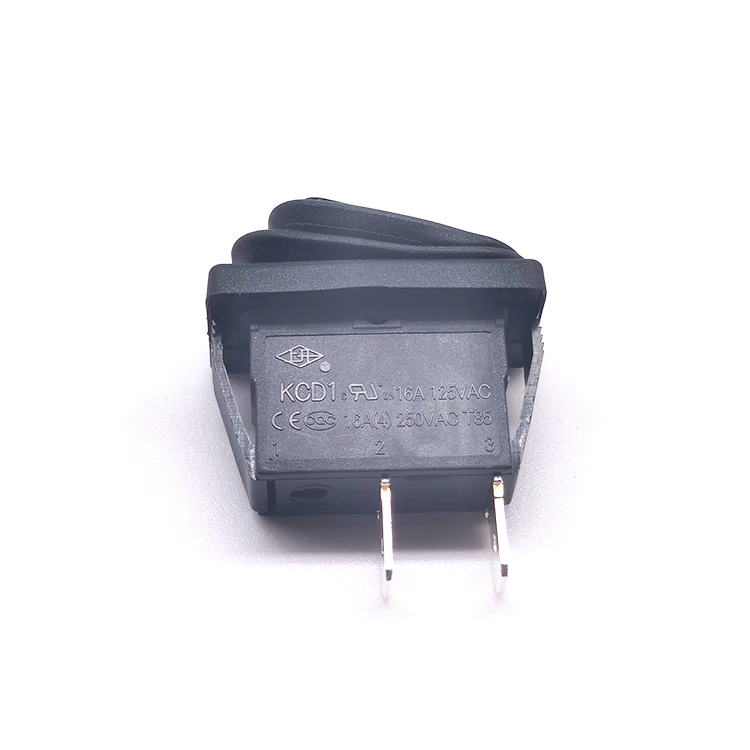

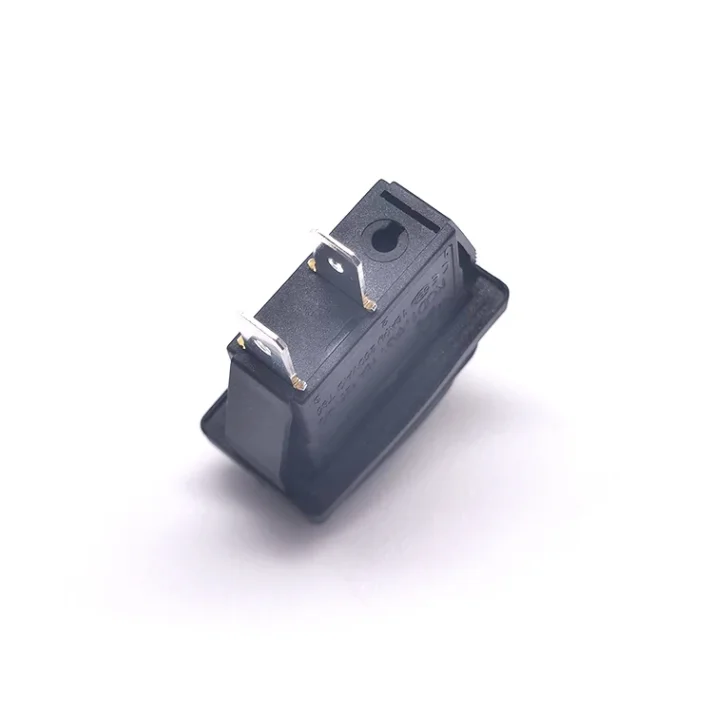

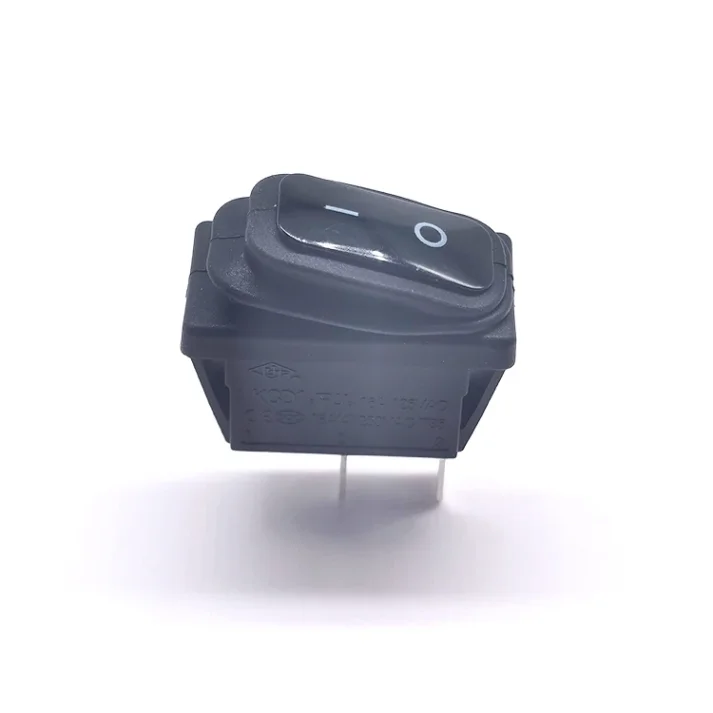

Why Choose Our KCD1-11 Waterproof Rocker Switch?
Our KCD1-11 Waterproof Rocker Switch is engineered for durability and reliability, making it an ideal choice for various applications. With an IP65 rating, it offers excellent waterproof performance, ensuring longevity even in harsh environments. The switch's 16A 250VAC capacity guarantees stable power transmission, while its low contact resistance and high insulation resistance ensure safety and efficiency.
What Are the Key Features of Our Switch?
Key features include a durable plastic body, 2P pins, and an ON-OFF action for easy operation. It operates efficiently at temperatures ranging from T55 to T125 and boasts a mechanical life of over 10,000 cycles. Additionally, its compact panel cutout size of 28.2*10.7mm makes it suitable for a wide range of devices.
Why Buy from Us as a Factory Supplier?
As a direct factory supplier, we offer wholesale prices without compromising on quality. Our KCD1-11 Waterproof Rocker Switch is manufactured to the highest standards, ensuring customer satisfaction. Choose us for reliable, high-quality switches that meet your electrical needs.
