Description
Key Features:
- Certifications: CQC, CE, CB, ENEC, ROHS, ensuring global compliance and safety standards.
- Specifications: Contact resistance ≤50mΩ, insulation resistance ≥1000MΩ, dielectric strength of 1500VAC for 1 minute, and an operating temperature range of T55, T85, T125.
- Mechanical & Electrical Life: Over 10,000 cycles, guaranteeing long-lasting durability and reliability.
- Panel Cutout: 28.2*10.7mm, making it suitable for a wide range of installations.
- Packaging: Available in plastic boxes or bags, with quantities varying according to switch size, ensuring safe and efficient shipping.
As a factory supplier, we offer wholesale pricing and flexible ordering options to meet your business needs. Our commitment to quality and customer satisfaction makes us the preferred choice for businesses worldwide.
Why Choose Us?
- Factory direct pricing, ensuring cost-effectiveness.
- Strict quality control measures to guarantee product excellence.
- Excellent after-sales service, providing peace of mind.
- Flexible MOQ and fast delivery times.
|
Certification
|
||
|
CQC CE
|

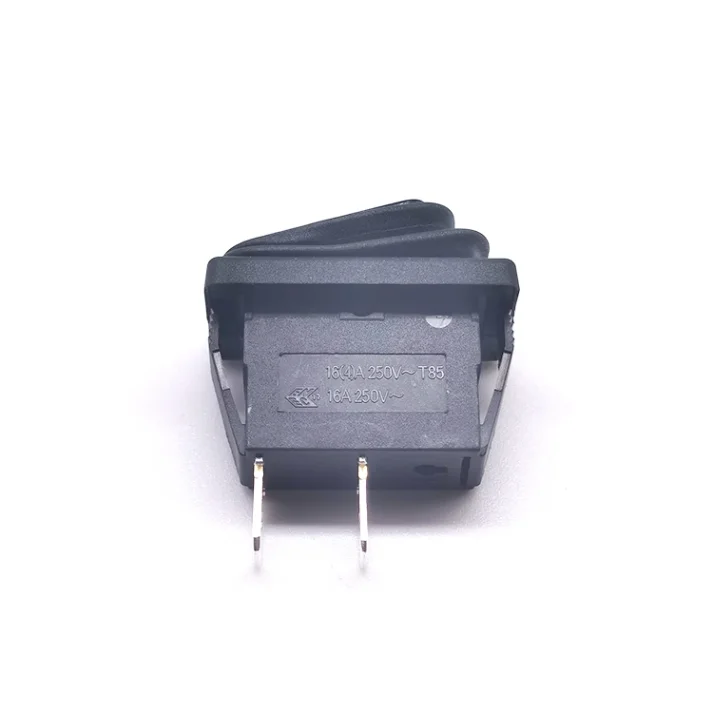

T85 AC 250v 16(4)A
|
|
|
USA
|
AC 125/250v 16R(4)A
AC 125v 1HP
|
|
|
CB ENEC17
|
T125 AC 250v 16(4)A / 10(4)A
T85 AC 250v 16(4)A
AC 250v 16A
|
|
|
Specification
|
||||||||
|
Contact Resistance
|
≤50mΩ
|
|||||||
|
Insulation Resistence
|
≥1000MΩ
|
|||||||
|
Dielectric Strength
|
AC 1500v,1min
|
|||||||
|
Operating Temperation
|
T55,T85,T125
|
|||||||
|
Electrical Life
|
10000
|
|||||||
|

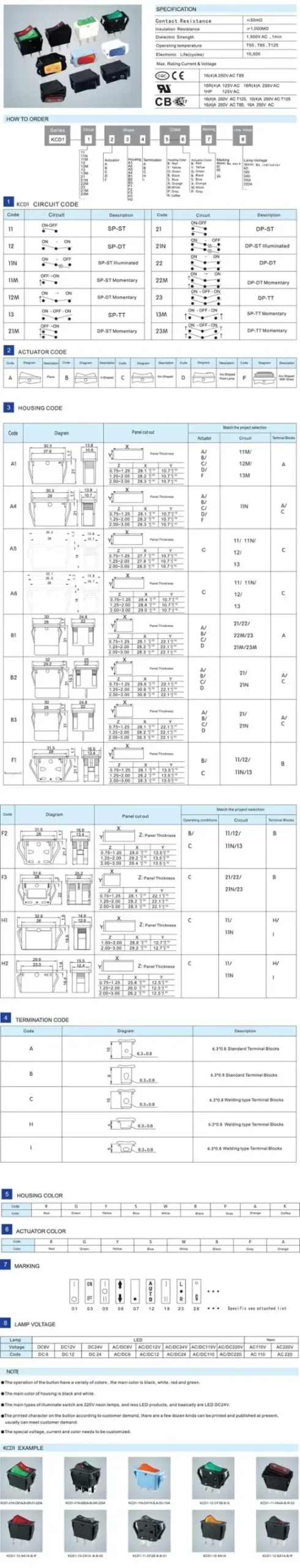

How To Order
|
||||||||
|
Switch Details
|
series number -circuit code -actuator,housing,termination -housing color,actuator color -marking -lamp voltage
|
|||||||
|
Packing
|
||||||||
|
Plastic Box
|
First in plastic box , then in export carton,quantity varies according to switch size.
|
|||||||
|
Plastic Bag
|
Normally 100 pieces in one plastic bag, then in export carton, quantity varies according to switch size.
|
|||||||
|
Lead Time
|
||||||||
|
Quantity(Pieces)
|
1 – 3000
|
>3000
|
||||||
|
Est. Time(days)
|
30
|
To be negotiated
|
||||||
|
Shipping
|
||||||||
|
Port
|
Shanghai
|
|||||||
Key Features and Benefits

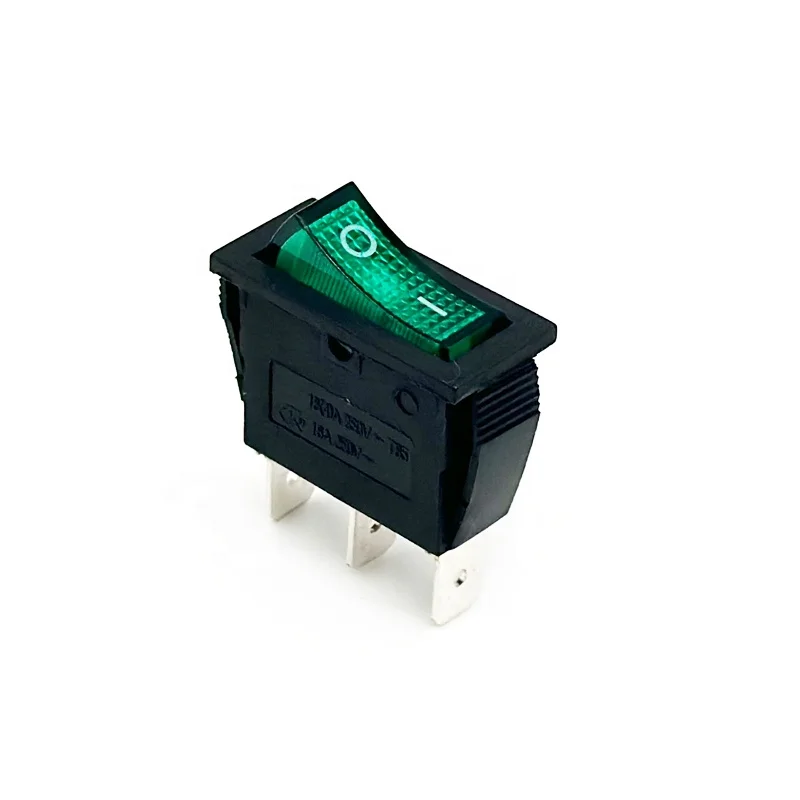

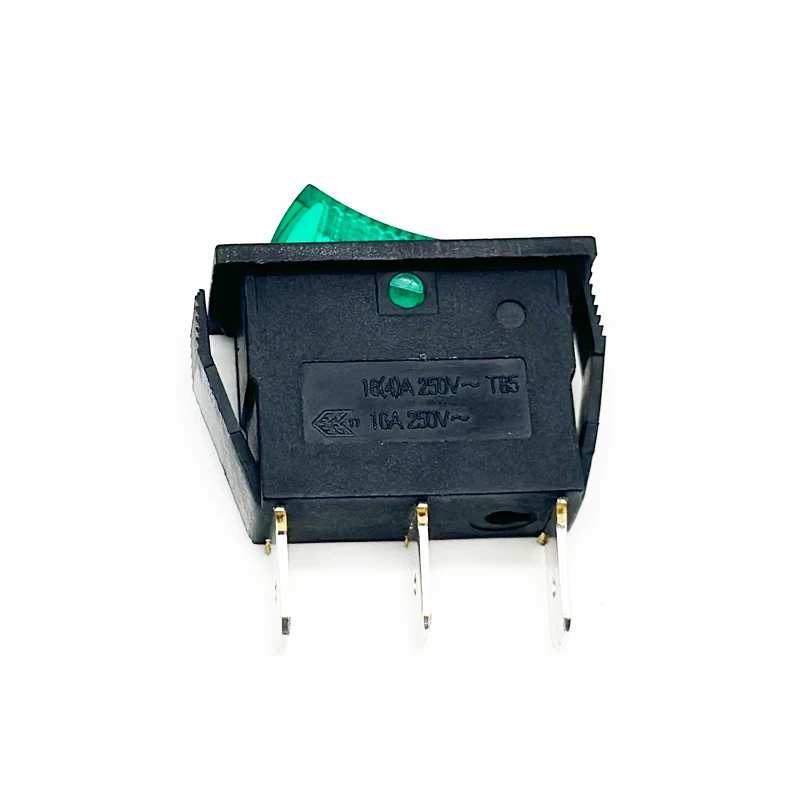

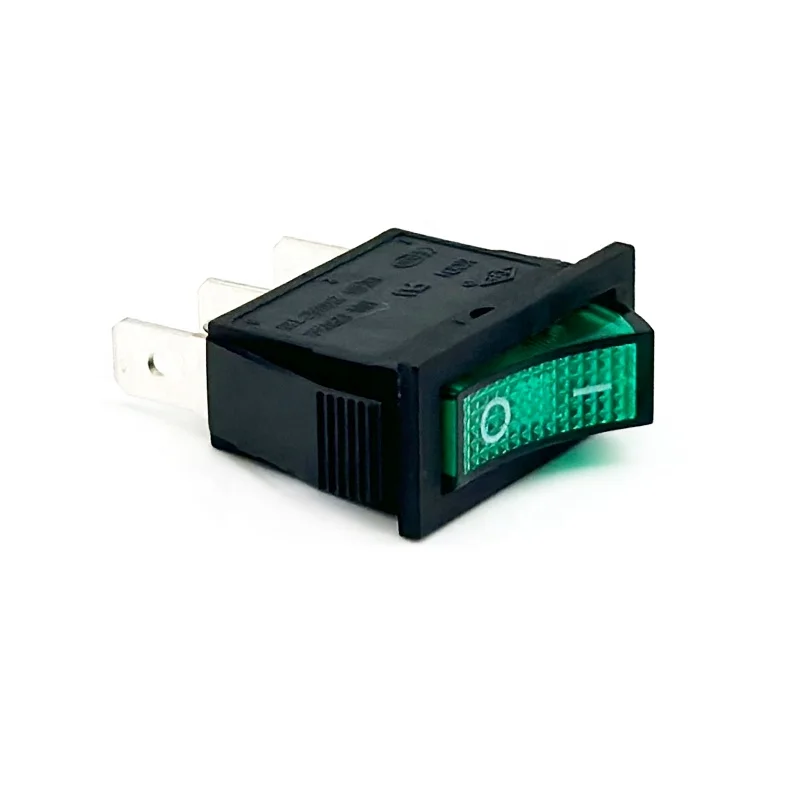

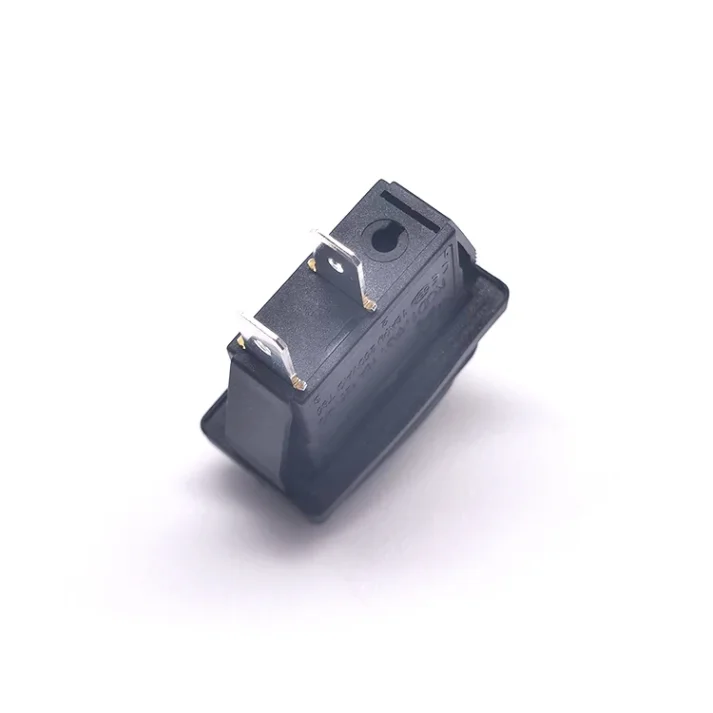

Our KCD1-11 Rocker Switch stands out with its green illuminated indicator, making it easy to identify in low-light conditions. With a maximum current of 16A and a maximum voltage of 250VAC, it's perfect for machinery applications. The switch is also CQC, CE, CB, ENEC, and ROHS certified, ensuring global compliance and safety standards.
Why Choose Our Factory Supplier?
As a factory supplier, we offer wholesale pricing and flexible ordering options. Our strict quality control measures guarantee product excellence, and our excellent after-sales service provides peace of mind. With fast delivery times and a commitment to customer satisfaction, we're the preferred choice for businesses worldwide.
Applications and Suitability
This switch is ideal for control panels and industrial equipment, offering durability and reliability with over 10,000 cycles of mechanical and electrical life. Its compact size and panel cutout of 28.2*10.7mm make it suitable for a wide range of installations.
