Description
| contact resistance | <50m |
| insulation resistance | >1000MΩ |
| dielectric strength | 1500vac,1min |
| operating temperature | t55 t85 t105 |
| electronic life | 10000 |
| max.rating current&voltage |
2a 250vac |
Key Features and Benefits

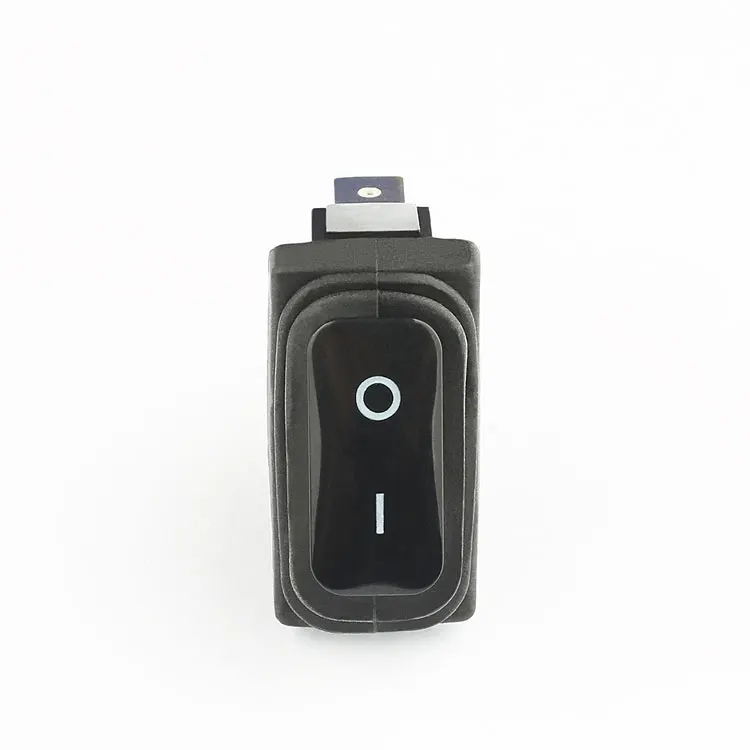

Our KCD1 2-Pin SPST Black Waterproof Rocker Switch stands out with its robust design and high performance. With a contact resistance of <50mΩ and insulation resistance of >1000MΩ, it ensures reliable electrical connections. The dielectric strength of 1500VAC for 1 minute guarantees safety under high voltage conditions. Operating within a temperature range of T55 to T105, it's suitable for various environments. The electronic life of 10,000 cycles ensures long-lasting durability, making it a cost-effective choice.
Why Choose Our Switch?
As a factory supplier, we offer competitive wholesale prices without compromising on quality. Our switch comes with CE, CQC, CB, ENEC, and ROHS certificates, ensuring compliance with international standards. The black housing and white color option add a touch of elegance, while the 2-pin design simplifies installation. Customization is available for bulk orders, allowing you to tailor the switch to your specific needs.
Applications and Compatibility
This switch is ideal for electrical control and industrial use. Its waterproof feature makes it suitable for outdoor and wet environments. Whether you're building a new project or replacing an old switch, our KCD1 2-Pin SPST Black Waterproof Rocker Switch is a reliable choice. Trust our factory-direct pricing and excellent customer service for a seamless purchasing experience.
