Wholesale KCD1 3-Pin Rocker Switch | Factory Supplier

>= 1,000  sets
$0.33

0 reviews

Wholesale KCD1 Rocker Switch | Factory Supplier | Customizable

Description

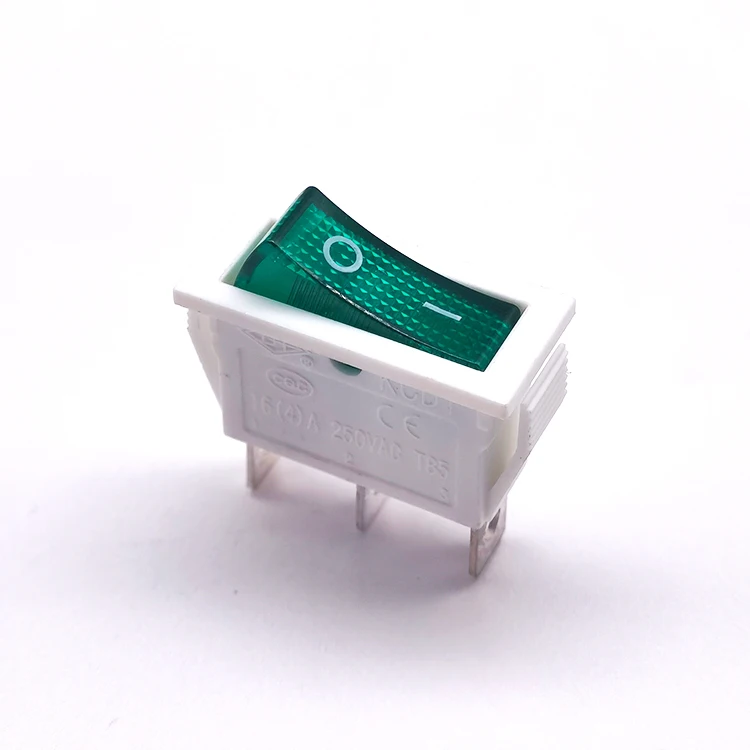

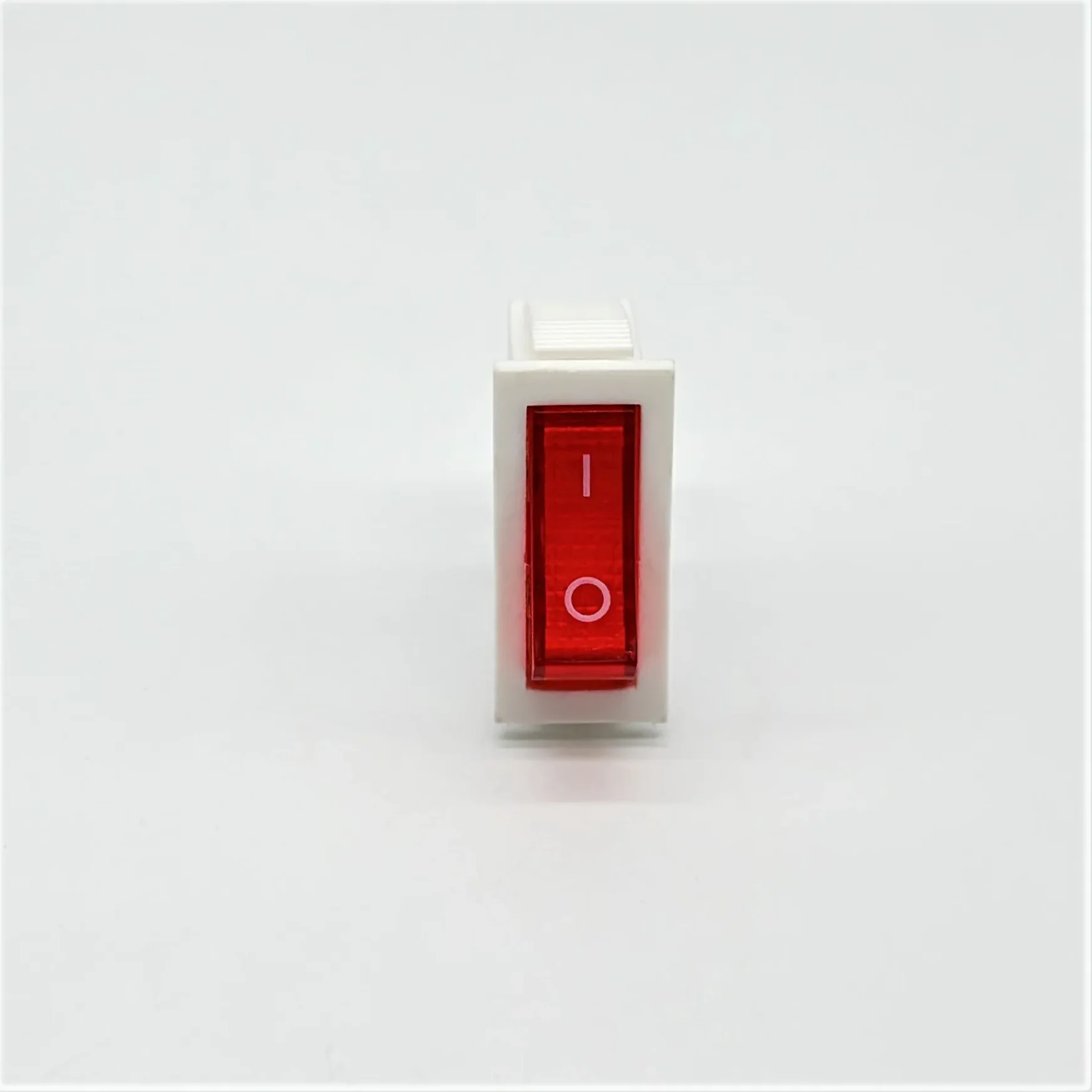

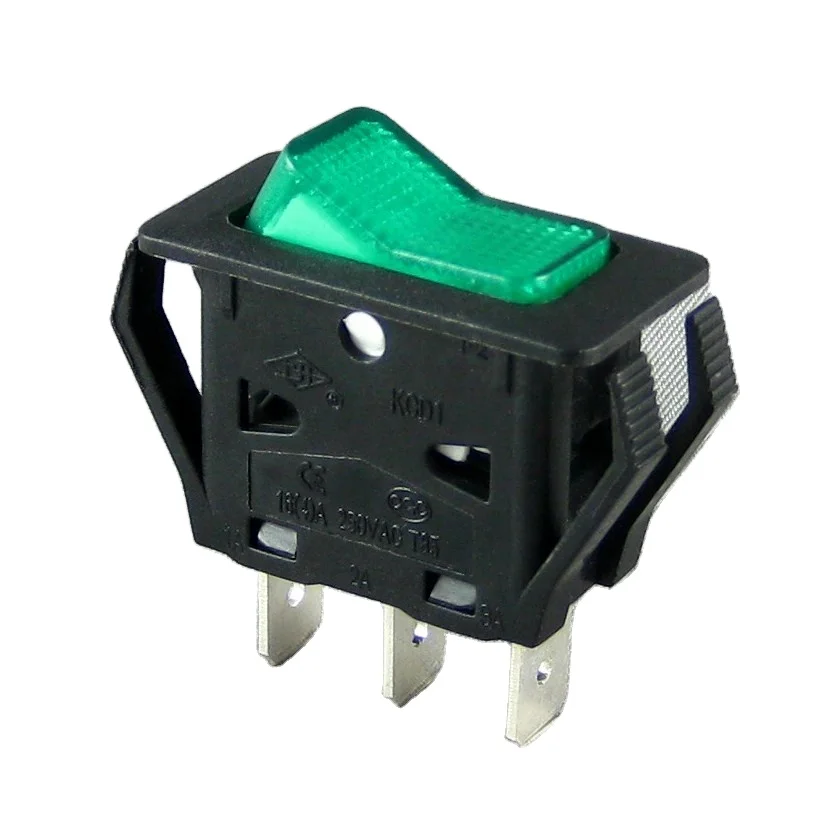

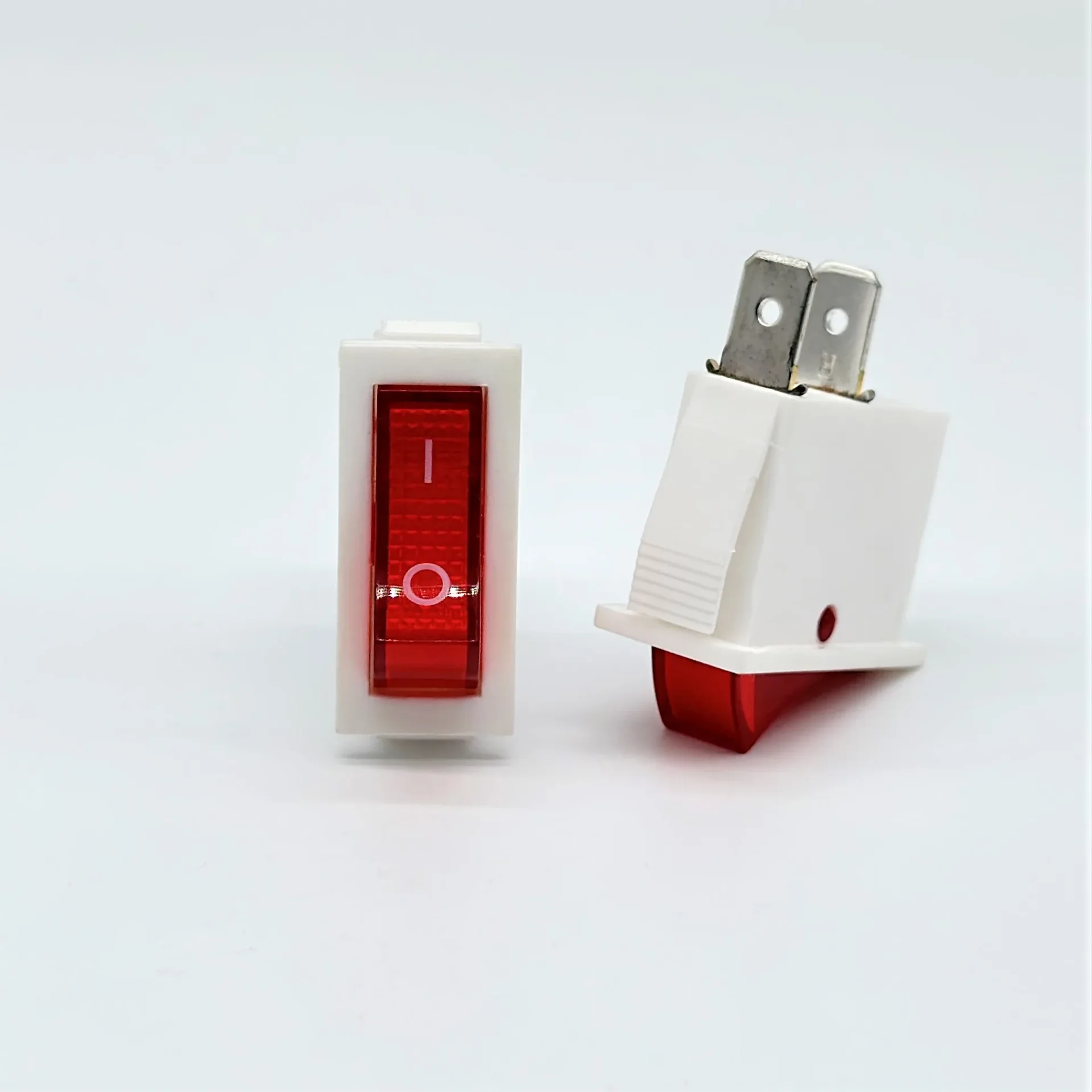

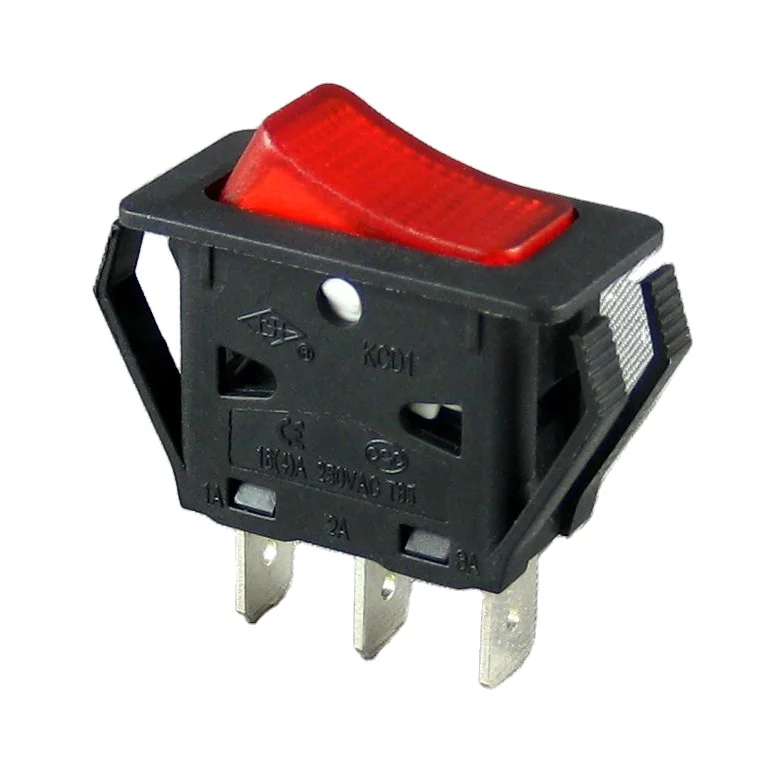

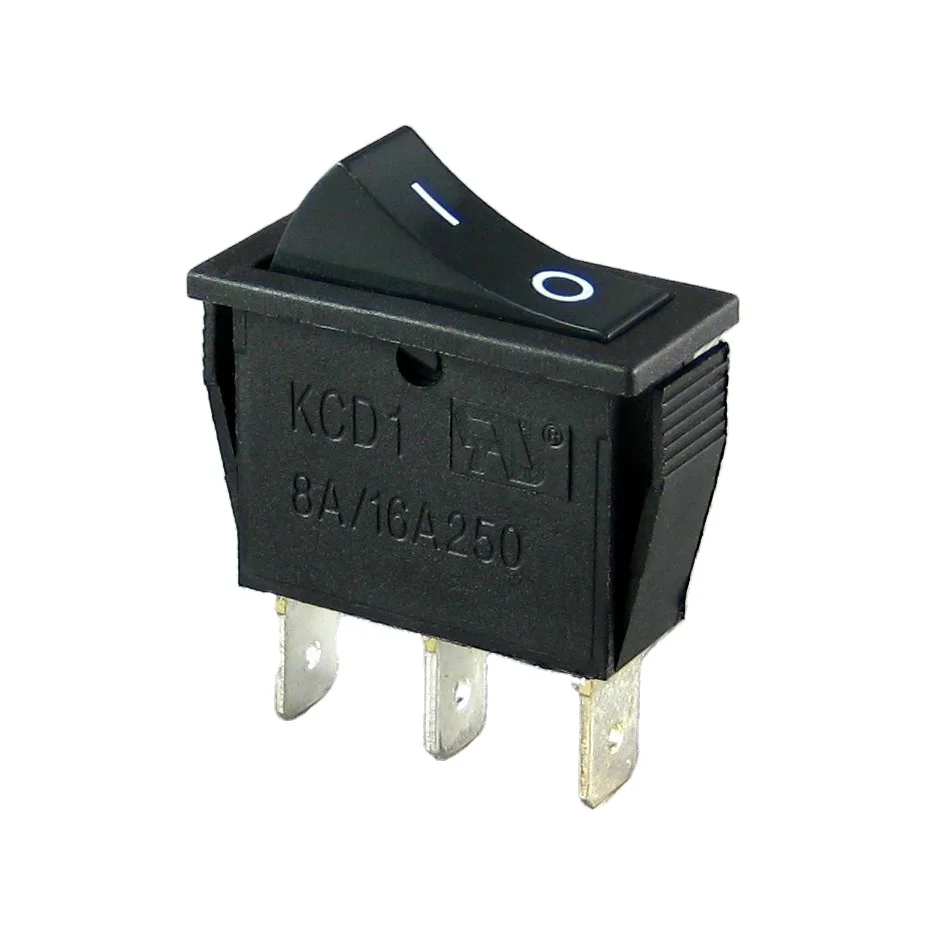

Introducing our KCD1 3-Pin Rocker Switch, a high-quality, waterproof switch designed for household electrical instruments. With a maximum rating of 16A 250V AC, this switch is built to handle heavy loads. It features an SPDT circuit, 10,000 cycles of electronic life, and comes in a sleek white housing color with a red actuator. Our switch is IP65 rated, ensuring protection against dust and water. As a factory supplier, we offer wholesale pricing and customization options to meet your specific needs. With over 60 senior engineers and advanced production facilities, we guarantee top-notch quality and reliable performance. Choose our KCD1 Rocker Switch for durability, functionality, and value.
KCD1
Max.Rating Current&Voltage:
16A 250V AC
Circuit:
SPDT
electronic life:
10000cycles
Actuator color:
red
Housing color:
white

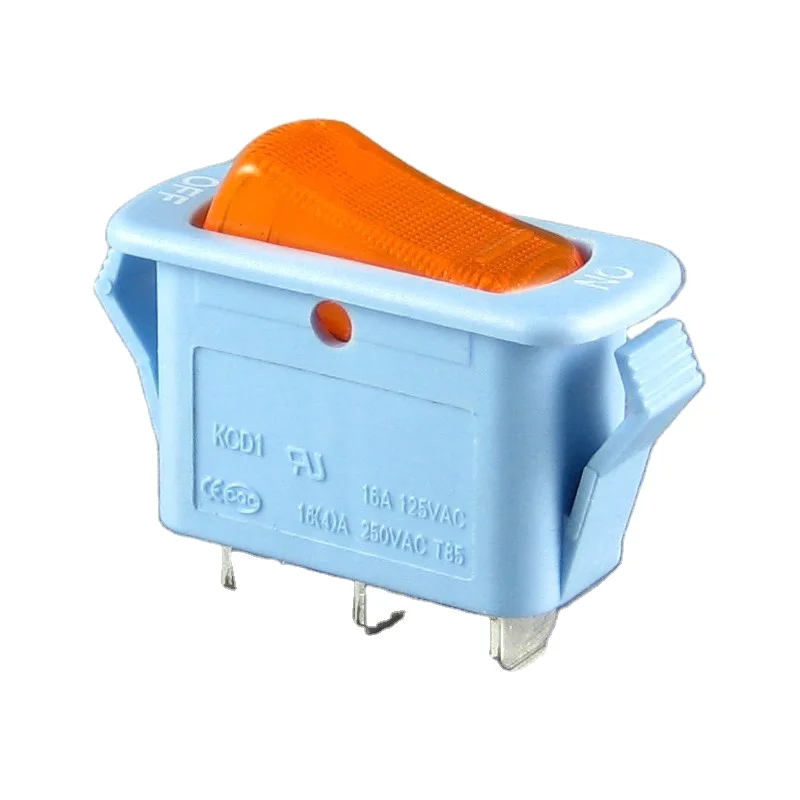

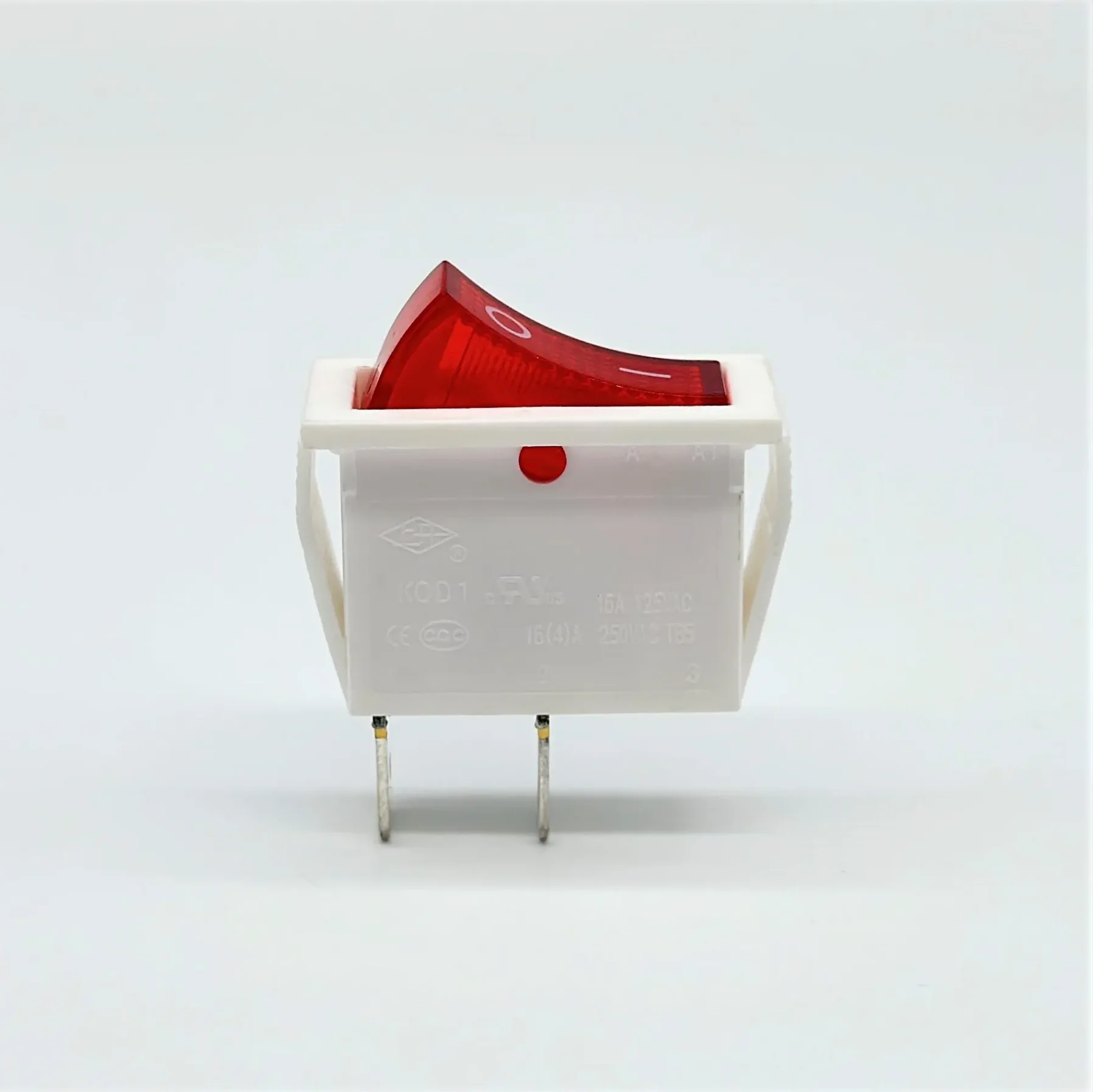

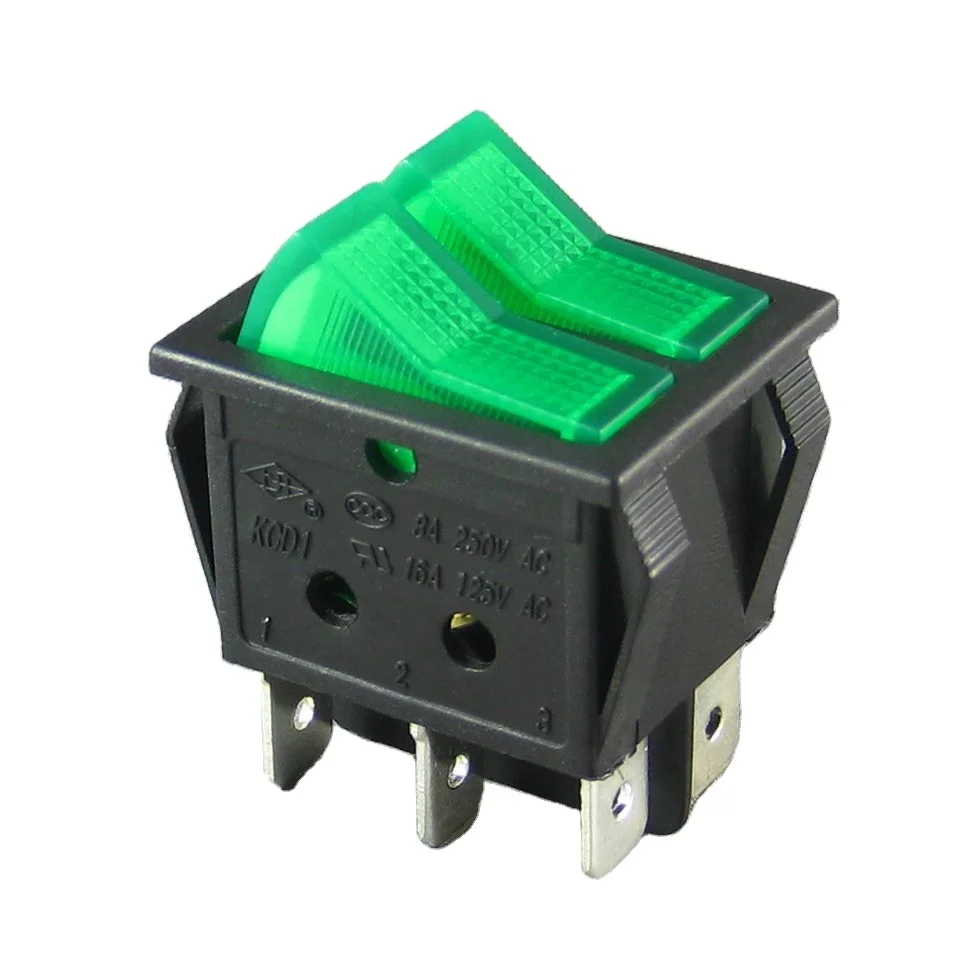

Electronic component high-quality image for cross-border e-commerceElectronic device part shown in clear image for e-commerceElectronic circuit board detailed image for cross-border salesElectronic module image for e-commerce product displayElectronic component in high-resolution image for e-commerceElectronic device image for cross-border e-commerce listingElectronic accessory shown in clear image for e-commerce


Why Choose Our KCD1 Rocker Switch?

Our KCD1 Rocker Switch stands out for its durability, functionality, and value. With a maximum rating of 16A 250V AC and an IP65 rating, it's built to handle heavy loads and protect against dust and water. Perfect for household electrical instruments and industrial applications.

Customization Options Available

As a factory supplier, we offer customization options to meet your specific needs. Whether it's a different color, size, or feature, we can tailor the KCD1 Rocker Switch to your requirements.

Reliable Performance and Quality

With over 60 senior engineers and advanced production facilities, we guarantee top-notch quality and reliable performance. Choose our KCD1 Rocker Switch for peace of mind and long-lasting use.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A

Max. Voltage

250V

Place of Origin

Zhejiang

Brand Name

ShanghaiYongxing

Model Number

KCD1

Whether the smart

NO

IP level

IP65

Contact Resistance:

≤50mΩ

Insulation resistance:

≥100MΩ

Dielectric Resistance:

1500V AC 1min

Operating temperature:

T55 T85 T125

Electronic life (cycles) :

10000

Max.Rating Current&Voltage:

16A 250V AC

Housing color :

red black

Actuator color :

red green

Certification:

CQC CE ENEC
