Wholesale KCD1 3 Pin Rocker Switch | Factory Supplier

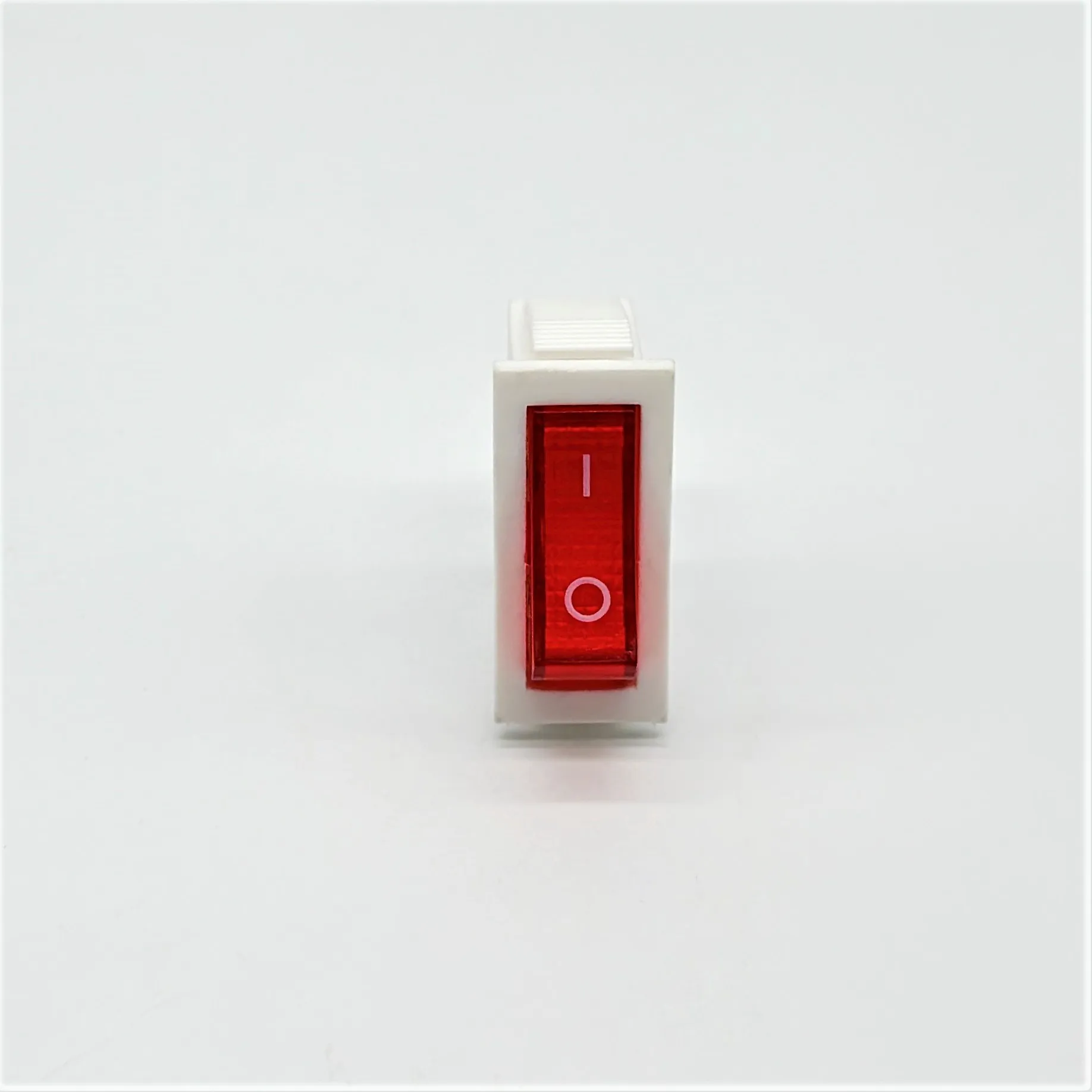

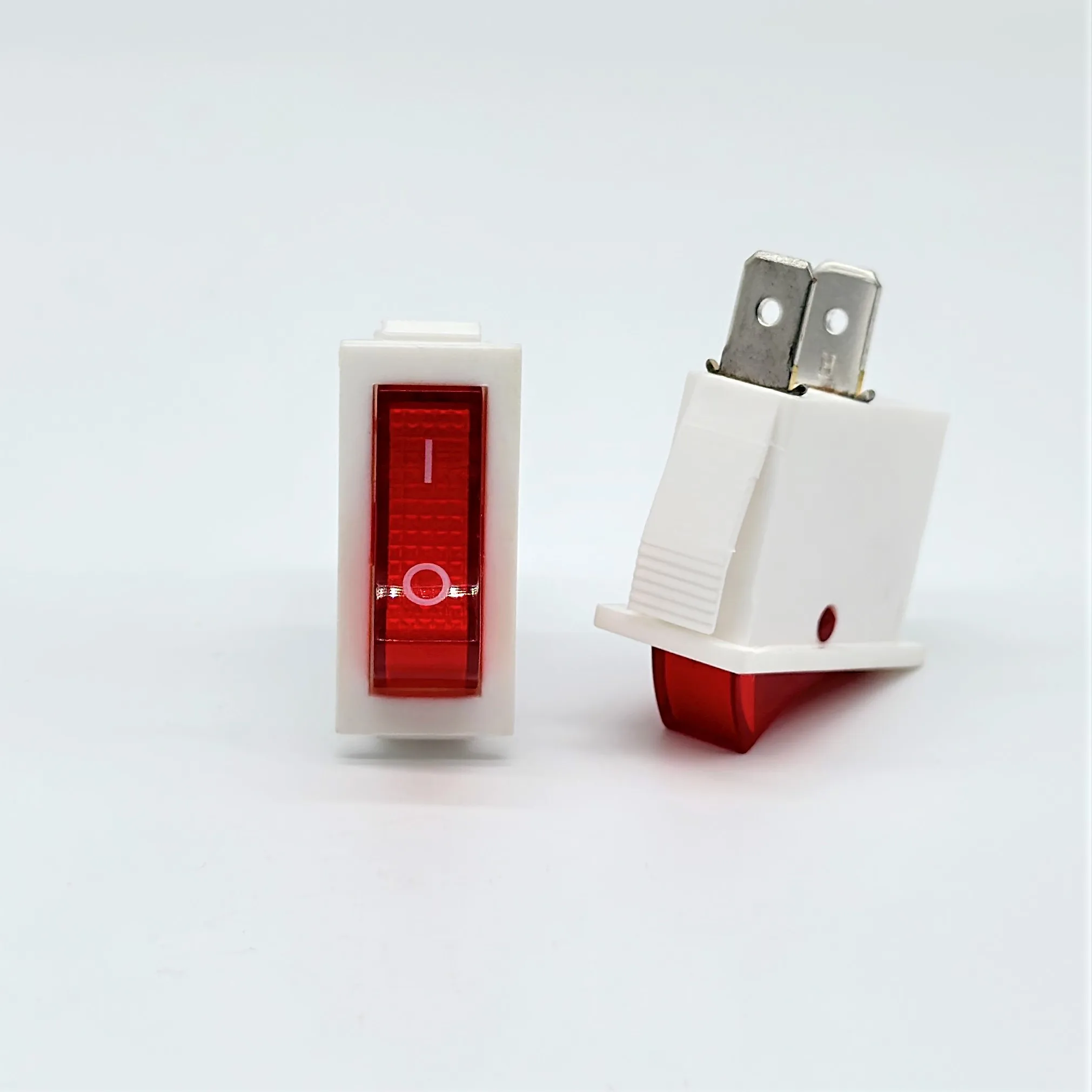

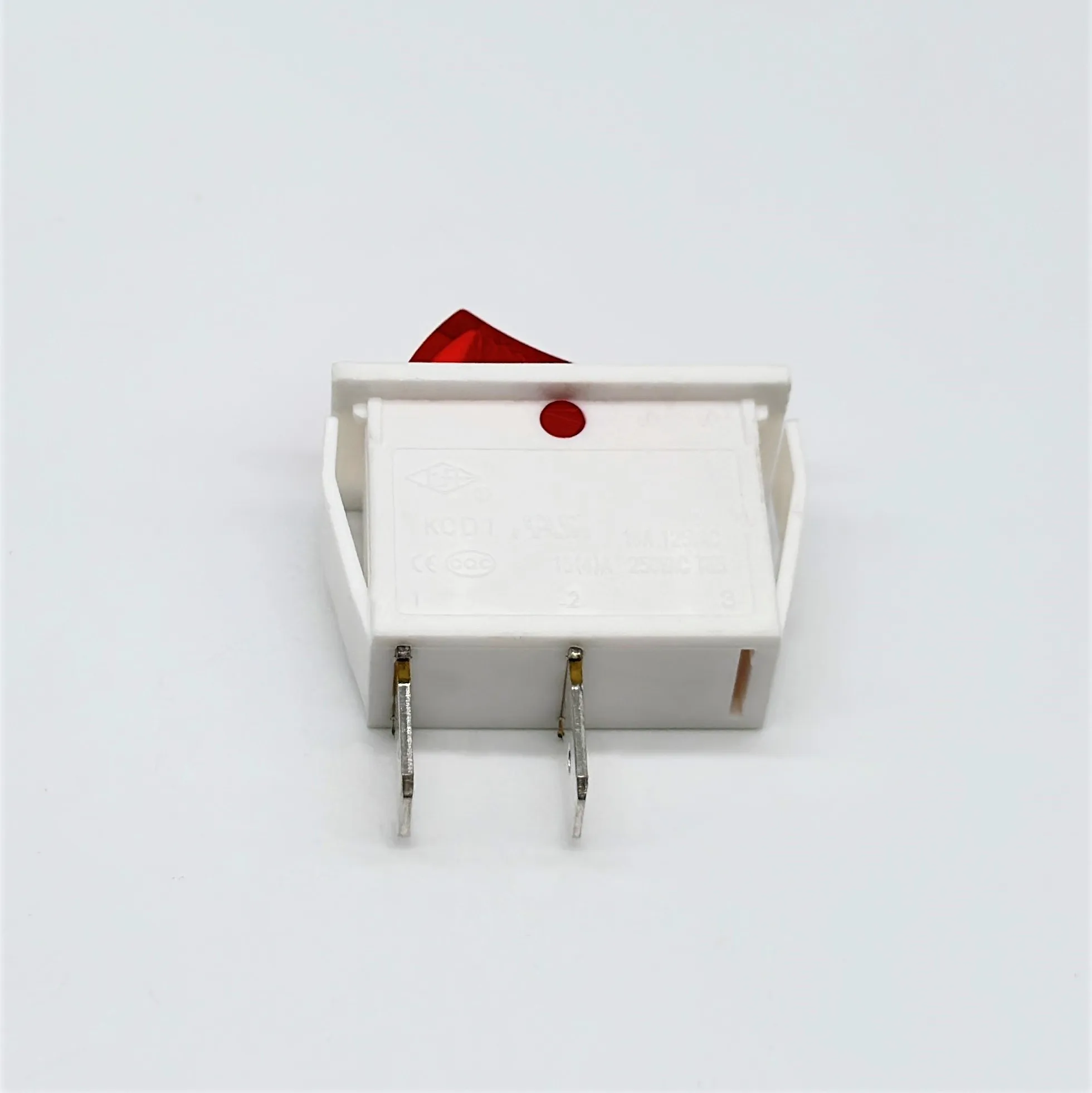

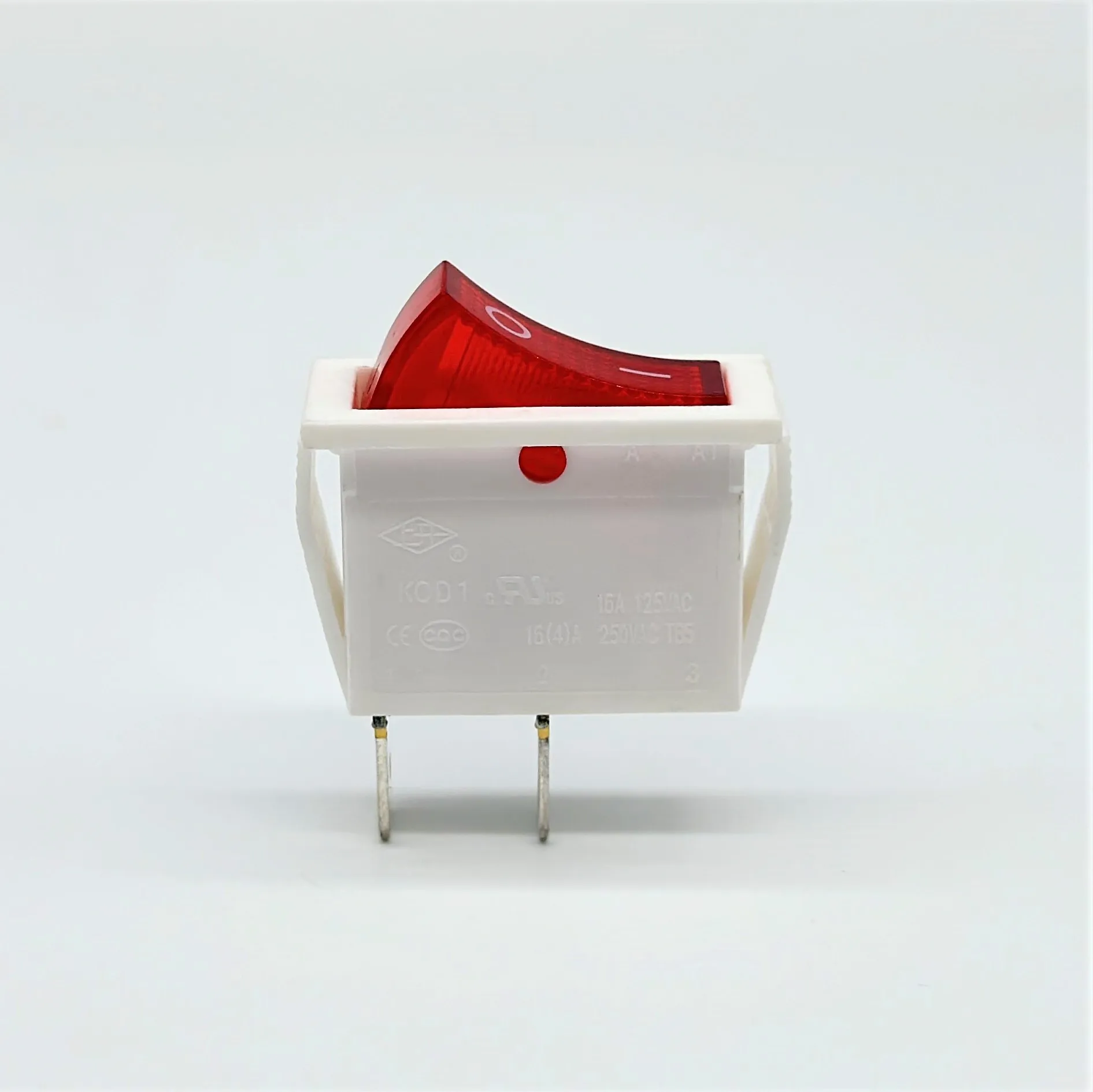

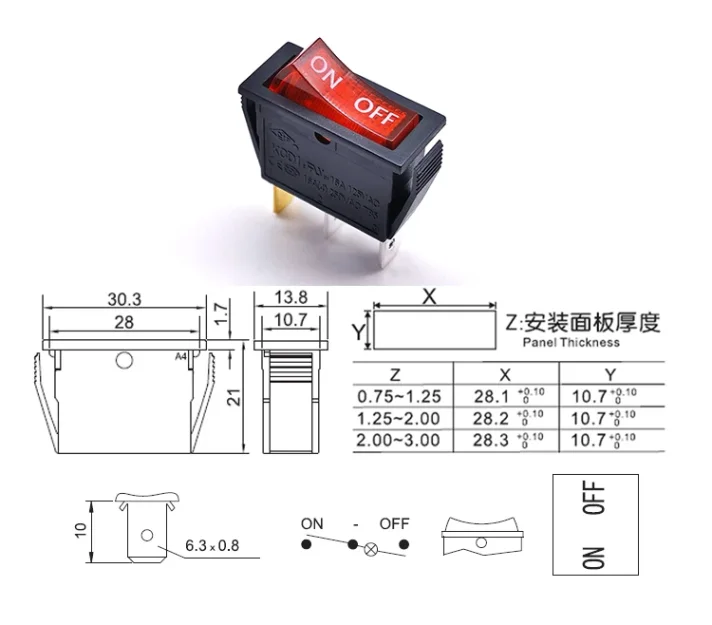

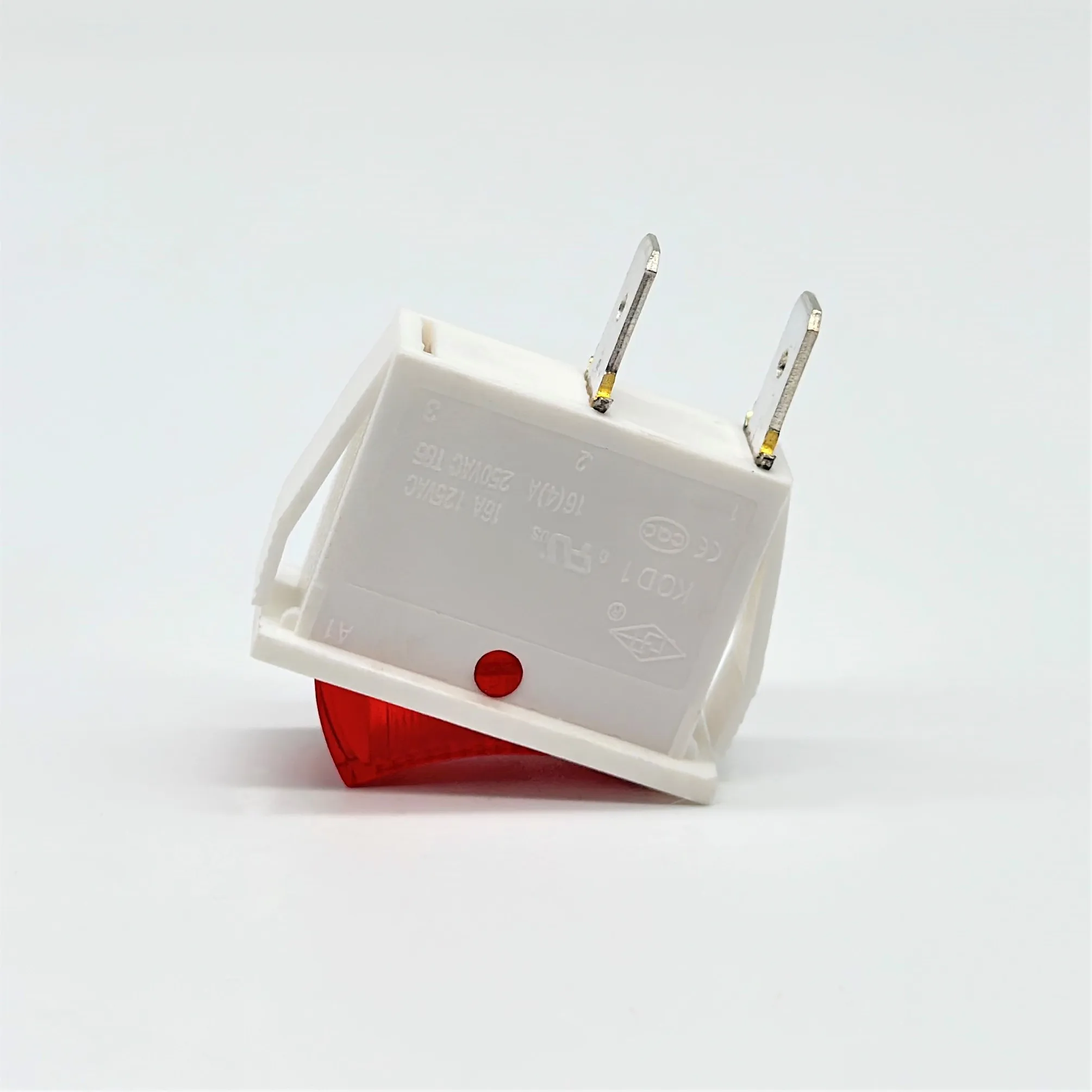

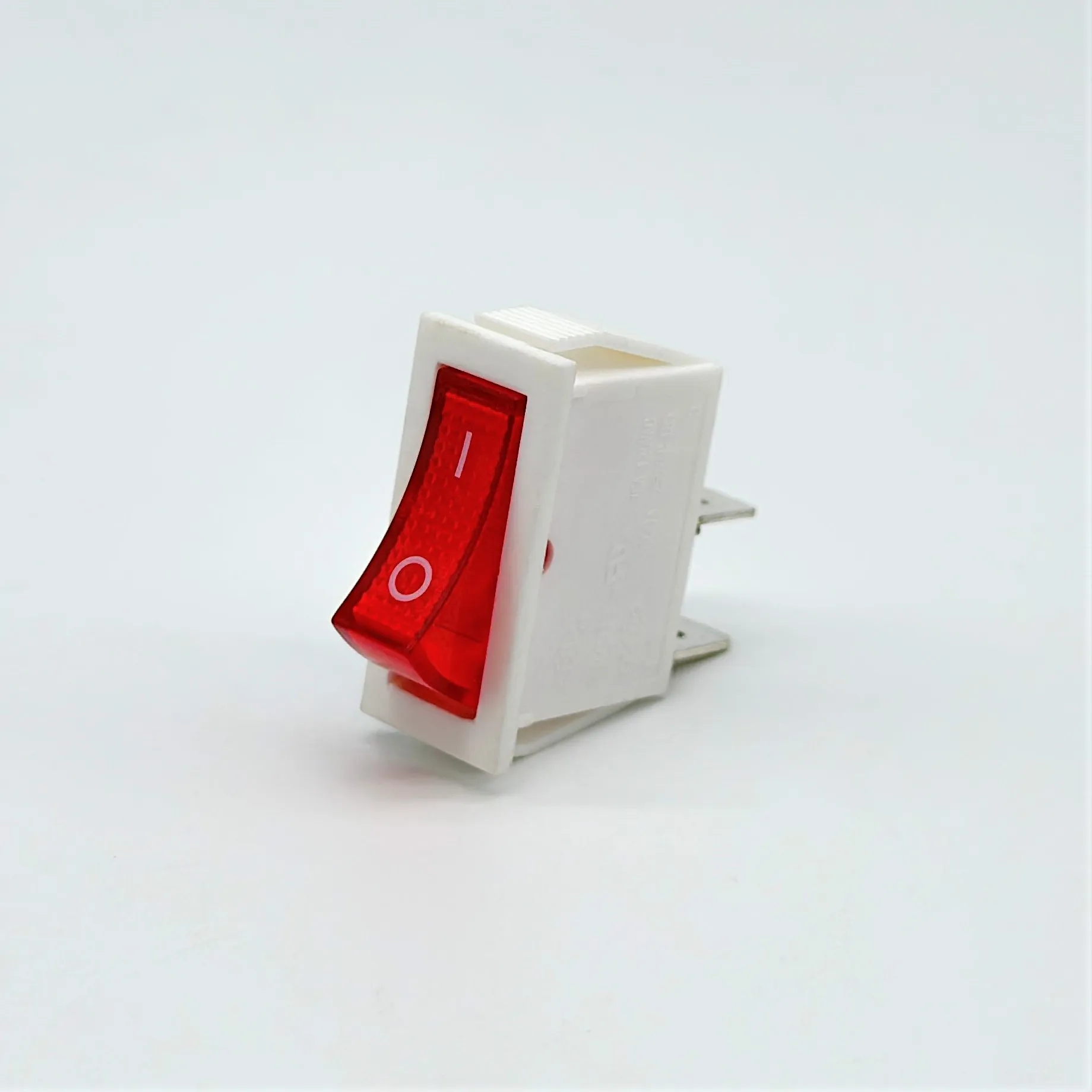

Our KCD1 3 Pin Rocker Switch is a high-quality, durable, and reliable electrical component designed for a wide range of applications. As a factory supplier, we offer wholesale pricing and direct access to our manufacturing capabilities. This switch features a 30A max current rating and a DC24V max voltage, making it suitable for various electrical appliances. The switch is equipped with a red LED light, providing clear indication of its status. With a mechanical life of 100,000 cycles and an electronic life of 10,000 cycles, it ensures long-lasting performance. The switch also boasts a dielectric strength of 1,500VAC for 1 minute, ensuring safety and reliability. The contact resistance is ≤50mΩ, and the insulation resistance is ≥1,000MΩ, further enhancing its performance. The operating temperature range is T85 to T125, making it suitable for a variety of environments. The switch has a SPST ON-OFF illuminated 3-pin circuit, a panel cutout of 28×11 mm, and a 6.3×0.8 mm standard terminal. The black housing with a red actuator provides a sleek and professional look. Our switch is made from PA66 material, ensuring durability and resistance to wear and tear. We offer competitive pricing, flexible packaging options (plastic bag + carton or plastic box + carton), and excellent customer service. Choose our KCD1 3 Pin Rocker Switch for your electrical needs and experience the difference in quality and performance.
