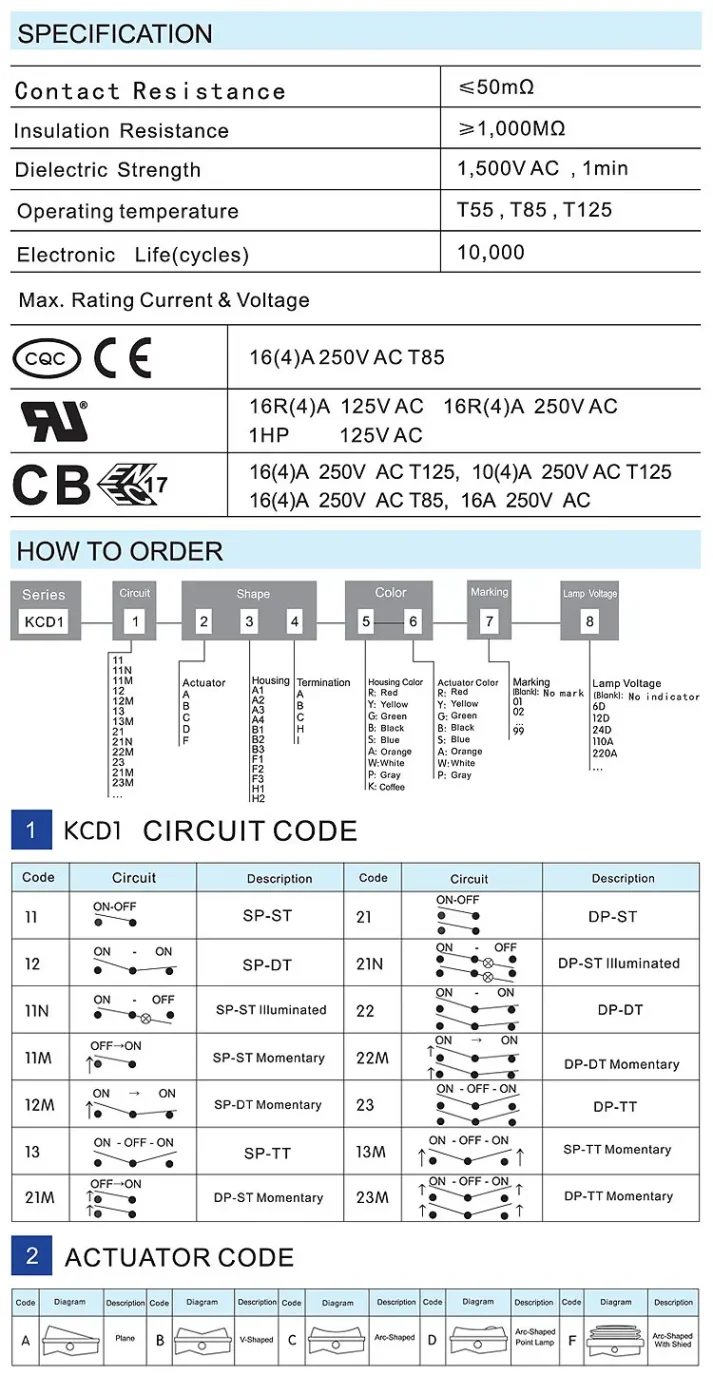

Description
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |

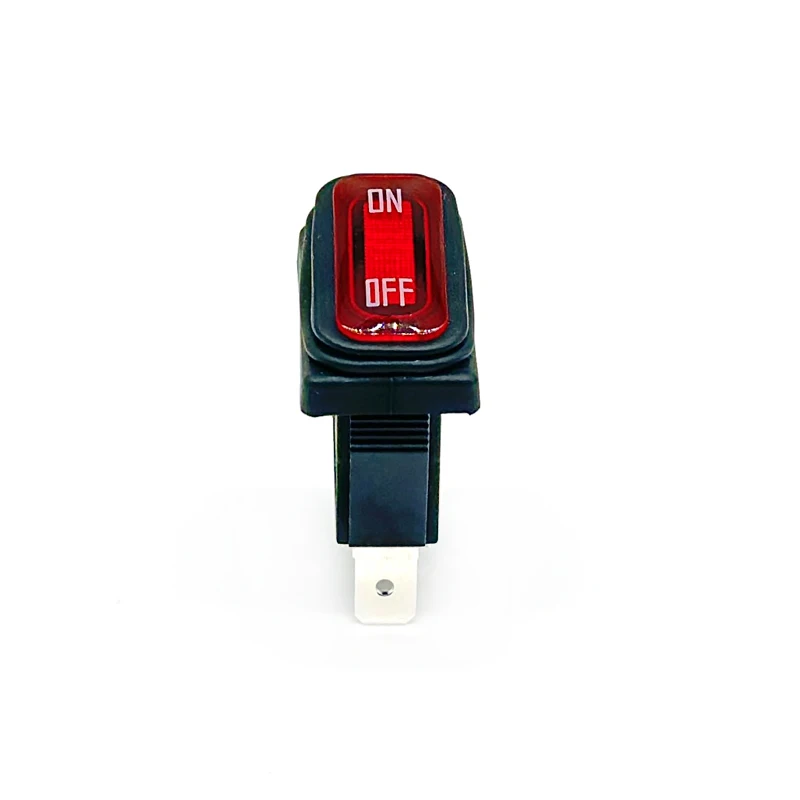

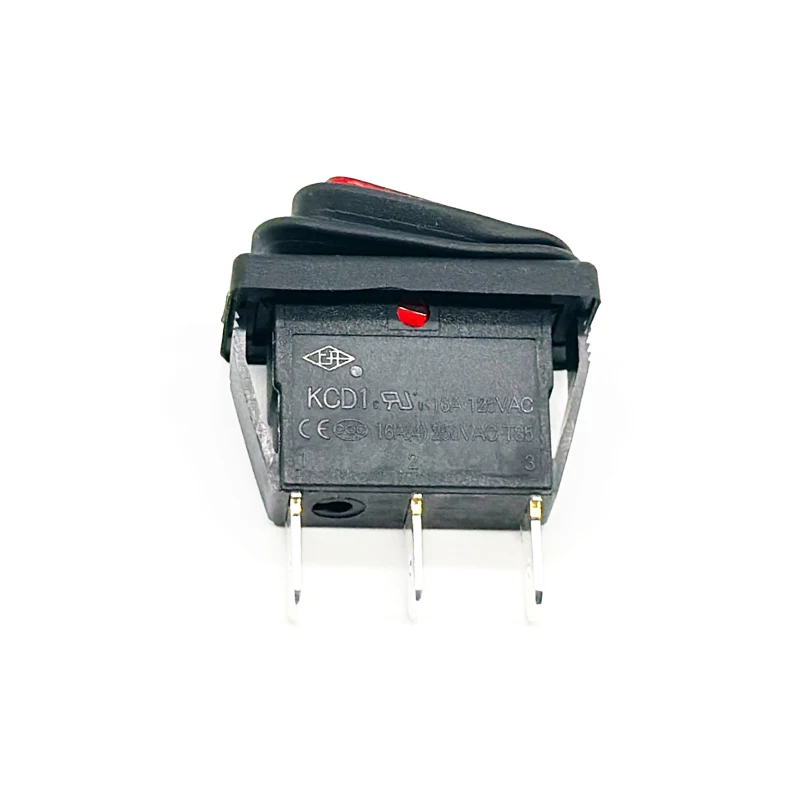

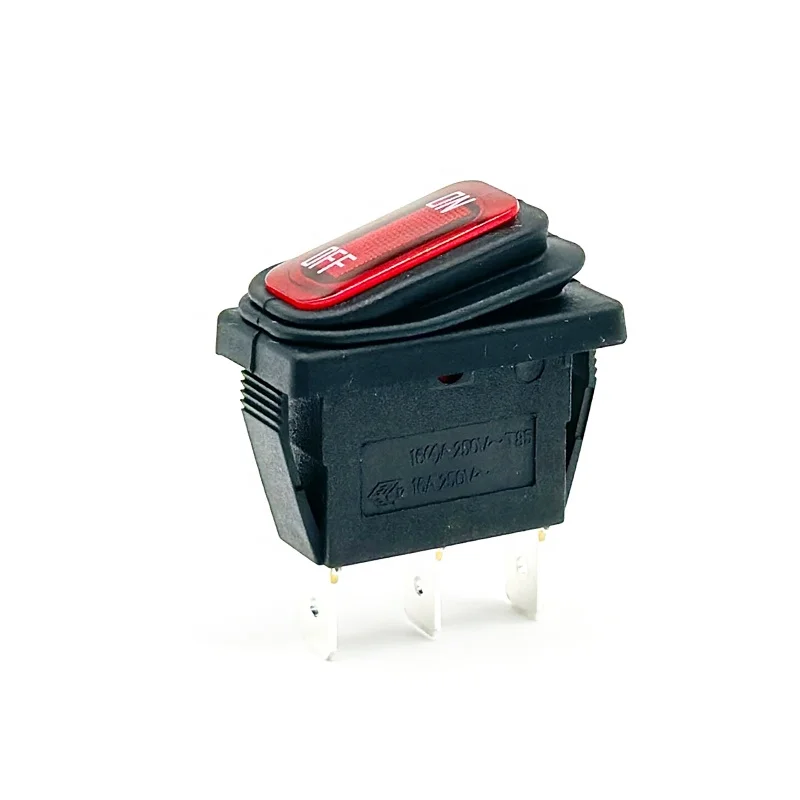

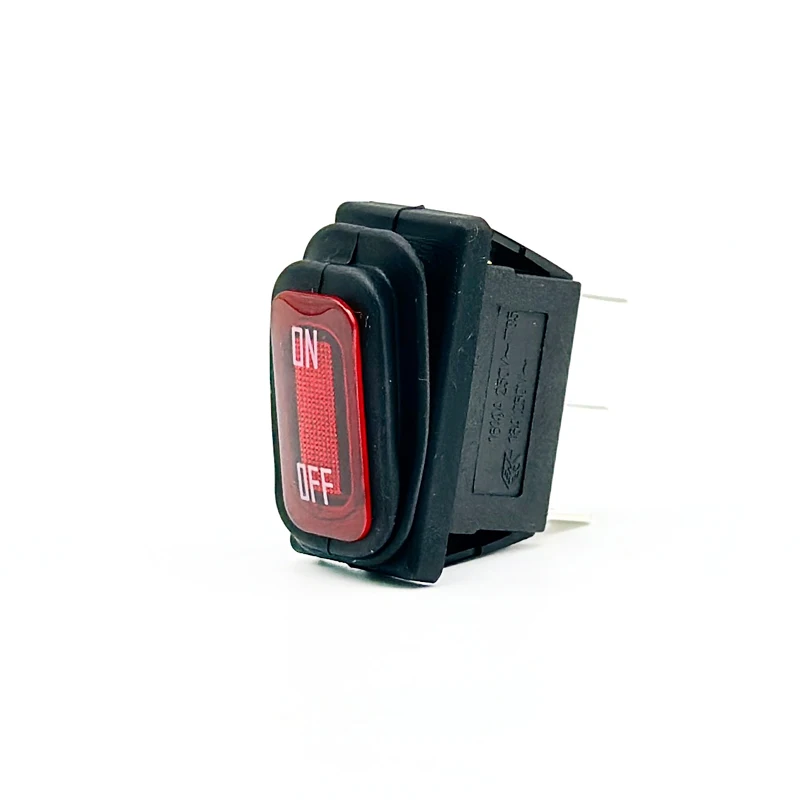

Why Choose Our KCD1 Rocker Switch?
Our KCD1 Rocker Switch stands out with its 16A 250V capacity, 3-pin design, and IP41 waterproof rating, making it ideal for various electric applications. Its long mechanical and electrical life ensure durability and reliability.
What Are the Key Features?
Key features include a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and dielectric strength of 1500V AC for 1 minute. It's available in multiple colors and certified by CQC, CE, UL, ENEC, and CB.
Why Buy from Us as a Factory Supplier?
As a factory supplier, we offer competitive wholesale pricing, bulk discounts, and excellent after-sales service. Our direct manufacturing ensures quality control and fast delivery times.
