Description
|
Certification
|
||
|
CQC CE
|
T85 AC 250v 16(4)A
|
|
|
UL
|
AC 125/250v 16R(4)A
AC 125v 1HP
|
|
|
CB ENEC17
|
T125 AC 250v 16(4)A / 10(4)A
T85 AC 250v 16(4)A
AC 250v 16A
|
|
|
Specification
|
||||||||
|
Contact Resistance
|
≤50mΩ
|
|||||||
|
Insulation Resistence
|
≥1000MΩ
|
|||||||
|
Dielectric Strength
|
AC 1500v,1min
|
|||||||
|
Operating Temperation
|
T55,T85,T125
|
|||||||
|
Electrical Life
|
10000
|
|||||||
|
How To Order
|
||||||||
|
Switch Details
|
series number -circuit code -actuator,housing,termination -housing color,actuator color -marking -lamp voltage
|
|||||||
|
Packing
|
||||||||
|
Plastic Box
|
First in plastic box , then in export carton,quantity varies according to switch size.
|
|||||||
|
Plastic Bag
|
Normally 100 pieces in one plastic bag, then in export carton, quantity varies according to switch size.
|
|||||||
|
Lead Time
|
||||||||
|
Quantity(Pieces)
|
1 – 3000
|
>3000
|
||||||
|
Est. Time(days)
|
30
|
To be negotiated
|
||||||
|
Shipping
|
||||||||
|
Port
|
Shanghai
|
|||||||

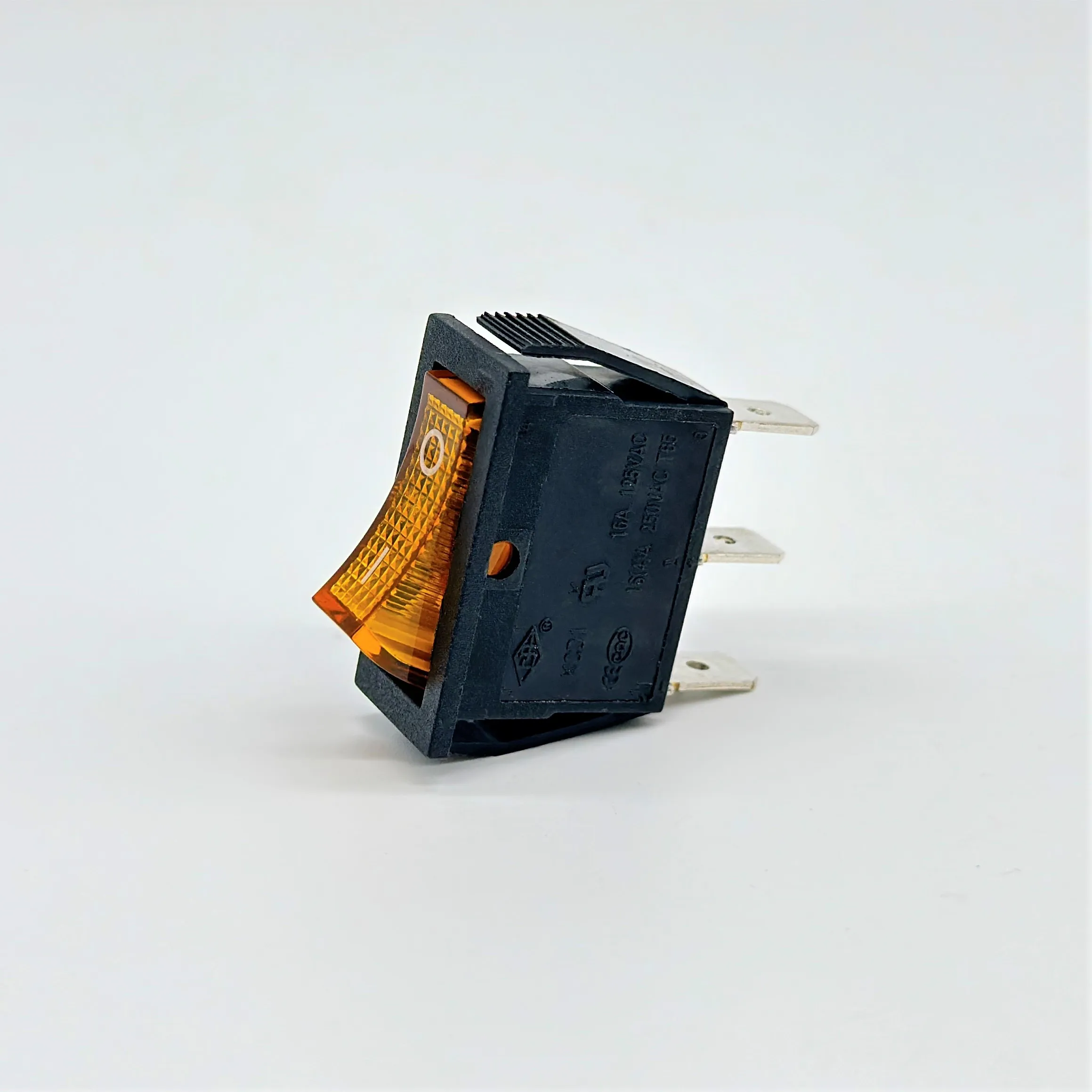

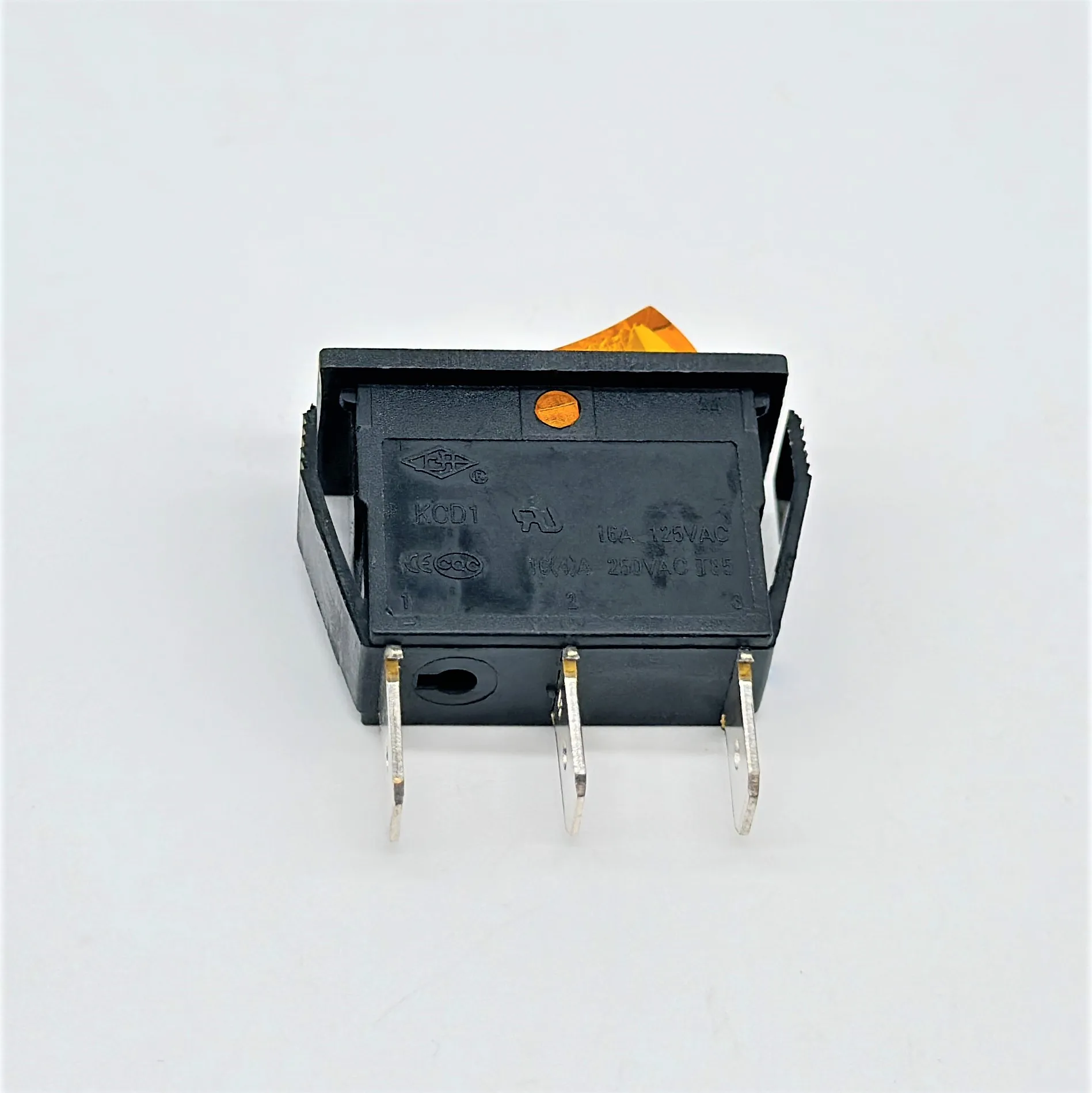

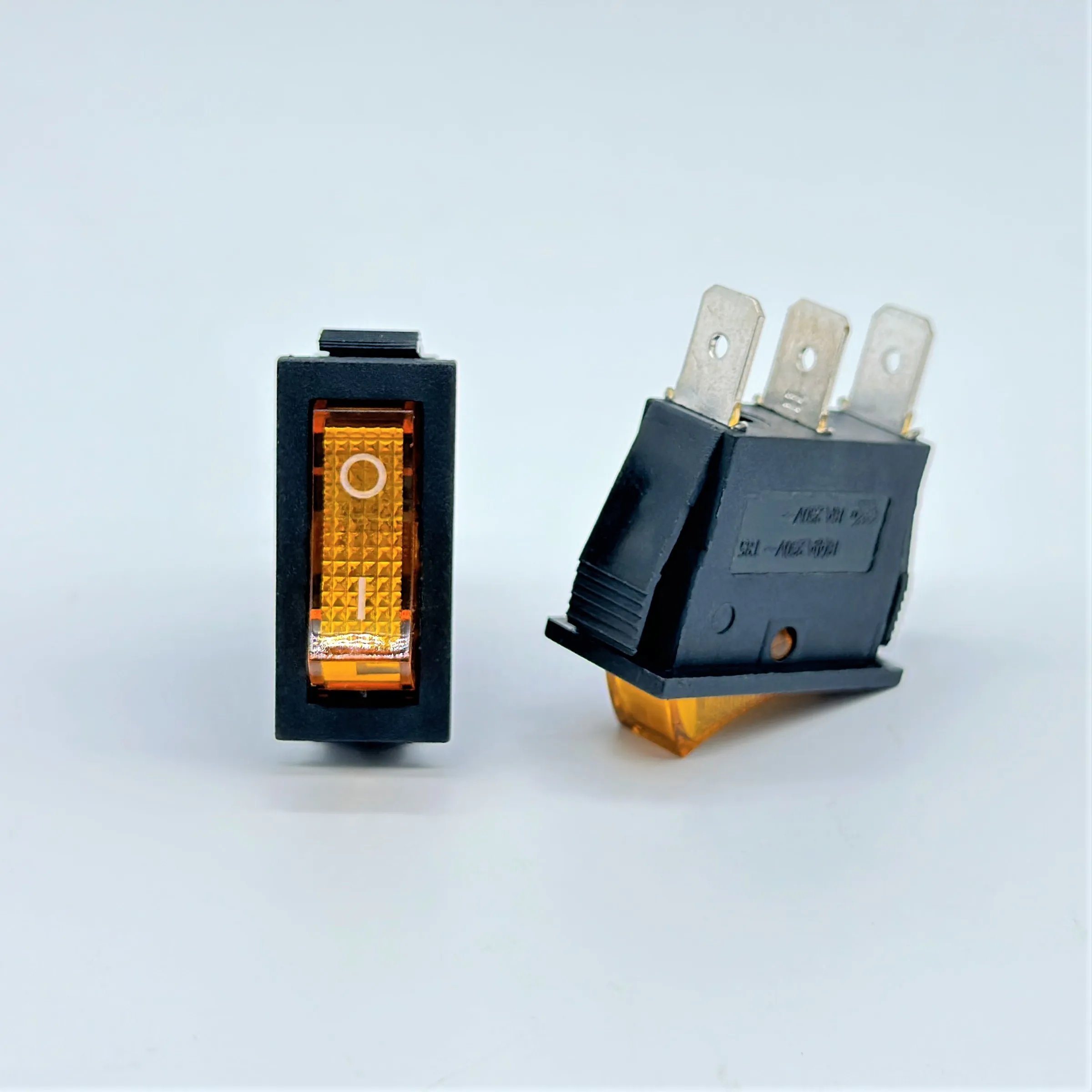

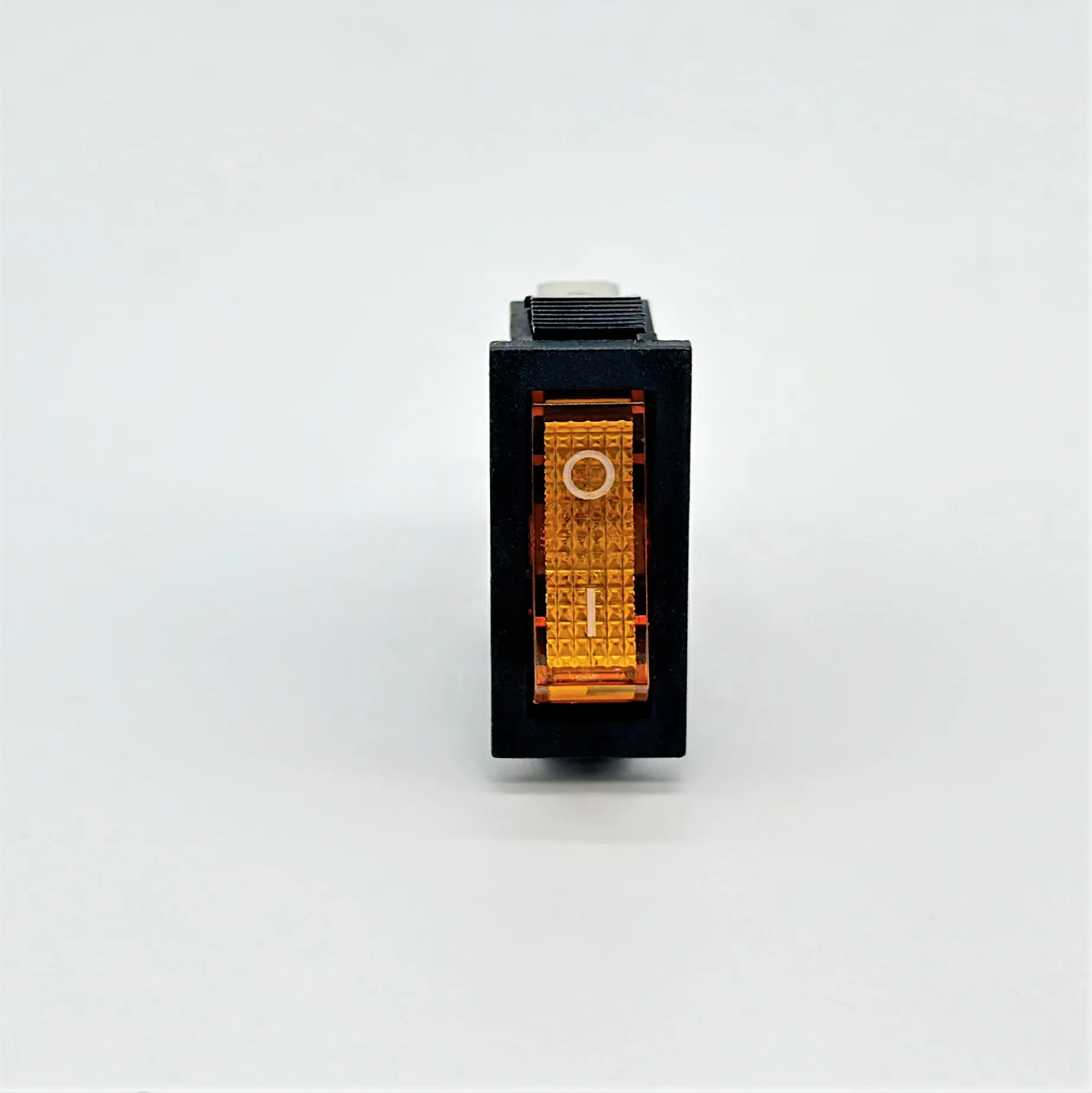

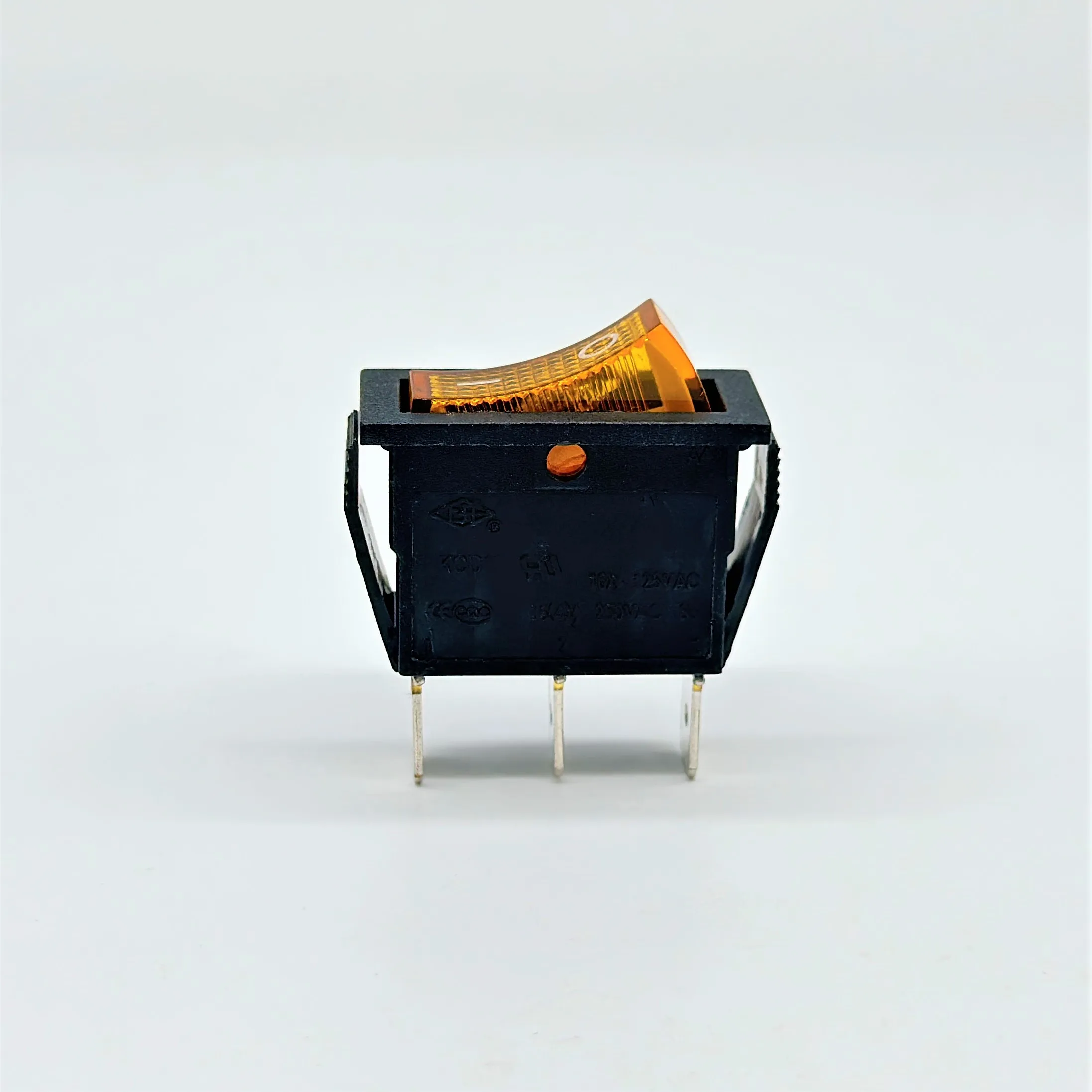

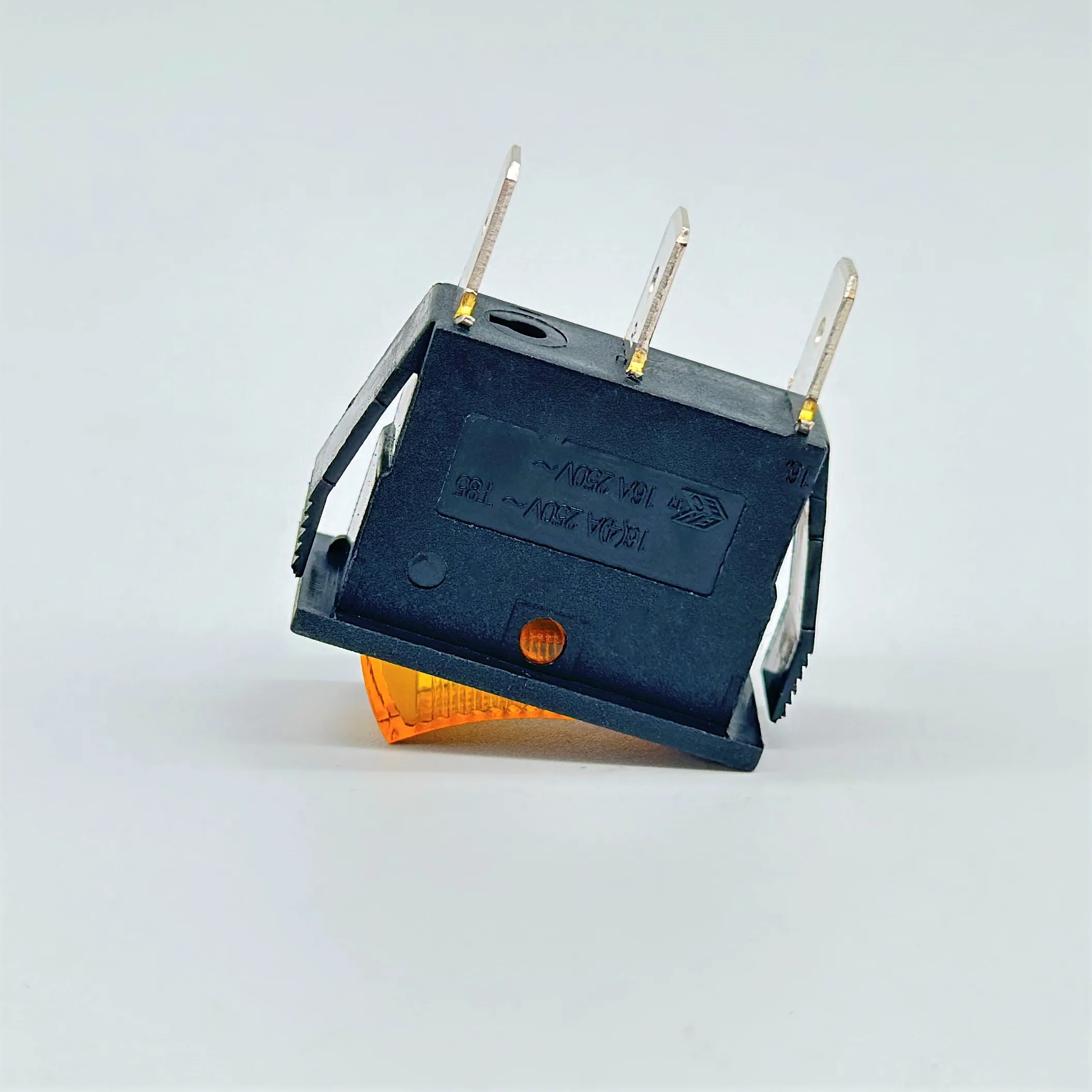

Why Choose Our KCD1 Rocker Switch?
Our KCD1 Rocker Switch stands out with its durable plastic construction, ensuring long-lasting performance. With a maximum current of 16A and a maximum voltage of 250VAC, it's perfect for a variety of electrical applications. The ON-OFF function and 3 terminals provide versatility, while the black base with a colorful button adds a touch of style.
What Makes Our Switch Reliable?
Certified by CQC, CE, and ROHS, our switch meets international safety standards. It features a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and dielectric strength of 1500VAC for 1 minute, guaranteeing excellent electrical performance. The mechanical life of over 10,000 cycles and an electrical life of 10,000 operations ensure reliability and durability.
How Can You Benefit from Buying Wholesale?
As a factory direct supplier, we offer competitive pricing and flexible order quantities. Buying wholesale from us means you get high-quality products at a lower cost, perfect for businesses looking to stock up on electrical components. Enjoy fast shipping from Shanghai and reliable customer service.
