Description

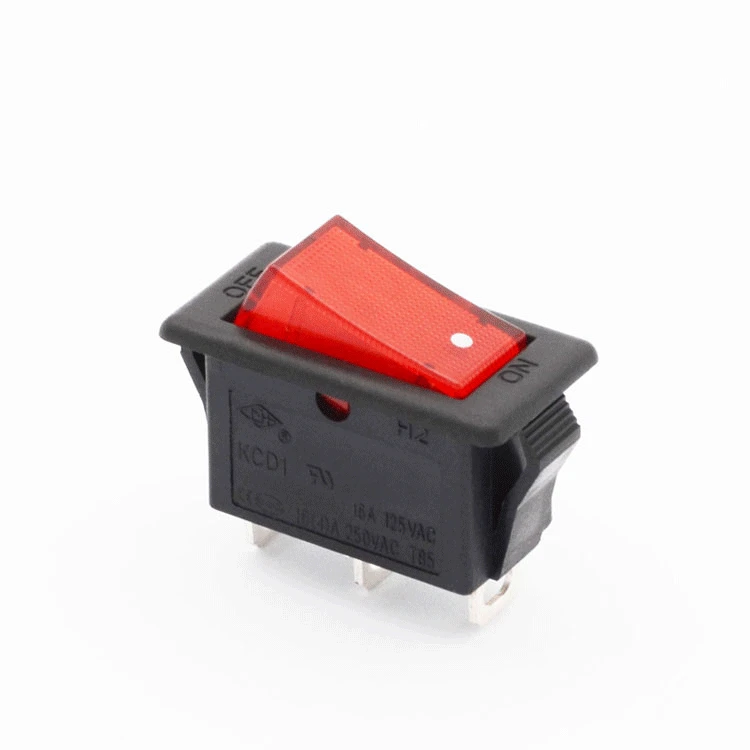

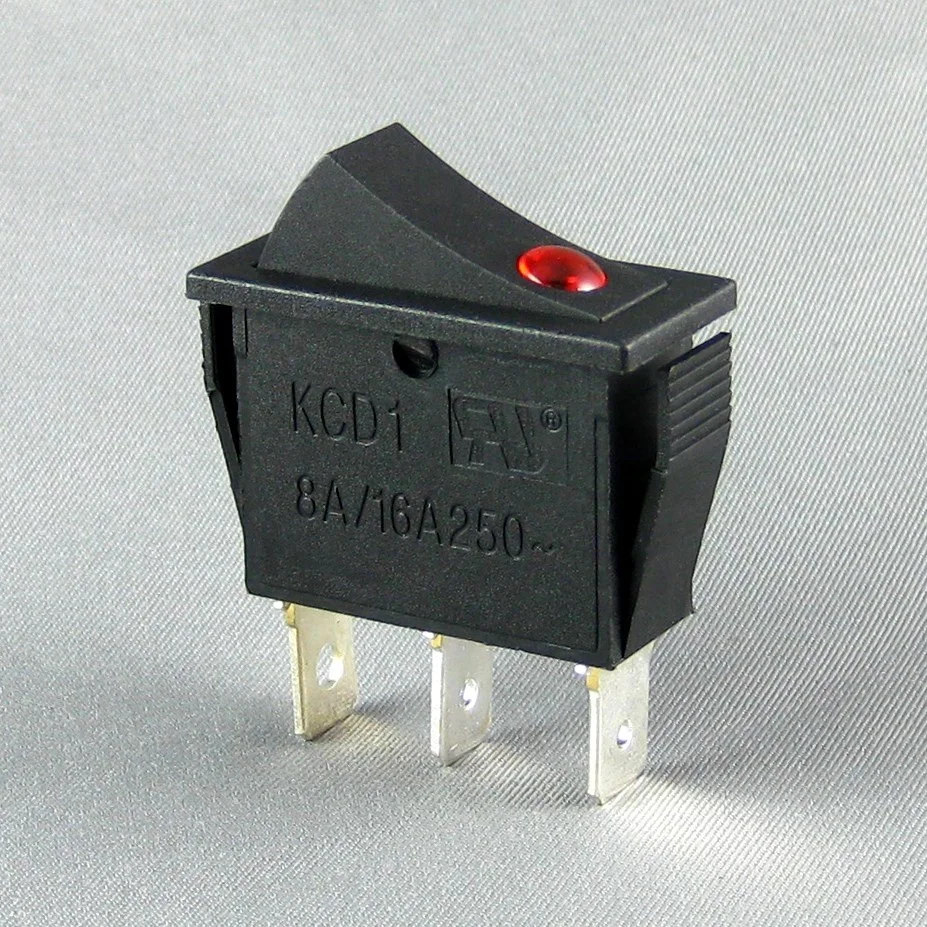

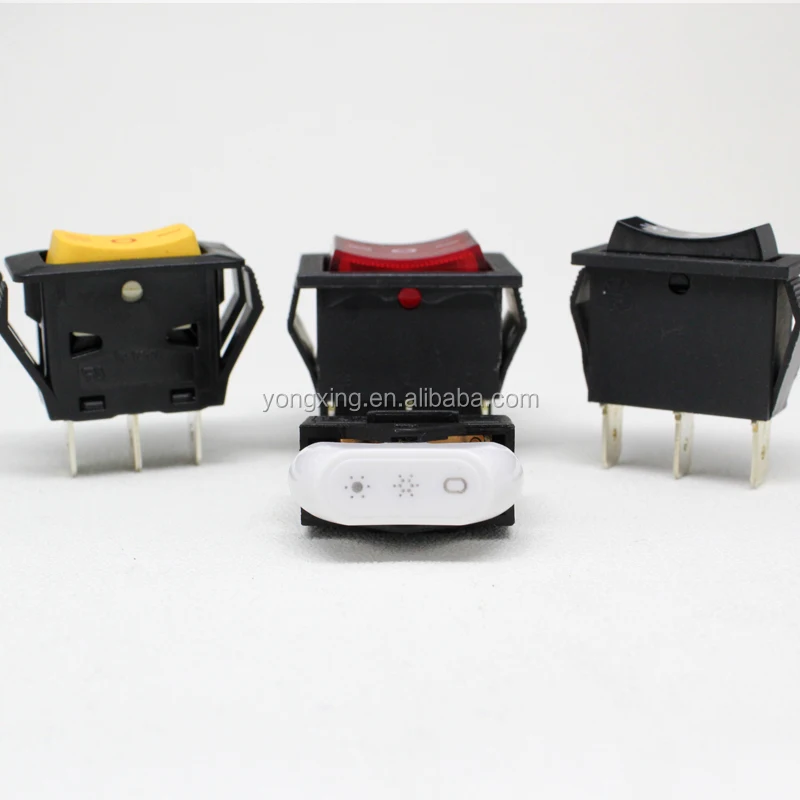

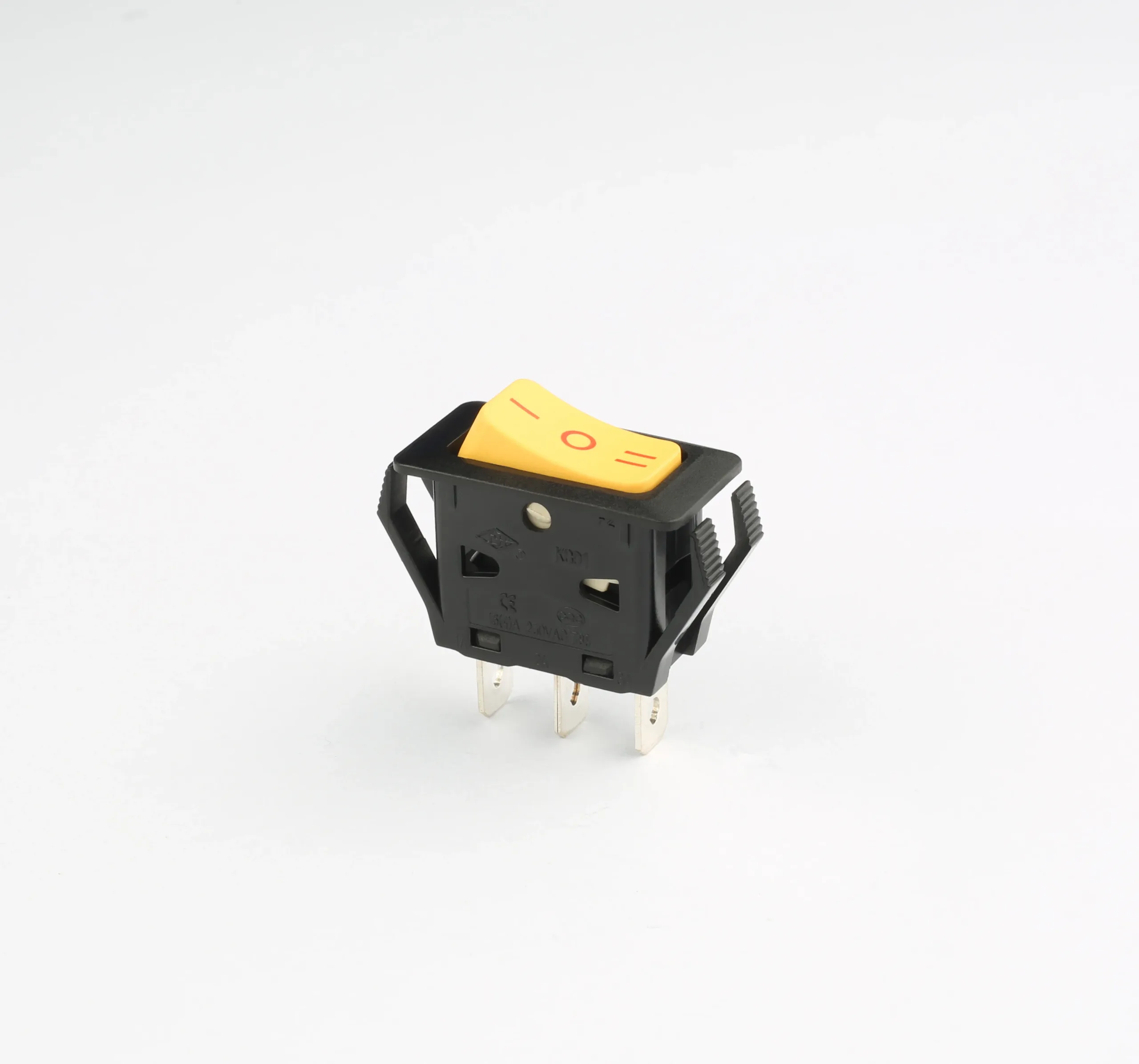

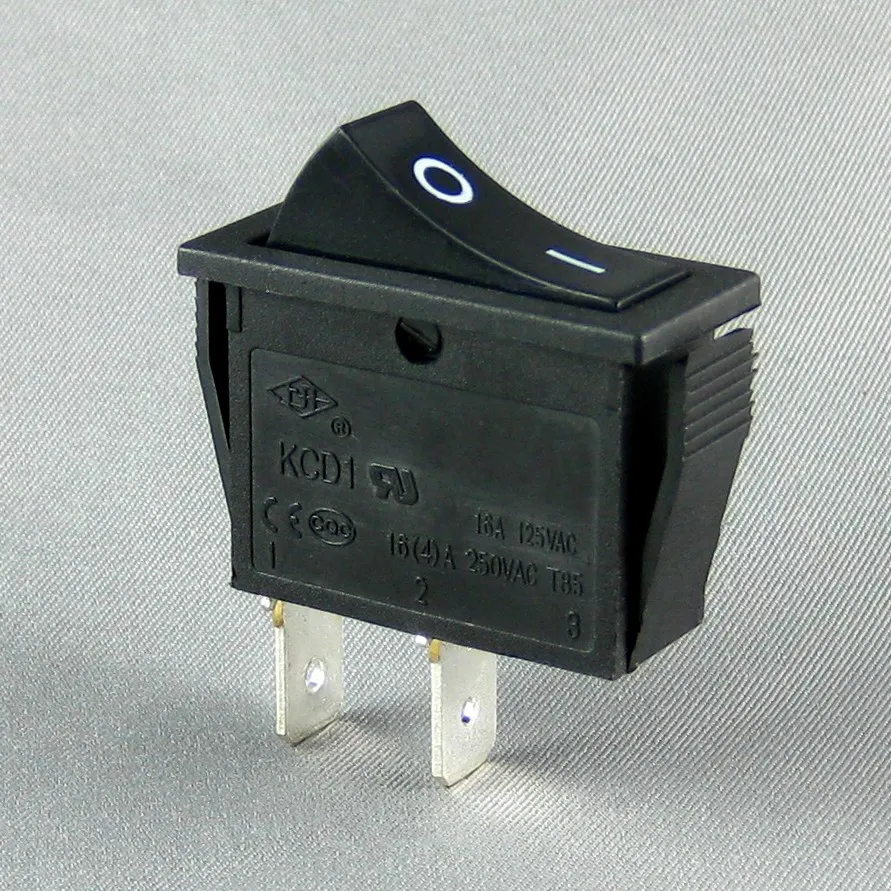

| Name | KCD1 Rocker Switch |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 1500V AC, 1min |
| Operating Temperature | T55,T85,T125 |
| Electronic Life(cycles) | 10000 |
| Max.Rating Current&Voltage | |
 |
16(4)A 250V AC T85 |
 |
16R(4)A 125V AC 16R(4) 250V AC 1HP 125VAC |
 |
14(4)A 250V AC T125, 10(4)A 250V AC T125 16(4)A 250V AC T85, 16A 250V AC |
Why Choose Our KCD1 Rocker Switch?
Our KCD1 Rocker Switch stands out with its UL and CE certifications, ensuring top safety and quality standards. As a factory supplier, we offer wholesale pricing and customization to meet your unique needs, making it a cost-effective and versatile choice.
What Are the Key Features of This Switch?
The switch features a 28*11 mm panel size, SPST/SPDT configurations, and both ON-OFF and ON-OFF-ON functionality. It has a low contact resistance, high insulation resistance, and strong dielectric strength, ensuring reliable performance in various conditions.
How Can We Benefit from Your Factory Production?
Our factory, equipped with advanced equipment and managed by over 60 senior engineers, ensures high-quality production. We implement 5S management across all workshops, guaranteeing efficiency and precision. Choose us for reliable, high-quality switches at competitive prices, backed by our factory's expertise and commitment to excellence.
