Description
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |

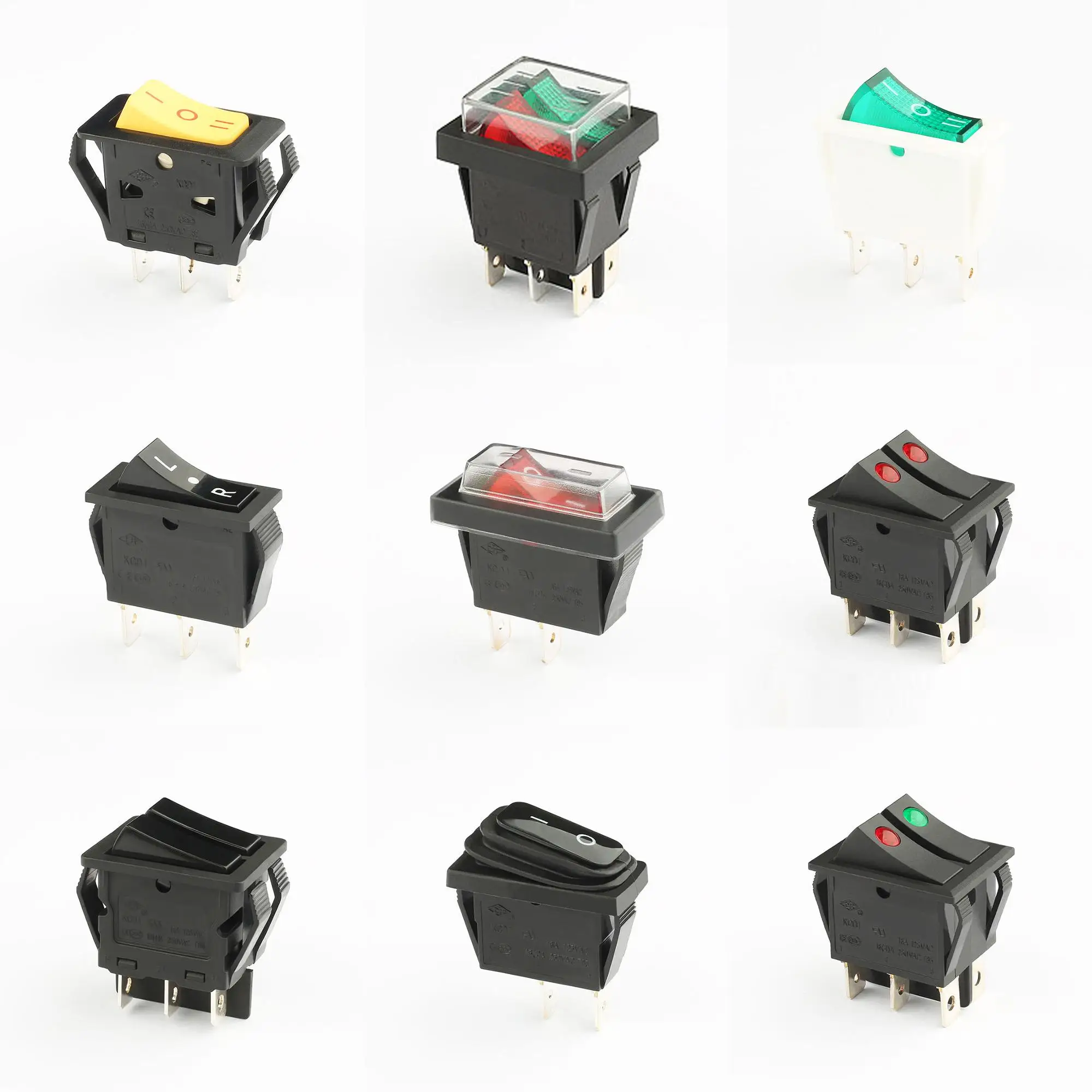

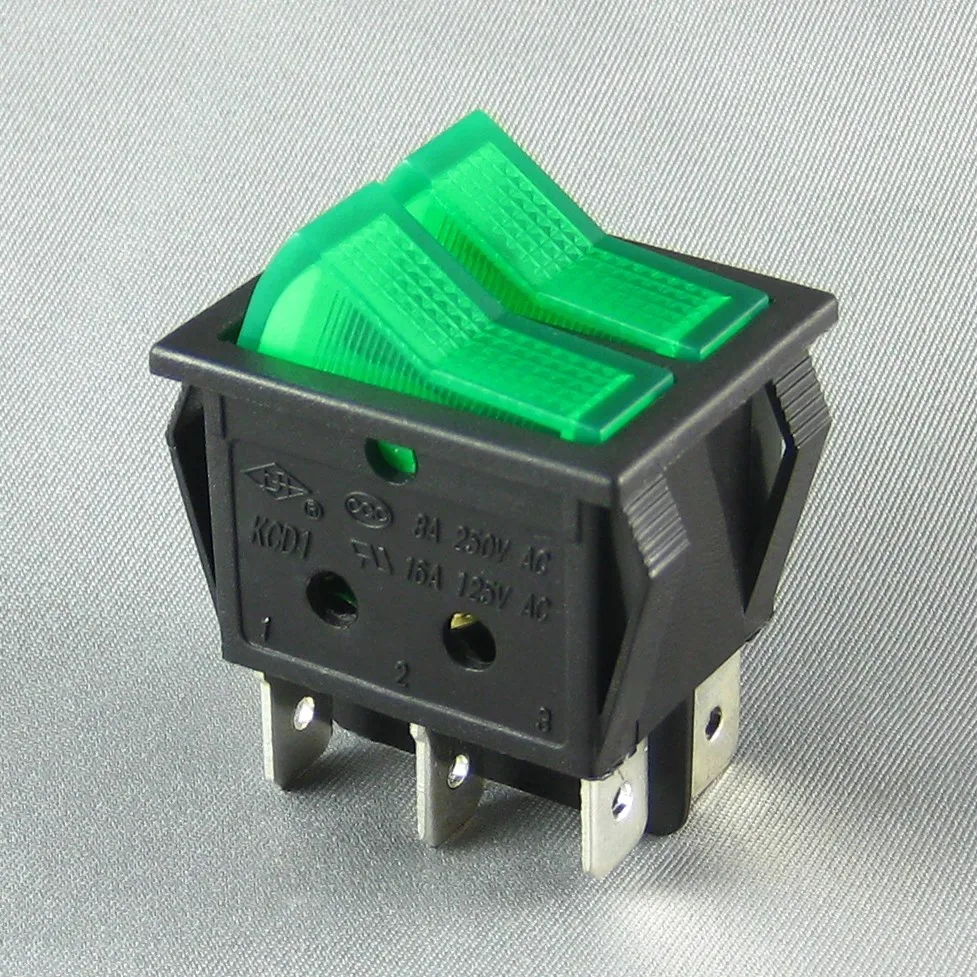

Why Choose Our KCD1 Rocker Switch?

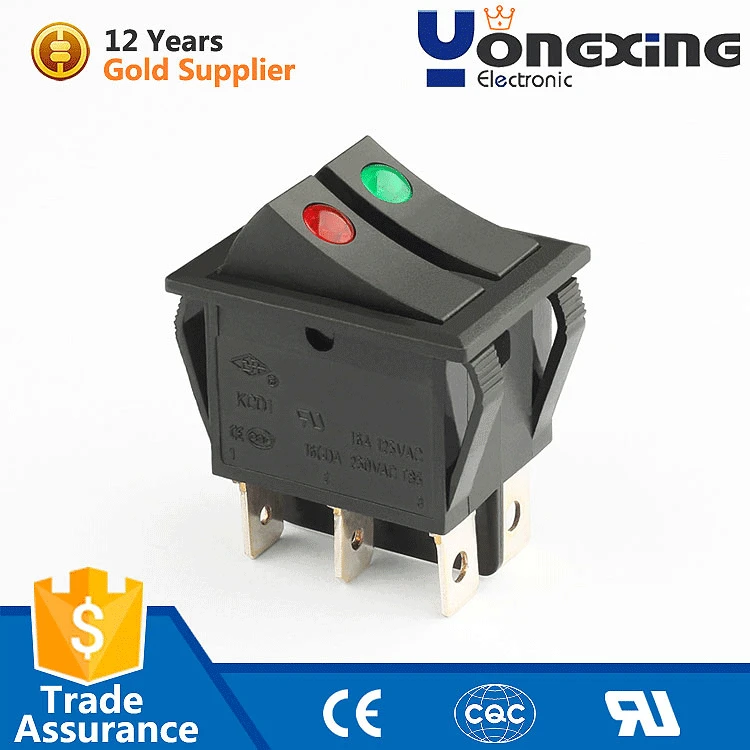

Our KCD1 Rocker Switch stands out for its durability, reliability, and versatility. With IP41 and IP65 waterproof and dustproof ratings, it's perfect for use in cars, industrial machinery, and electric equipment. The red and green LED light indicator ensures easy visibility, even in low-light conditions.
What Are the Key Features?

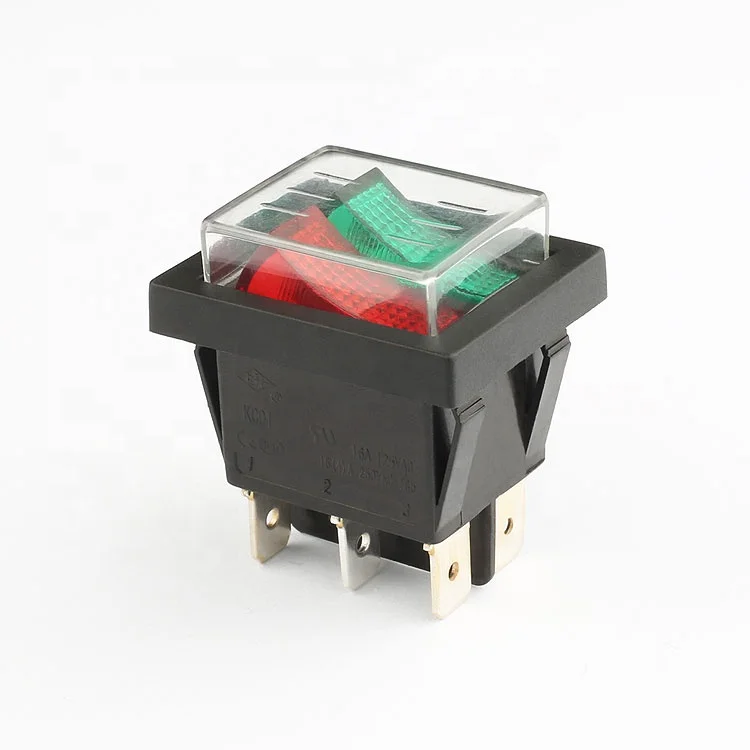

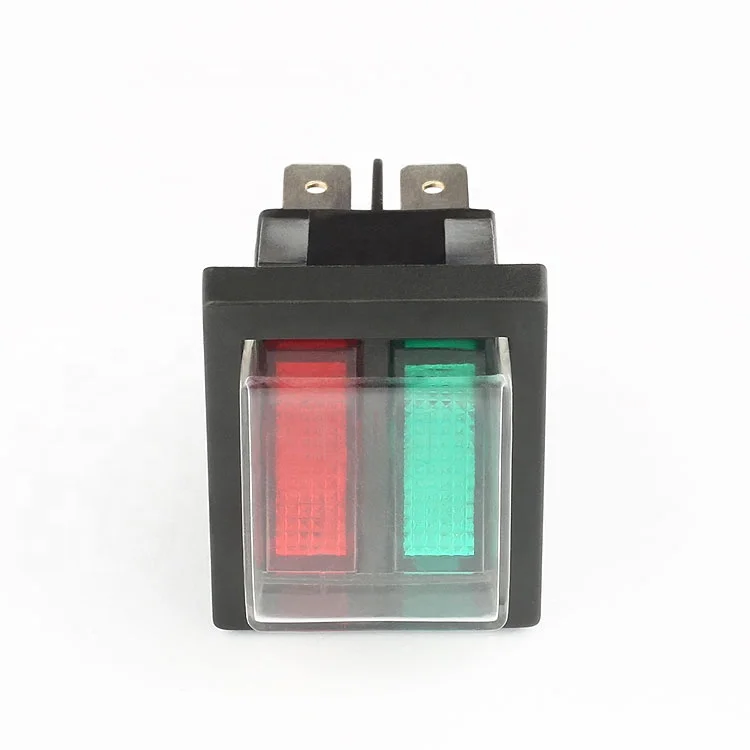

The switch is rated at 16A 250VAC, with a DPST circuit description, and offers a mechanical life of up to 100,000 cycles. It's made from durable plastic and comes with a waterproof cap, ensuring long-lasting performance. Additionally, it's certified by CQC, CE, UL, ENEC, and CB, guaranteeing its quality and safety.
Why Buy from Us?
As a factory supplier, we offer wholesale prices and direct shipping from our factory. We also provide customization options and excellent after-sales service. Choose us for reliable performance, great value, and peace of mind.
