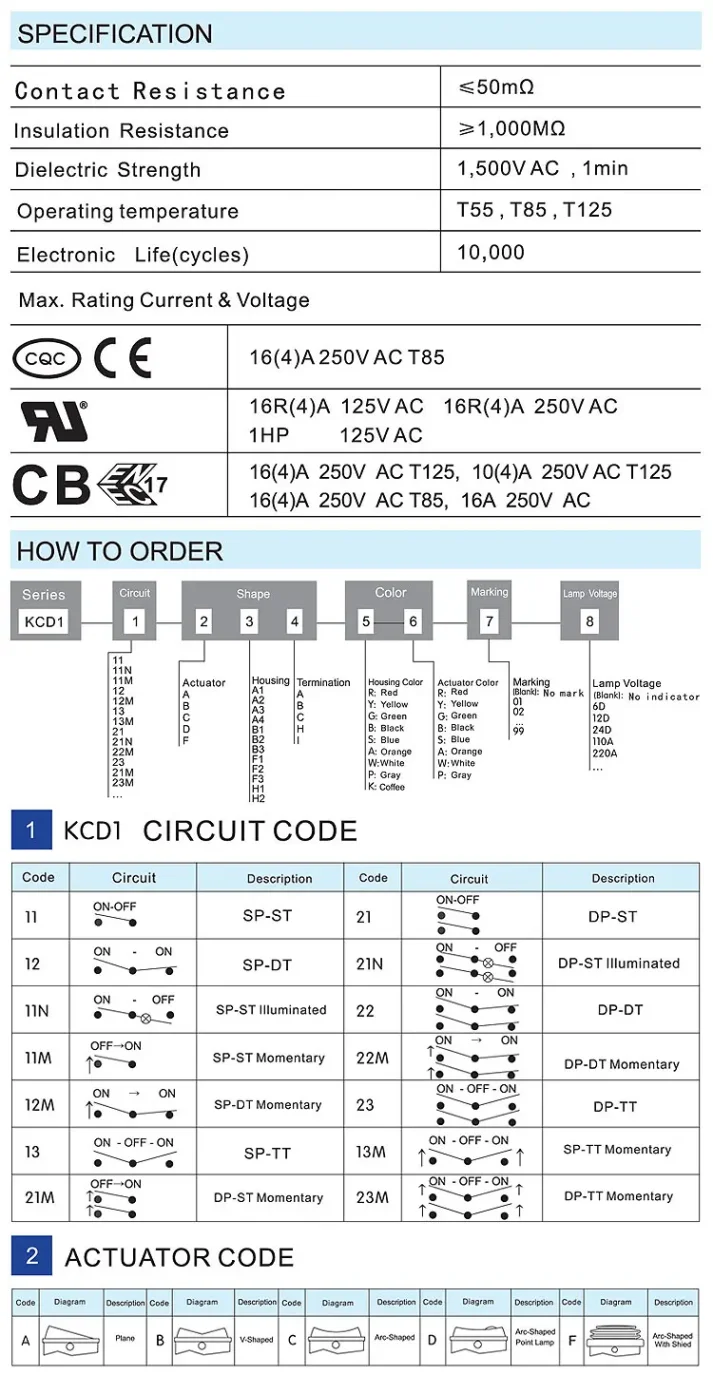

Description
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |

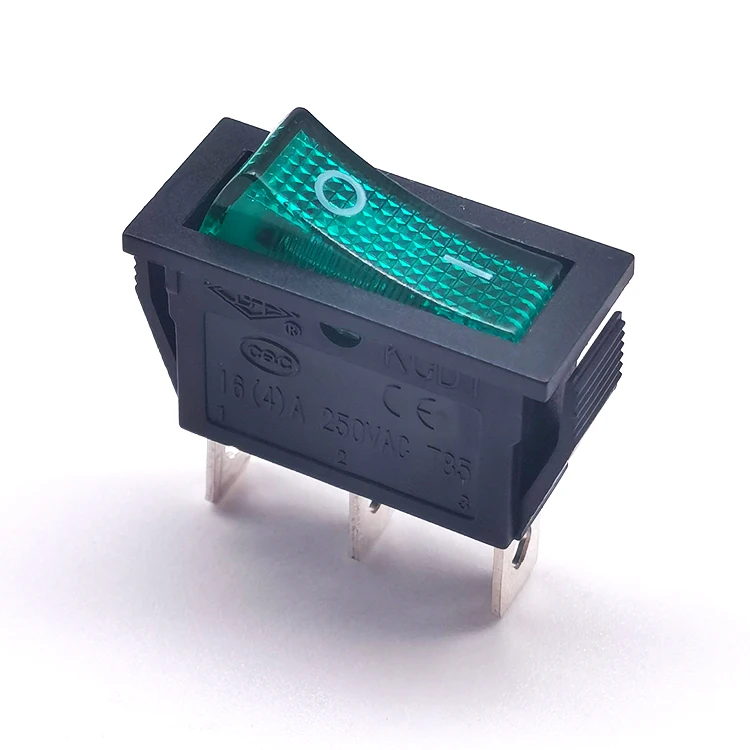

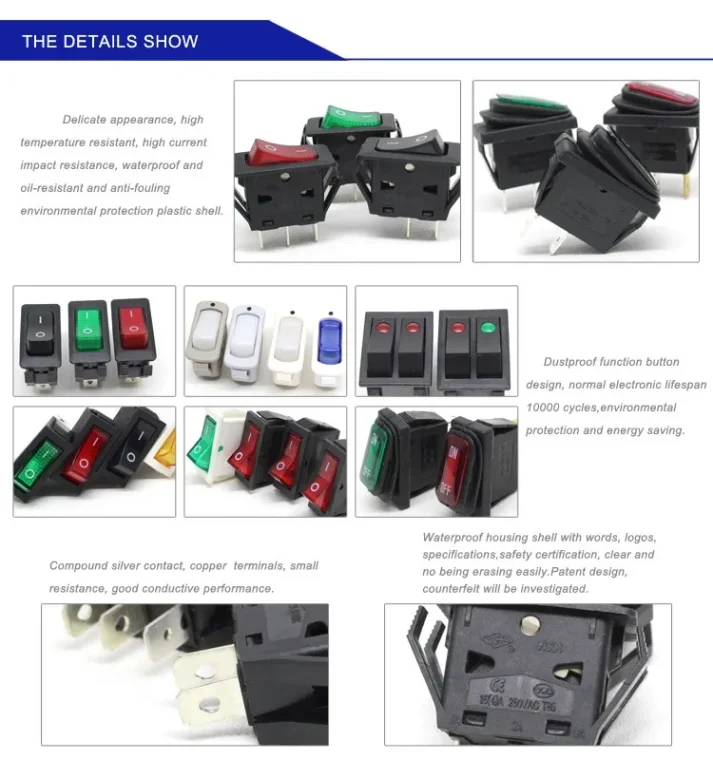

Why Choose Our KCD1 Rocker Switch?
Our KCD1 Rocker Switch stands out for its durability, reliability, and clear indication with red LED illumination. With a mechanical life of up to 100,000 cycles and an electronic life of 10,000 cycles, it ensures long-lasting performance. The low contact resistance and high insulation resistance guarantee efficient and safe operation. Ideal for electronic applications, control systems, and industrial equipment.
What Certifications Does Our Switch Have?
Our KCD1 Rocker Switch comes with CQC, CE, CB, and ENEC17 certifications, meeting international safety standards. This ensures compatibility and reliability in various markets and applications.
Why Buy Wholesale from Us?
As a factory-direct supplier, we offer wholesale pricing on our KCD1 Rocker Switch, making it a cost-effective choice for your projects. With excellent after-sales service and a commitment to quality, we ensure a smooth purchasing experience and long-term satisfaction.
