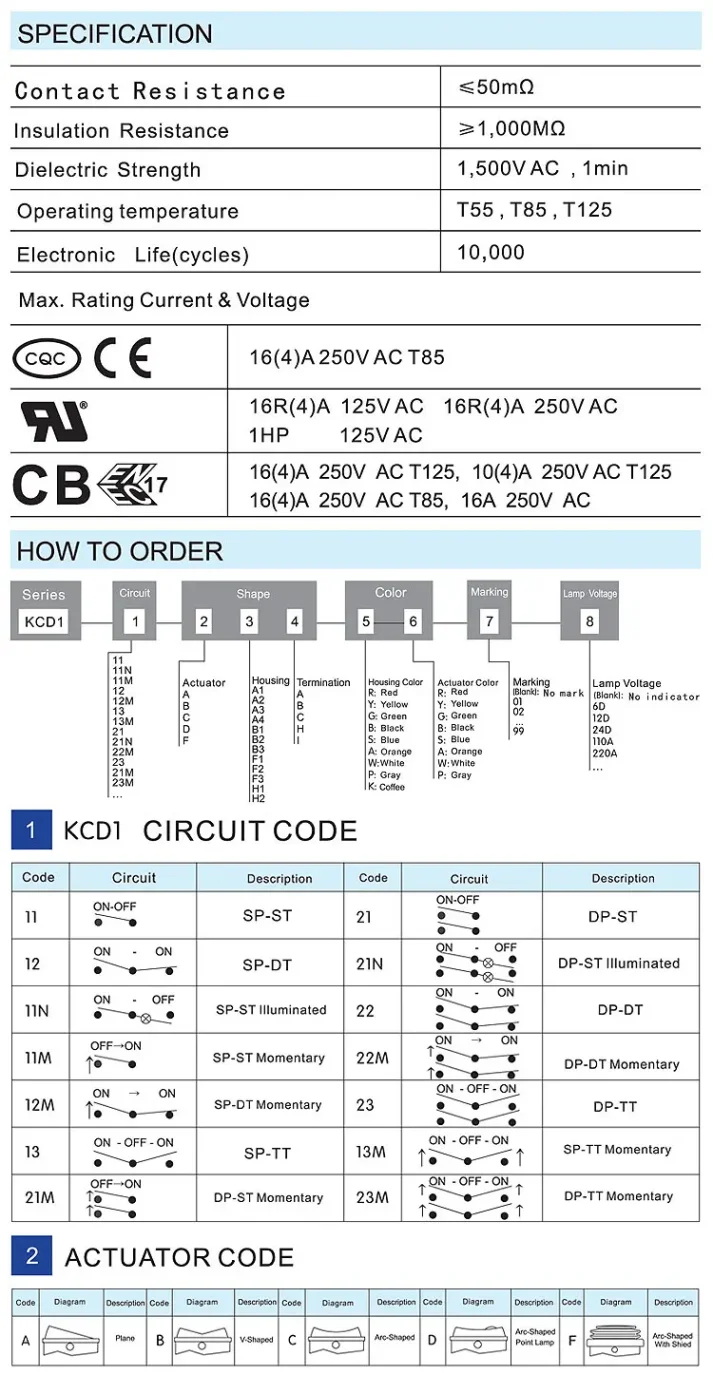

Description
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |

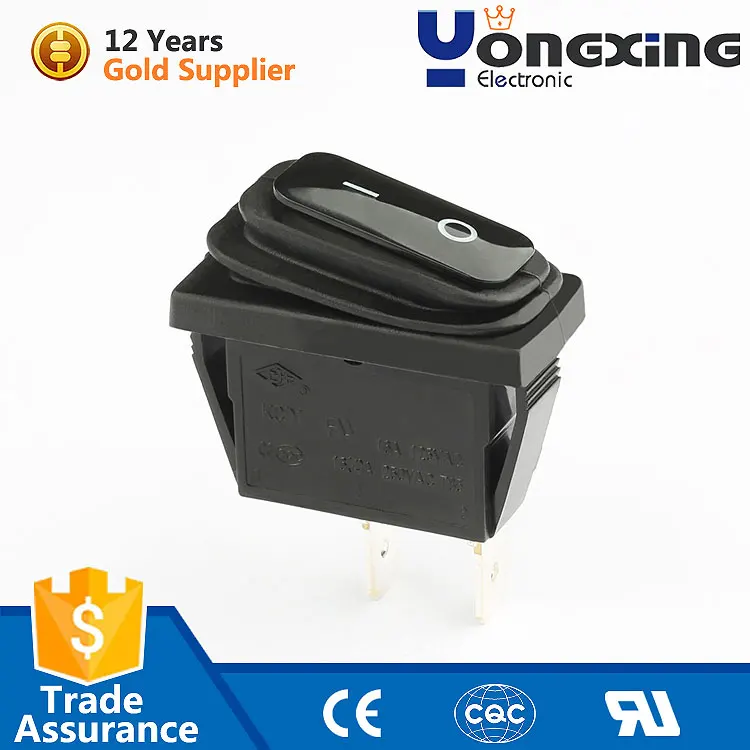

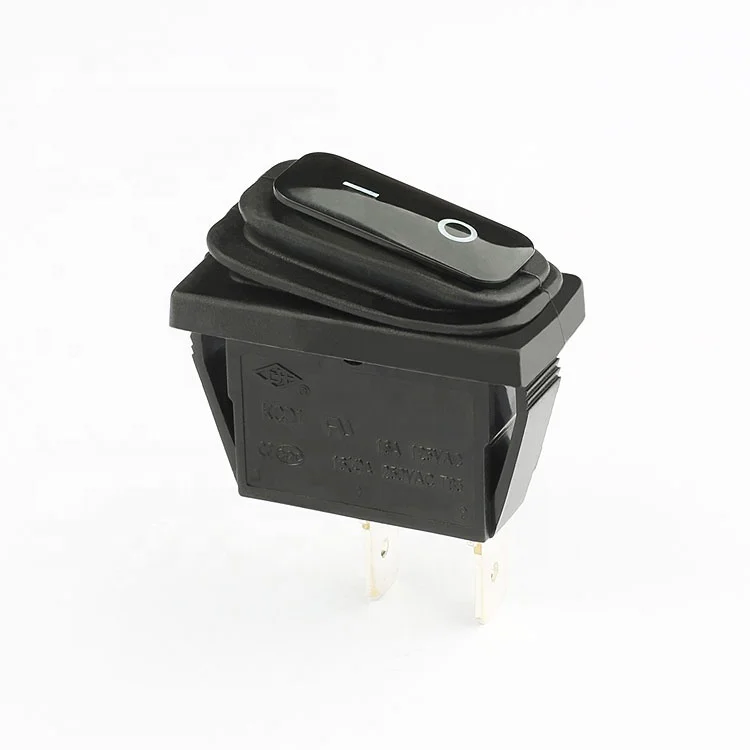

Why Choose Our KCD1 Waterproof Rocker Switch?
Our KCD1 Waterproof Rocker Switch is designed for durability and performance, making it ideal for a wide range of applications including cars, industrial equipment, and electric appliances. With a max current of 16A and a max voltage of 250V, it ensures reliable operation under various conditions.

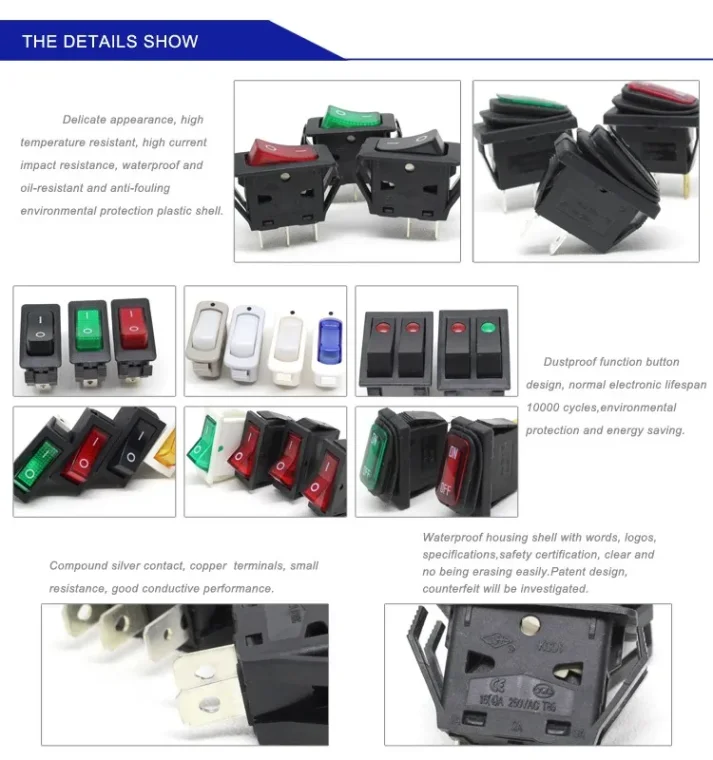

What Are the Key Features of Our Switch?
Our switch features an IP41 or IP65 waterproof rating, ensuring it can withstand harsh environments. It also has a long mechanical life of 50,000-100,000 cycles and electronic life of 10,000 cycles, guaranteeing long-term reliability. Additionally, it meets multiple certifications including CQC, CE, UL, ENEC, and CB, ensuring its quality and safety.
Why Buy from Us as a Factory Supplier?
As a factory supplier, we offer wholesale prices and excellent after-sales service. We have strict quality control measures in place to ensure every switch meets our high standards. Contact us today for more information and to place your order.
