Description
Key Features:
– Max. Rating: 10A 250V AC
– Contact Resistance: ≤50mΩ
– Insulation Resistance: ≥100MΩ
– Electronic Life: 10,000 cycles
– Mechanical Life: >10,000 cycles
– Operation Temperature: 0°C to +105°C
– Dielectric Strength: 1500V
– Certifications: CQC, CE, ROHS

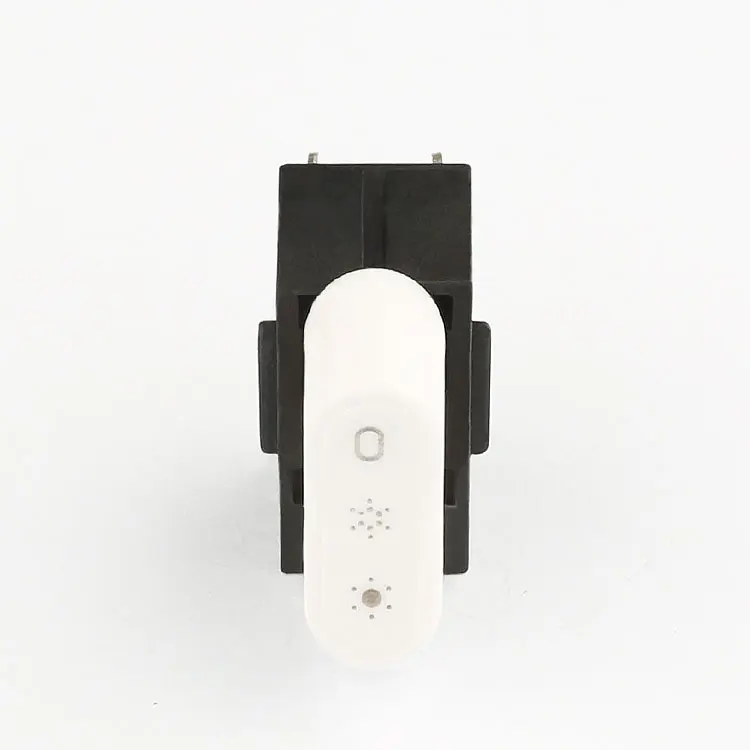

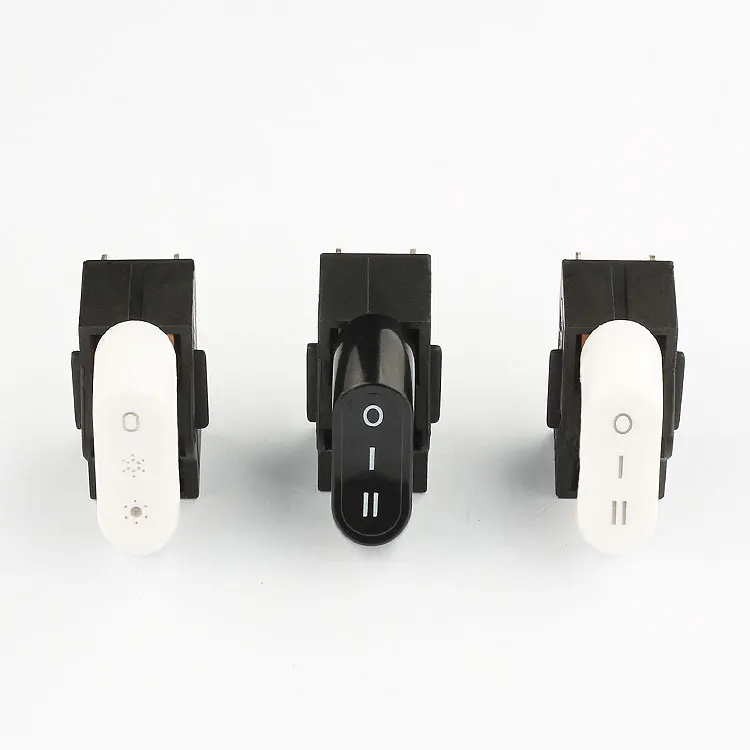

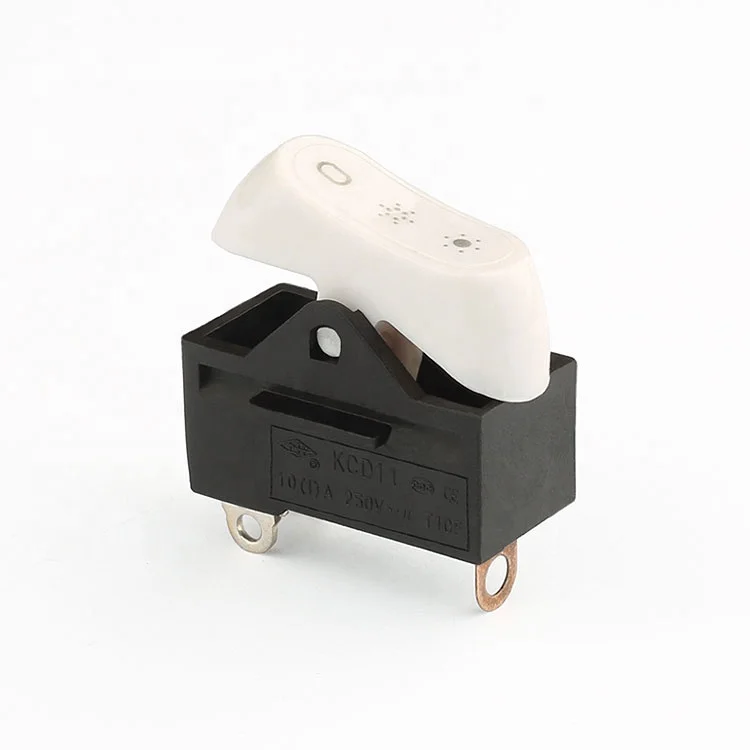

Our switch stands out with its arc-shaped button, plastic oval crust, and multiple color options (red, green, yellow, white, blue, orange, black). It’s perfect for hair dryer manufacturers looking for a reliable and cost-effective solution. We offer flexible packaging options and ensure timely delivery from Shanghai port.
Choose us as your trusted supplier for wholesale KCD11 T85 55 Plastic Oval Rocker Switch 3Pin and enjoy competitive pricing and excellent customer service.
| Max. Rating Current& Voltage | 10A 250V AC |
| Contact Resistance | ≤50mΩ Hair Dryer Rocker Switch |
| Insulation Resistance | ≥100MΩ Oval Rocker Switch 3 Pin |
|
Electronic Life (cycles) |
10000 |
| Mechanical Life (cycles) | >10000 |
| Operation temperature | 0℃~+105℃ T85 55 Rocker Switch |
| Dielectric Stength | 1500V |
| Certification | CQC CE |
Why Choose Our KCD11 T85 55 Plastic Oval Rocker Switch 3Pin?
Our switch is designed specifically for hair dryers, offering reliable performance and durability. With a max. rating of 10A 250V AC, it can handle high loads without issue. The arc-shaped button and plastic oval crust provide a comfortable and ergonomic user experience.
What Are the Key Advantages of Our Switch?
Our switch stands out with its low contact resistance (≤50mΩ) and high insulation resistance (≥100MΩ), ensuring safe and efficient operation. It also has a long electronic and mechanical life, making it a cost-effective choice for manufacturers.
Can We Customize the Switch for Our Needs?
While we offer a standard range of colors and specifications, we are also open to custom orders. Contact us to discuss your specific requirements and see how we can tailor our KCD11 T85 55 Plastic Oval Rocker Switch 3Pin to meet your needs.
