Wholesale KCD2 16A 250VAC DPDT Rocker Switch – Factory Supplier

Category: Tags: , ,
200 - 1,999  pieces
$0.46

2,000 - 4,999  pieces
$0.42

>= 5,000  pieces
$0.37
0 reviews

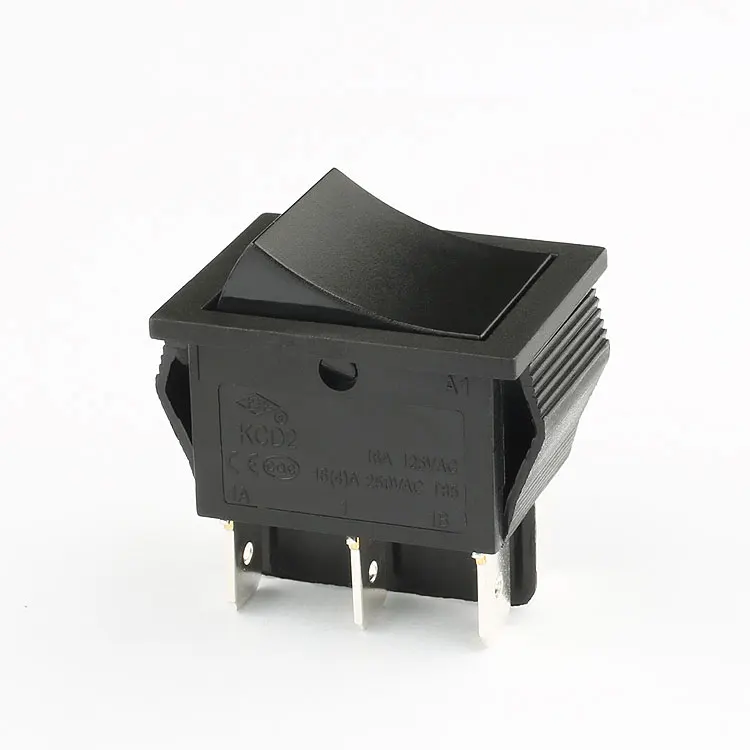

Wholesale KCD2 Rocker Switch – Factory Supplier, Durable & Versatile

Description

Our KCD2 16A 250VAC DPDT 6-pin 2-position black rocker switch, available for wholesale directly from our factory, is a top-quality electrical component. With a maximum current of 16A and maximum voltage of 250VAC, it’s suitable for a wide range of applications including cars, industrial equipment, marine vessels, buses, electric devices, and off-road vehicles. Made from durable PA66 material, this switch offers excellent insulation resistance (≥1000MΩ) and dielectric strength (1500V AC for 1 minute). It has a mechanical life of 100,000 cycles and an IP40 rating, ensuring reliability and safety. As a factory supplier, we provide competitive prices and fast delivery. Our switch comes with CQC, CE, UL, CB, and ENEC17 certifications, guaranteeing its quality and compliance with international standards. Choose our switch for its durability, versatility, and cost-effectiveness.
contact resistance
≤50MΩ
operating temperature
T55 T85 T105
insulation resistance
≥1000MΩ
electronical life（cycles）
10000
dielectric strength
1500V AC 1min
IP code
IP40

Electronic component image for cross-border e-commerce


Why Choose Our KCD2 Rocker Switch?

Our KCD2 rocker switch stands out for its robust construction and reliable performance. With a maximum current of 16A and voltage of 250VAC, it's designed to handle demanding applications. The PA66 material ensures durability and resistance to wear and tear, making it ideal for long-term use in various environments.

What Are the Key Features?

Key features include a DPDT function for versatile switching, high insulation resistance (≥1000MΩ) for safety, and a long mechanical life of 100,000 cycles. The switch also boasts an IP40 rating, protecting against dust and ensuring reliable operation.

Where Can It Be Used?

This switch is perfect for a wide range of applications, including cars, industrial machinery, marine vessels, buses, electric equipment, and off-road vehicles. Its versatility and reliability make it a popular choice among professionals and hobbyists alike.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A
Max. Voltage

250VAC
Place of Origin

Shanghai, China
Brand Name

Yongxing
Model Number

KCD2-22-CA1A-B-B
Application

Cars, Industrial, MARINE, BUSES, electric equipment, off-road vehicles
Material

PA66
Pins

6P
Whether the smart

NO
Mechanical Life

100000
IP level

IP40
Color

Black
Function

DPDT
Certificate

CQC,CE,UL,CB,ENEC17
Certification

CQC
