Wholesale KCD2 Black 6-Pin DPDT Rocker Switch | Factory Supplier

>= 10  pieces
$0.49

0 reviews

Wholesale KCD2 Black Rocker Switch | Factory Supplier | Durable & Reliable

Description

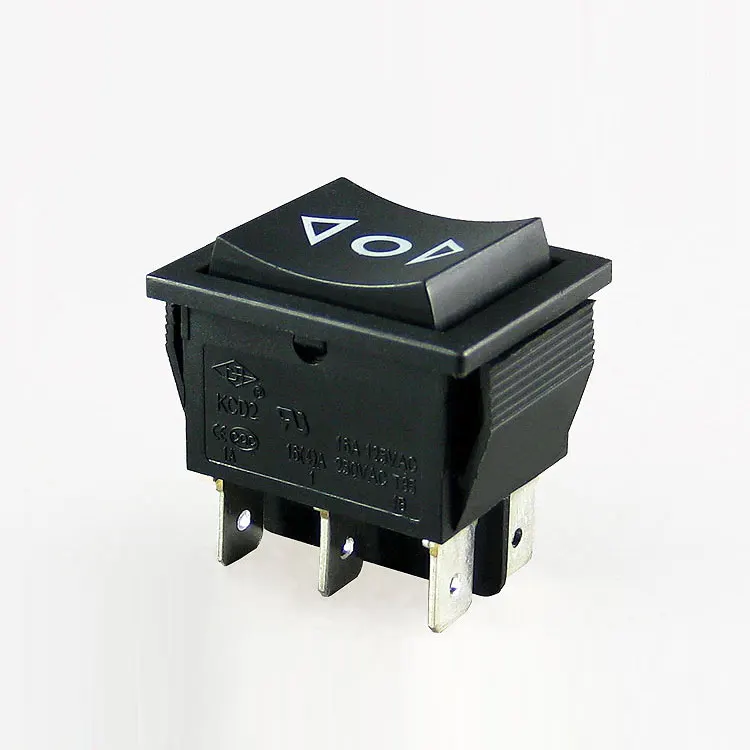

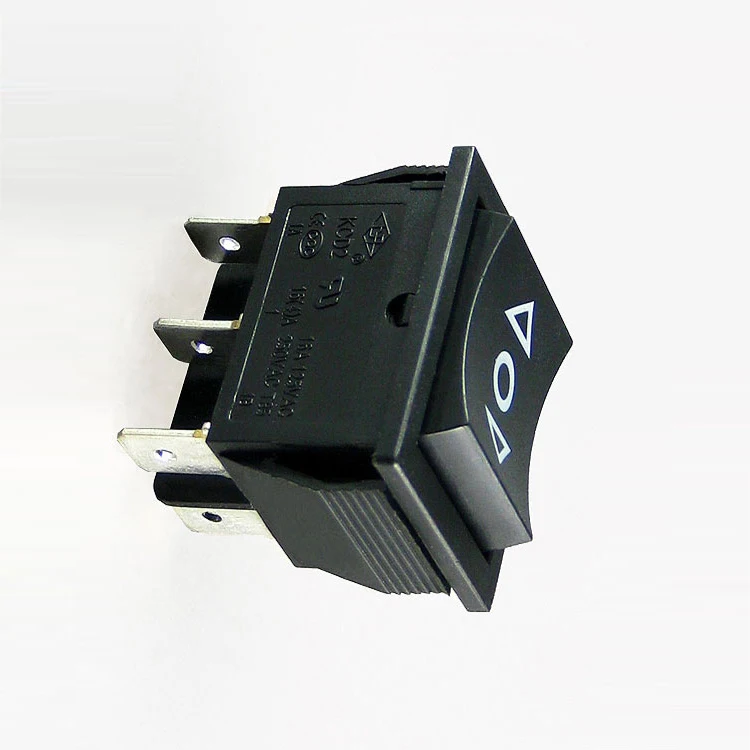

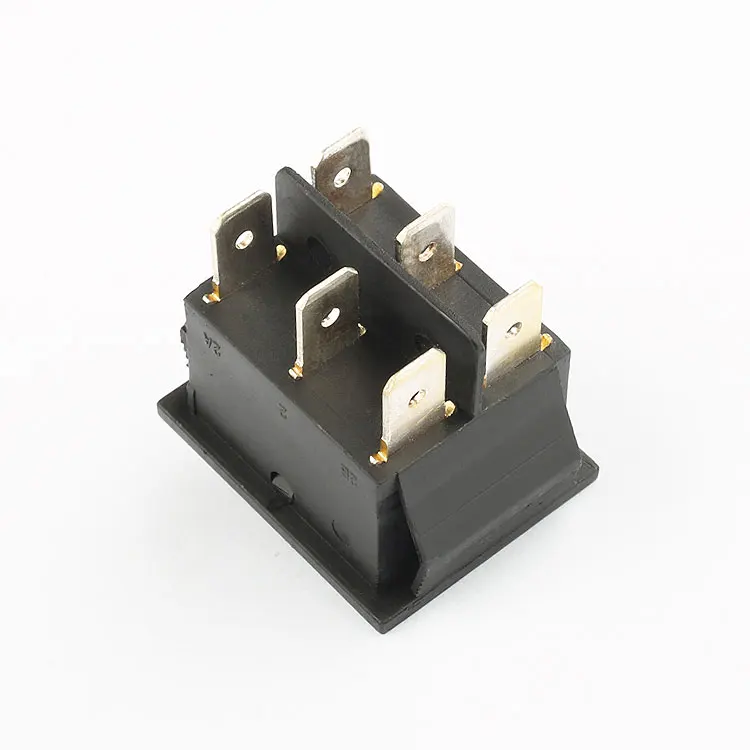

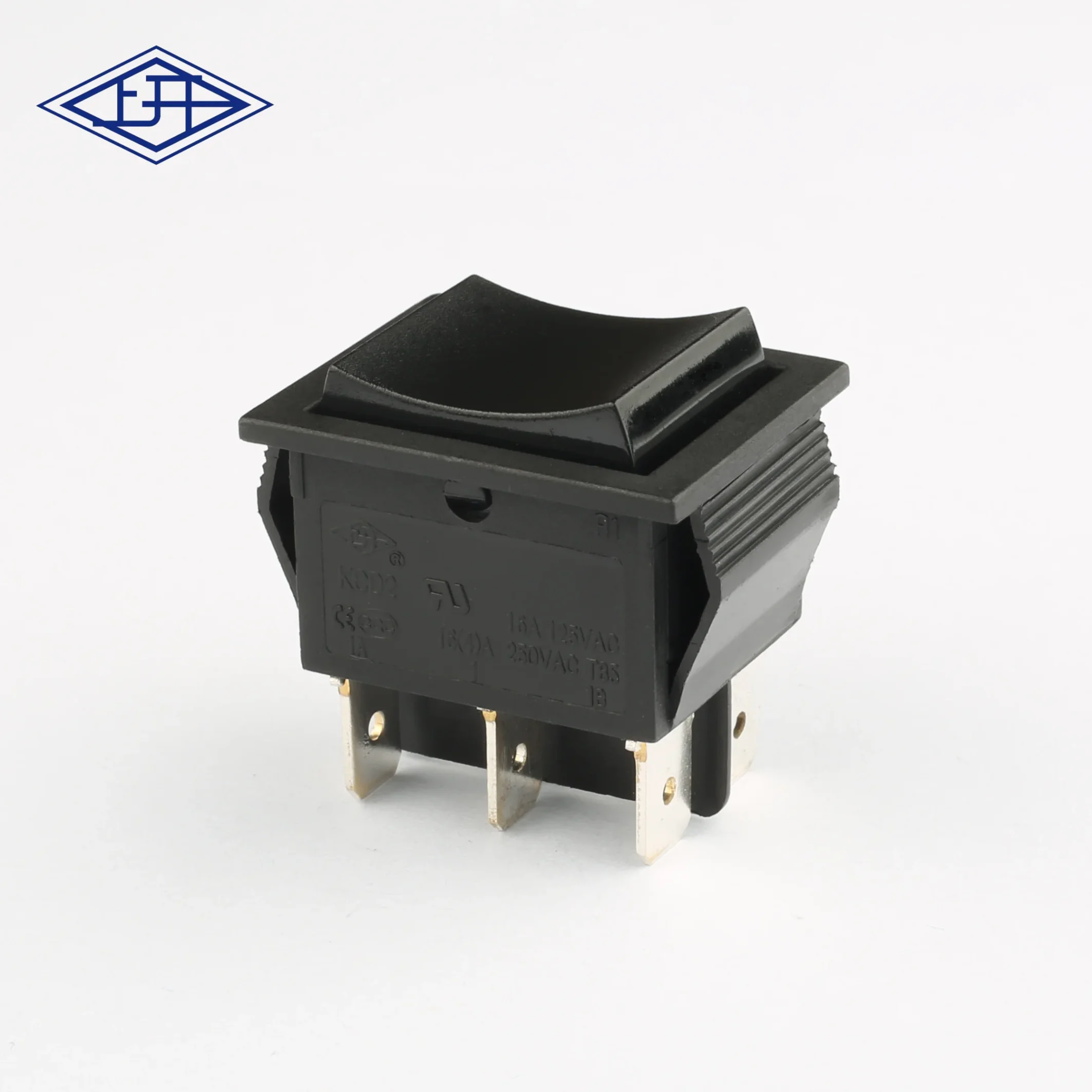

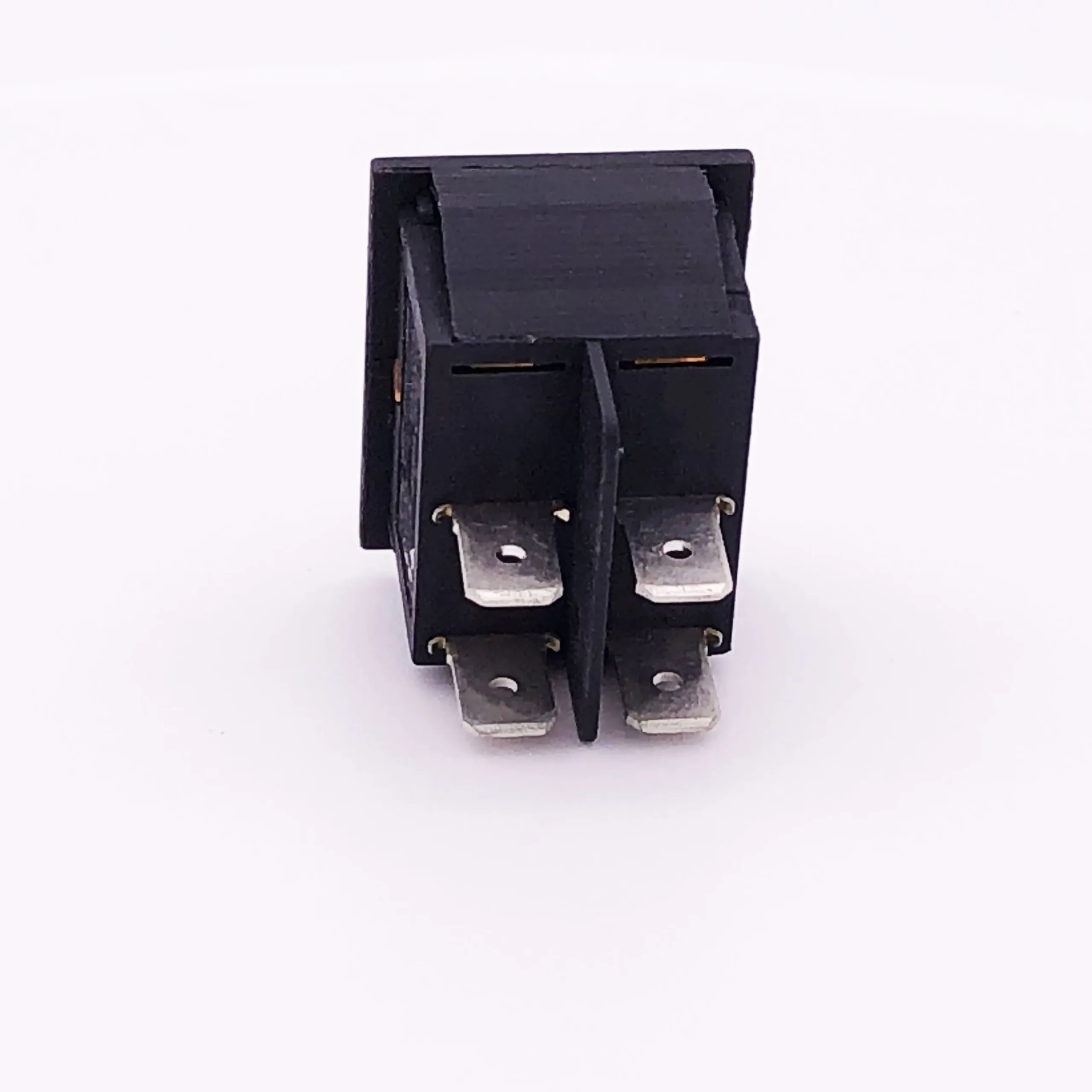

Our KCD2 Black 3-Position 6-Pin Double Momentary Rocker Switch is a high-quality, reliable electrical component designed for a wide range of applications. As a factory supplier, we offer wholesale pricing and ensure that each switch meets rigorous quality standards. With a maximum current of 16A and a maximum voltage of 250VAC, this switch is suitable for home appliances, hair dryers, fountains, coffee makers, and water heaters. Made from durable plastic, it features a DPDT configuration and a solder termination type for easy installation. The switch boasts a mechanical life of 1,000,000 times and an electrical life of 10,000 cycles, ensuring long-lasting performance. It also meets CQC, CE, ROHS, UL, and ENEC certifications, guaranteeing safety and compliance. With a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and dielectric strength of 1500VAC for 1 minute, this switch offers superior electrical performance. Additionally, its IP40 rating provides protection against dust and limited water ingress. Choose our factory-direct wholesale KCD2 Black Rocker Switch for cost-effective, high-quality solutions.
contact resistance
≤50MΩ
operating temperature
T55 T85 T125
insulation resistance
≥1000MΩ
electronic life
10000
dielectric strength
1500V
IP code
IP40

Electronic component product image for SEO optimizationElectronic device product image for cross-border e-commerce


Why Choose Our KCD2 Black Rocker Switch?

Our KCD2 Black 3-Position 6-Pin Double Momentary Rocker Switch stands out for its durability, reliability, and versatility. Designed for a wide range of applications, including home appliances, hair dryers, and water heaters, this switch offers a maximum current of 16A and a maximum voltage of 250VAC, ensuring it can handle demanding electrical loads. Made from high-quality plastic, it provides excellent insulation and long-lasting performance.

What Are the Key Features?

Key features include a DPDT configuration, solder termination type for easy installation, and a mechanical life of 1,000,000 times. The switch also meets CQC, CE, ROHS, UL, and ENEC certifications, guaranteeing safety and compliance. With a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and dielectric strength of 1500VAC for 1 minute, it offers superior electrical performance.

Why Buy from Us?

As a factory supplier, we offer wholesale pricing and ensure that each switch meets rigorous quality standards. Our KCD2 Black Rocker Switch is not only cost-effective but also provides peace of mind with its long electrical life and IP40 rating, which protects against dust and limited water ingress. Choose us for reliable, high-quality electrical components.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A

Max. Voltage

250VAC

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

KCD2-22M-CA1A-B-B-75

Application

Home Appliance,Hair Dryer, Fountain,Coffer Maker,Water Heater

Material

plastic

Pins

6P

Whether the smart

NO

Mechanical Life

1000000 Times

IP level

IP40

Switch Action

on-on

Termination Type

solder

Certificate

CQC,CE,ROHS,UL,ENEC

Rating

16A 250VAC / 10A 125VAC

Contact Resistance

≤50mΩ

Insulation Resistance

≥1000MΩ

Dielectric Strength

1500VAC 1 Minute

Operating temperature

T55 T85 T125

Electrical Life

10000

Color

Black
