Description

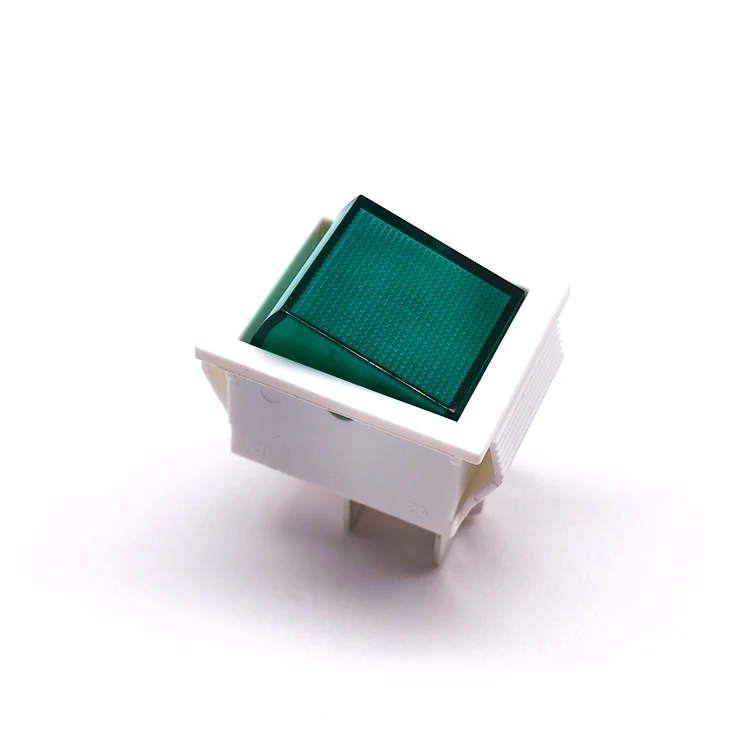

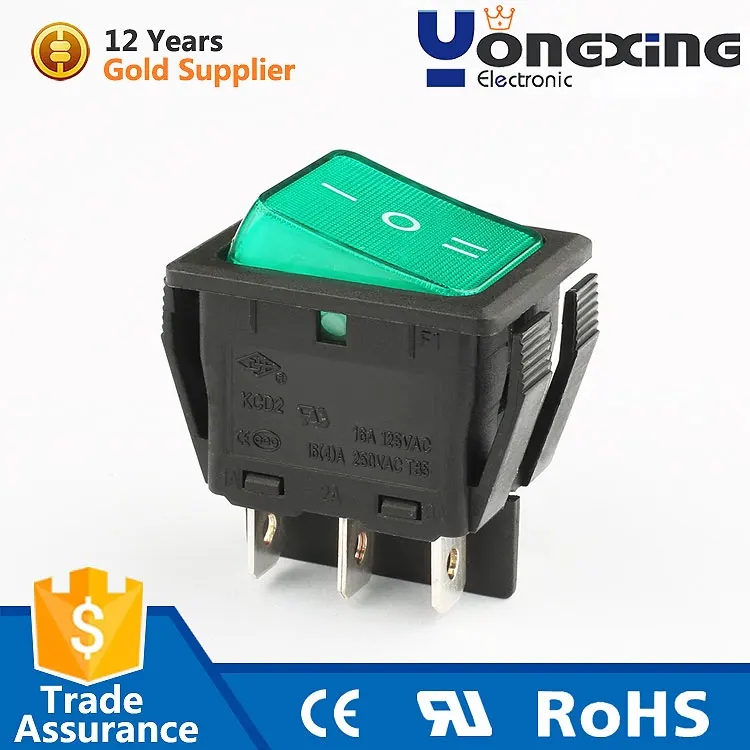

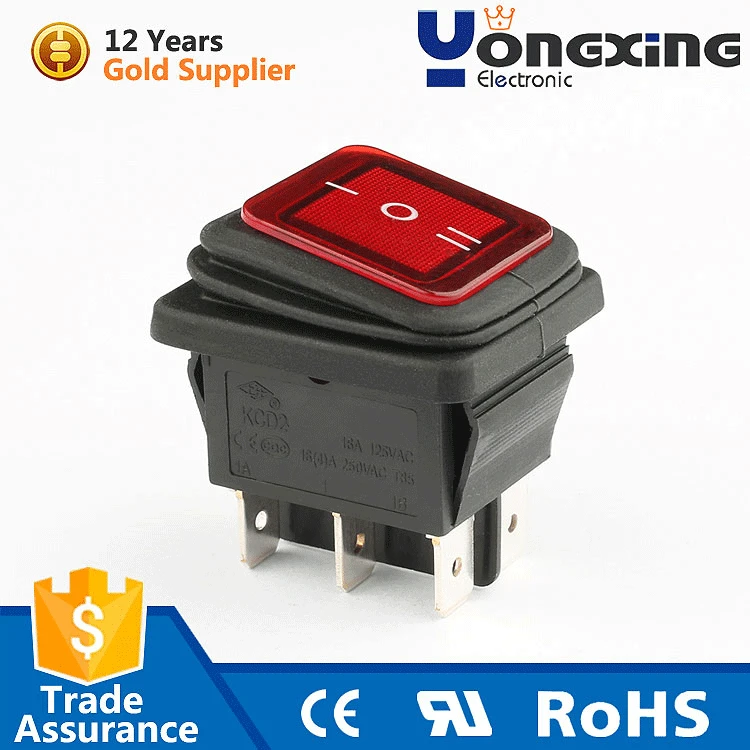

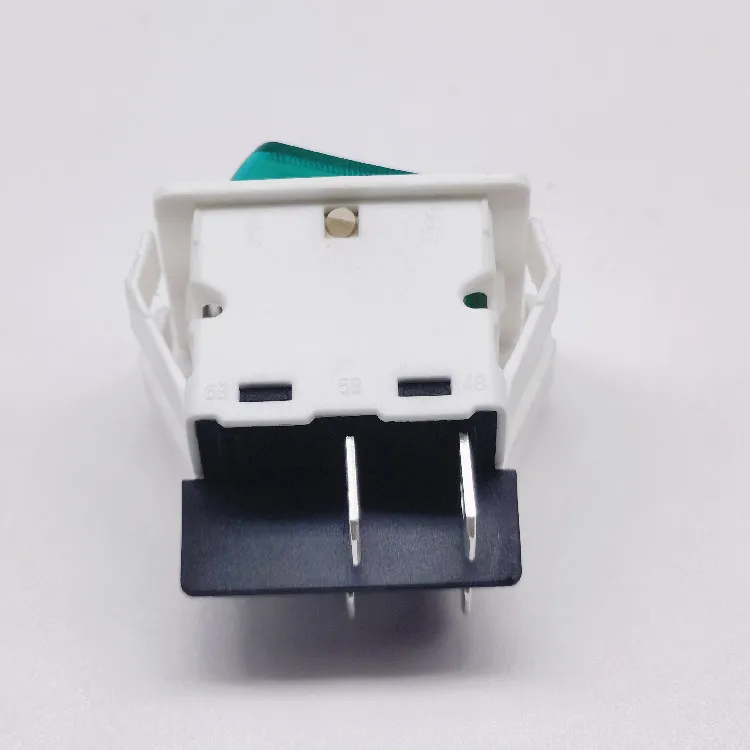

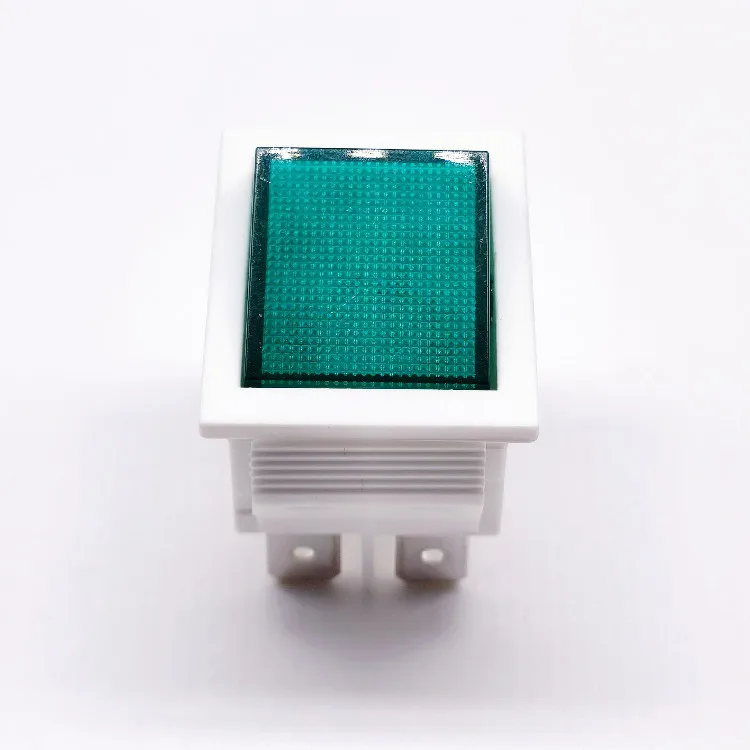

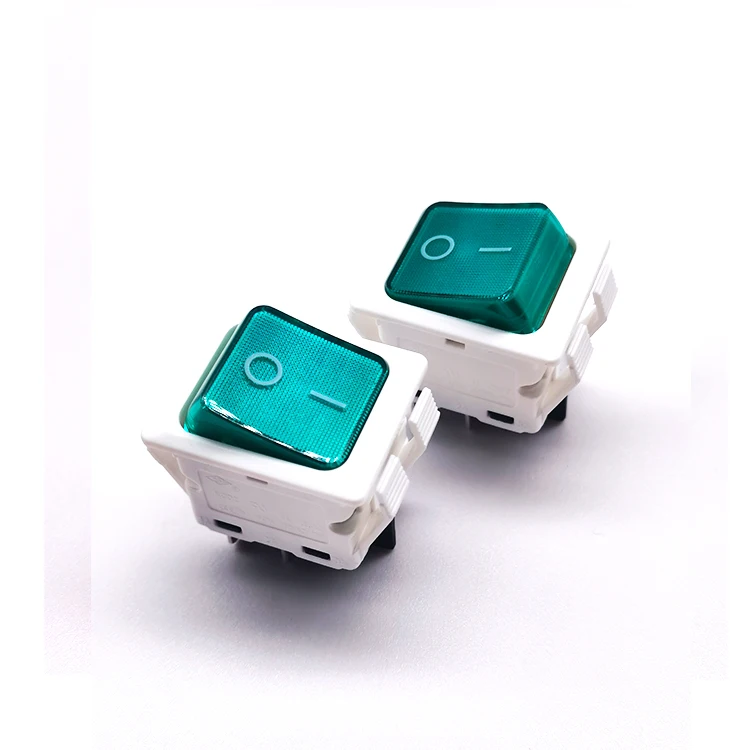

Introducing our high-quality KCD2 Double Pole Single Throw (DPST) 4-Pin Rocker Switch with Light, perfect for electronic equipment. As a factory supplier, we offer wholesale prices and ensure top-notch quality. This switch boasts a maximum current of 16A and a maximum voltage of 250V AC, making it suitable for a wide range of applications. It features a contact resistance of ≤50mΩ and an insulation resistance of ≥1,000MΩ, ensuring reliable performance. With a mechanical life of 100,000 times and an electronic life of 10,000 cycles, it outlasts many competitors. The IP40 rating provides dust protection, and the green on/off indicator adds convenience. Our switch stands out with its durability, reliability, and competitive pricing. We offer excellent after-sales service and support, ensuring your satisfaction. Choose us as your trusted supplier for wholesale rocker switches.
|
contact resistance
|
≤50MΩ
|
operating temperature
|
T55 T85 T125
|
|
insulation resistance
|
≥100MΩ
|
electronic life（cycles）
|
10000
|
|
dielectric strength
|
1500V AC 1min
|
IP code
|
IP40
|
Why Choose Our KCD2 Rocker Switch?
Our KCD2 Rocker Switch with Light is designed for durability and reliability, featuring a high insulation resistance and long mechanical life. It's perfect for electronic equipment, industrial machinery, and more.
What Are the Key Specifications?
With a maximum current of 16A and a maximum voltage of 250V AC, this switch can handle demanding applications. The 4-pin design and DPST configuration ensure versatility and compatibility.
What Makes Us Different?
As a factory supplier, we offer wholesale prices without compromising on quality. Our switch outlasts many competitors with its 100,000-time mechanical life and 10,000-cycle electronic life. Plus, we provide excellent after-sales service and support.
