Wholesale KCD2 PA66 Black Rocker Switch | Factory Direct Supplier

Name: Wholesale KCD2 PA66 Black Rocker Switch | Factory Direct Supplier
SKU: 79736
Availability: InStock

Category: KCD2 series Rocker Switch Tags: factory Direct, Rocker Switch, wholesale Supplier

100 - 1,999 pieces
$0.31

2,000 - 4,999 pieces
$0.28

>= 5,000 pieces
$0.24

Rated 0 out of 5

0 reviews

Factory direct KCD2 PA66 Rocker Switch. Wholesale prices. Durable, reliable. Ideal for industrial, automotive use.

Description
Specification

Description

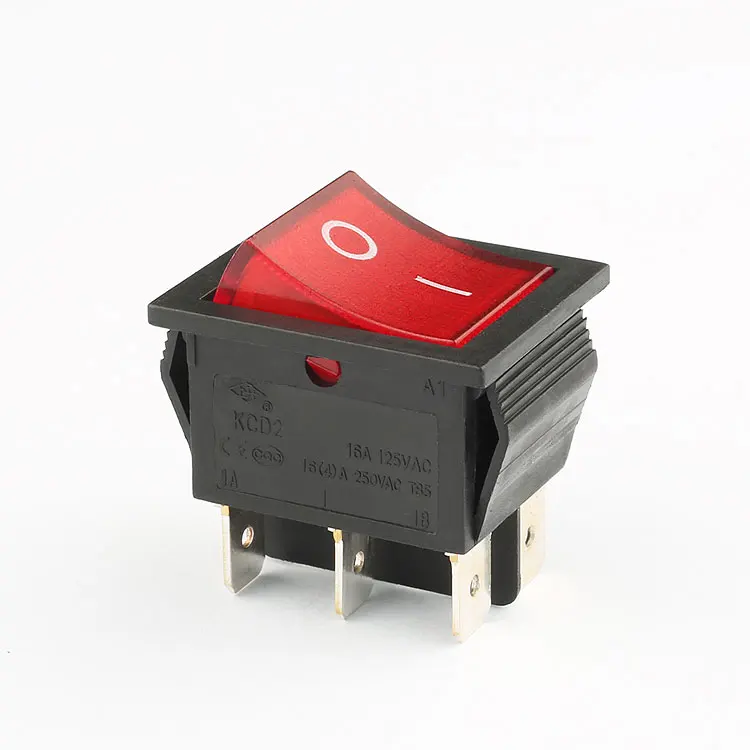

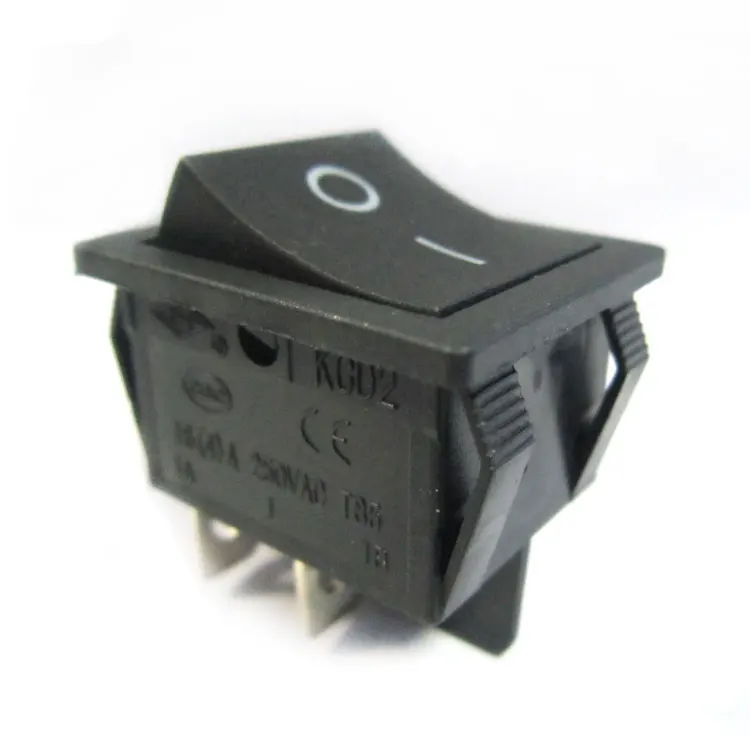

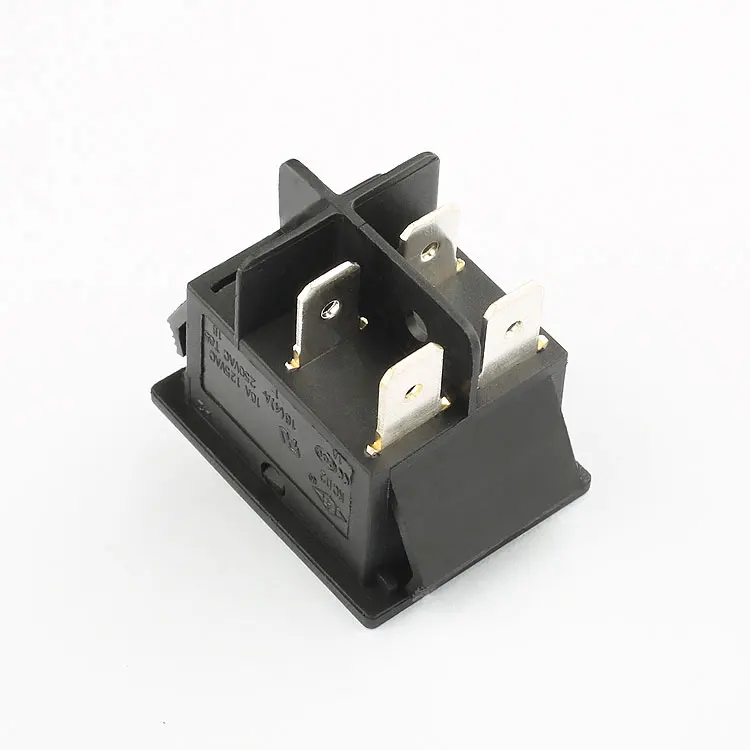

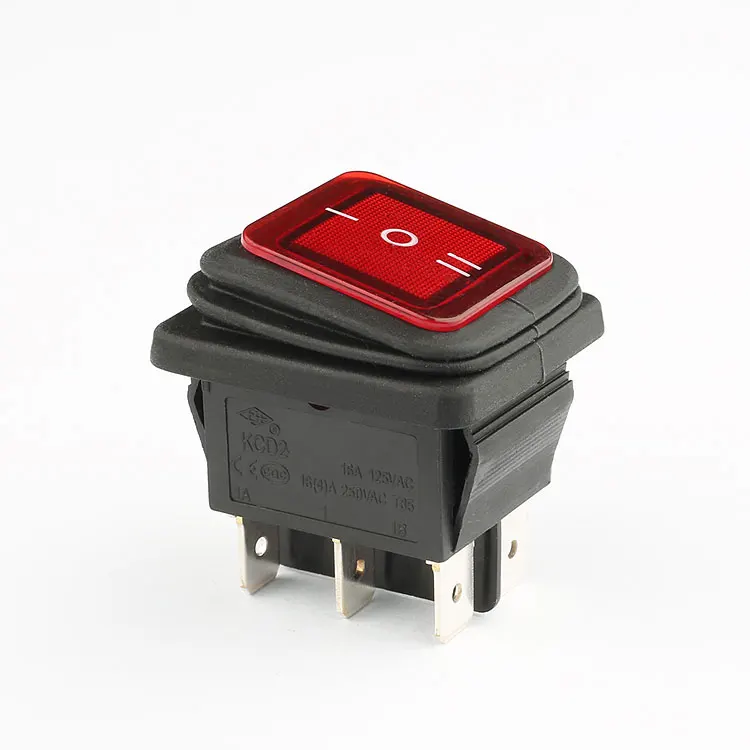

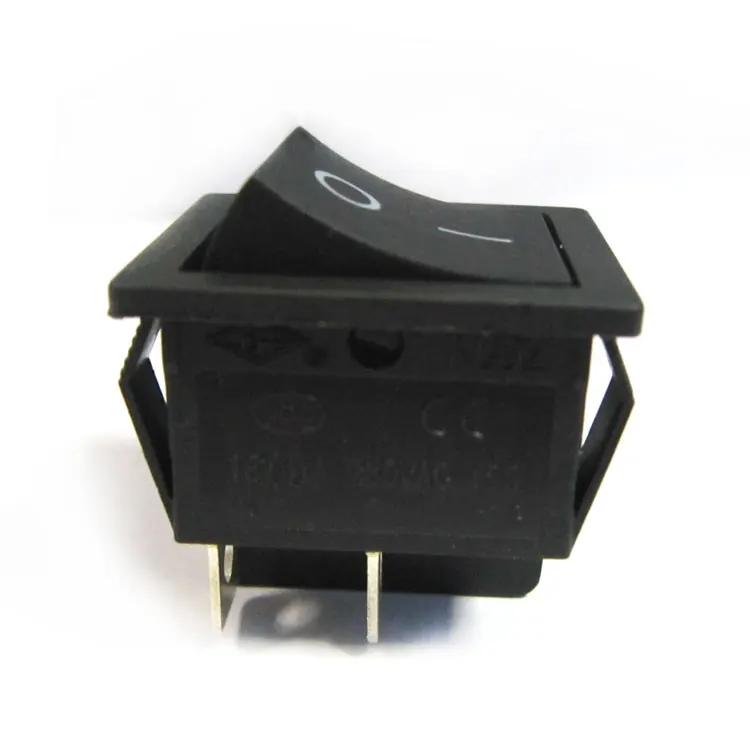

Introducing our KCD2 PA66 Black Rocker Switch, a top-quality product directly supplied by our factory. As a trusted supplier, we offer this switch at wholesale prices, making it an excellent choice for bulk purchases. This switch is designed with a durable PA66 plastic crust, ensuring long-lasting performance and reliability. It features a 16A max current and 250V AC max voltage, making it suitable for a wide range of applications including industrial, automotive, marine, buses, electric equipment, and off-road vehicles. The switch has a contact configuration of ON-OFF, with a contact resistance of ≤50mΩ and an insulation resistance of ≥1,000MΩ. It also boasts a mechanical life of 10,000 cycles and an IP40 rating, providing excellent protection against dust and moisture. Our KCD2 Rocker Switch stands out from the competition with its high-quality materials, precise specifications, and competitive pricing. We offer a comprehensive after-sales service, ensuring your satisfaction with every purchase. Choose our factory-direct KCD2 PA66 Black Rocker Switch for a reliable and cost-effective solution.

contact resistance	≤50MΩ	operating temperature	T55 T85 T105
insulation resistance	≥1000MΩ	electronic life（cycles）	10000
dielectric strength	1500V AC 1min	IP code	IP40

Why Choose Our KCD2 PA66 Black Rocker Switch?

Our KCD2 PA66 Black Rocker Switch is a top-tier product designed to meet the demands of various industries. With its durable PA66 plastic crust and precise specifications, it offers reliable performance and longevity. Whether you're in the industrial, automotive, marine, or electric equipment sector, this switch is an ideal choice.

What Are the Key Features of Our Rocker Switch?

Our switch boasts a 16A max current and 250V AC max voltage, ensuring compatibility with a wide range of devices. It features an ON-OFF configuration, latching or momentary action, and a mechanical life of 10,000 cycles. Additionally, its IP40 rating provides excellent protection against dust and moisture, making it suitable for harsh environments.

How Can You Benefit from Buying from Us?

As a factory-direct supplier, we offer wholesale prices and excellent after-sales service. Our KCD2 PA66 Black Rocker Switch is not only of high quality but also competitively priced, making it a cost-effective solution for your needs. Choose us for a reliable partner in your switch procurement journey.

Additional information

Max. Current	16A
Max. Voltage	250V AC
Place of Origin	Shanghai, China
Brand Name	Yong Xing
Model Number	KCD2-21-CA
Application	Industrial, Cars, MARINE, BUSES, electric equipment, off-road vehicles
Material	plastic
Pins	4P
Whether the smart	NO
Mechanical Life	10,000CYCLES
IP level	IP40
name	KCD2 Factory Price PA66 SPST lighted Rocker Switch for Home
Contact Configuration	ON-OFF
Color	Black Rocker Switch
Contact Resistance	≤50m Ω
Insulation Resistance	≥1,000MΩ rocker switch
Electronic Life(cycles)	10000 cycles
Terminal Type	Pin terminal
The Crust Material	Plastic 4 pins rocker switch
Certification	CQC , CE , RoHS , ENEC , UL , CB
action	latching or momentary
