Description

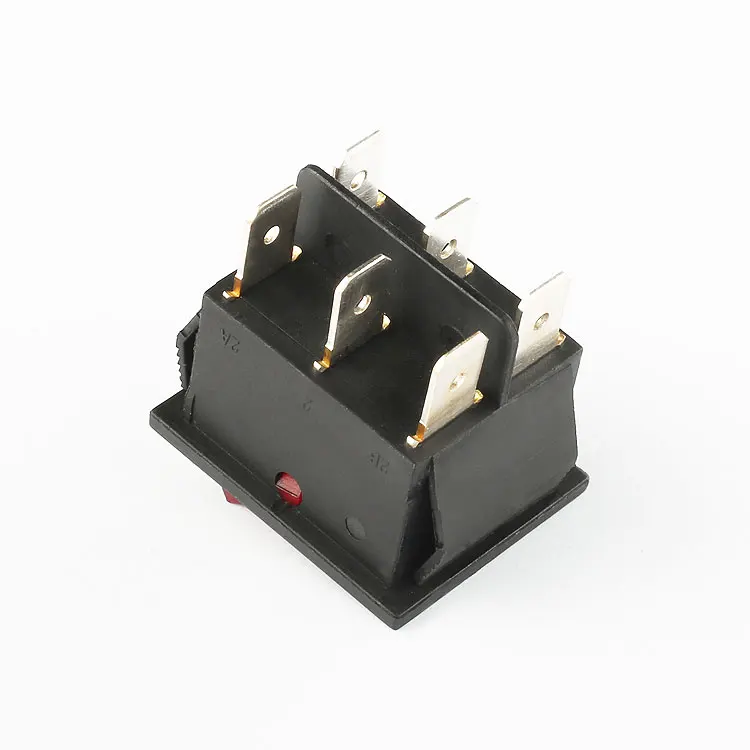

Our KCD2 Rocker Switch boasts a maximum current of 16A and a maximum voltage of 250V AC, making it suitable for demanding environments. It features a mechanical life of 50,000-100,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting performance. The switch is equipped with LED or neon lighting, available in red, green, yellow, blue, orange, and black colors, providing visual feedback for easy operation.
What sets our KCD2 Rocker Switch apart from the competition is its IP40 protection level, solder termination type, and on-off or on-off-on circuit code options. These features, combined with its compact design and high insulation resistance (≥1000MΩ) and low contact resistance (≤50mΩ), make it a superior choice for any application.
We offer comprehensive after-sales support and guarantee the quality of our products. As a trusted supplier, we are committed to providing excellent customer service and ensuring your satisfaction. Order now and take advantage of our wholesale pricing and fast shipping options.
|
Whether the smart
|
NO
|
|
Place of Origin
|
China
|
|
Brand Name
|
SK(ShangKai)
|
|
Model Number
|
KCD2-21C
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50,000-100,000 cycles
|
|
Certificate
|
CQC CE UL ENEC
|
|
light
|
LED,Neon
|
|
Rated Voltage
|
250VAC 125VAC
|
|
Color
|
red green yellow blue orange black
|
|
Electronic Life (Cycles)
|
10000
|
|
Circuit Code
|
on-off , on-off-on
|
|
Operating temperature
|
T55 T85 T125
|
|
Insulation resistance
|
≥1000MΩ
|
|
Contact resistance
|
≤50mΩ
|
Product Overview
Our KCD2 Rocker Switch is a high-quality, illuminated switch designed for a wide range of applications. With its durable construction and reliable performance, it's the perfect choice for any demanding environment.
Key Features
The KCD2 Rocker Switch features a maximum current of 16A and a maximum voltage of 250V AC, ensuring it can handle even the most demanding tasks. Its LED or neon lighting provides clear visual feedback, making operation easy and intuitive. Additionally, the switch offers a mechanical life of 50,000-100,000 cycles and an electronic life of 10,000 cycles, guaranteeing long-lasting performance.
Why Choose Our KCD2 Rocker Switch?
Our KCD2 Rocker Switch stands out from the competition with its IP40 protection level, solder termination type, and on-off or on-off-on circuit code options. These features, combined with its compact design and high insulation and low contact resistance, make it a superior choice for any application. As a factory direct supplier, we offer wholesale pricing and fast shipping, ensuring you get the best value for your money.
