Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CB1K-W-Y-01
|
|
Max. Current
|
6(3) A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Operating Temperature
|
T85
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
SPST mini rocker switch t85
|
|
Dimension Code
|
K (21.4×15)
|
|
Contact Piece Code
|
K (1.2×0.8 welding type)
|
|
Color
|

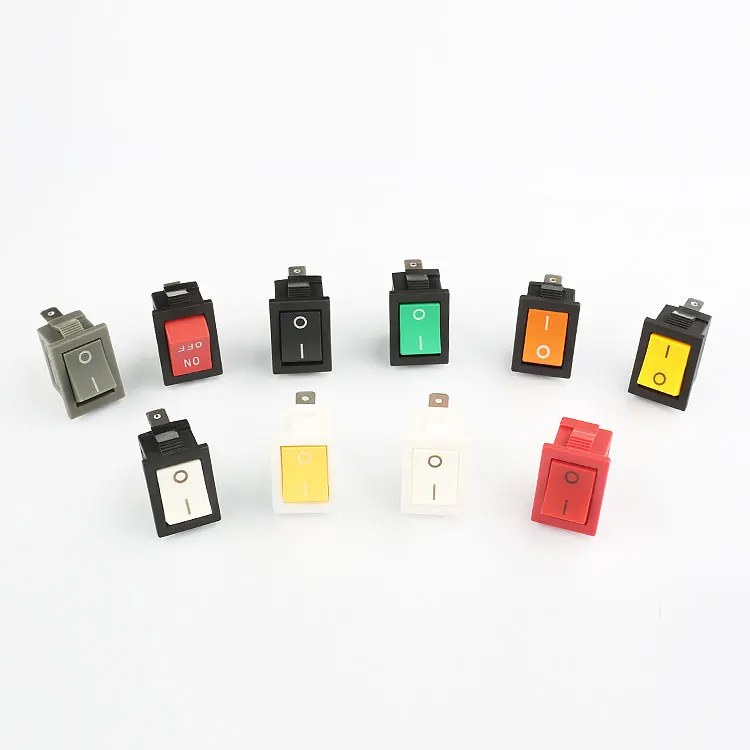

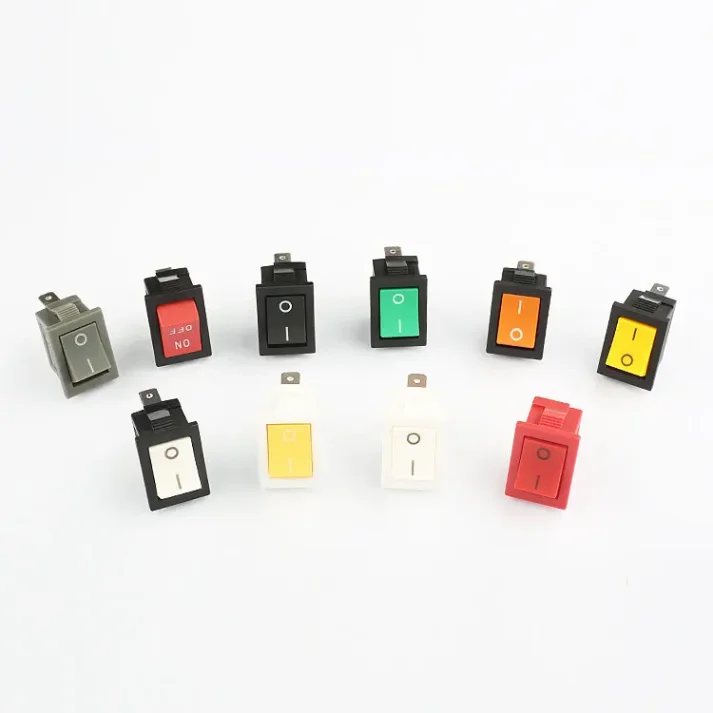

Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Function
|
On Off rocker switch panel mount
|
Why Choose Our KCD3-11 SPST Rocker Switch?
Our KCD3-11 SPST Rocker Switch is designed for reliability and durability. With a mechanical life of 50,000 cycles, it ensures long-lasting performance in various applications. The switch's compact size and multiple color options make it versatile for different design needs. As a factory supplier, we offer competitive wholesale pricing, making it ideal for bulk purchases.
What Are the Key Features of This Switch?
The KCD3-11 SPST Rocker Switch features a maximum current rating of 6A and a voltage capacity of 250V AC. It has a low contact resistance (≤50mΩ) and high insulation resistance (≥1000MΩ), ensuring safety and efficiency. The switch also meets international certifications like CQC, CE, ROHS, and CB, guaranteeing its quality and compliance with global standards.
How Does Our Switch Compare to Others on the Market?
Our switch stands out with its long mechanical life, high dielectric strength, and robust construction. Unlike many competitors, we offer a variety of color options and wholesale pricing directly from our factory. This makes our KCD3-11 SPST Rocker Switch a superior choice for both individual projects and bulk business needs.
