Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CB1B-B-B-01
|
|
Max. Current
|
6(3)A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST rocker switch
|
|
Dimension Code
|
B1 (21.4x15x15.2 , 19.3×13.2×12.9)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Function
|
On Off rocker switch
|

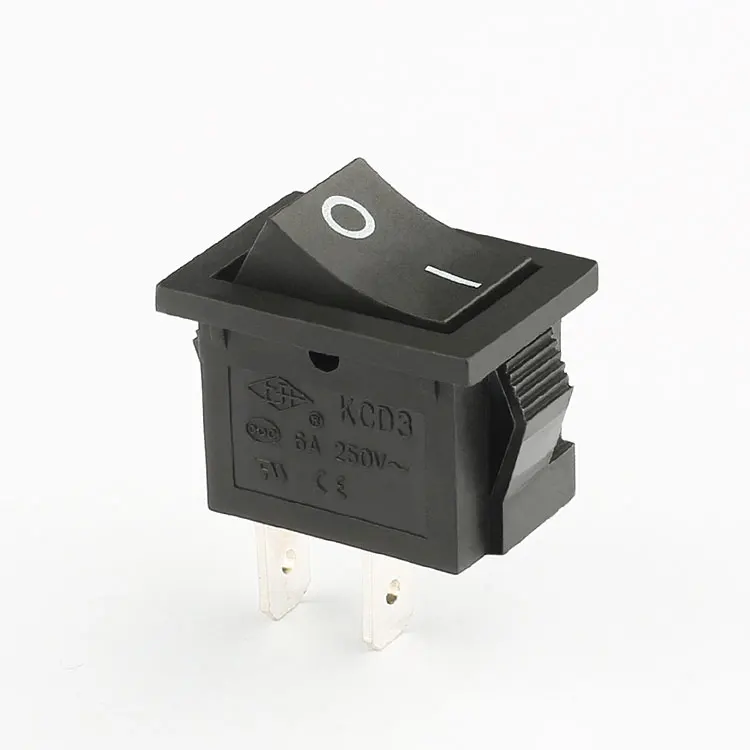

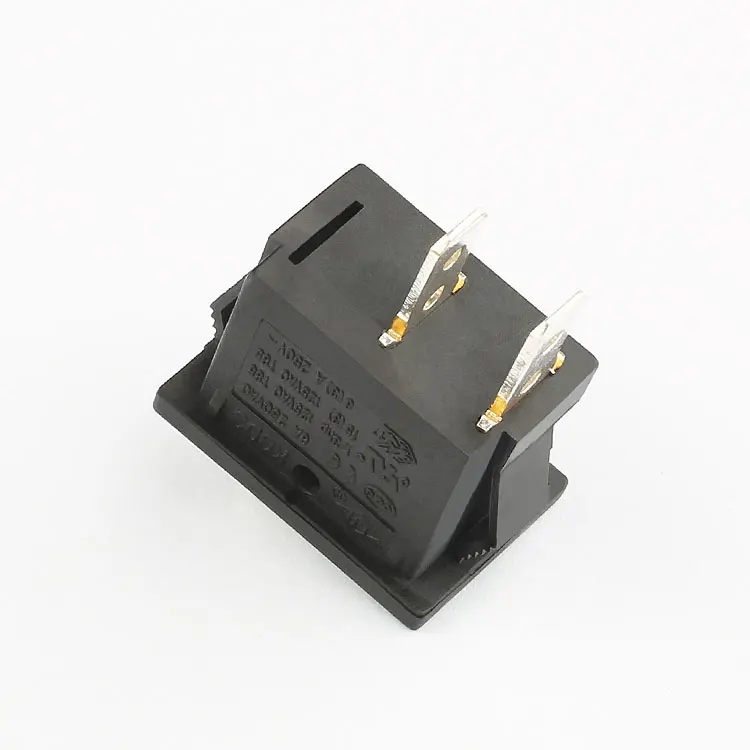

Why Choose Our KCD3 Rocker Switch?
Our KCD3 Rocker Switch stands out for its durability, reliability, and versatility. With a mechanical life of 50,000 cycles, it ensures long-lasting performance in various applications. The switch's robust design, including a contact resistance of ≤50mΩ and insulation resistance of ≥1000MΩ, guarantees safety and efficiency. As a factory supplier, we offer competitive wholesale prices, making it an affordable choice for bulk purchases.
Key Features and Benefits
The KCD3 Rocker Switch features a maximum current of 6(3)A and a maximum voltage of 250V AC, making it suitable for a wide range of electrical devices. Its SPST circuit design ensures simple and effective ON-OFF operation. Available in multiple colors, it can be customized to match your project's aesthetic. Additionally, our switch is certified with CB, ENEC17, and ROHS, ensuring compliance with international safety standards.
Ideal Applications
This Rocker Switch is perfect for panel control in various industrial and commercial settings. Its compact size and reliable performance make it suitable for use in electrical devices, machinery, and more. Whether you're looking for a switch for a new project or a replacement for an existing one, our KCD3 Rocker Switch is an excellent choice.
