Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CB1B-B-R-01
|
|
Current Rating
|
10(3)A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1 ( 21.4x15x15.2 , 19.3×13.2×12.9)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|

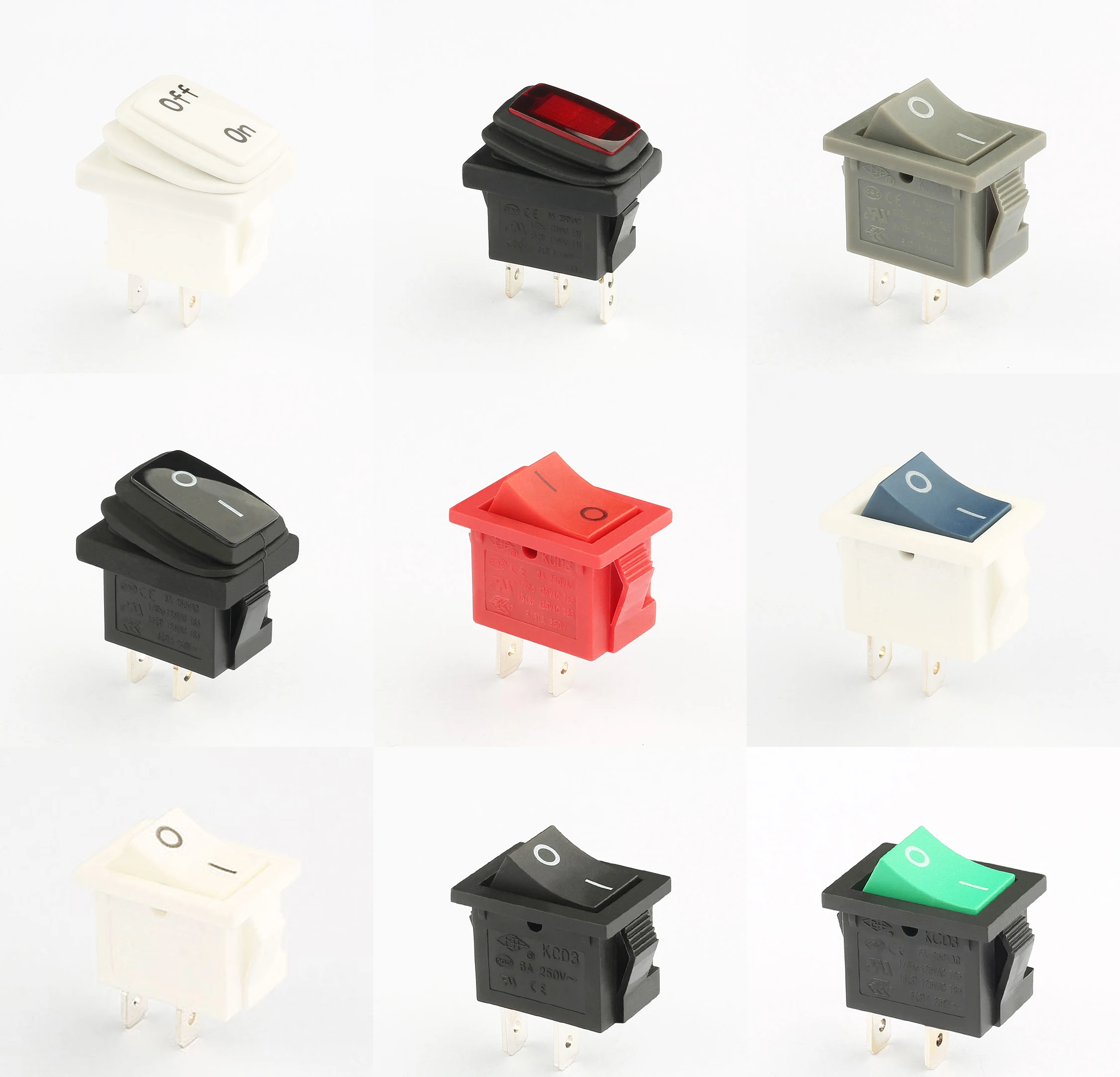

Actuator Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Switch Function
|
On Off
|
Why Choose Our KCD3 Rocker Switch?
Our KCD3 Rocker Switch is a top choice for its durability, reliability, and versatility. With a 10(3)A 250VAC rating, it can handle demanding electrical loads with ease. The switch's long mechanical life of 50,000 cycles ensures years of trouble-free operation, making it ideal for both residential and commercial applications.
What Makes Our Switch Stand Out?
What sets our switch apart is its compact design and multiple actuator color options. The B1 dimension code (21.4x15x15.2, 19.3x13.2x12.9) allows for easy installation in tight spaces, while the variety of colors lets you match the switch to your application's aesthetics. Additionally, our switch is certified with CB ENEC17 and ROHS, ensuring it meets international safety standards.
Where Can You Use Our KCD3 Rocker Switch?
Our KCD3 Rocker Switch is perfect for a wide range of applications, including electrical appliances, industrial control systems, and marine equipment. Its reliable performance and durable construction make it a trusted choice for professionals and DIY enthusiasts alike. Choose our factory-direct switch for unbeatable quality and value.
