Description
| Contact Resistance | ≤50mΩ rocker switch |
| Insulation Resistance | ≥1,000MΩ Miniature Rocker Switch |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles ,Waterproof Rocker Switch ip65 |
| Mechanical life(cycles) | 100,000 cycles |
| Certification |
CQC , CE , ENEC |
| Max. Rating Current & Voltage (CQC , CE) |
10(3)A 250V AC T85 6(3)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
15R(3)A 125V AC , 10R(3)A 250V AC 1/3HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
10(3)A 250V AC T105,6(3)A 250V AC T105 6A 250V AC ,4A 250V AC T105 |

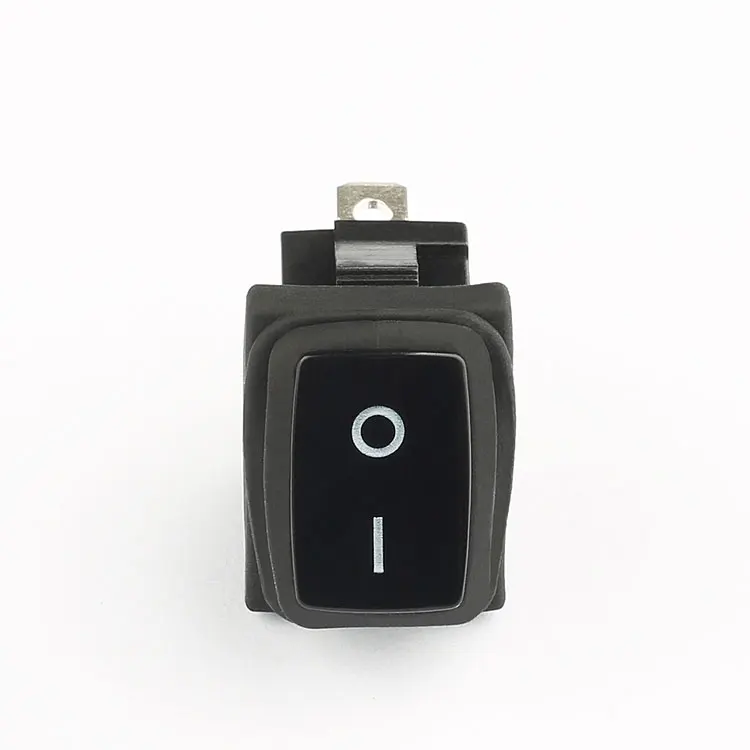

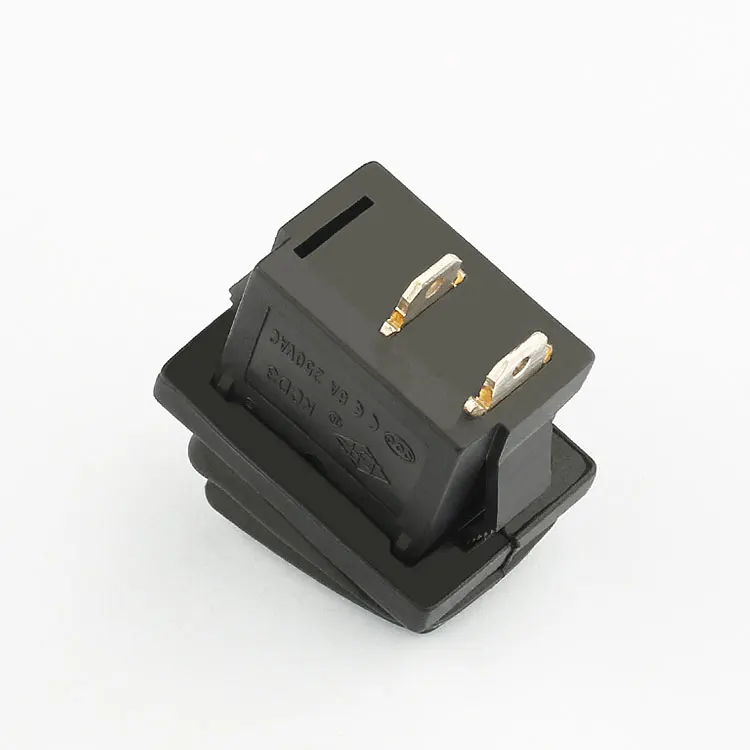

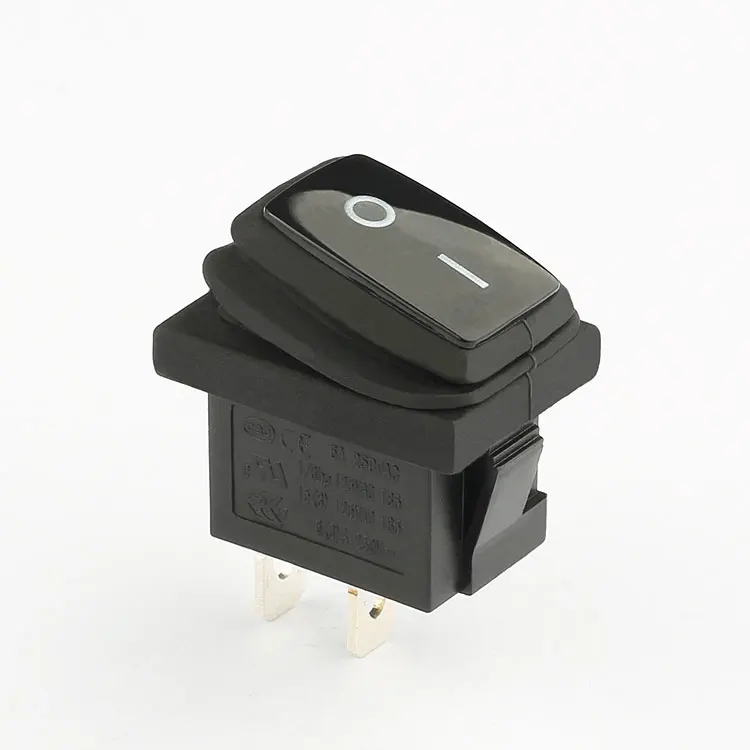

Why Choose Our KCD3 Waterproof Rocker Switch?
Our KCD3 Waterproof Rocker Switch stands out for its durability, reliability, and waterproof design. With an IP65 rating, it's perfect for outdoor use or in environments prone to moisture. The switch's high mechanical life (100,000 cycles) ensures long-lasting performance, while its low contact resistance and high insulation resistance guarantee efficient electrical operation. As a factory supplier, we offer competitive prices and the ability to customize switches to meet your specific needs.
What Are the Key Features of Our Switch?
Key features include a maximum current rating of 6A/10A, a voltage rating of 250V AC, and an SPST circuit configuration. The switch also boasts excellent electrical performance, with a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and dielectric strength of 1500V AC for 1 minute. Certified by CQC, CE, ENEC, and UL, it meets international safety standards.
How Can We Benefit Your Business?
As a factory supplier, we offer wholesale prices and can provide custom solutions tailored to your requirements. With 60 senior engineers and advanced production facilities, we ensure high-quality products and timely delivery. Our switches are perfect for a wide range of applications, from outdoor equipment and marine applications to industrial machinery and home appliances. Choose us for a reliable, cost-effective, and customizable solution.
