Description

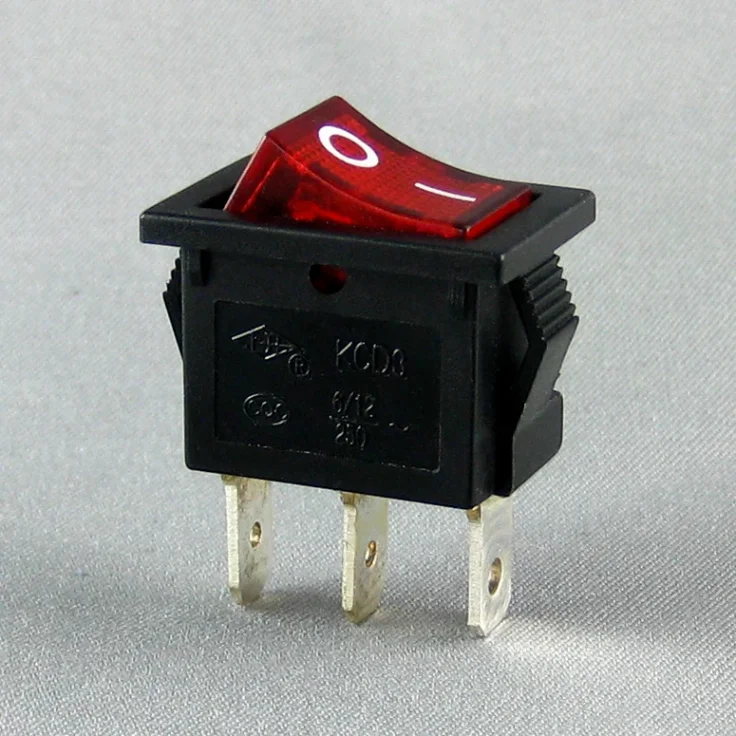

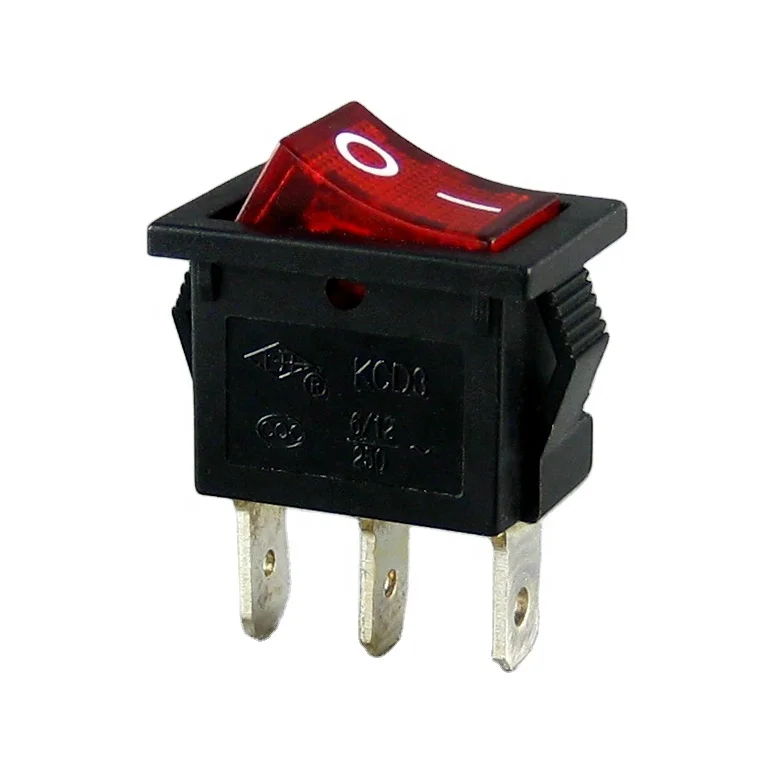

Introducing our high-quality KCD3 SPST illuminated rocker switch, a top choice for wholesale buyers and suppliers. Manufactured in Shanghai, China, by SK(shangkai) Yongxing, this switch is designed to meet the highest standards of performance and durability. With a maximum current of 6A and a maximum voltage of 250V AC, it is suitable for a wide range of applications. The switch features an LED light for easy visibility in low-light conditions and a mechanical life of 50,000 cycles, ensuring long-lasting reliability. Additionally, it has a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and dielectric strength of 1500VAC for 1 minute, providing excellent electrical performance. As a factory direct supplier, we offer competitive pricing and excellent after-sales service. This switch is also available for wholesale, making it an ideal choice for businesses looking to stock up on high-quality switches. Its compact dimension code A1 (21.7x15x15.8, 19.1x13x13) and contact piece code A (8 length, 4.8×0.8 standard) make it easy to integrate into various designs. The 24V DC lamp voltage and ON/OFF function with illumination add to its versatility. Certified with CQC, CE, UL, CB, ENEC17, and ROHS, this switch meets international safety standards. Choose our KCD3 SPST illuminated rocker switch for a reliable, high-performance solution.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11N-CA1A-B-R-01-24D
|
|
Max. Current
|
6A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST with led light
|
|
Dimension Code
|
A1 (21.7x15x15.8 , 19.1x13x13)
|
|
Contact Piece Code
|
A (8 length, 4.8×0.8 standard)
|
|
Lamp voltage
|
24V DC
|
|
Function
|
On Off
|
Key Features
Our KCD3 SPST illuminated rocker switch stands out with its high current and voltage ratings, making it suitable for demanding applications. The LED light enhances visibility, while the long mechanical life ensures reliability.
Differentiators
What sets our switch apart is its factory-direct pricing, excellent after-sales service, and compliance with multiple international safety standards. This makes it a cost-effective and trustworthy choice for businesses.
Why Choose Us
As a factory supplier, we offer competitive pricing, high-quality products, and excellent customer service. Our KCD3 SPST illuminated rocker switch is perfect for businesses looking to stock up on reliable, high-performance switches.
