Description

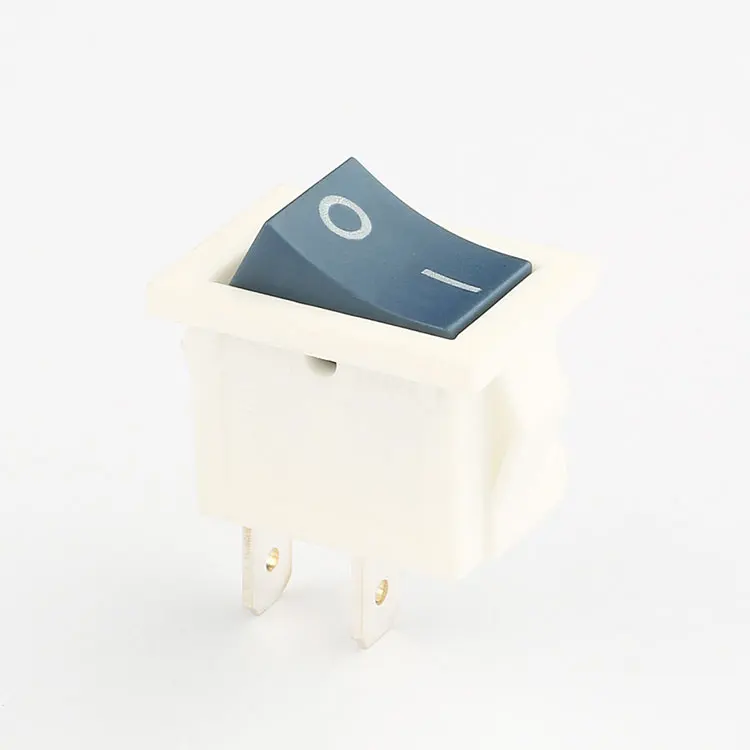

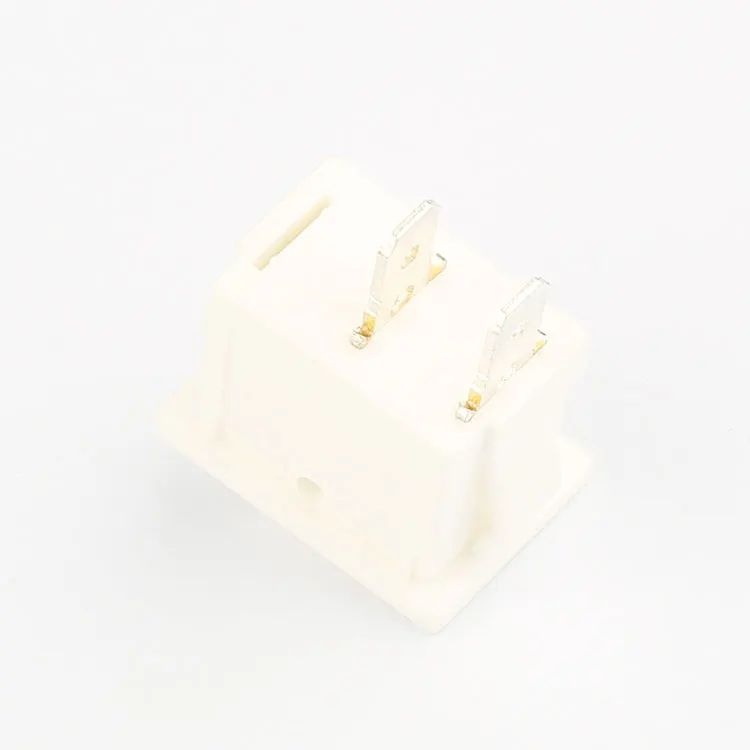

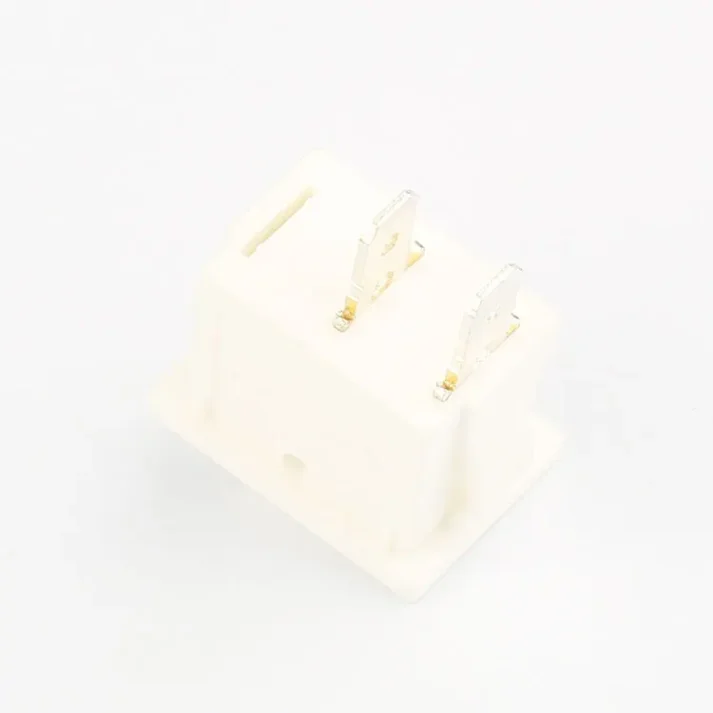

Our KCD3 Rocker Switch boasts a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, making it a long-lasting choice for your projects. It features a contact resistance of ≤50mΩ and an insulation resistance of ≥1000MΩ, ensuring safe and efficient operation. The switch is also CE certified, guaranteeing its compliance with international safety standards.
Available in a variety of colors including Red, Yellow, Green, Black, Blue, Orange, White, and Gray, this switch can be customized to match your specific needs. Its compact dimension code of A1 (21.7x15x15.8 , 19.1x13x13) and contact piece code of H (7.5 length, 2.2×0.6 welding type) make it easy to integrate into your existing designs.
Choose our KCD3 Boat Rocker Switch for its superior quality, competitive pricing, and excellent after-sales service. As a factory supplier, we are committed to providing you with the best products and customer support.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CA1H-W-S-01
|
|
Max. Current
|
6(3)A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
A1 (21.7x15x15.8 , 19.1x13x13)
|
|
Contact Piece Code
|
H (7.5 length, 2.2×0.6 welding type)
|
|
Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Function
|
On Off
|
Key Features of Our KCD3 Boat Rocker Switch
Our KCD3 Boat Rocker Switch stands out with its high current and voltage ratings, making it ideal for marine applications. Its SPST 2 Pin design ensures reliable operation, while the mechanical and electronic life cycles guarantee longevity.
Why Choose Our KCD3 Rocker Switch?
As a factory supplier, we offer wholesale pricing on our KCD3 Rocker Switch, ensuring you get the best value. The switch is CE certified, guaranteeing its safety and compliance with international standards. Additionally, its compact size and customizable colors make it a versatile choice for your projects.
Excellent After-Sales Service
We are committed to providing excellent after-sales service. If you have any questions or concerns about our KCD3 Boat Rocker Switch, our customer support team is always ready to assist you. Choose us for a hassle-free shopping experience and a product that meets your expectations.
