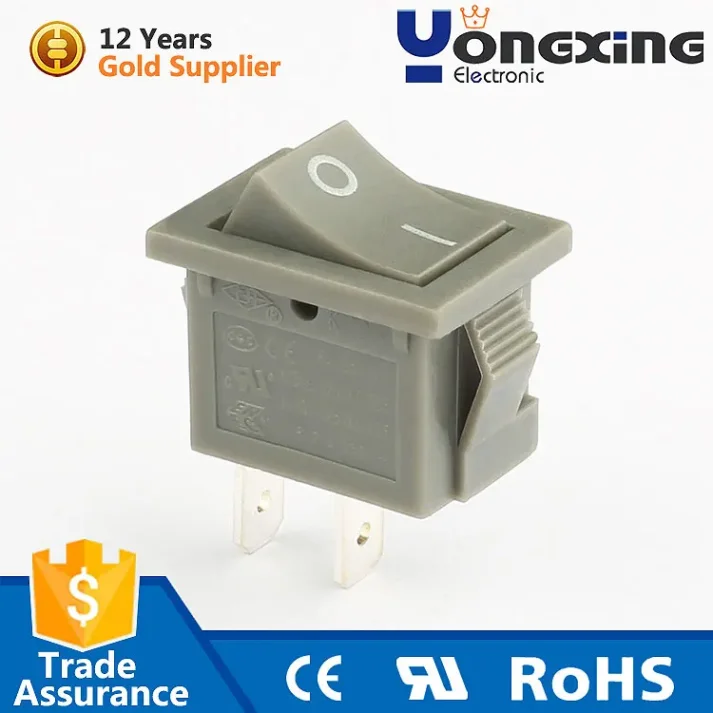

Wholesale KCD3 Mini Rocker Switch | Factory Supplier

Category: Tags: , ,
>= 1,000  pieces
$0.16
0 reviews

Wholesale KCD3 Mini Rocker Switch. Factory supplier, high quality, competitive prices.

Description

Our KCD3 Mini Rocker Switch, a high-quality product from our factory, is a top choice for wholesale buyers. With a maximum current rating of 6A/10A and a voltage of 250V AC, it’s designed to meet various electrical needs. The switch features a durable housing available in black, ensuring longevity and reliability. Its SPST circuit description makes it versatile for different applications. The switch boasts a low contact resistance of ≤50mΩ and high insulation resistance of ≥1000MΩ, guaranteeing excellent electrical performance. With a dielectric strength of 1500V AC for 1 minute, it offers superior safety. The mechanical life is up to 100,000 cycles, and the electronic life is 10,000 cycles, indicating its durability. Certified by CE, UL, CQC, and ENEC, it meets international quality standards. Operating temperatures include T55, T85, and T105, making it suitable for a wide range of environments. As a factory supplier, we offer competitive prices and reliable delivery. Our switch stands out with its compact design, high performance, and extensive certifications, making it an ideal choice for your electrical projects.
Contact Resistance ≤50mΩ 10a 12v rocker switch
Insulation Resistance ≥1,000MΩ
Dielectric Resistance 1,500V AC , 1 min
Electronic life(cycles) 10,000 cycles mini rocker switch
Mechanical life(cycles) 50,000 – 100,000 cycles
Certification

CQC , CE , ENEC

Max. Rating Current & Voltage (CQC , CE)

10(3)A 250V AC T85

6(3)A 250V AC t85 55 rocker switch
Max. Rating Current & Voltage (UL)

15R(3)A 125V AC , 10R(3)A 250V AC

1/3HP 125V AC
Max. Rating Current & Voltage (CB , ENEC)

10(3)A 250V AC T105,6(3)A 250V AC T105

6A 250V AC ,4A 250V AC T105

Electronic component product image for SEO optimizationCross-border e-commerce product picture for SEOElectronics device product image for SEO purpose


Key Features

Our KCD3 Mini Rocker Switch is renowned for its compact design and robust performance. With a maximum current of 6A/10A and a voltage of 250V AC, it's suitable for a wide range of applications. The switch's low contact resistance and high insulation resistance ensure efficient and safe operation.

Why Choose Us?

As a factory supplier, we offer unbeatable prices and direct access to high-quality products. Our switch is certified by multiple international standards, guaranteeing its reliability and safety. With a long mechanical life and extensive operating temperature range, it's built to last in any environment.

Applications

This switch is perfect for electrical control in industrial settings, home appliances, and more. Its versatility and durability make it an excellent choice for any project requiring a reliable rocker switch.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

6A/10A
Max. Voltage

250V AC
Place of Origin

Shanghai, China
Brand Name

SK(Shangkai)
Model Number

KCD3-11
Whether the smart

NO
Mechanical Life

100,000 cycles
Housing Color

black
Circuit Description

SPST
Contact Resistance

≤50mΩ
Insulation Resistance

≥1000MΩ
Dielectric Strength

1500V AC , 1min
Electronic Life(cycles)

10,000 cycles
Operating Temperature

T55,T85, T105
Certification

CE,UL,CQC,ENEC
