Description

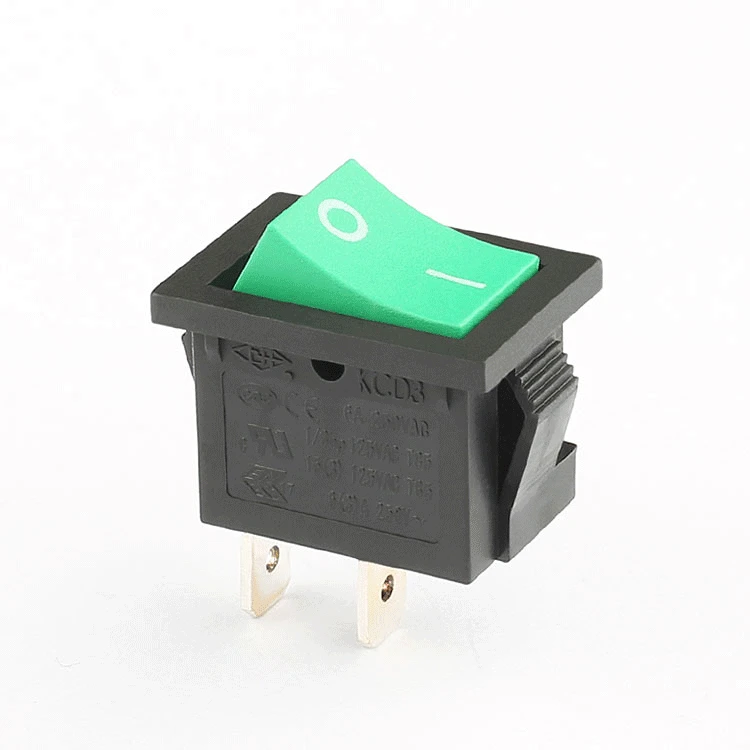

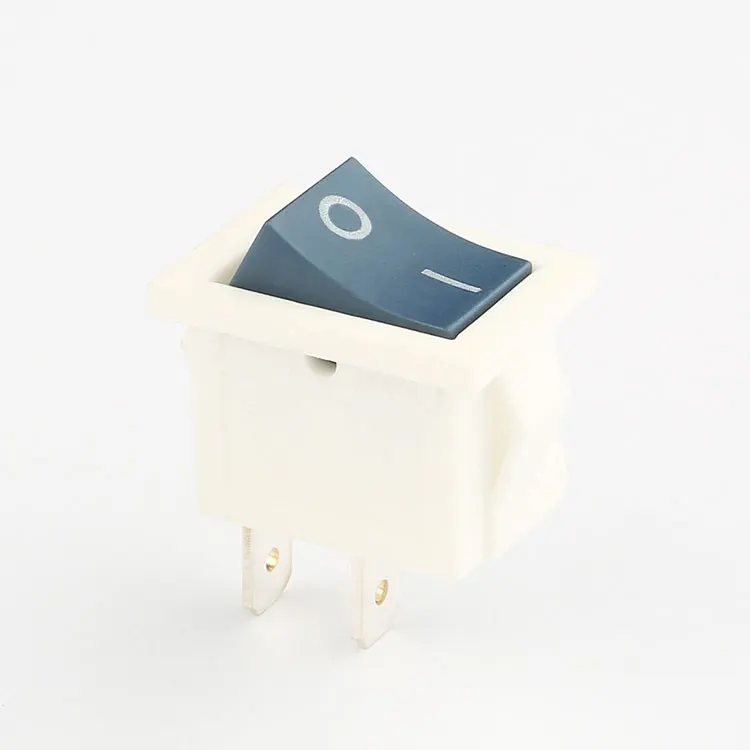

High-Quality KCD3 Mini Rocker Switch – Factory Direct Sales
Welcome to our store, where we offer the KCD3 Mini Rocker Switch as a factory supplier. This switch is a top-notch electrical component with a range of impressive features.
Product Specifications
- Max. Current: 6A/10A
- Max. Voltage: 250V AC
- Place of Origin: Shanghai, China
- Brand Name: SK(Shangkai)
- Model Number: KCD3-11
- Circuit Description: SPST
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1000MΩ
- Dielectric Strength: 1500V AC, 1min
- Electronic Life: 10,000 cycles
- Mechanical Life: 100,000 cycles
- Operating Temperature: T55, T105
- Certification: CQC, CE, ENEC, UL, CB
Product Advantages
Our KCD3 Mini Rocker Switch stands out from the competition. It has a long mechanical life of 100,000 cycles, ensuring durability and reliability. The low contact resistance of ≤50mΩ guarantees efficient electrical performance. With certifications like CQC, CE, ENEC, UL, and CB, you can be confident in its quality and safety standards.
Product Uses
This versatile switch is suitable for a wide range of applications, including household appliances, industrial equipment, and automotive electronics. Its compact size (19×13) makes it easy to install in various devices.
After-Sales Service
As a factory supplier, we provide excellent after-sales service. If you encounter any issues with the product, our dedicated team will be there to assist you promptly.
Why Choose Us
We are a reliable factory supplier offering wholesale prices. With our strict quality control measures, you can be assured of receiving high-quality products. Place your order today and experience the benefits of our top-notch KCD3 Mini Rocker Switch.
| Contact Resistance | ≤50mΩ t105 250v rocker switch |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles electrical changeover switch |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , ENEC |
| Max. Rating Current & Voltage (CQC , CE) |
10(3)A 250V AC T85 6(3)A 250V AC mini rocker switch |
| Max. Rating Current & Voltage (UL) |
15R(3)A 125V AC , 10R(3)A 250V AC 1/3HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
10(3)A 250V AC T105,6(3)A 250V AC T105 6A 250V AC ,4A 250V AC T105 |
Product Functions
The KCD3 Mini Rocker Switch serves as an essential electrical control component. It allows you to easily turn devices on and off, providing a convenient way to manage power flow. Its SPST circuit description ensures a simple and reliable switching mechanism.
Product Advantages for Users
Users should choose this switch because of its long mechanical life. With 100,000 cycles, it can withstand frequent use without failing, reducing the need for frequent replacements. The low contact resistance also means less energy loss, leading to more efficient operation of your devices.
Why It's a Great Choice
As a factory supplier offering wholesale prices, we can provide you with high-quality KCD3 Mini Rocker Switches at competitive rates. Our product meets various international certifications, ensuring safety and reliability. Whether you're a business looking to stock up or an individual in need of a reliable switch, this is the perfect choice for you.
