Description

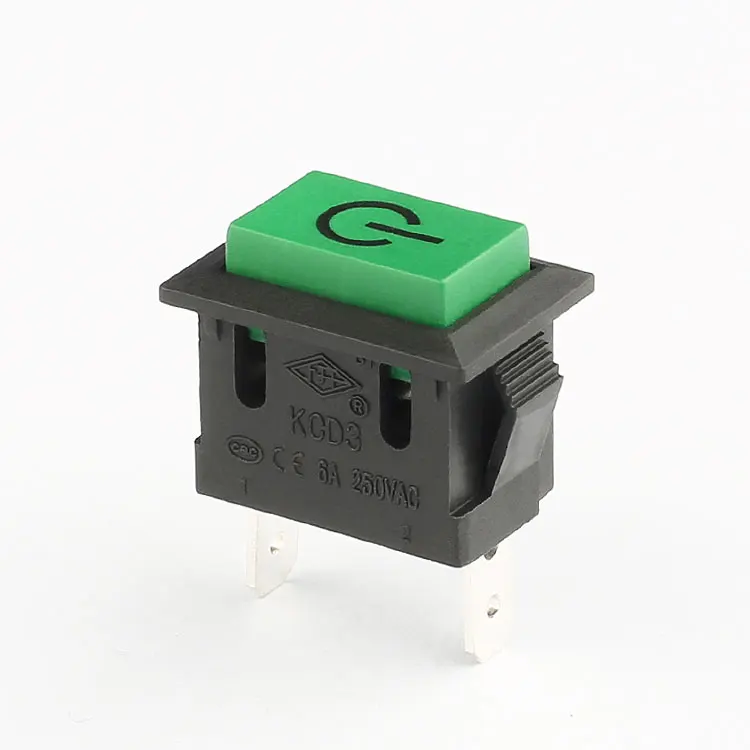

Introducing our high-quality KCD3 SPST Momentary Rocker Switch, a must-have for automotive and boat applications. As a factory supplier, we offer wholesale pricing and reliable service. This switch boasts a 6A current rating and 250V AC voltage capacity, ensuring safe and efficient operation. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it guarantees durability and longevity. The switch is CE, CQC, and ROHS certified, meeting international safety standards. Available in a variety of colors including red, yellow, green, black, blue, orange, white, and gray, it adds a touch of style to any application. Its momentary ON-OFF function provides precise control, making it ideal for various uses. Choose our factory-direct product for quality, value, and peace of mind.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-AB1B-B-G-106
|
|
Max. Current
|
6A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1 (21.4×15)
|
|
Contact Piece Code
|
B (4.8×0.8 standard)
|
|

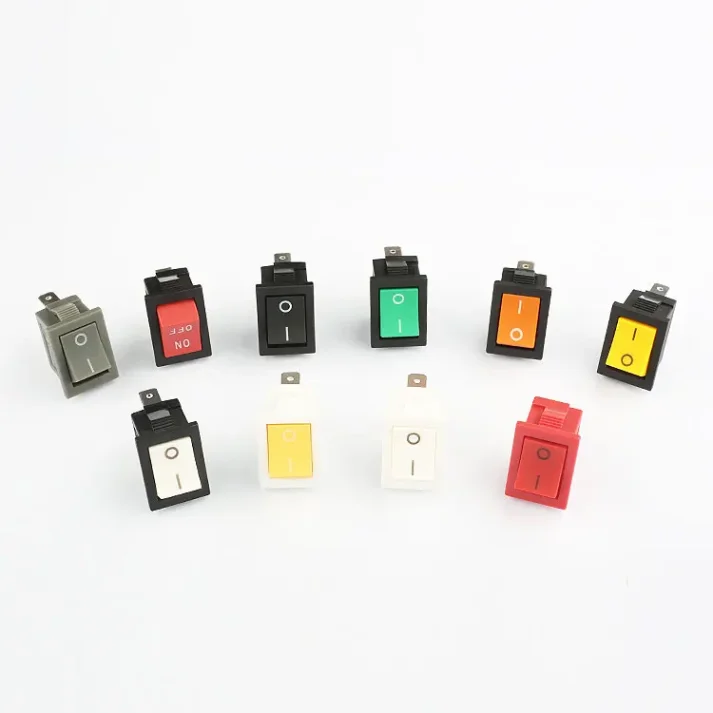

Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Function
|
Momentary On Off
|
Why Choose Our KCD3 Momentary Rocker Switch?
Our KCD3 Momentary Rocker Switch is designed for automotive and boat applications, offering a 6A current rating and 250V AC voltage capacity. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it ensures reliable and long-lasting performance.
What Makes Our Switch Stand Out?
As a factory supplier, we offer wholesale pricing and direct access to high-quality products. The switch is CE, CQC, and ROHS certified, meeting strict safety standards. Available in multiple colors, it adds versatility and style to your projects.
How Does the Momentary Function Work?
The momentary ON-OFF function provides precise control, allowing for quick and easy operation. This makes it ideal for applications where temporary power connection is needed, such as in automotive and boat controls.
