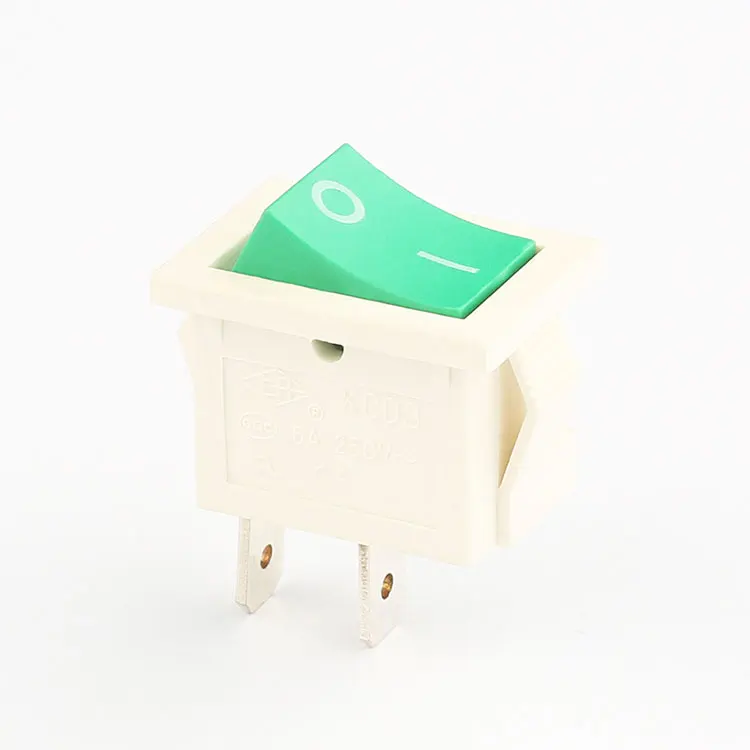

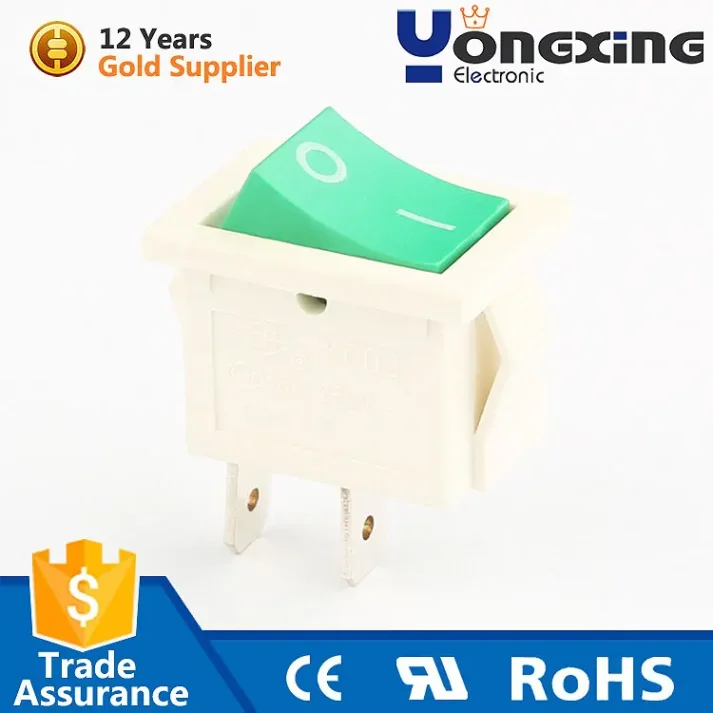

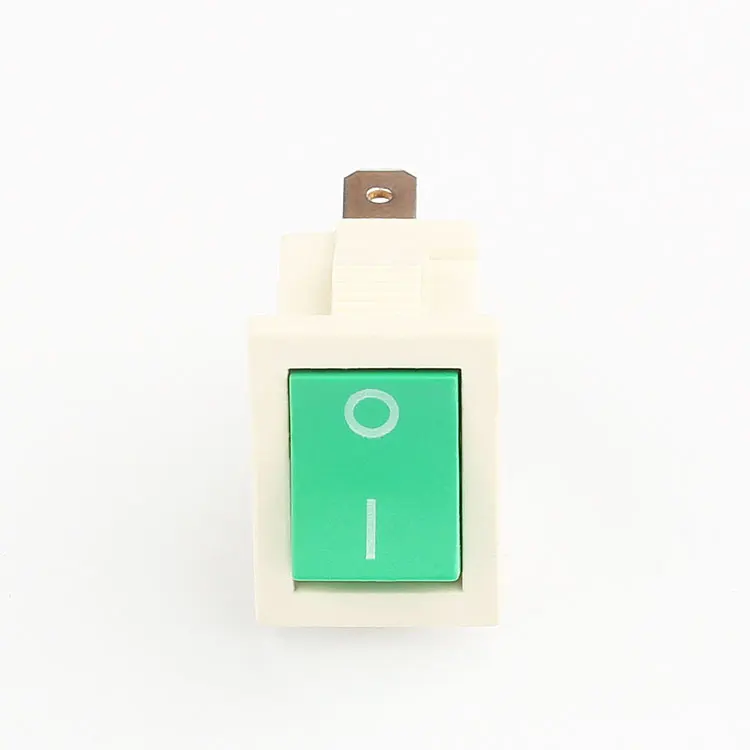

High-Quality KCD3 T105 Rocker Switch from Factory Supplier
As a leading factory supplier and wholesaler, we proudly present our KCD3 T105 rocker switch. This switch is designed to meet diverse industrial and household needs with its exceptional performance and reliability.
Specifications
- Max. Current: 6A/10A
- Max. Voltage: 250V AC
- Place of Origin: Shanghai, China
- Brand Name: SK(Shangkai)
- Model Number: KCD3-11
- Mechanical Life: 100,000 cycles
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1000MΩ
- Dielectric Strength: 1500V AC, 1 min
- Electronic Life: 10,000 cycles
- Operating Temperature: T55, T105
- Certification: CE, UL, CQC, ENEC
Advantages
Our KCD3 T105 rocker switch stands out with its long mechanical life, low contact resistance, and high insulation resistance. It is built to withstand rigorous use, ensuring durability and safety. With certifications from CE, UL, CQC, and ENEC, you can trust in its quality and compliance with international standards.
Applications
Ideal for use in various electrical appliances, industrial equipment, and household gadgets, this rocker switch provides reliable on/off control. Its compact design and easy installation make it a preferred choice for manufacturers and DIY enthusiasts alike.
After-Sales Service
We offer comprehensive after-sales service, including technical support and warranty coverage. As a factory supplier, we ensure prompt delivery and competitive pricing, making us your go-to source for wholesale purchases.
| Contact Resistance | ≤50mΩ Rocker Switch |
| Insulation Resistance | ≥1,000MΩ Mini Rocker Switch |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles , 2 Pin Rocker Switch |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , UL , ENEC |
| Max. Rating Current & Voltage (CQC , CE) |
10(3)A 250V AC T85 6(3)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
15R(3)A 125V AC , 10R(3)A 250V AC 1/3HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
10(3)A 250V AC T105,6(3)A 250V AC T105 6A 250V AC ,4A 250V AC T105 |
Why Choose Our KCD3 T105 Rocker Switch?
Our KCD3 T105 rocker switch is designed to offer superior performance and reliability. With a long mechanical life of 100,000 cycles and low contact resistance, it ensures smooth and efficient operation. Its high insulation resistance and dielectric strength provide added safety, making it suitable for a wide range of applications.
What Makes Our Switch Stand Out?
Unlike other switches on the market, our KCD3 T105 rocker switch is certified by CE, UL, CQC, and ENEC, guaranteeing its quality and compliance with international standards. Its compact design and easy installation make it a preferred choice for manufacturers and DIY enthusiasts. Additionally, as a factory supplier, we offer competitive pricing and prompt delivery.
What Are the Key Features?
Key features include a max. current of 6A/10A, max. voltage of 250V AC, and an operating temperature range of T55 to T105. It also boasts a long electronic life of 10,000 cycles, ensuring durability and longevity. Whether you're looking for a reliable switch for your electrical appliances or industrial equipment, our KCD3 T105 rocker switch is the perfect choice.
