Description
|
Certification
|
CQC,CE,UL
|
|
Whether the smart
|
NO
|
|
Place of Origin
|
China
|
|
Brand Name
|
ShiningKey
|
|
Model Number
|
KCD5
|
|
Max. Current
|
6A
|
|
Max. Voltage
|
250VAC
|
|
Mechanical Life
|
50000 Cycles
|
|
Product name
|

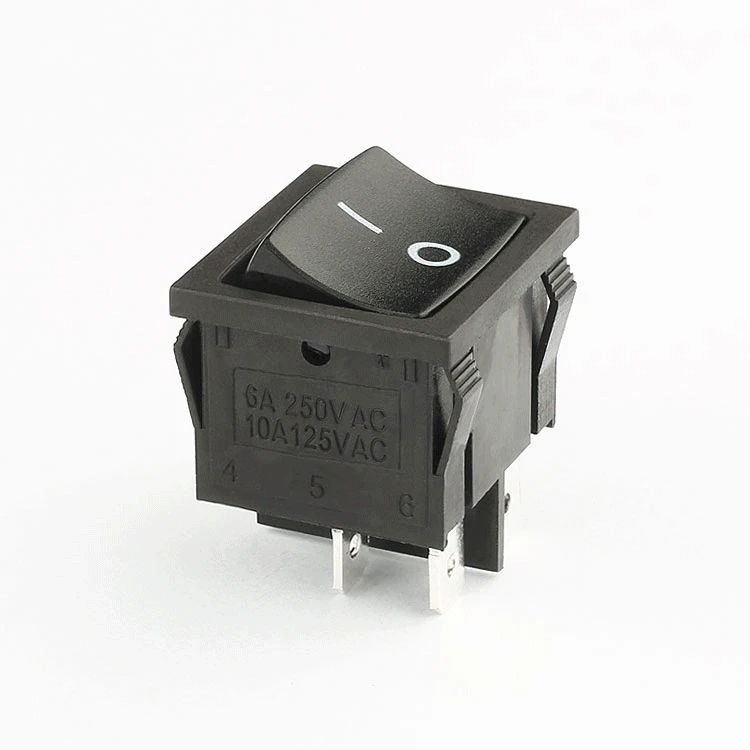

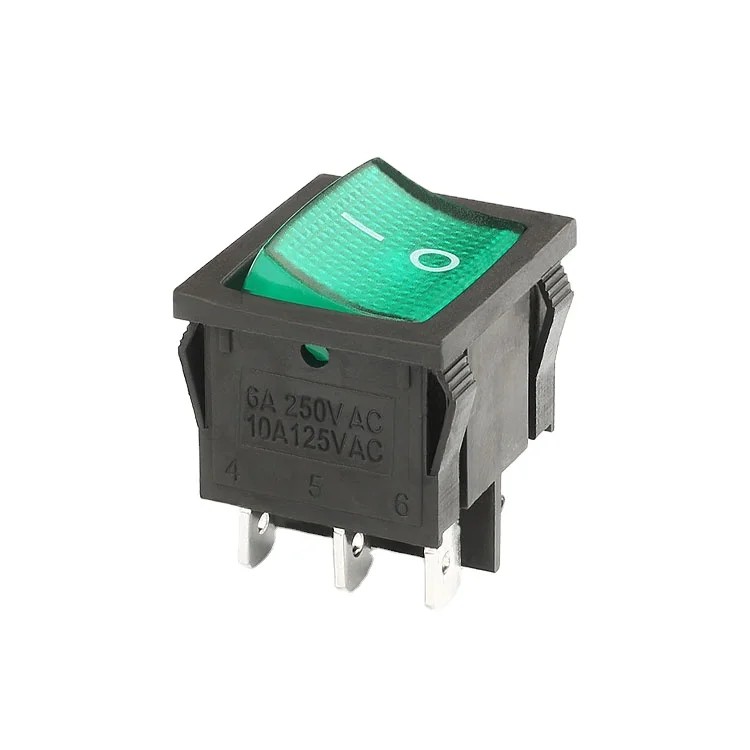

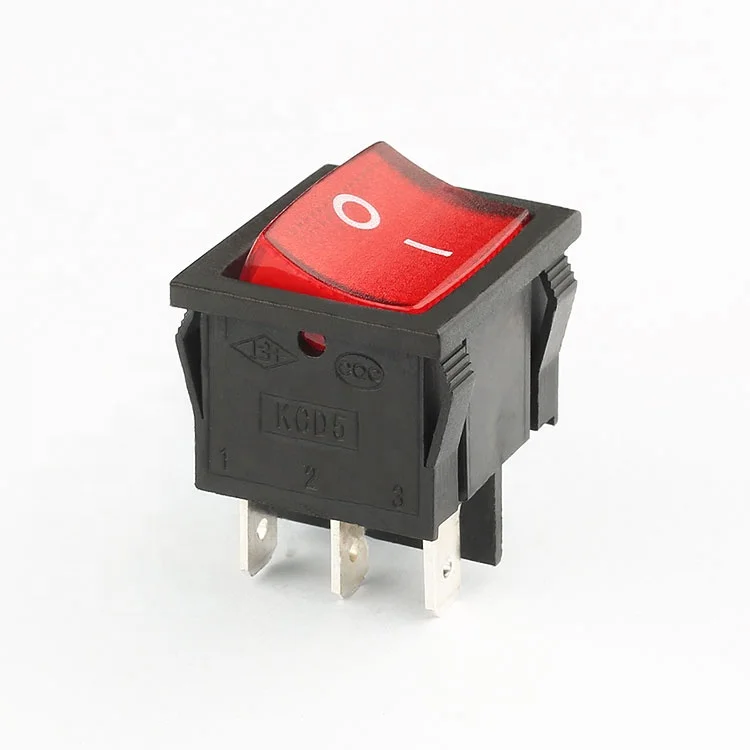

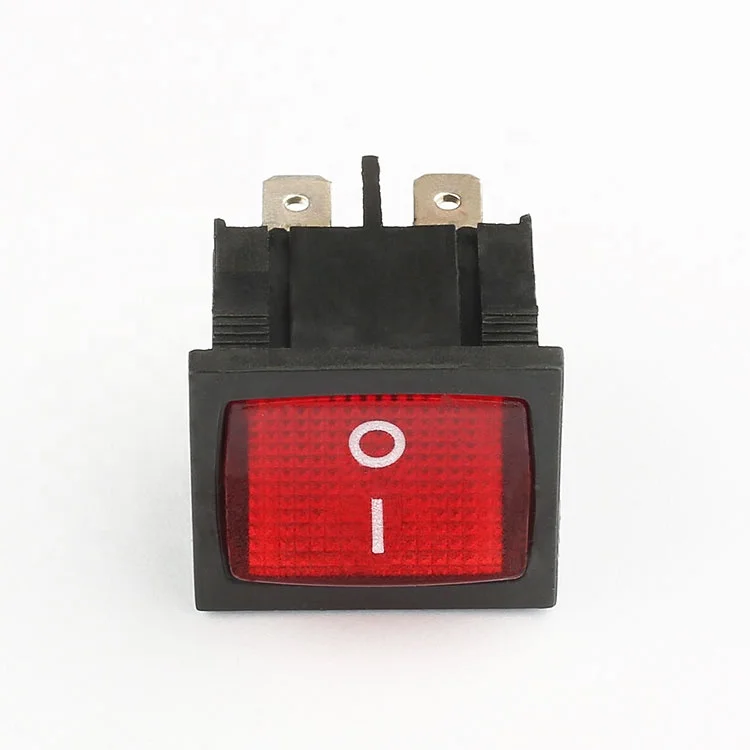

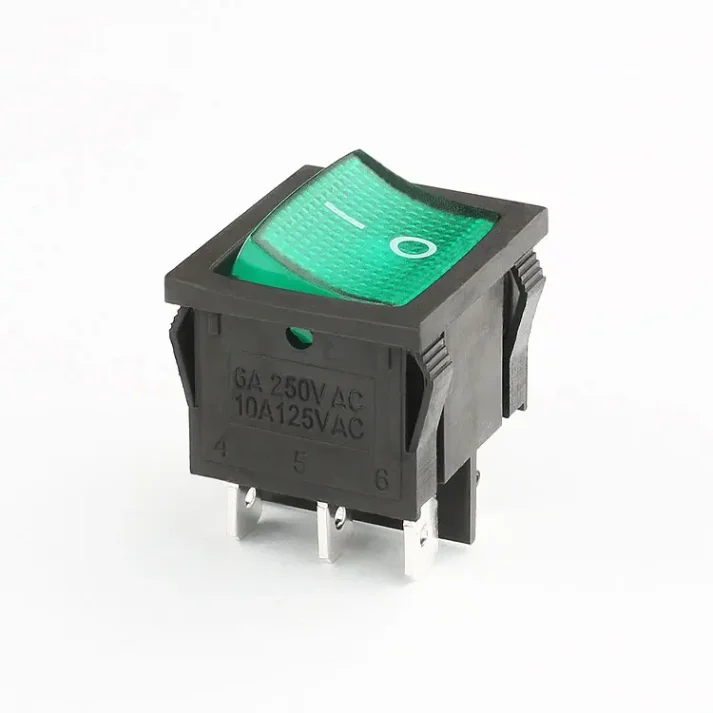

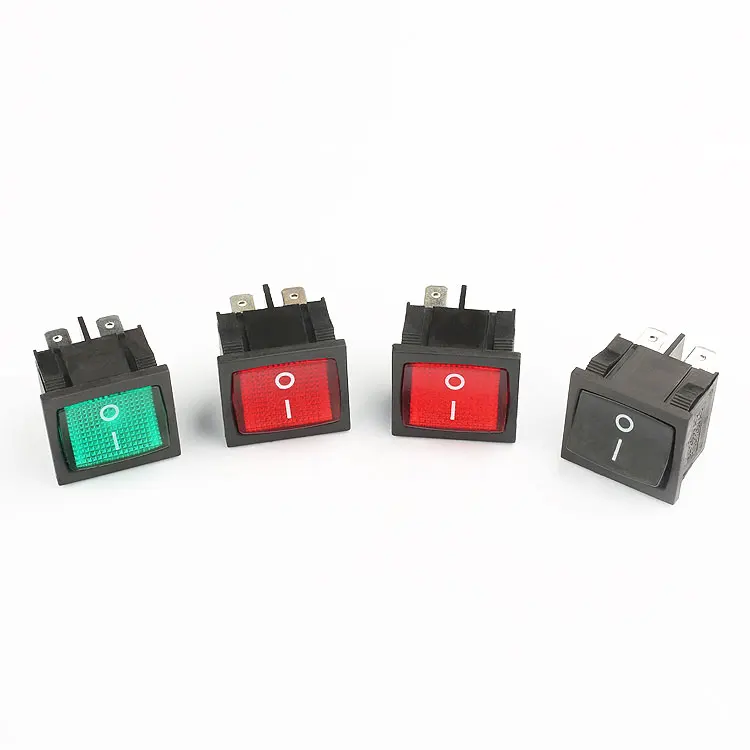

6 Pins Lamp Voltage double poles double throw illuminated On-On Rocker Switch
|
|
Function
|
ON-ON
|
|
Application
|
Medical Equipment
|
|
Material
|
Plastic PA66
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Terminal Type
|
4.8*0.8 Terminal
|
|
Pole
|
2 Poles
|
|
Pins
|
6 Pins
|
Why Choose Our KCD5 6-Pin DPDT LED Rocker Switch?
Our KCD5 6-Pin DPDT LED Rocker Switch is designed specifically for medical equipment, offering reliable and efficient operation. With a maximum current of 6A and a maximum voltage of 250VAC, it ensures safe performance in demanding environments. The illuminated ON-ON function provides clear indication, making it ideal for medical applications where visibility is crucial.
What Makes Our Switch Stand Out?
Our switch is built to last with a mechanical life of 50,000 cycles. The plastic PA66 material offers excellent insulation and durability, while the low contact resistance (≤50mΩ) and high insulation resistance (≥1000MΩ) ensure optimal performance. As a factory supplier, we offer wholesale prices, making it a cost-effective choice for your business.
What Are the Applications of Our Switch?
Our KCD5 6-Pin DPDT LED Rocker Switch is perfect for medical equipment, industrial use, and control panels. Its reliable performance and durable construction make it suitable for a wide range of applications where clear indication and safe operation are essential.
