Description
Key Specifications:
- Max. Rating: 6A 250VAC / 10A 250VAC
- Circuit: Double poles single through
- Mechanical Life: 50,000 times
- Electrical Life: 10,000 times
- Material: PA66, durable and reliable
- Color Options: Red, Yellow, Green, Blue, White
- Lamp Color: White, Orange, Red, Blue, Green
- Operating Temperature: 0~105°C
- Terminals: 2pin/3pin/4pin/6pin
- IP Level: IP41
Our rocker switches are designed for longevity and performance, making them ideal for water dispensers, drinking machines, and other demanding applications. With more than 60 senior engineers and advanced production facilities, we ensure top-notch quality and fast delivery. Customize your rocker switches with us today and enjoy the benefits of factory-direct pricing and exceptional service.
|

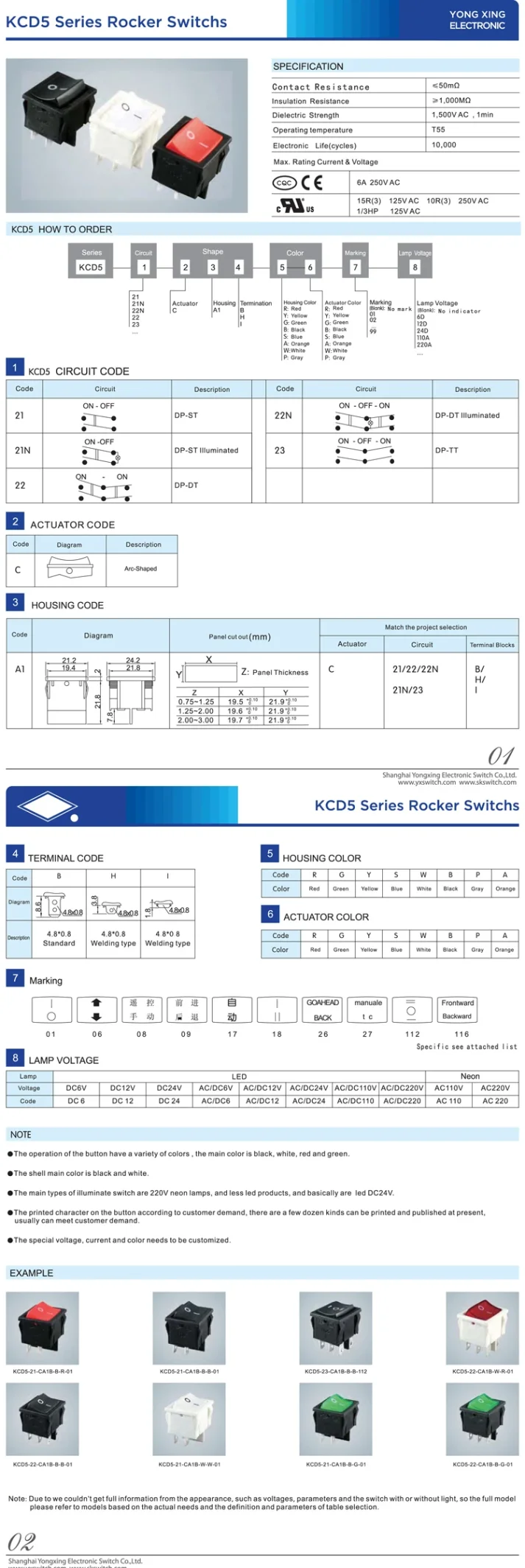

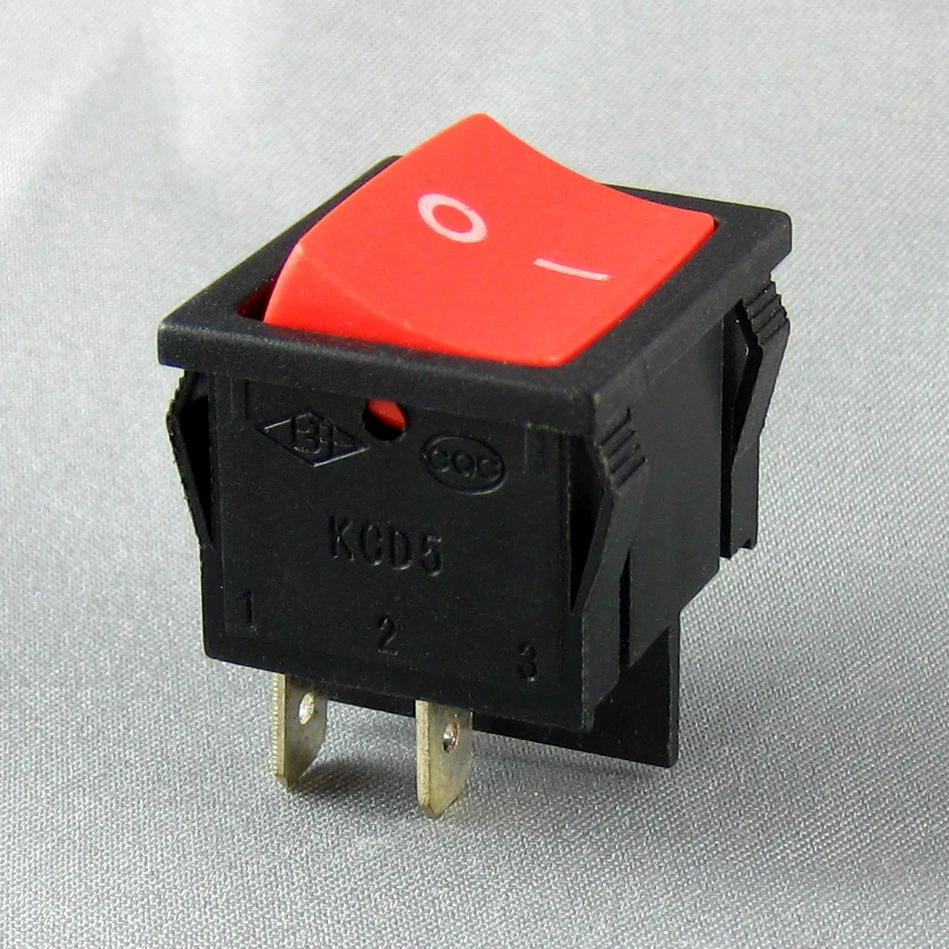

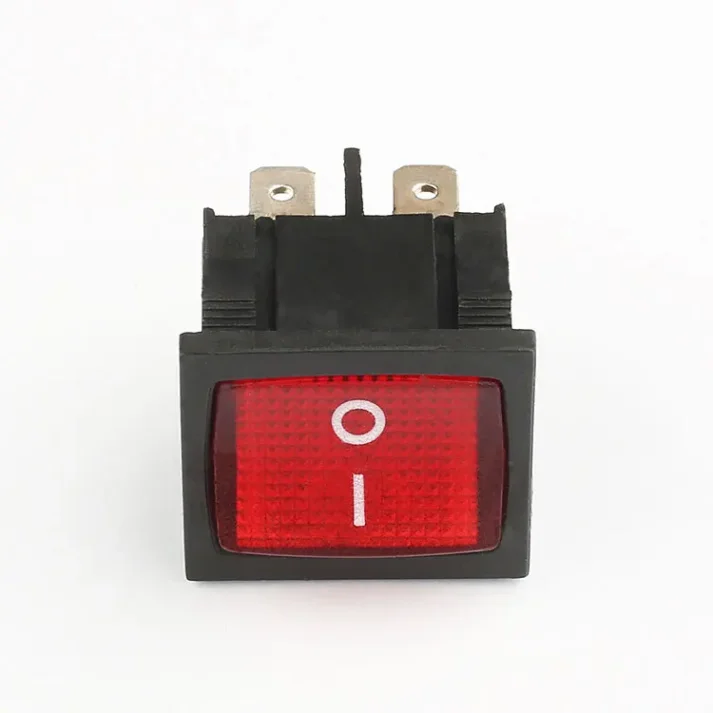

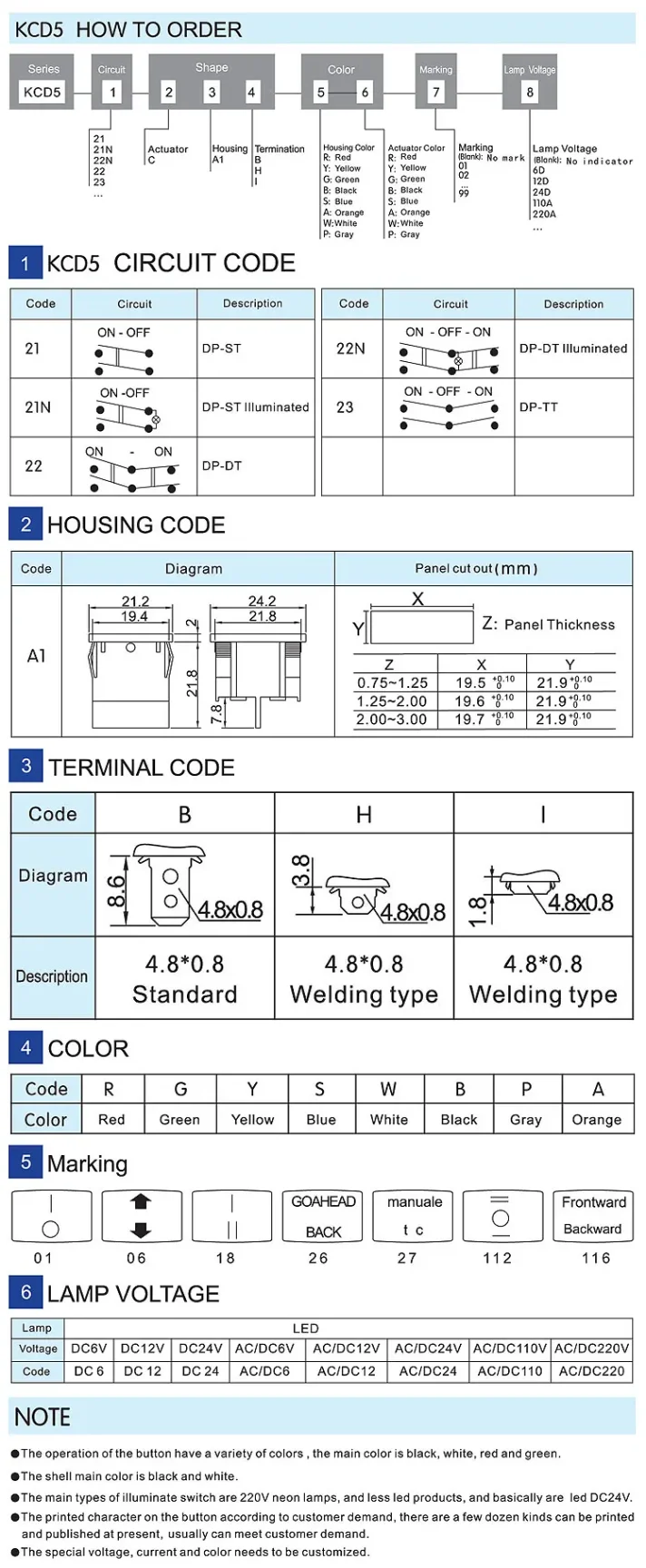

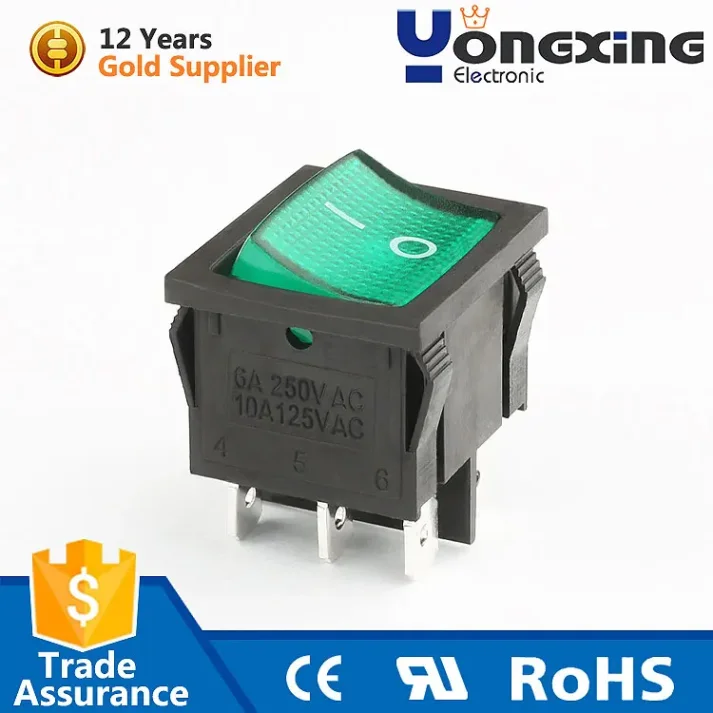

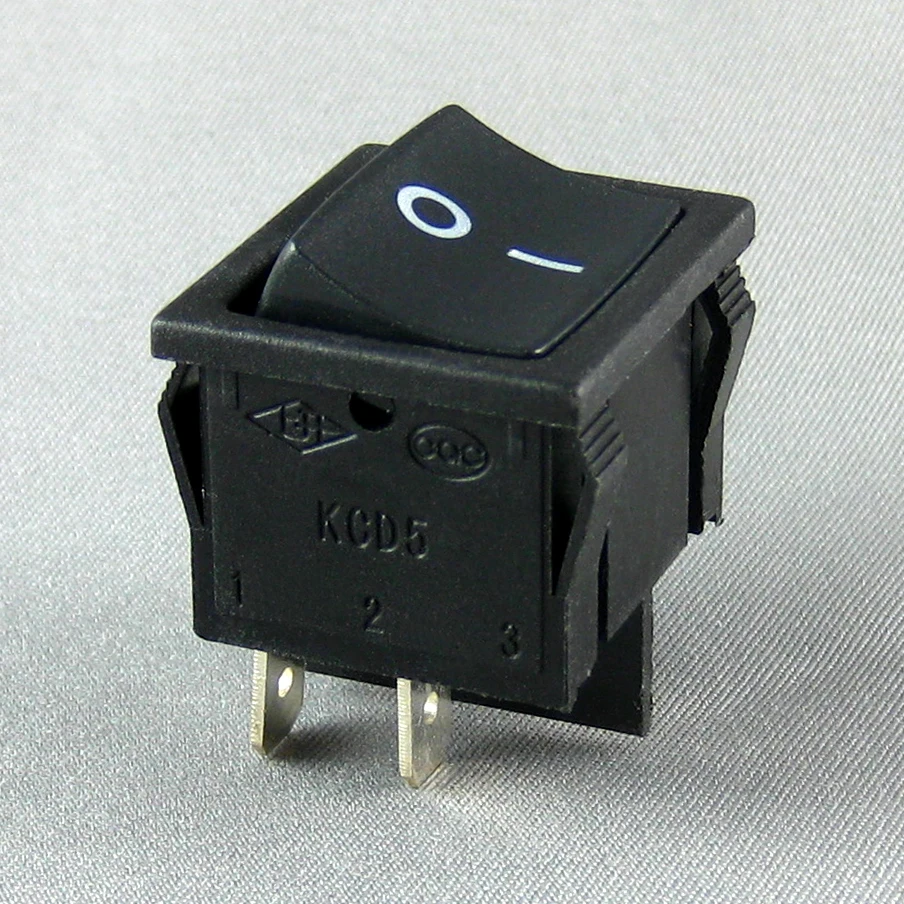

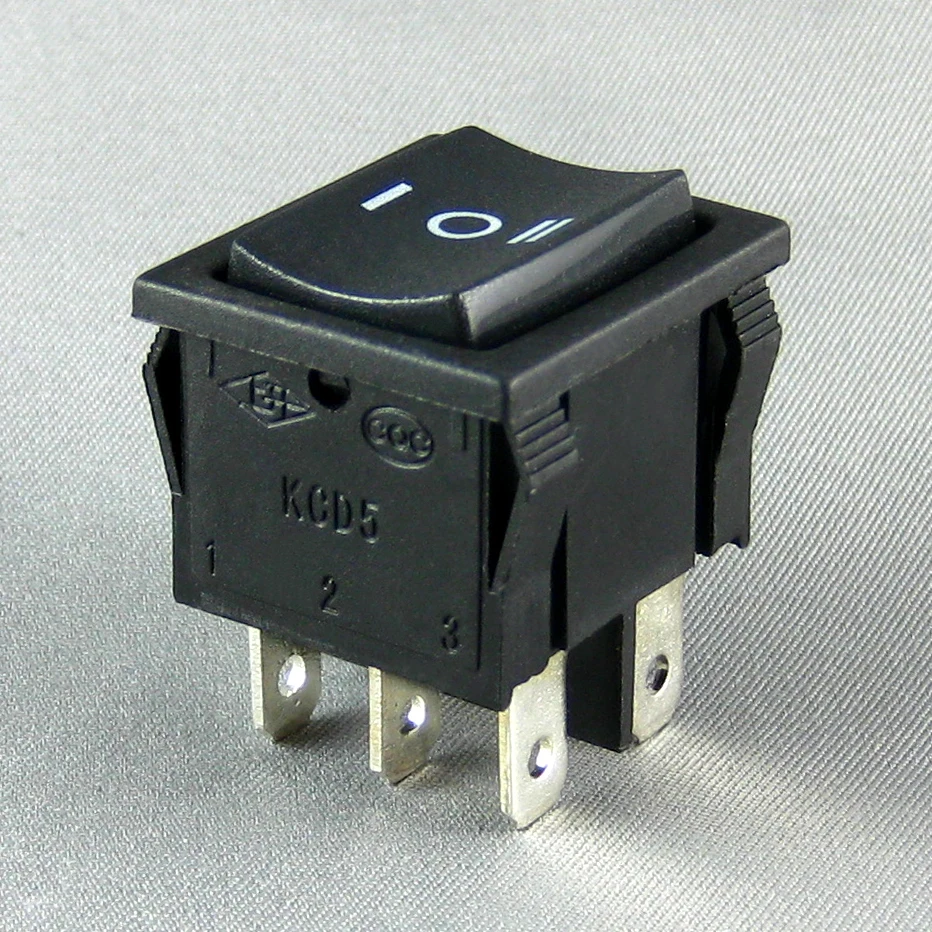

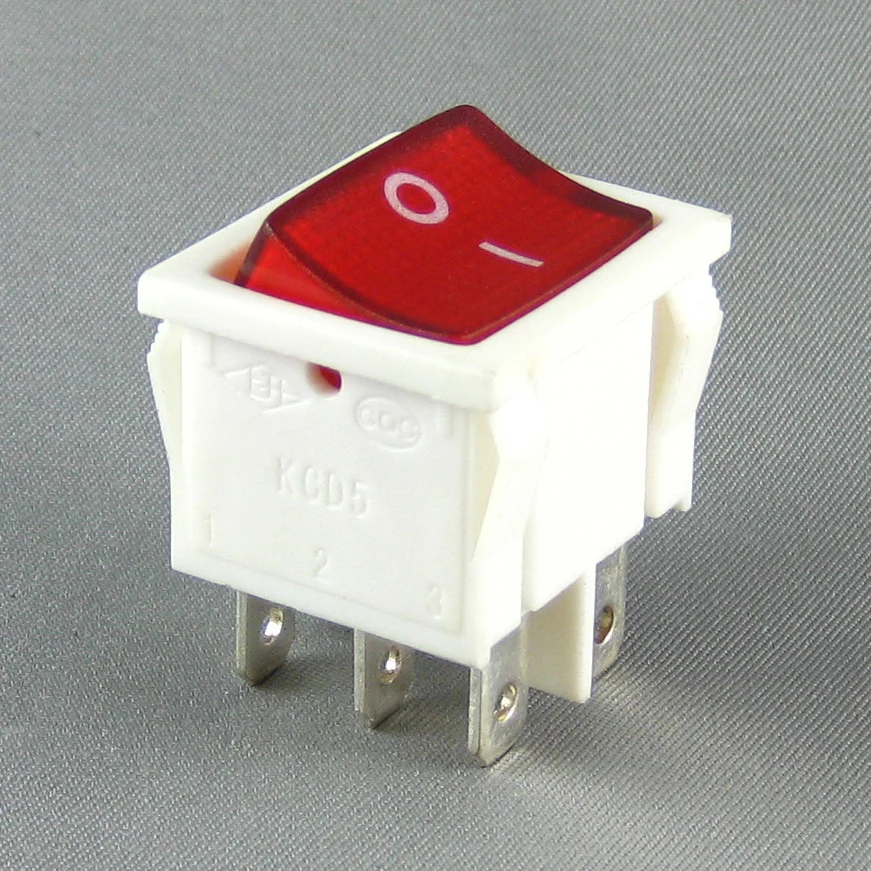

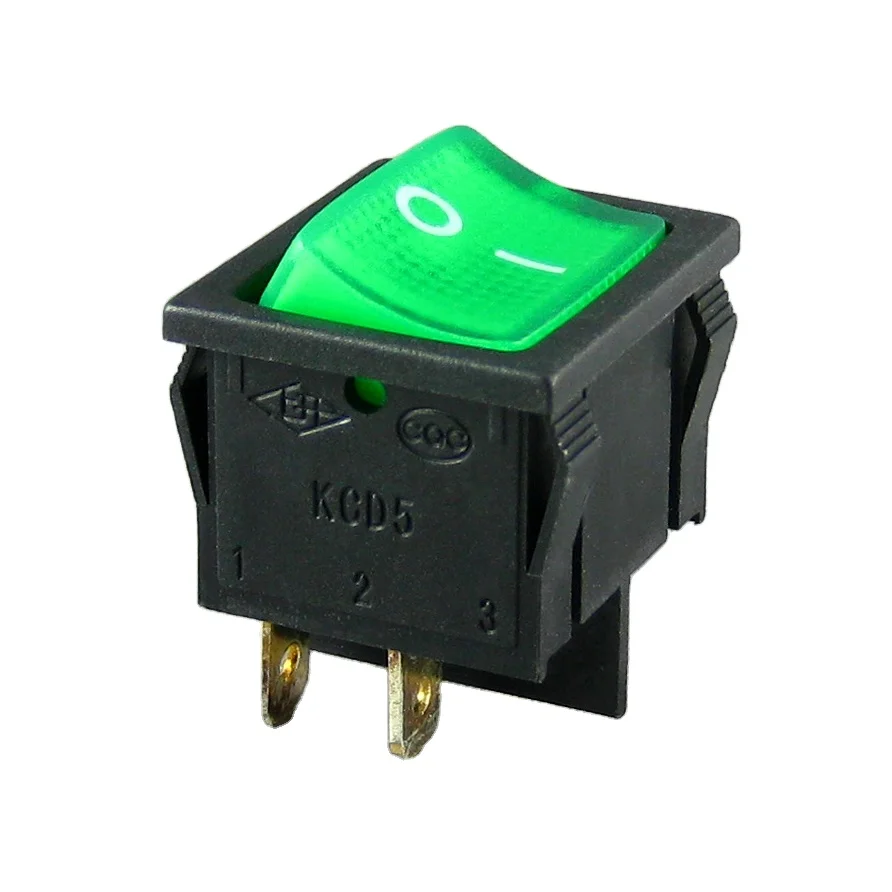

KCD5-21N-CA2A-BB-01-24D
|
||
|
Max.Rating Current&Voltage：
|
6A 250V
|
|
|
Circuit：
|
Double poles single through
|
|
|
electronic life：
|
10000 times
|
|
|
Actuator color：
|
Black, green, white and so on
|
|
|
Housing color：
|
Black, white and so on
|
|
Why Choose Our KCD5 Rocker Switch?
Our KCD5 Rocker Switch stands out for its durability, performance, and customization options. With a mechanical life of 50,000 times and an electrical life of 10,000 times, it ensures long-lasting reliability in demanding applications. As a factory supplier, we offer wholesale prices and the flexibility to customize the switch to meet your specific requirements.
What Are the Key Features?
Key features include a max. rating of 6A/10A 250VAC, double poles single through circuit, and a wide range of color options for both the actuator and housing. The switch is made from high-quality PA66 material, ensuring durability and resistance to wear and tear. Additionally, it offers a variety of terminal options to suit different applications.
How Does It Benefit Your Business?
By choosing our KCD5 Rocker Switch, you benefit from factory-direct pricing, fast delivery, and exceptional customer service. Our advanced production facilities and experienced engineers ensure top-notch quality and the ability to meet large-scale orders. Whether you need standard switches or customized solutions, we've got you covered.
