Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD7-11-CF1B-P-P-01
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
SPST
|
|

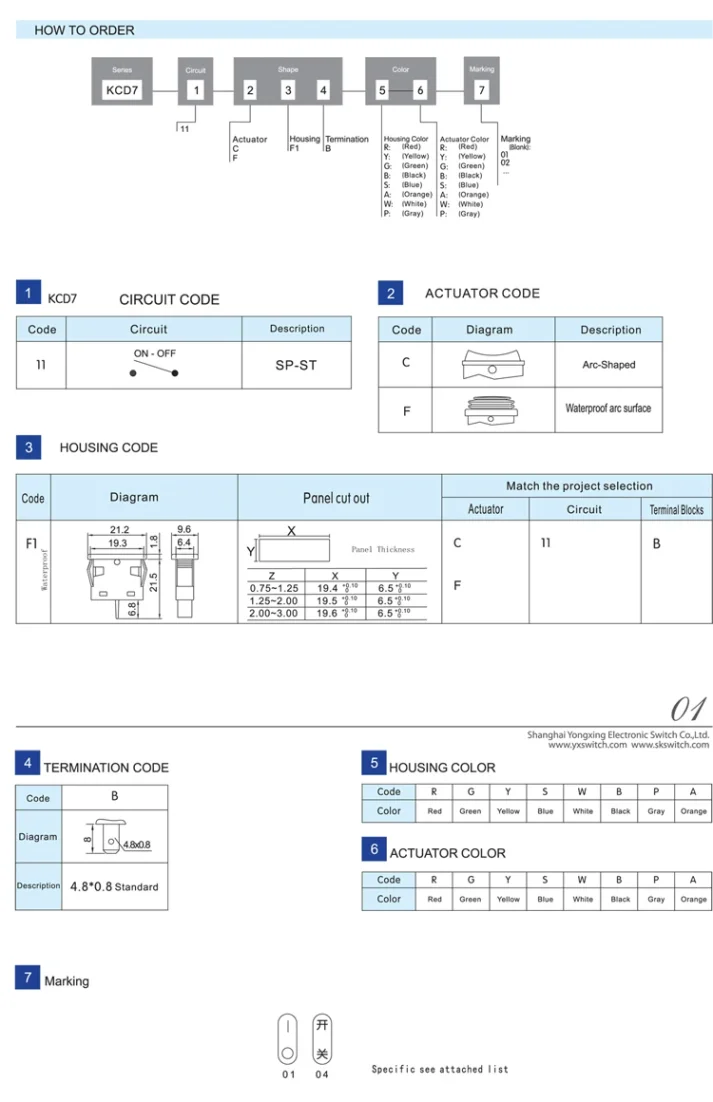

Dimension Code
|
F1 (21.2×23.3×9.6, 19.3×21.5×6.4)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Lamp voltage
|
6v/12v/24v/110v/220v
|

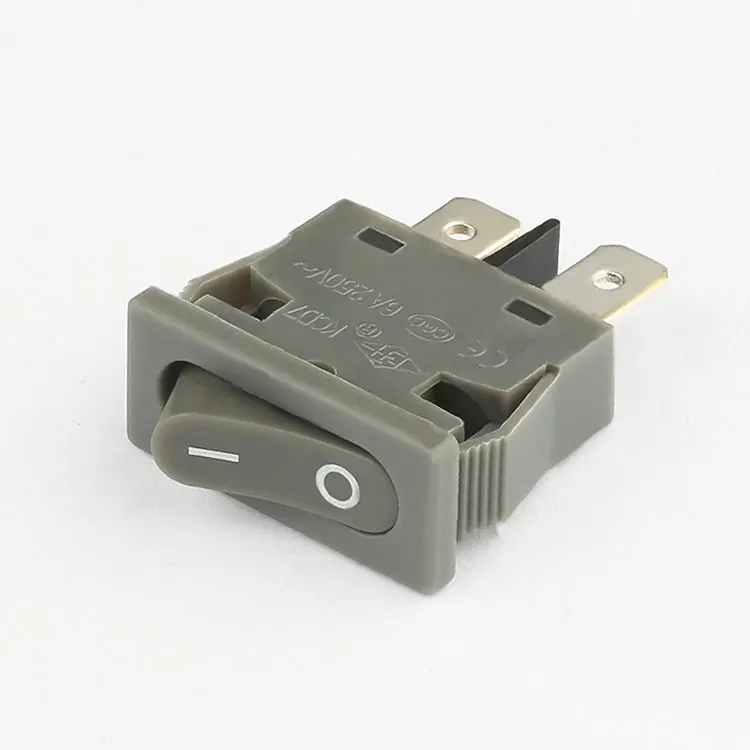

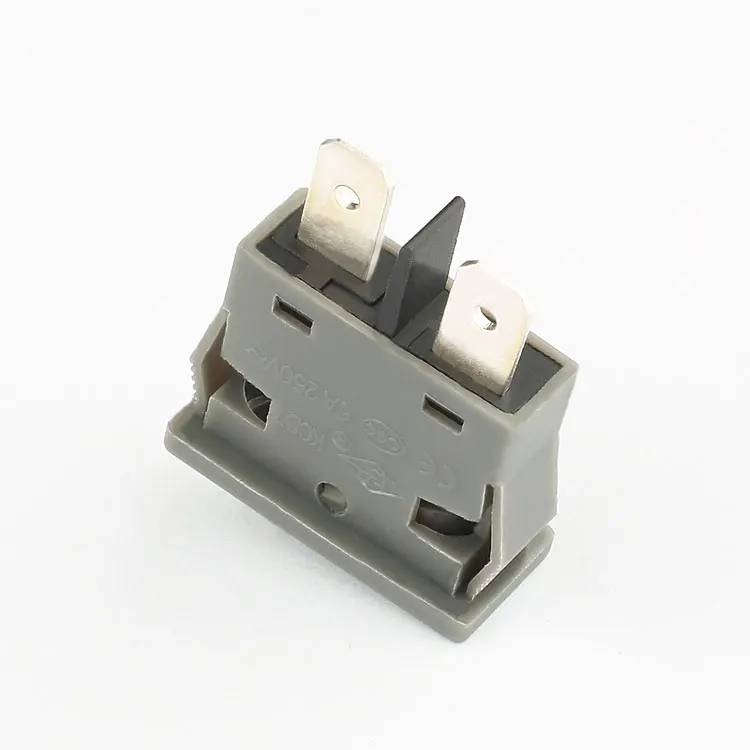

Why Choose Our KCD7 Boat Rocker Switch?
Our KCD7 Boat Rocker Switch stands out for its high durability, with a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting performance. It is designed for panel mounting, making it versatile for various applications. The switch's IP65 protection level guarantees resistance to dust and water, making it ideal for marine and outdoor use. With a wide operating temperature range of 0~55℃, it ensures stable performance in diverse environments.
What Are the Key Features of Our Switch?

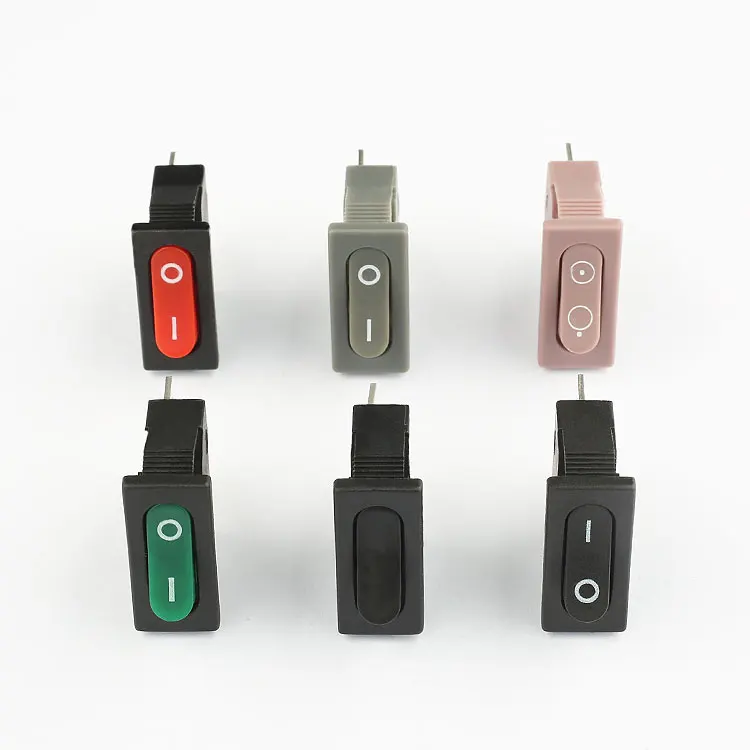

Our switch is rated at 6A 250V AC, providing reliable electrical performance. It features a contact resistance of ≤50mΩ and an insulation resistance of ≥1000MΩ, ensuring safety and efficiency. The switch is available in multiple colors, allowing you to choose the one that best suits your needs. Its compact dimensions make it easy to install in tight spaces.
How Can You Benefit from Buying Wholesale?
As a factory direct supplier, we offer wholesale pricing on our KCD7 Boat Rocker Switch, allowing you to save money on bulk purchases. Whether you are a distributor, retailer, or end-user, buying wholesale ensures you get the best value for your money. Our excellent after-sales service and commitment to quality make us your trusted partner for all your rocker switch needs.
