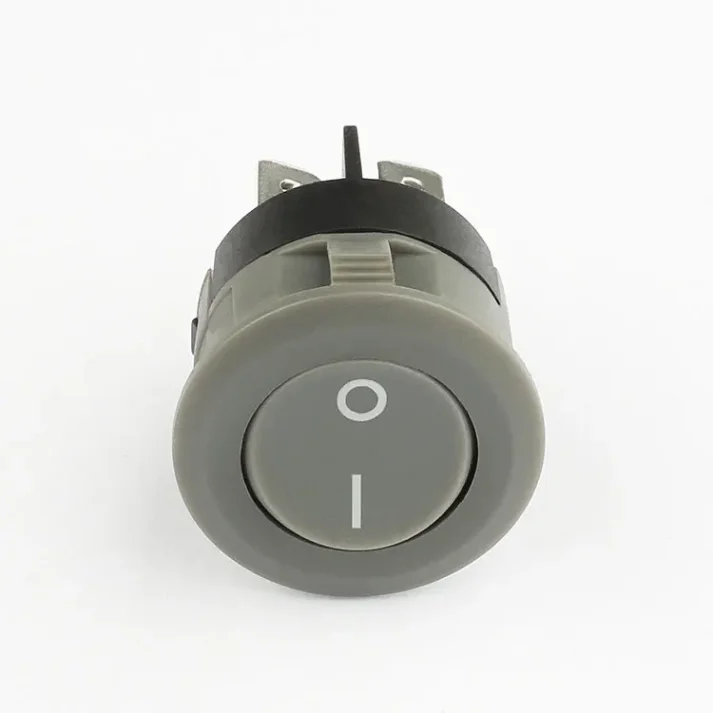

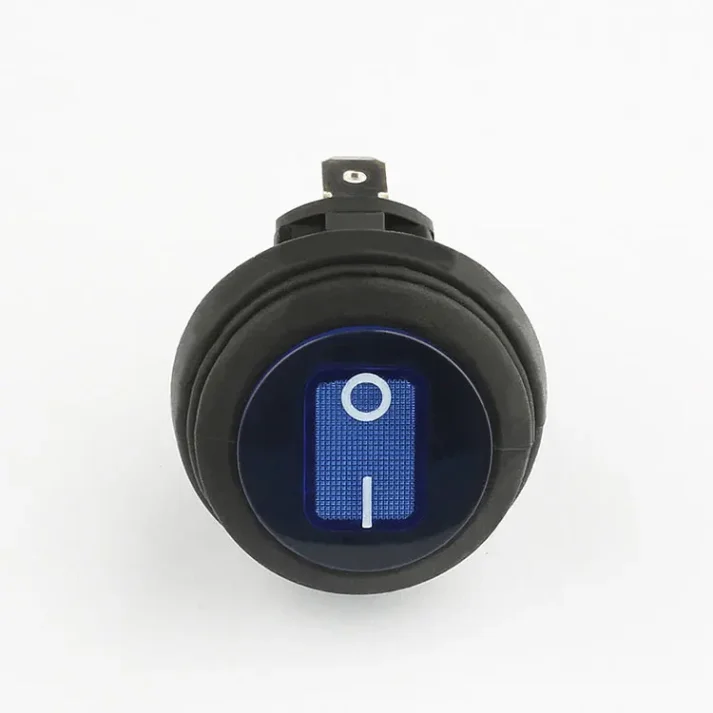

Wholesale KCD8 3-Pin 3-Position Rocker Switch – Factory Direct Supplier

Category: Tags: , ,
>= 100  pieces
$0.42
0 reviews

Wholesale KCD8 Rocker Switch – Factory Direct, Durable, Certified

Clean All

Description

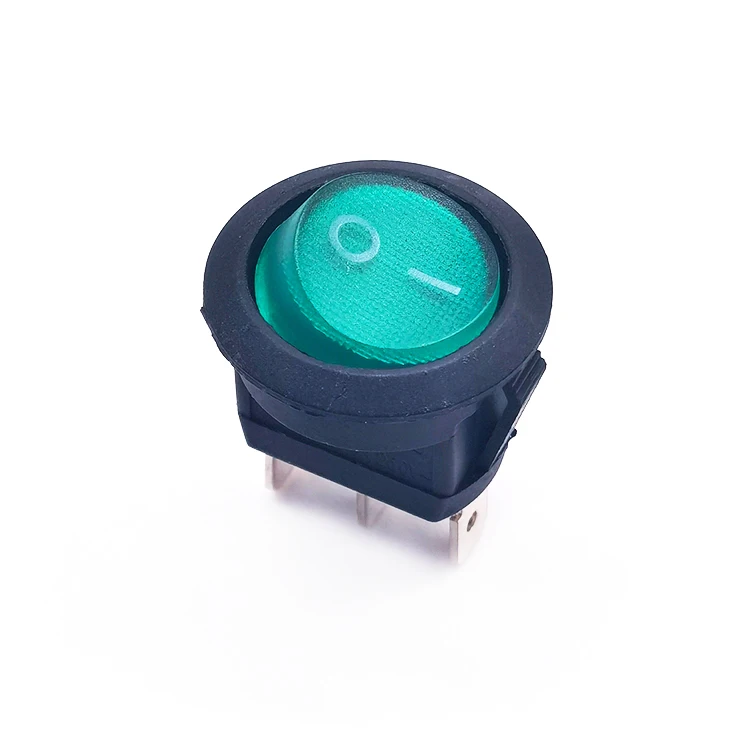

Introducing our KCD8 3-pin 3-position round rocker switch, a top-tier electrical component designed for durability and reliability. As a factory-direct supplier, we offer this switch at wholesale prices, ensuring you get the best value for your money. With a maximum current of 6A and a maximum voltage of 250V AC, this switch is perfect for a wide range of applications. Its mechanical life of 100,000 cycles and electronic life of 10,000 cycles guarantee long-lasting performance. Available in green, it not only meets but exceeds industry standards with certifications including CQC, CE, ENEC17, and UL. Our switch also boasts an IP40/IP65 rating and a dielectric strength of 1500V AC for 1 minute, ensuring safety and reliability. Choose our KCD8 rocker switch for its superior quality, competitive pricing, and exceptional after-sales service. We are your trusted supplier for all your electrical component needs.

Electronic component product image for cross-border e-commerceHigh-quality electronic device for cross-border salesLatest electronic gadget for cross-border e-commerceCross-border e-commerce electronic product display


Why Choose Our KCD8 Rocker Switch?

Our KCD8 rocker switch stands out with its robust construction, offering a mechanical life of 100,000 cycles and an electronic life of 10,000 cycles, ensuring long-term reliability. With certifications like CQC, CE, ENEC17, and UL, it meets the highest safety standards, making it ideal for various applications.

What Are the Key Features?

The switch features a 3-pin, 3-position design with a maximum current of 6A and a voltage of 250V AC. It comes in a vibrant green color and offers IP40/IP65 protection, along with a dielectric strength of 1500V AC for 1 minute, ensuring safety and durability.

Why Buy from Us?

As a factory-direct supplier, we offer wholesale pricing, ensuring you get the best deal. Our commitment to quality and exceptional after-sales service makes us your go-to supplier for all your electrical component needs. Choose us for reliability, affordability, and peace of mind.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

6A
Max. Voltage

250V AC
Place of Origin

Shanghai, China
Brand Name

SK(Shangkai)
Model Number

KCD8
Whether the smart

NO
Mechanical Life

100,000 cycles
IP level

IP40, IP65
Dielectric Strength

1500V AC , 1min
Electronic Life(cycles)

10,000 cycles
Operating Temperature

T55,T85,T105
Certification

CQC CE ENEC17 UL
