Description

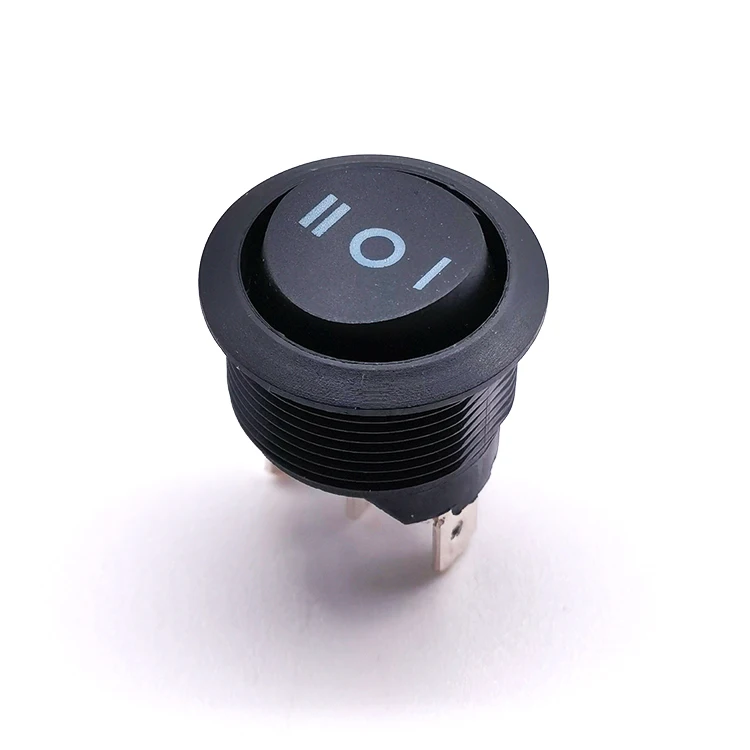

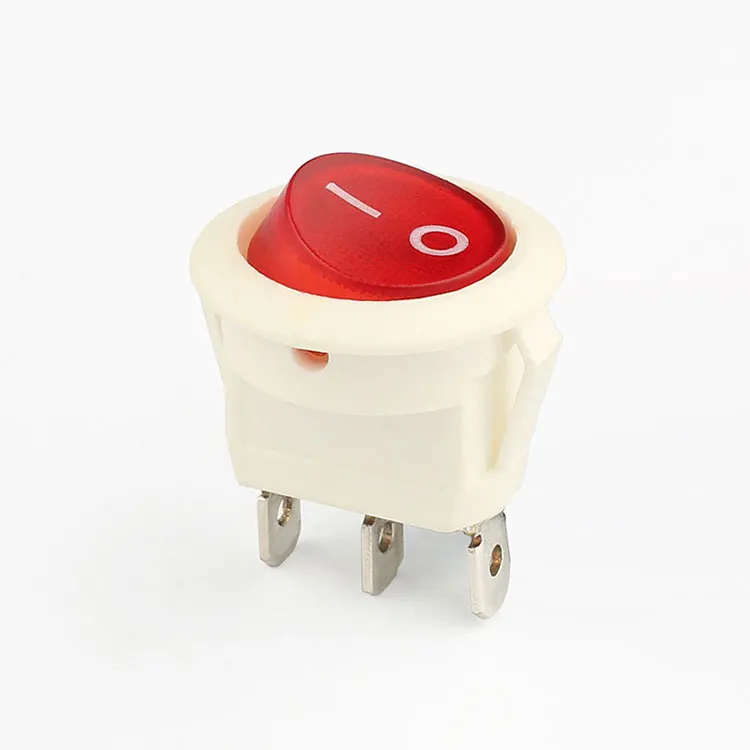

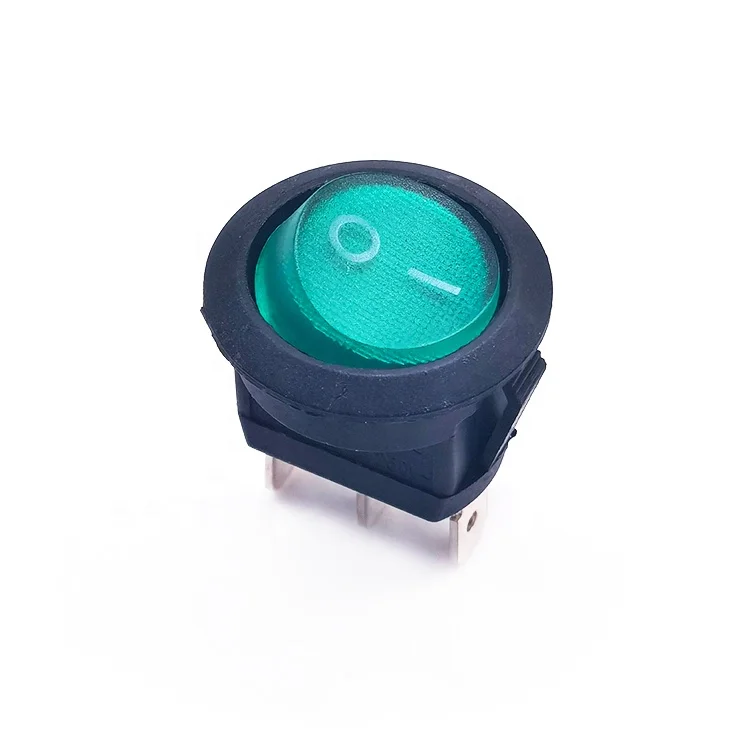

Our KCD8 3-Pin Rocker Switch is a high-quality, durable switch designed for a wide range of applications. As a factory direct supplier, we offer competitive wholesale prices and excellent customer service. This switch features a contact resistance of ≤50mΩ, insulation resistance of ≥1,000MΩ, and a dielectric resistance of 1,500V AC for 1 minute. It has an electronic life of 10,000 cycles and is rated for 6A 250V AC (CQC, CE certified). The switch is available in black housing with amber, orangered, blue, or green LED options. With an IP41 rating and a mechanical life of 50,000-100,000 cycles, it’s built to last. Perfect for electric fireplaces, industrial machinery, and more. Choose us as your trusted supplier for all your rocker switch needs.
| Contact Resistance | ≤50mΩ rocker switches for electric fireplace |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles 4 pin on-off rocker switch |
| Operating Temperature | T55 rocker switch |
| Certification |
CQC , CE |
| Max. Rating Current & Voltage (CQC , CE) |
6A 250V AC |
Key Features
Our KCD8 3-Pin Rocker Switch offers robust performance with a contact resistance of ≤50mΩ and insulation resistance of ≥1,000MΩ, ensuring reliable operation in various applications.
Durability & Longevity
With a mechanical life of 50,000-100,000 cycles and an electronic life of 10,000 cycles, this switch is built to withstand heavy use, making it ideal for industrial and commercial environments.
Versatile Applications
Perfect for electric fireplaces, industrial machinery, and home appliances, our rocker switch provides on-off control with an LED indicator for easy visibility in low-light conditions.
