Description

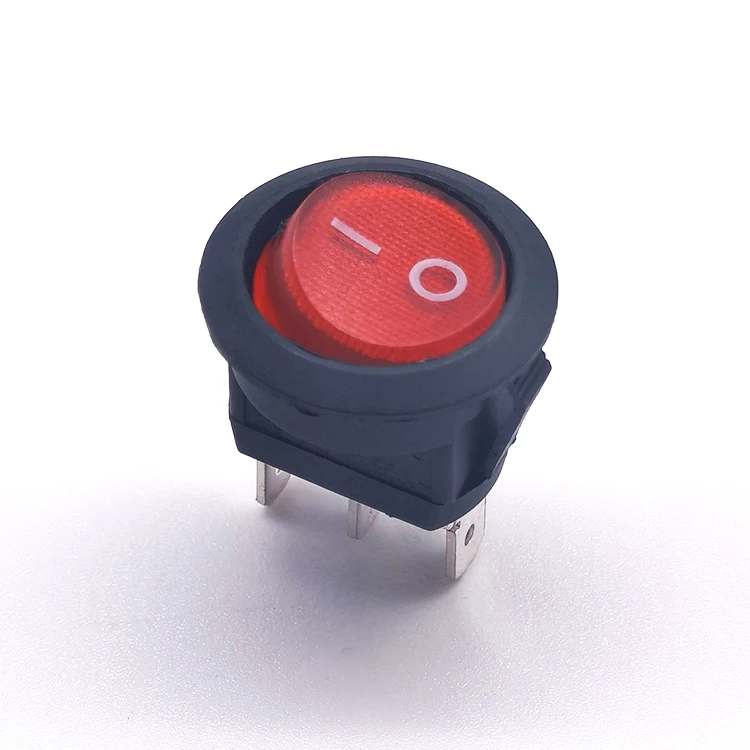

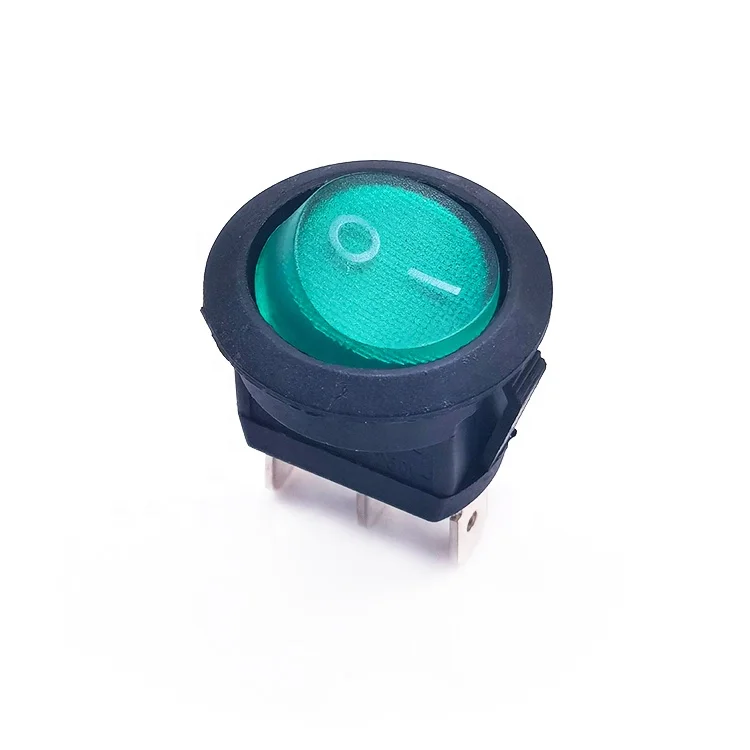

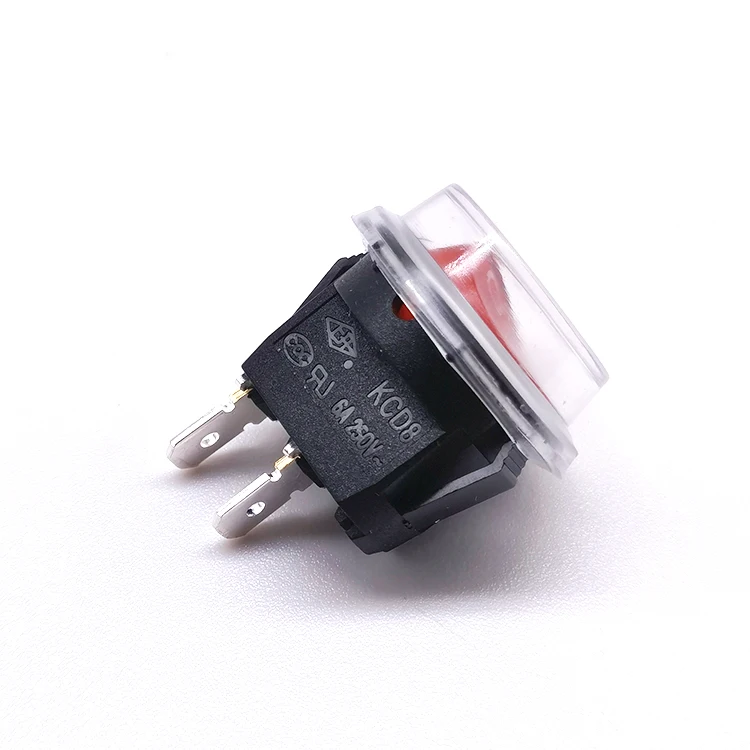

Yongxing KCD8 3-Pin Black Rocker Switch
Introducing our premium KCD8 3-pin black rocker switch, a top-quality product designed for durability and performance. As a factory supplier, we offer wholesale prices and ensure direct shipping from our facility, cutting out the middleman for better value.
Product Specifications
- Max. Current: 6A
- Max. Voltage: 250V AC
- Place of Origin: Shanghai, China
- Brand Name: SK (Shangkai)
- Model Number: KCD8
- Mechanical Life: 50,000-100,000 cycles
- IP Level: IP41, IP65
- Housing Color: Black
- LED Color Options: Amber, Orange, Red, Blue, Green
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1,000MΩ
- Electrical Life: 10,000 Cycles
- Certifications: UL, CE, CQC, CB, ENEC, ROHS
Product Advantages
Our KCD8 rocker switch stands out with its robust construction, ensuring long-lasting use in various applications. The waterproof design (IP41, IP65) makes it ideal for outdoor and marine use. With multiple LED color options, it offers versatility in design and functionality. The high mechanical and electrical life ratings guarantee reliability and performance.
Usage & Applications
Perfect for electric fireplaces, boats, automotive, industrial machinery, and more. Its 3-pin configuration provides stable connections, and the black housing adds a sleek, professional look to any device.
After-Sales Service
We stand behind the quality of our products with comprehensive after-sales service. Our dedicated support team is ready to assist with any inquiries or issues, ensuring a smooth purchasing experience.
| Contact Resistance | ≤50mΩ rocker switches for electric fireplace |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles 4 pin on-off rocker switch |
| Operating Temperature | T55 rocker switch |
| Certification |
CQC , CE |
| Max. Rating Current & Voltage (CQC , CE) |
6A 250V AC |
Why Choose Our KCD8 3-Pin Rocker Switch?
Our KCD8 3-pin rocker switch is designed for durability and performance, making it ideal for a wide range of applications. With a waterproof design (IP41, IP65), it's perfect for outdoor and marine use, ensuring reliable operation even in harsh conditions.
What Are the Key Features?
The switch features multiple LED color options, a robust construction, and high mechanical and electrical life ratings. These features guarantee long-lasting use and versatility in design and functionality.
Where Can It Be Used?
Our KCD8 rocker switch is perfect for electric fireplaces, boats, automotive, industrial machinery, and more. Its 3-pin configuration provides stable connections, and the black housing adds a sleek, professional look to any device.
