Description

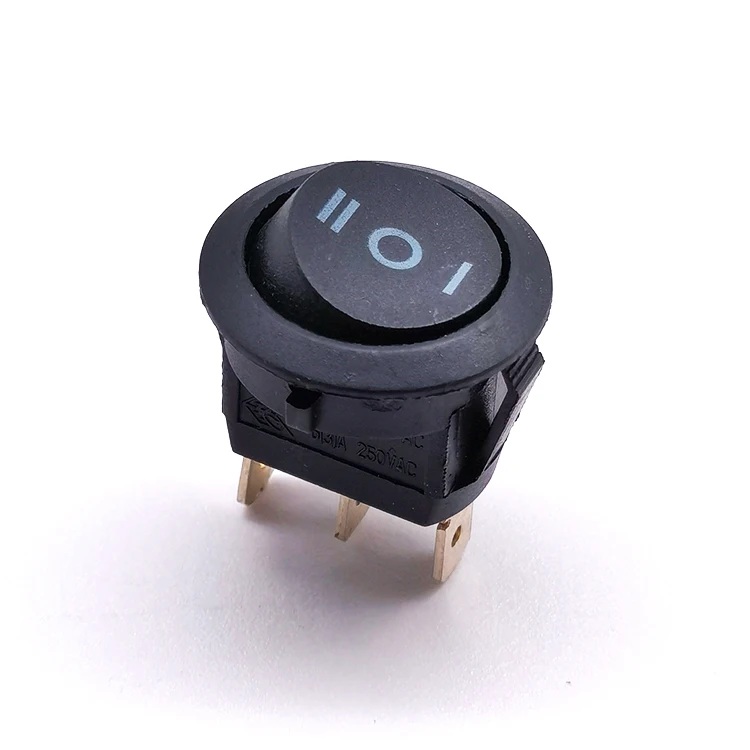

Yongxing KCD8 3-Pin Black Rocker Switch
Our KCD8 3-pin black rocker switch is a high-quality, customizable electrical component suitable for a wide range of applications. As a factory direct supplier, we offer wholesale pricing and the flexibility to customize the model and color according to your needs.
Specifications:
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1,000MΩ
- Dielectric Resistance: 1,500V AC, 1 min
- Electrical Life: 10,000 cycles
- Mechanical Life: 50,000-100,000 cycles
- Operating Temperature: Suitable for T55 applications
- Certifications: CQC, CE, UL, CB, ENEC, ROHS
- Max. Rating Current & Voltage: 6A 250V AC
- IP Level: IP41, IP65
- Pins: 2-pin/3-pin available
- Housing Color: Black

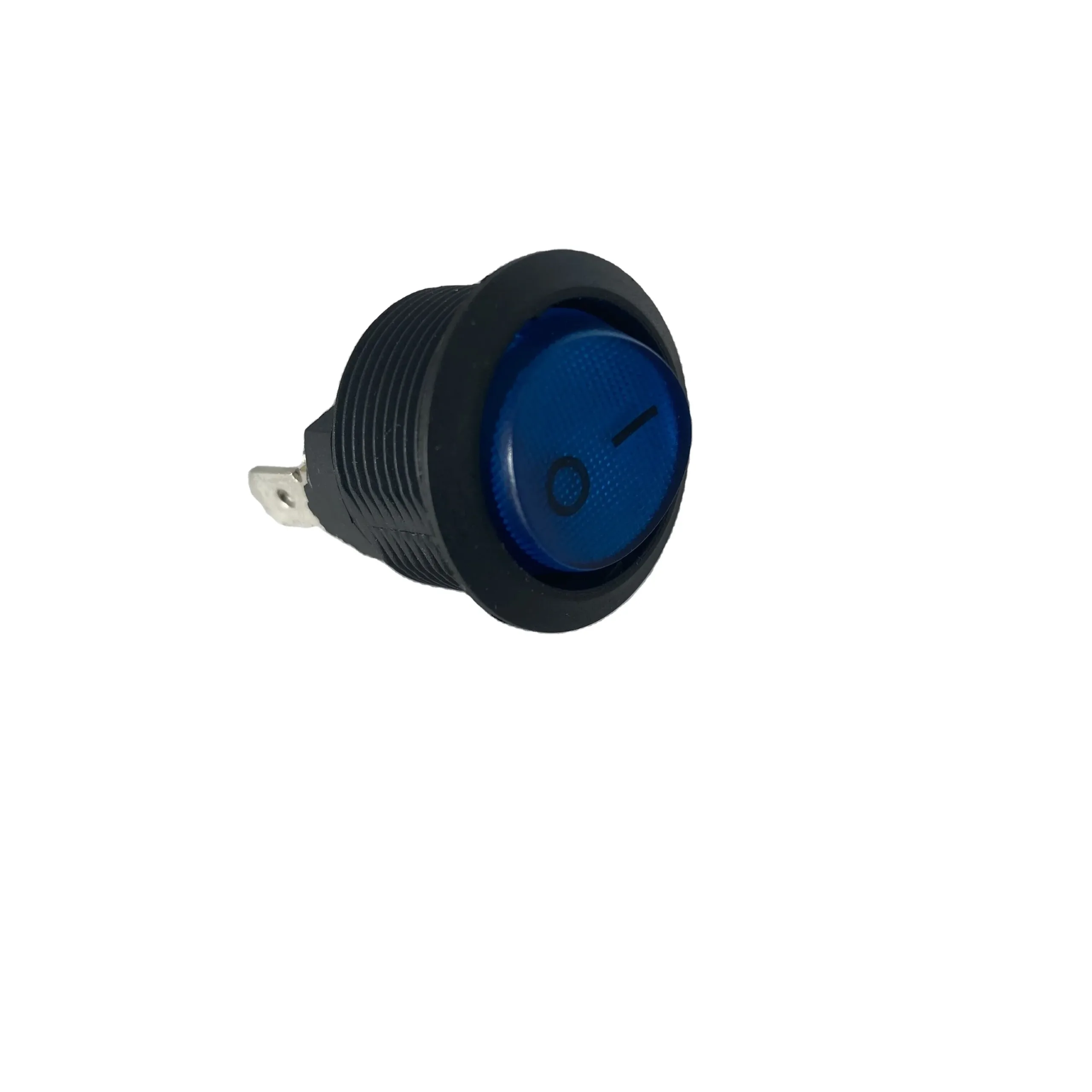

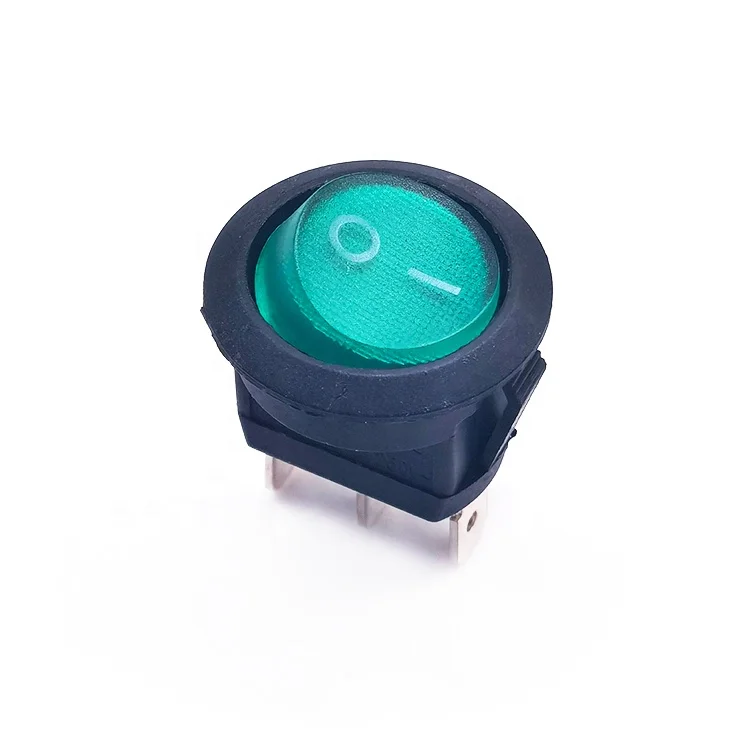

- LED Color Options: Amber, Orange, Red, Blue, Green
Advantages:
Our KCD8 rocker switch stands out from competitors with its durable construction, long electrical and mechanical life, and a wide range of customization options. The IP41 and IP65 ratings ensure protection against dust and water, making it suitable for various environments. As a factory supplier, we offer competitive pricing and fast delivery times.
After-Sales Service:
We provide comprehensive after-sales service, including technical support and warranty coverage. Our team is dedicated to ensuring your satisfaction and will assist you with any inquiries or issues.
| Contact Resistance | ≤50mΩ rocker switches for electric fireplace |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles 4 pin on-off rocker switch |
| Operating Temperature | T55 rocker switch |
| Certification |
CQC , CE |
| Max. Rating Current & Voltage (CQC , CE) |
6A 250V AC |
Why Choose Our KCD8 Rocker Switch?
Our KCD8 rocker switch is designed for durability and reliability, making it an ideal choice for a wide range of applications. With its long electrical and mechanical life, it ensures consistent performance over time. The customizable LED color options allow you to match the switch to your specific needs, while the IP41 and IP65 ratings provide protection against dust and water, making it suitable for various environments.
What Are the Key Features?
Key features include a 3-pin design, 6A 250V AC rating, and a durable plastic housing with metal contacts. The switch also offers a long electrical life of 10,000 cycles and a mechanical life of 50,000-100,000 cycles, ensuring long-term reliability. Additionally, it comes with various certifications, including CQC, CE, UL, CB, ENEC, and ROHS, guaranteeing its quality and safety.
How Does Our Factory Direct Supply Benefit You?
As a factory direct supplier, we offer competitive pricing and fast delivery times. Our ability to customize the switch according to your needs, including model and color, ensures that you get exactly what you need for your project. With comprehensive after-sales service, including technical support and warranty coverage, we are committed to your satisfaction.
