Description
|
Place of Origin
|
Shanghai, China
|
||||||
|
Brand Name
|
Yongxing
|
||||||
|
Model Number
|
KW11-12-CFA-F-B
|
||||||
|
Color
|
black grey
|
||||||
|
Material
|
Plastic
|
||||||
|
Contact Resistance
|
≤50mΩ
|
||||||
|
Insulation Resistance
|
≥100MΩ
|
||||||
|
Dielectric Strength
|
1500V
|
||||||
|
Max. Current
|
5A,3A
|
||||||
|
Max. Voltage
|
250V
|
||||||
|
Operating temperature
|
-25℃~+125℃
|
||||||
|
Certificate
|
CQC,ENEC
|
||||||

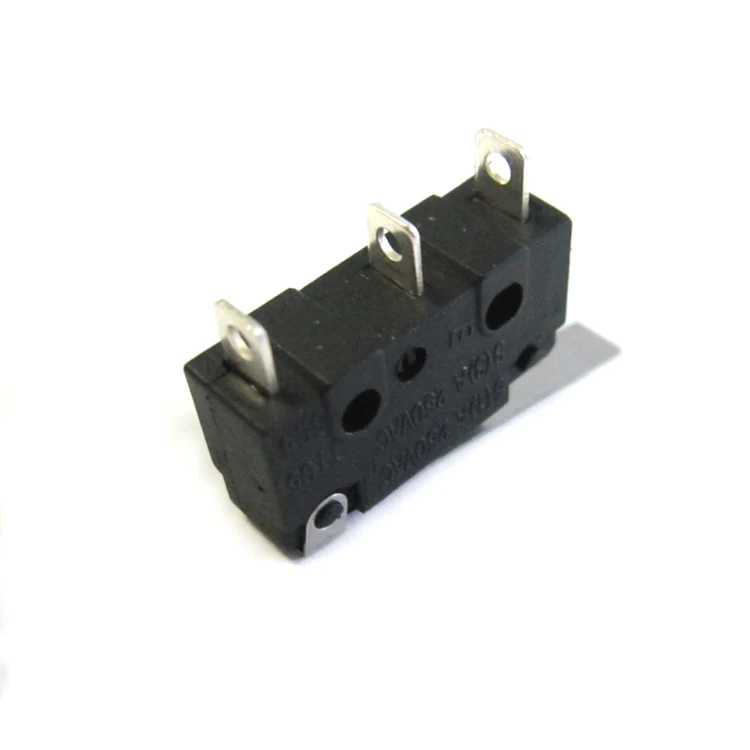

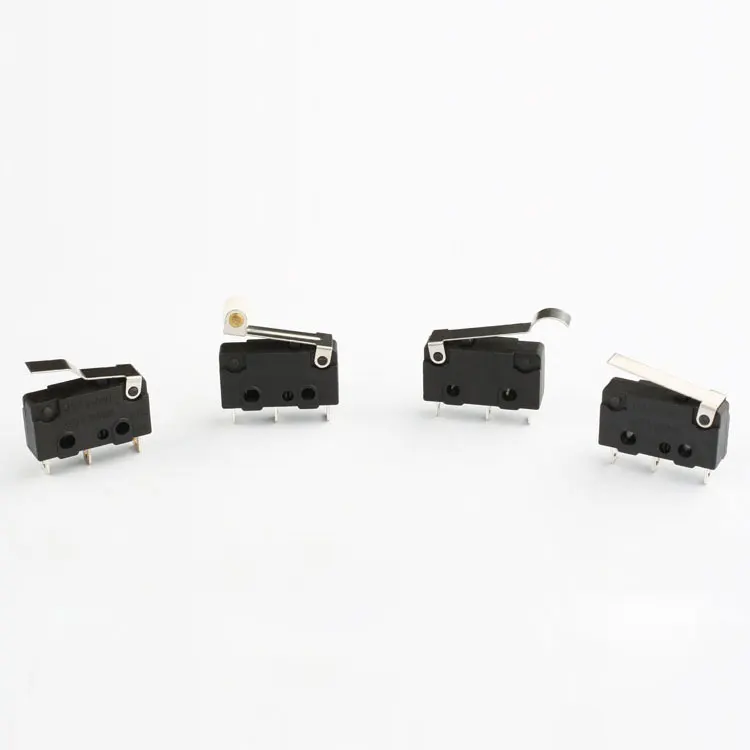

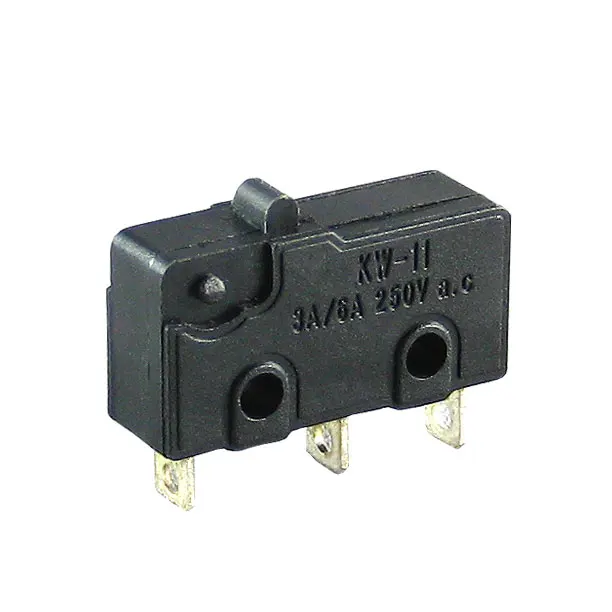

Why Choose Our KW11 Waterproof Microswitch?
Our KW11 Waterproof Microswitch stands out for its exceptional waterproof capabilities, rated IP65, ensuring reliable operation in wet or dusty environments. With a maximum current of 5A/3A and a voltage rating of 250V, it's perfect for a variety of industrial and home applications. The wide operating temperature range of -25°C to +125°C makes it suitable for extreme climates, while its CQC and ENEC certifications guarantee quality and safety.
What Makes Our Microswitch Different?
Unlike many competitors, our microswitch offers a long electrical life of 50,000 cycles, ensuring durability and reducing the need for frequent replacements. Its low contact resistance (≤50mΩ) and high insulation resistance (≥100mΩ) contribute to efficient and safe operation. Additionally, as a factory supplier, we can offer wholesale prices and bulk order discounts, making it a cost-effective choice for businesses.
How Can Our Microswitch Benefit Your Business?
By choosing our KW11 Waterproof Microswitch, you're investing in a high-quality, reliable product that can enhance the performance and safety of your devices. Our comprehensive after-sales service ensures you're supported throughout the product's lifecycle. Whether you're an industrial manufacturer, home appliance producer, or automotive supplier, our microswitch is designed to meet your needs and exceed your expectations.
