Wholesale KW15 SPDT Micro Switch Factory Supplier with Roll Lever

1,000 - 4,999  pieces
$0.61

5,000 - 9,999  pieces
$0.57

>= 10,000  pieces
$0.52

0 reviews

Wholesale KW15 Micro Switch Factory Supplier

Description

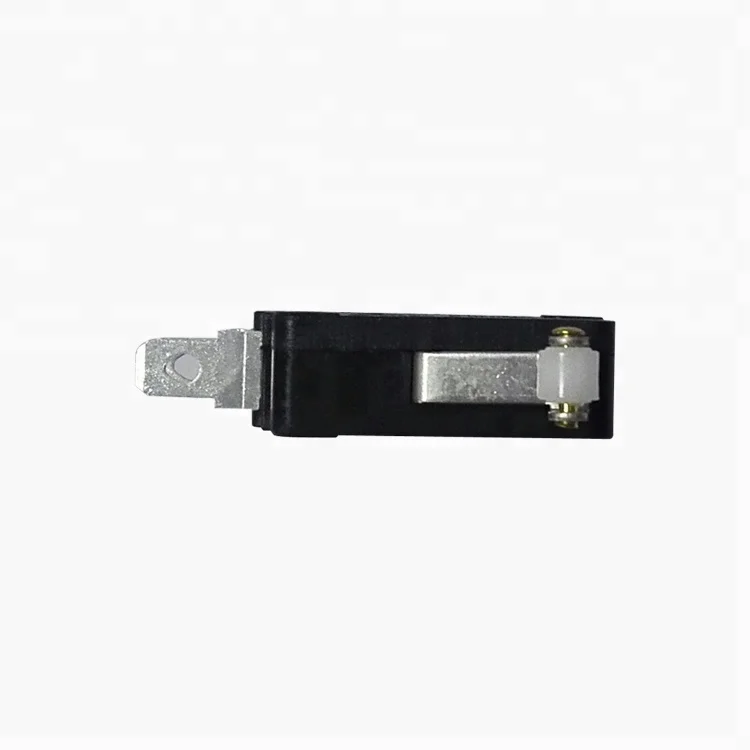

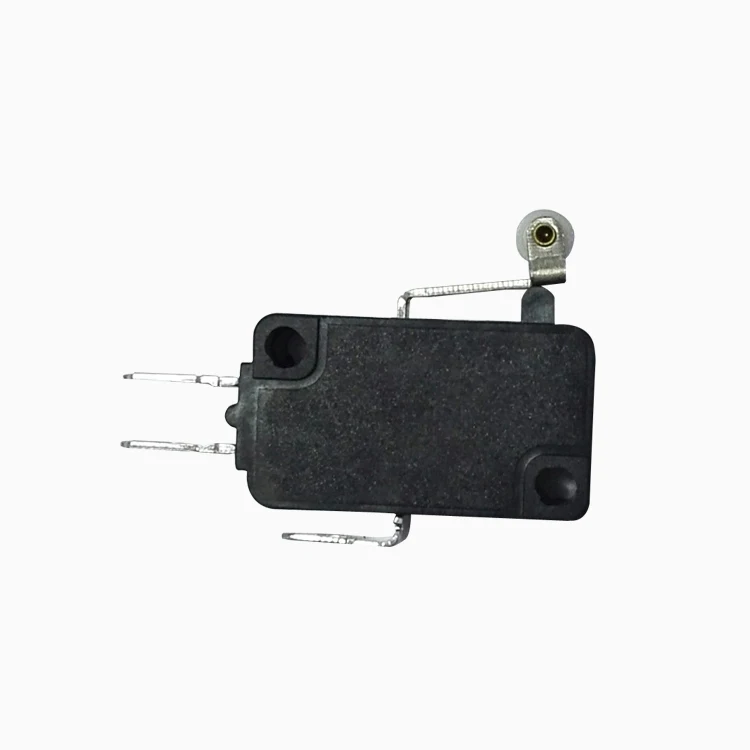

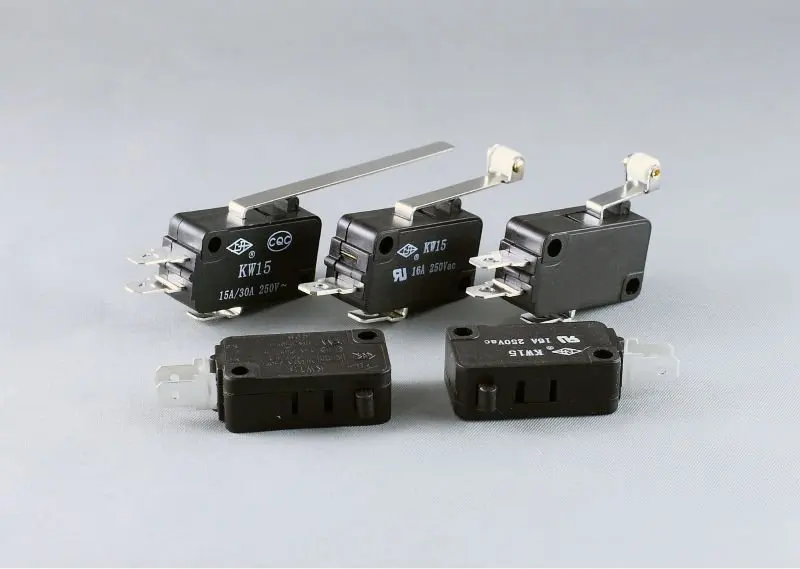

Our KW15 SPDT micro switch, manufactured by Shangkai (SK) in Shanghai, China, is a high-quality component designed for electric appliances. With a maximum current of 10A/16A and a maximum voltage of 250V, it offers reliable performance. This micro switch features a plastic body in black gray, ensuring durability and a sleek appearance. It has a contact resistance of ≤50mΩ and a dielectric strength of 1500V, making it suitable for a wide range of applications. The operating temperature range of -25℃ to 125℃ guarantees its functionality in various environments. Certified by CQC, ENEC, and UL, it meets strict quality standards. What sets our product apart is its 50,000-cycle electronic life, providing long-lasting reliability. As a factory supplier, we offer wholesale pricing and excellent customer service. Whether you need a single sample or bulk orders, we can accommodate your needs. Enjoy fast shipping and after-sales support from our dedicated team.
Product Model
KW15-12-C
Electronic Life(cycles)
50000

Electronic component for cross-border e-commerceElectronic device for cross-border e-commerce


Why Choose Our KW15 SPDT Micro Switch?

Our KW15 SPDT micro switch is a top choice for electric appliances due to its high reliability and durability. With a 50,000-cycle electronic life, it ensures long-lasting performance, reducing the need for frequent replacements. The plastic body in black gray not only looks sleek but also provides excellent insulation and protection against environmental factors.

Key Features and Advantages

The switch supports a maximum current of 10A/16A and a maximum voltage of 250V, making it suitable for a wide range of applications. Its low contact resistance of ≤50mΩ ensures efficient electrical conduction, while the high dielectric strength of 1500V guarantees safety in high-voltage environments. Certified by CQC, ENEC, and UL, it meets strict quality and safety standards.

Wholesale and After-Sales Support

As a factory supplier, we offer wholesale pricing on our KW15 SPDT micro switches, making it an affordable option for bulk purchases. We also provide excellent after-sales support, including fast shipping and responsive customer service. Whether you're a distributor, retailer, or end-user, we're here to help you meet your needs.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

10A, 16A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Shangkai(SK)

Model Number

KW15-12-C

LED

NO

Whether the smart

NO

Switch Combination

1NO1NC

Product name

Micro switch

Color

black gray

Material

plastic

Contact Resistance

≤50mΩ

Dielectric Strength

1500V

Operating temperature

-25 ~125℃

Certification

CQC,ENEC,UL

Protection Level

IP40
