Wholesale LA133 Mushroom Button Switch – Factory Direct Supply

5 - 499  pieces
$4.75

>= 500  pieces
$4.30

0 reviews

Factory Wholesale LA133 Mushroom Button Switch – Reliable & Durable

Description

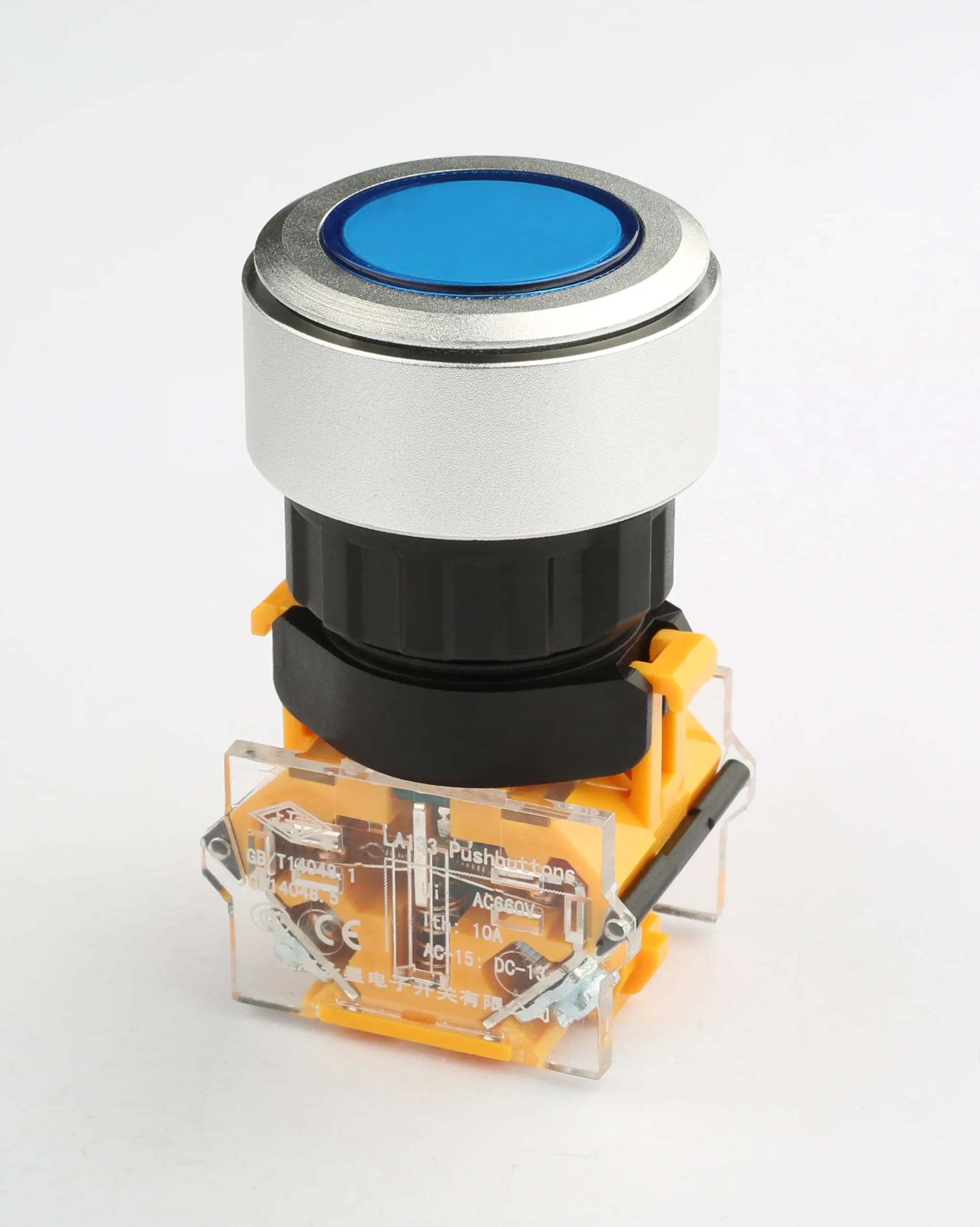

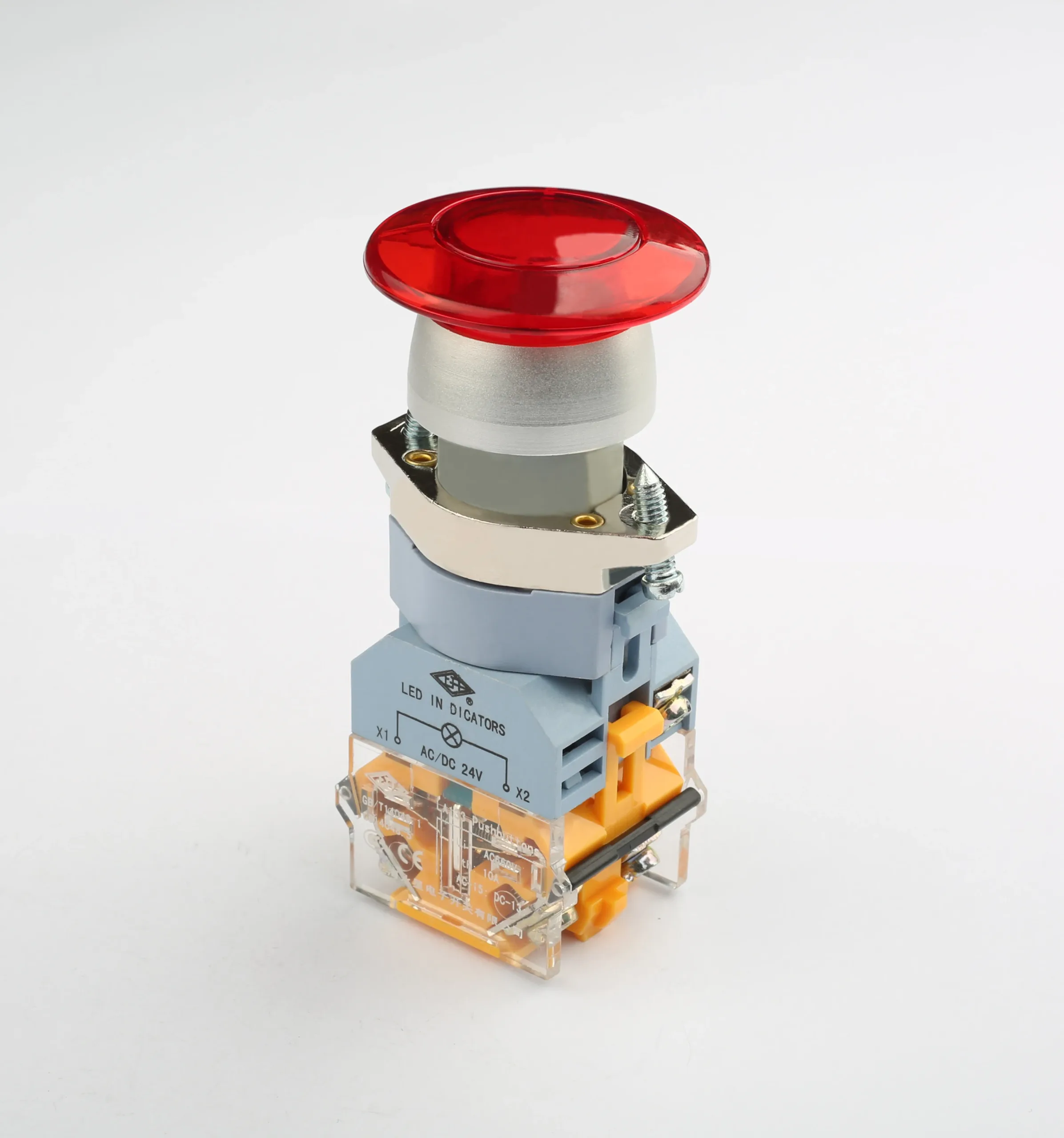

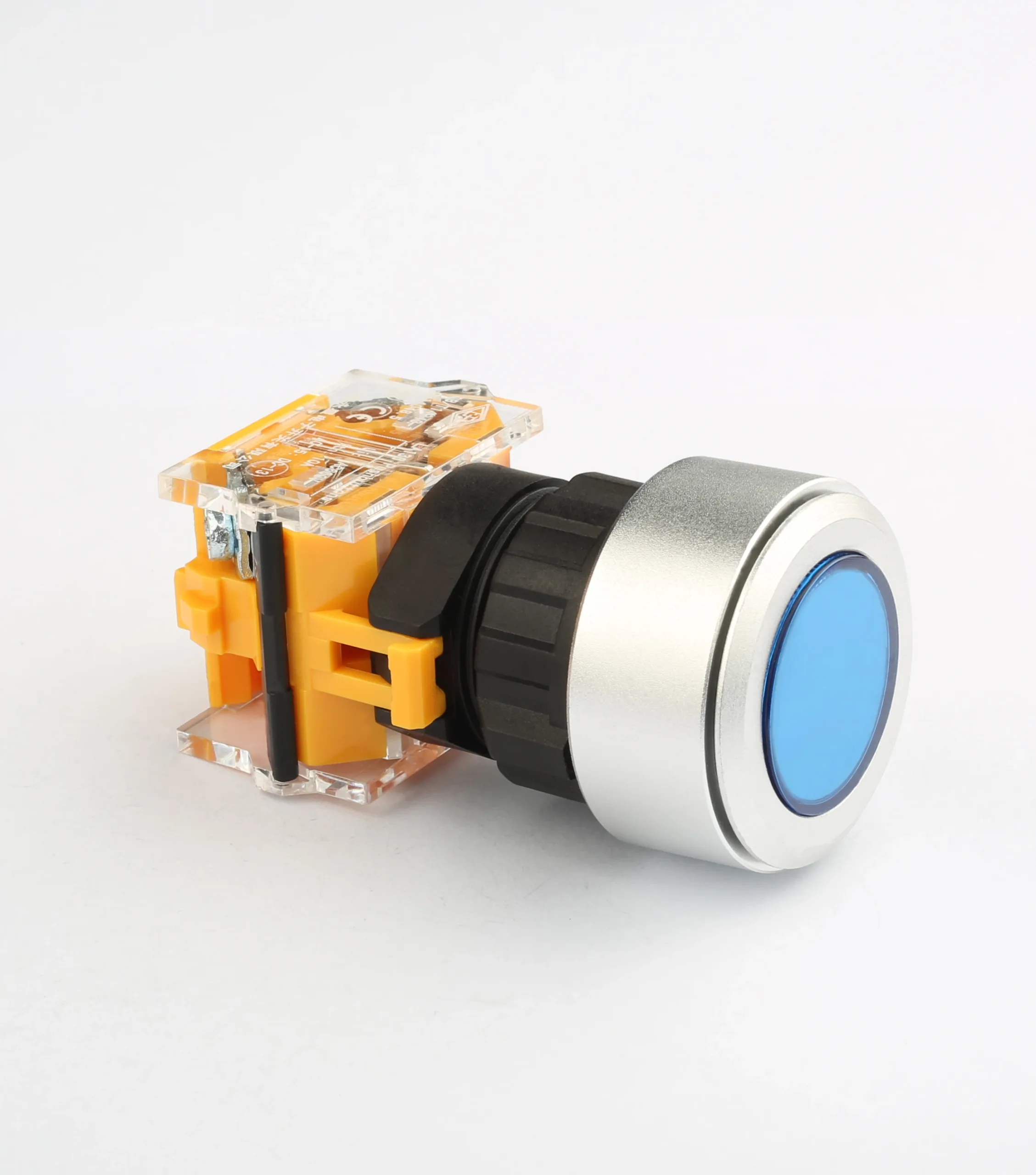

Introducing our high-quality LA133 Mushroom Button Switch, a versatile and reliable emergency stop solution. As a factory supplier, we offer wholesale pricing on this durable switch, designed for industrial and commercial applications. Our LA133 switch features a robust 22mm mushroom-shaped button, available in blue, and supports both normally open (NO) and normally closed (NC) configurations. With certifications including CCC, CQC, and CE, it ensures compliance with international safety standards. The switch boasts a maximum current of 10A and a maximum voltage of 600V AC, making it suitable for a wide range of electrical systems. Its IP40/IP65/IP67 protection level guarantees dust and water resistance, while the mechanical life of 300,000 cycles and electronic life of 250,000 cycles ensure long-lasting performance. Operating temperatures range from -25°C to +55°C, and it can be installed at heights up to 2000m. Choose our factory-direct LA133 Mushroom Button Switch for unbeatable quality and value.
Certification
CCC,CQC, CE,
Whether the smart
NO
Place of Origin
China
Brand Name
SK(shangkai)
Model Number
LA133 Push Button Switch
Protection Level
IP40/IP65/IP67
Max. Current
10A
Max. Voltage
600V AC
LED
Other
name
High Order Button Push Button Switch Normal Open Normal Close 22MM
Color
Blue
Panel cutout
22mm 25mm 30mm
Mechanical life
300000 cycles Anti-vandal Push Button Switch
Electronic Life
250000 cycles Cole Hersee Switch
Operating temperature
-25℃~+55℃
Max.insulation voltage
2500v/min
Protection degree
IP40I, P65, IP67
Installation height
≤2000 m

Electronic component board with multiple chips and connectorsMicrocontroller module with integrated circuits and pinsSensor device with circuit board and connection portsPower supply module with voltage regulators and capacitorsWireless communication module with antenna and circuitry


Why Choose Our LA133 Mushroom Button Switch?

Our LA133 Mushroom Button Switch stands out for its durability, versatility, and compliance with international safety standards. With a factory-direct supply, we offer wholesale pricing, ensuring you get the best value for your money. The switch's robust design, high current and voltage ratings, and wide temperature range make it suitable for a variety of industrial and commercial applications.

Key Features of Our LA133 Switch

Featuring a 22mm mushroom-shaped button, our LA133 switch supports both normally open and normally closed configurations. It is certified by CCC, CQC, and CE, guaranteeing its safety and reliability. The switch's IP40/IP65/IP67 protection level ensures it can withstand dust and water, while its long mechanical and electronic life ensure long-lasting performance.

Applications and Benefits

Our LA133 Mushroom Button Switch is ideal for industrial control systems, commercial equipment, and safety systems. Its emergency stop functionality provides a quick and reliable way to shut down machinery in case of an emergency. With our factory-direct supply, you can enjoy competitive pricing and excellent customer service, making it the perfect choice for your business needs.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

10A

Max. Voltage

600V AC

Place of Origin

Shanghai, China

Brand Name

SK(Shangkai)

Model Number

LA133 Push Button Switch

LED

Other

Whether the smart

NO

IP level

IP41

Switch Combination

1NO1NC

name

High Order Button Push Button Switch Normal Open Normal Close 22MM

Color

Blue

Panel cutout

22mm 25mm 30mm

Mechanical life

300000 cycles Anti-vandal Push Button Switch

Electronic Life

250000 cycles Cole Hersee Switch

Operating temperature

-25℃~+55℃

Max.insulation voltage

2500V/min

Protection degree

IP40I, P65, IP67

Installation height

≤2000 m

Protection Level

IP40/IP65/IP67
