Description
|
item
|
value
|
|
|
Place of Origin
|
Shanghai,China
|
|
|
Brand Name
|
SK(Shangkai)
|
|
|
Model Number
|
AD111-22A-DC.AC 24V R
|
|
|
LED voltage
|
ac dc 24v
|
|
|
Protective degree of the head
|
IP65, IP67 is available on request
|
|
|
Applying frequency
|
AC 50-60Hz or customized
|
|
|
Brightness
|
≥100cd/m2
|
|
|
Continous operating life
|
≥30000H
|
|
|
Insulation resistance
|
≥2MΩ
|
|
|
Power frequency withstand voltage
|
2.5KV per min (effective AV value)
|
|
|
CTI
|
≥100
|
|
|
Ambient temperature
|
-25℃~+55℃
|
|
|
Relative air humidity
|
≤98%
|
|
|
Pollution degree is 3,inatallation group is Ⅲ. Normally workable when vibration frequency is 2-80 Hz with acceleration of 0.7g
|
||

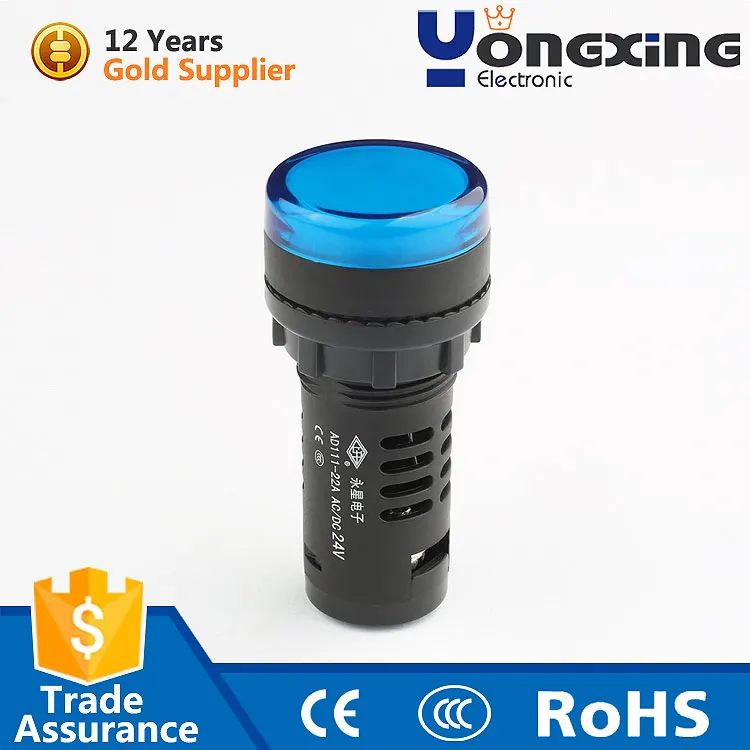

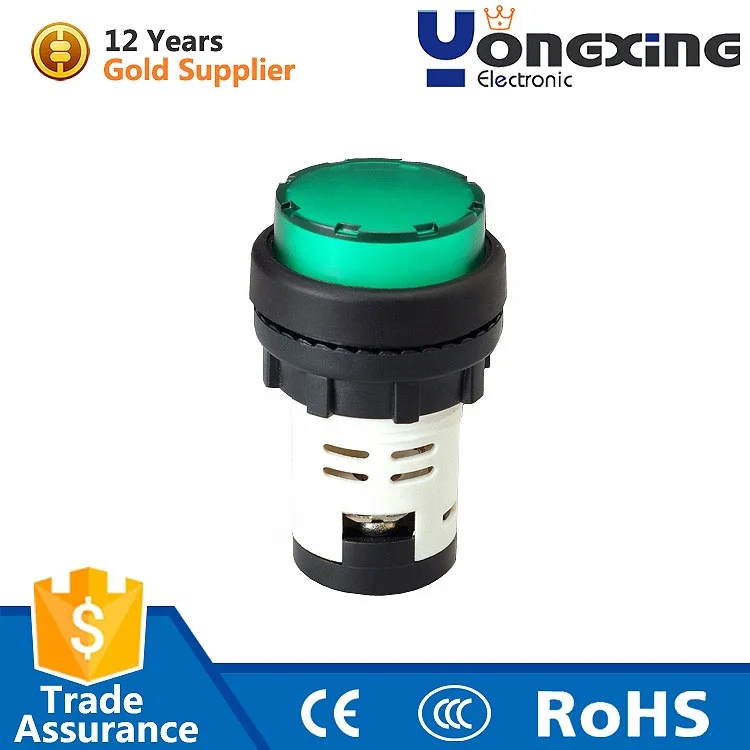

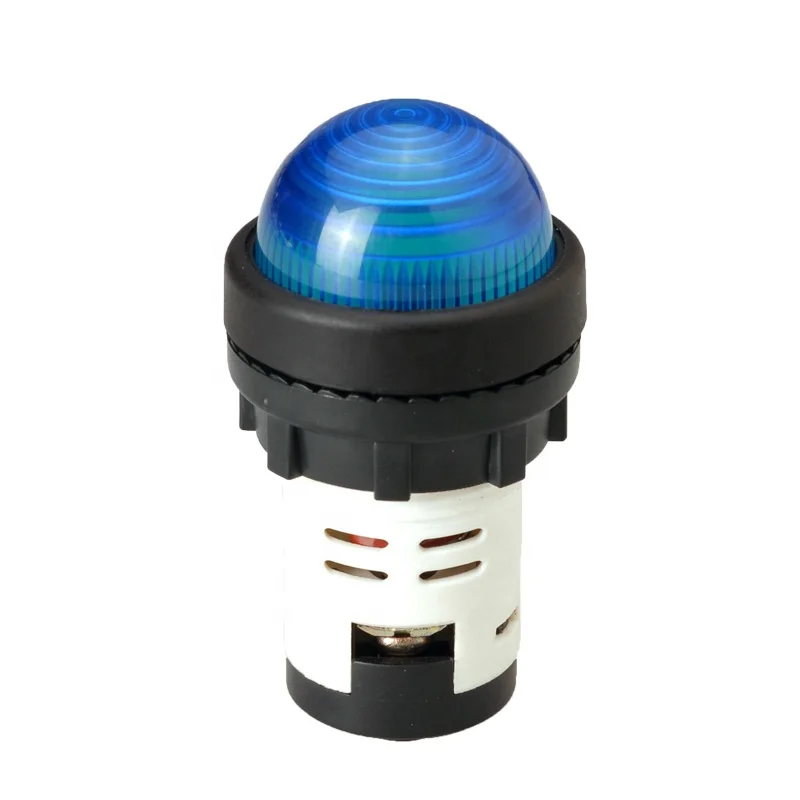

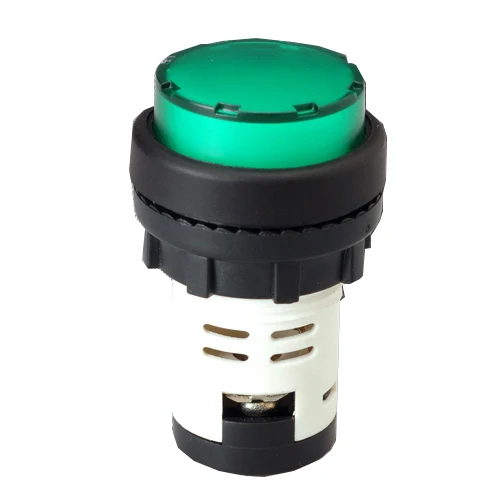

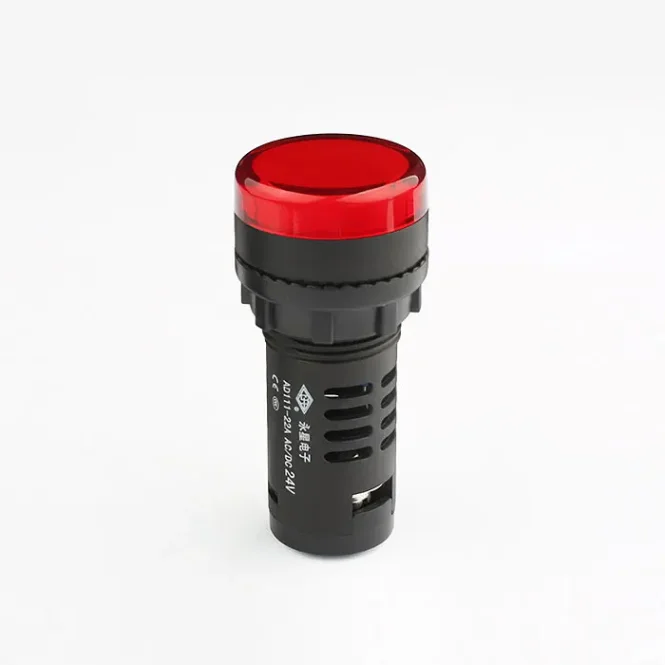

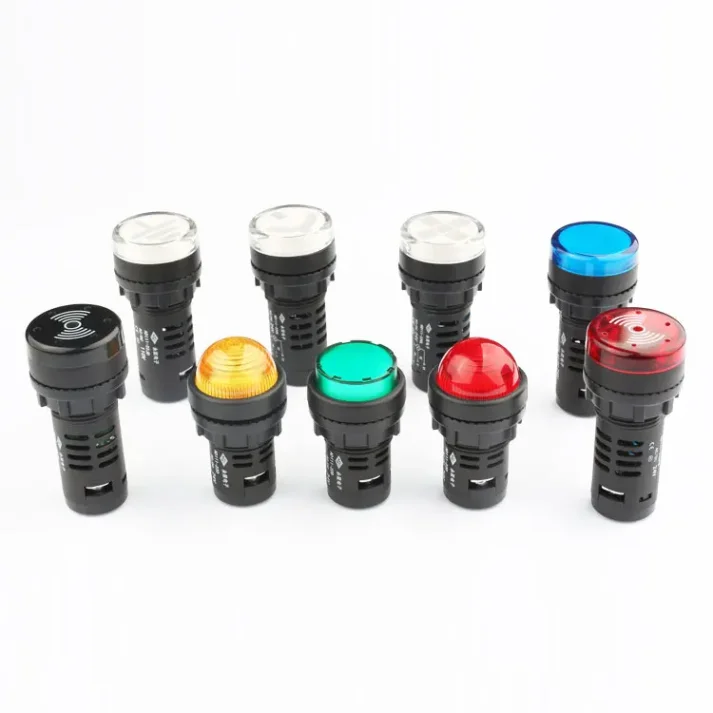

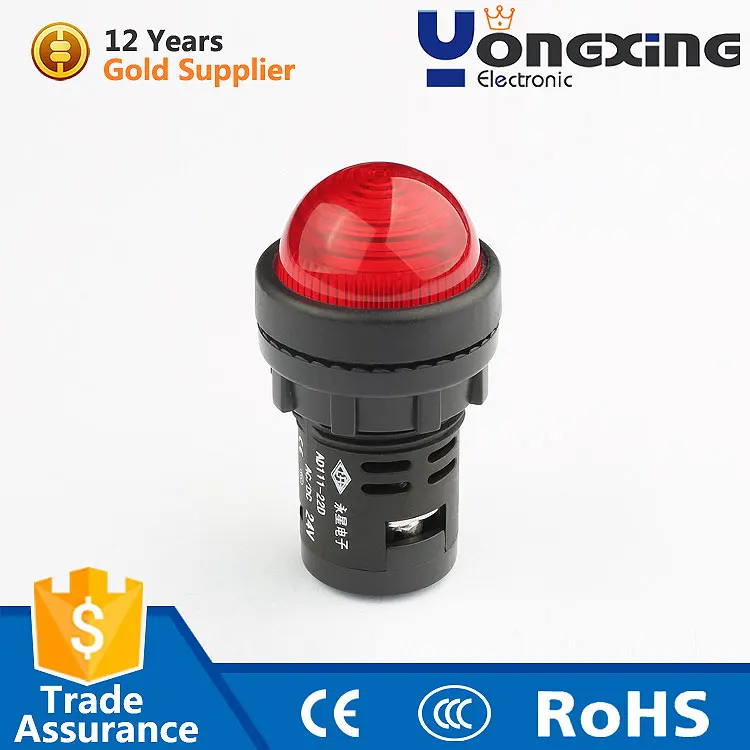

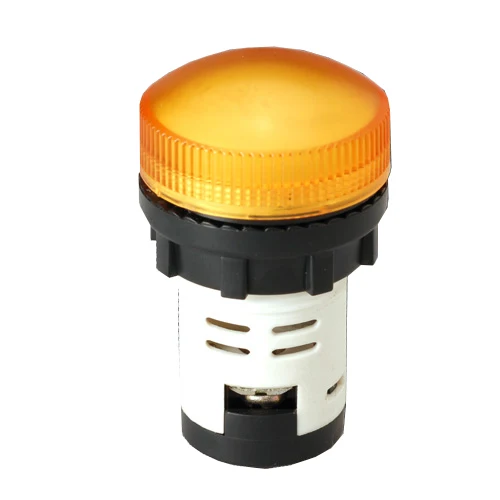

LED Signal Lamp Overview
Our LED Signal Lamp is a high-quality, durable indicator light designed for panel mounting. It operates on AC/DC 24V, providing a bright and reliable signal in various industrial applications.
Key Features and Benefits
With a brightness of ≥100cd/m² and a continuous operating life of ≥30,000 hours, our LED Signal Lamp offers long-lasting performance. The lamp head is protected to IP65 standard, ensuring it can withstand harsh environments. Customizable applying frequency and wide ambient temperature range make it suitable for a wide range of applications.
Why Choose Our LED Signal Lamp?
As a factory direct supplier, we offer competitive wholesale prices on this product. Our LED Signal Lamp stands out from competitors with its high insulation resistance, power frequency withstand voltage, and CTI value. We also provide excellent after-sales service, ensuring your satisfaction. Choose our LED Signal Lamp for reliable, long-lasting performance in your industrial applications.
