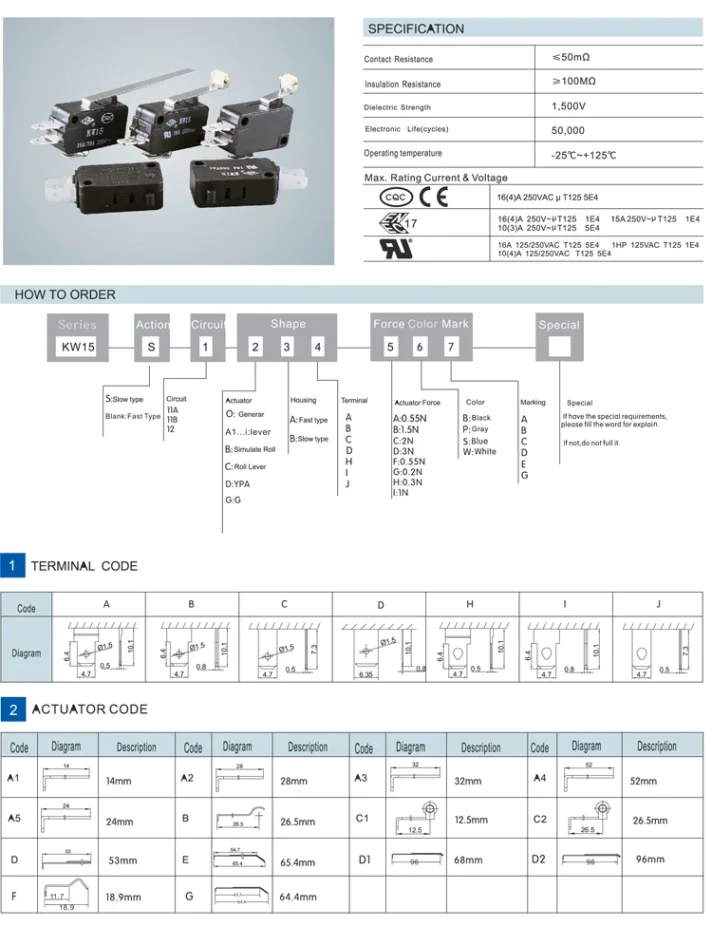

Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(shangkai) yongxing
|
|
Model Number
|
KW15-11A-BAA-ABA
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250VAC
|
|
Operating Temperature
|
-25℃~+125℃
|
|
Protection Level
|
IP40
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Electrical Life
|
50,000
|
|
Max. Current & Voltage
|
16A 250VAC T125 5E4 ; 10A 250V T125 5E4
|
|
Certification
|
CQC CE ENEC17 ROHS
|
Why Choose Our Micro Switch?
Our micro switch is the ideal choice for home and kitchen appliances due to its high-quality construction and reliable performance. With a 16A 250VAC rating and T125 5E4 classification, it can handle demanding applications with ease. The SPST 1NO normally open configuration and simulate roll blade lever push button design make it easy to use and integrate into your products.
What Makes Our Micro Switch Stand Out?
Our micro switch stands out from the competition with its superior quality and competitive pricing. As a factory-direct supplier, we can offer wholesale pricing without sacrificing quality. It also features a durable design with an IP40 protection level, ensuring long-lasting performance even in harsh environments. Additionally, it is certified by CQC, CE, ENEC17, and ROHS, giving you peace of mind about its safety and compliance.
What Are the Key Specifications of Our Micro Switch?
Our micro switch has a contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, and dielectric strength of 1500V, ensuring reliable electrical performance. It also has an impressive electrical life of 50,000 cycles, making it a cost-effective choice for your applications. With an operating temperature range of -25℃ to +125℃, it can withstand extreme conditions without failure.
