Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CB1B-B-S-01/UL 110203-337
|
|
Max. Current
|
6A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST 2 Pin On Off Rocker Switch
|
|
Dimension Code
|
B1, 19.5×13.0mm mounting hole size
|
|
Contact Piece Code
|
B, 4.8×0.8x8mm
|
|
Lamp voltage
|
No lamp
|
|
Function
|
On-Off SPST rocker switch
|

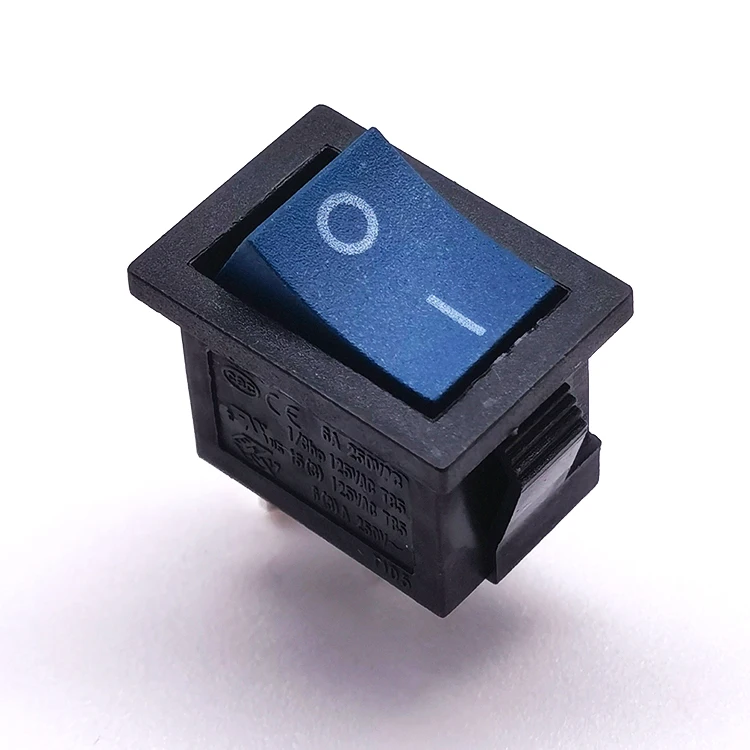

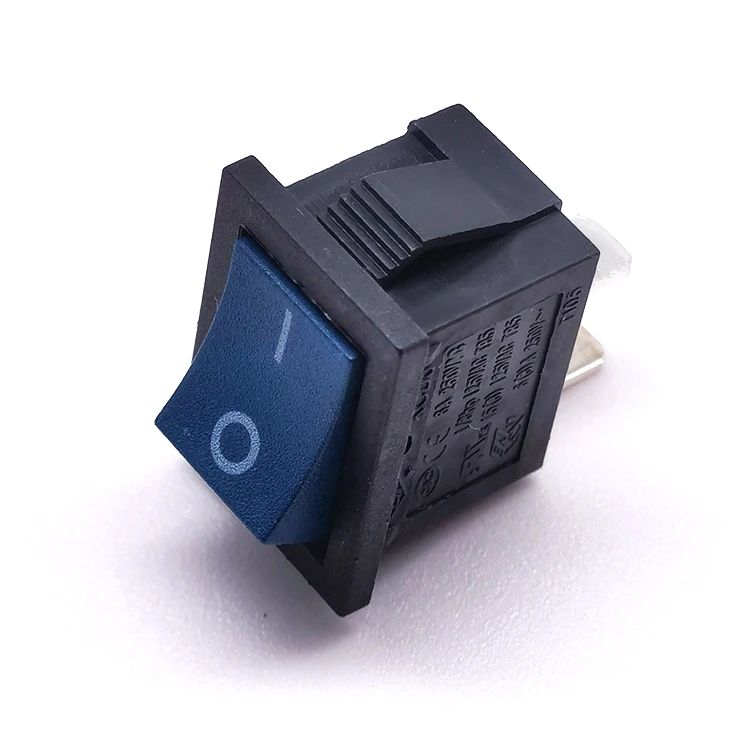

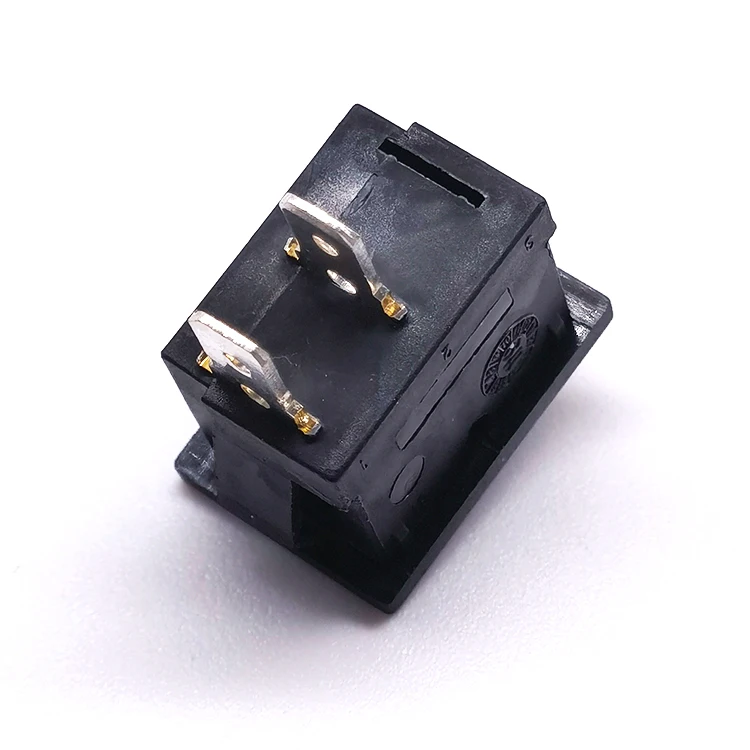

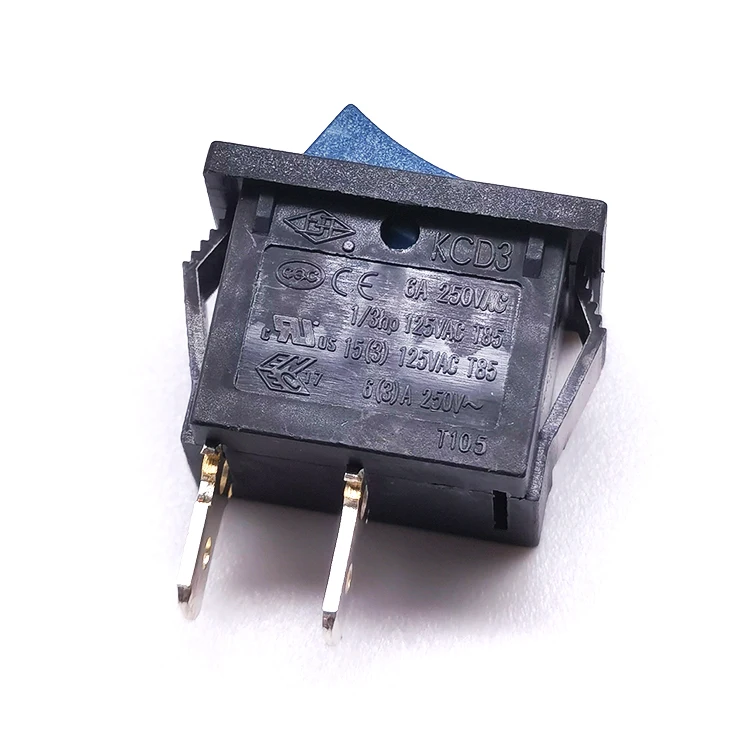

Why Choose Our Mini Blue Rocker Switch?
Our Mini Blue Rocker Switch is designed for durability and reliability, making it an ideal choice for a wide range of applications. With a maximum current of 6A and a maximum voltage of 250V AC, it ensures safe and efficient operation. The switch's long mechanical life (50,000 cycles) and electronic life (10,000 cycles) make it a cost-effective solution for your electrical projects.
What Are the Key Features?
Key features include low contact resistance (≤50mΩ), high insulation resistance (≥1000MΩ), and compliance with international standards (CB, ENEC17, ROHS certified). These features ensure superior electrical performance and longevity, setting our product apart from competitors.
Why Buy from Us as a Factory Supplier?
As a direct factory supplier, we offer wholesale pricing and bulk order discounts, making our Mini Blue Rocker Switch even more cost-effective. Our commitment to quality and customer satisfaction ensures that you receive a product that meets or exceeds your expectations. Choose us for all your rocker switch needs and experience the difference.
