Wholesale Mini LED Self-locking Push Button Switch | Factory Supplier

200 - 1,999  pieces
$0.74

2,000 - 4,999  pieces
$0.69

>= 5,000  pieces
$0.63

0 reviews

Wholesale Mini LED Push Button Switch. Factory supplier. High quality, reliable, and affordable.

Description

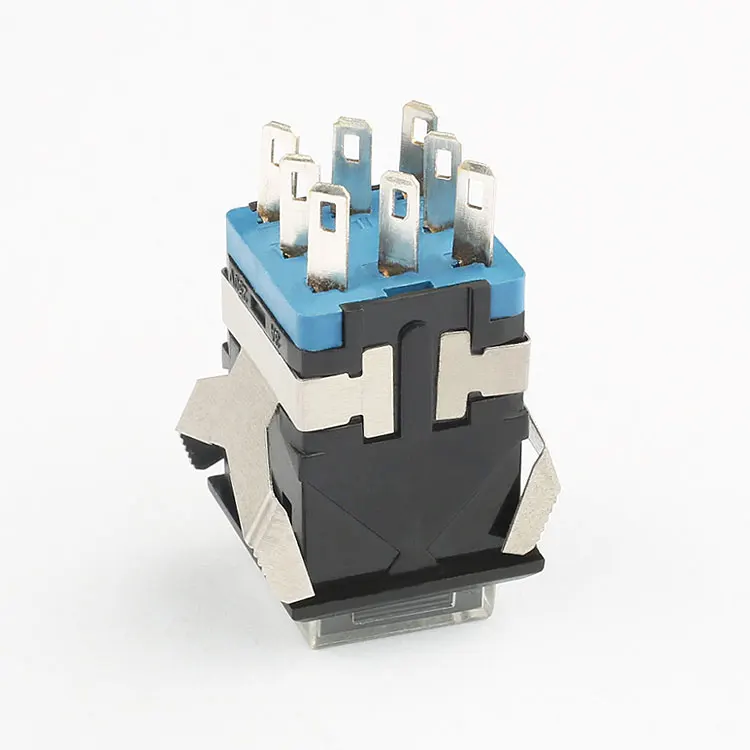

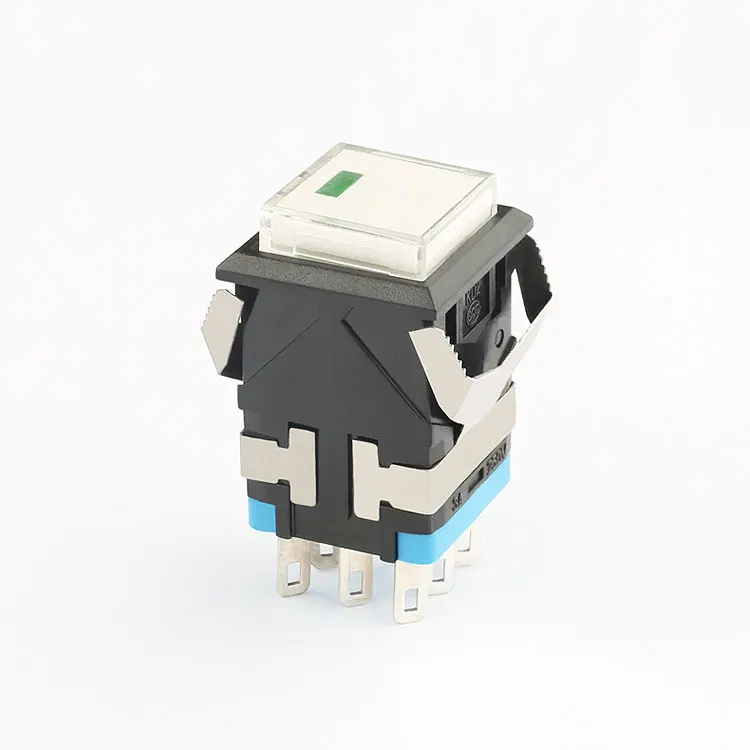

Introducing our Mini LED Self-locking Push Button Switch, a high-quality product from Yong Xing, a leading factory and supplier based in Shanghai, China. This switch is designed with a plastic square body and features a luminous point, making it both functional and visually appealing. With an integrated LED, it provides clear indication of the switch’s status. Key specifications include a maximum current rating of 3A and a maximum voltage of 250V AC, ensuring reliable performance in various applications. The switch boasts a contact resistance of ≤50mΩ, insulation resistance of ≥100mΩ, and dielectric strength of 1500V, guaranteeing safety and durability. It has an IP40 protection level, making it suitable for indoor use. With a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, this switch offers long-lasting reliability. Additionally, it operates within a temperature range of -25℃ to +55℃, making it versatile for different environments. Our factory direct pricing and wholesale availability make this switch an excellent choice for bulk purchases. We also offer CQC, CE, and ROHS certifications, ensuring compliance with international standards. Choose our Mini LED Self-locking Push Button Switch for its superior quality, competitive pricing, and reliable performance.
contact resistance
≤50MΩ
electronic life(cycles)
10000
insulation resistance
≥100MΩ
mechanical life(cycles)
50000
dielectric strength
1500V
operating template
25T55
IP code
IP40
max.rating current & voltage
3A 250V AC

Electronic component product image for cross-border e-commerce


Why Choose Our Mini LED Self-locking Push Button Switch?

Our Mini LED Self-locking Push Button Switch stands out for its superior quality and reliability. With a plastic square body and luminous point, it offers both functionality and aesthetics. The integrated LED provides clear status indication, making it easy to use. The switch is designed to withstand up to 3A current and 250V AC voltage, ensuring stable performance in various applications. Its IP40 protection level makes it suitable for indoor use, while the wide operating temperature range (-25℃ to +55℃) adds to its versatility. As a factory supplier, we offer competitive pricing and wholesale availability, making it an excellent choice for bulk purchases.

What Are the Key Features of This Switch?

Key features include a contact resistance of ≤50mΩ, insulation resistance of ≥100mΩ, and dielectric strength of 1500V, ensuring safety and durability. The switch has a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, providing long-lasting reliability. It also comes with CQC, CE, and ROHS certifications, ensuring compliance with international standards. These features make our switch a top choice for industrial control, home appliances, and electronic devices.

How Can I Benefit from Buying Wholesale?

Buying wholesale from our factory offers several benefits. You get access to competitive pricing, which can significantly reduce your costs. Additionally, as a direct supplier, we ensure high-quality products and reliable delivery. Our switch is designed to meet the needs of various industries, and buying in bulk allows you to stock up on essential components, ensuring you always have what you need on hand. Choose our Mini LED Self-locking Push Button Switch for its quality, reliability, and affordability.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V AC

Place of Origin

Shanghai, China

Brand Name

Yong Xing

Model Number

KD2-A21L

LED

Yes

Whether the smart

NO

IP level

IP40

Switch Combination

2NO2NC

Product name

mini push button switch led lamp

Contact Resistance

≤50mΩ

Insulation Resistance

≥100mΩ

Dielectric Strength

1500V

Electrical Life

10000 Times

Operating temperature

-25℃~+55℃

Lamp Voltage

6v

Lamp Current

≤15mA

Certification

CQC CE ROHS

Protection Level

IP40
