Description
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
50000
|
|
dielectric strength
|
1500V
|
operating temperature
|
25T55
|
|
IP code
|
IP40
|
max.rating current & voltage
|
3A 250V AC
|

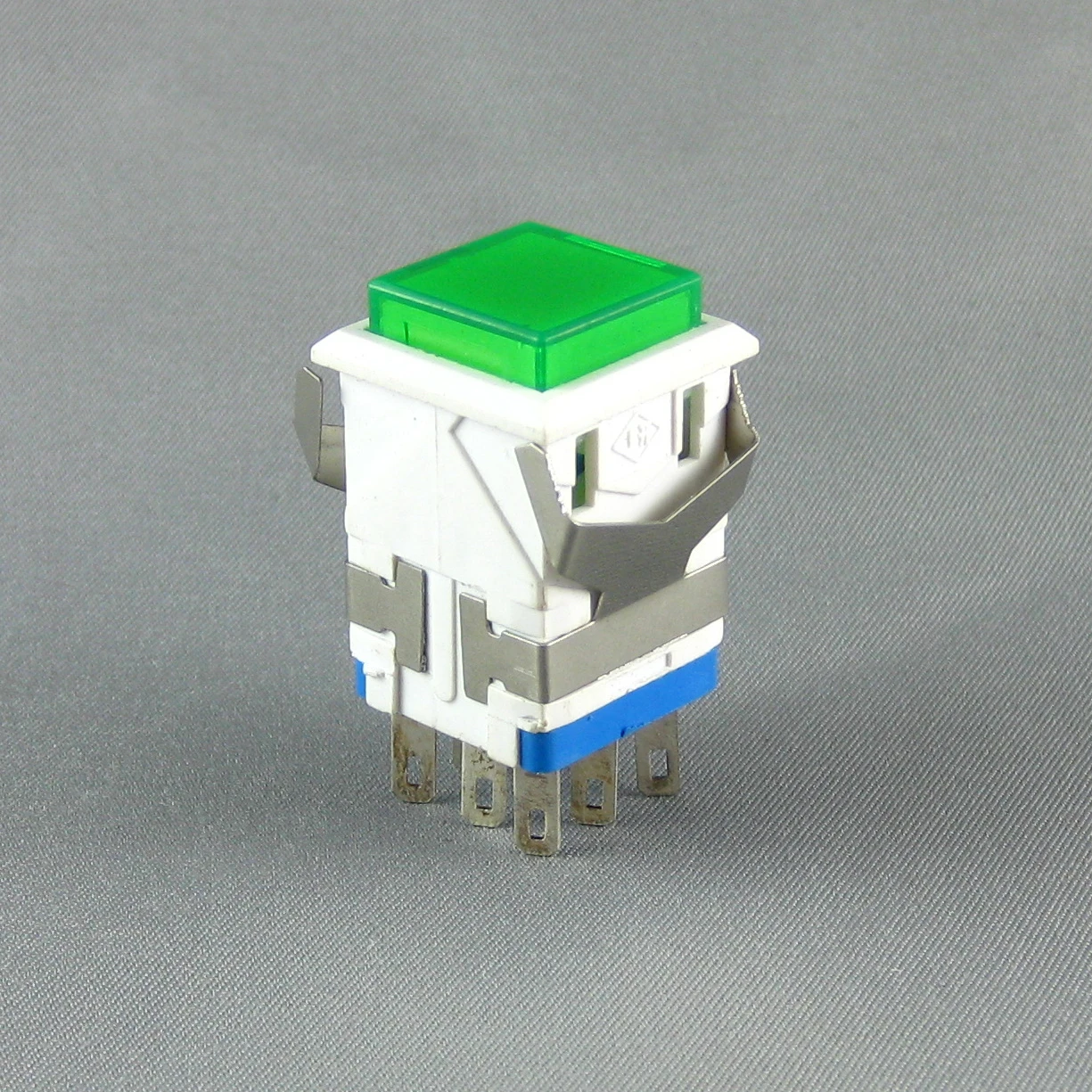

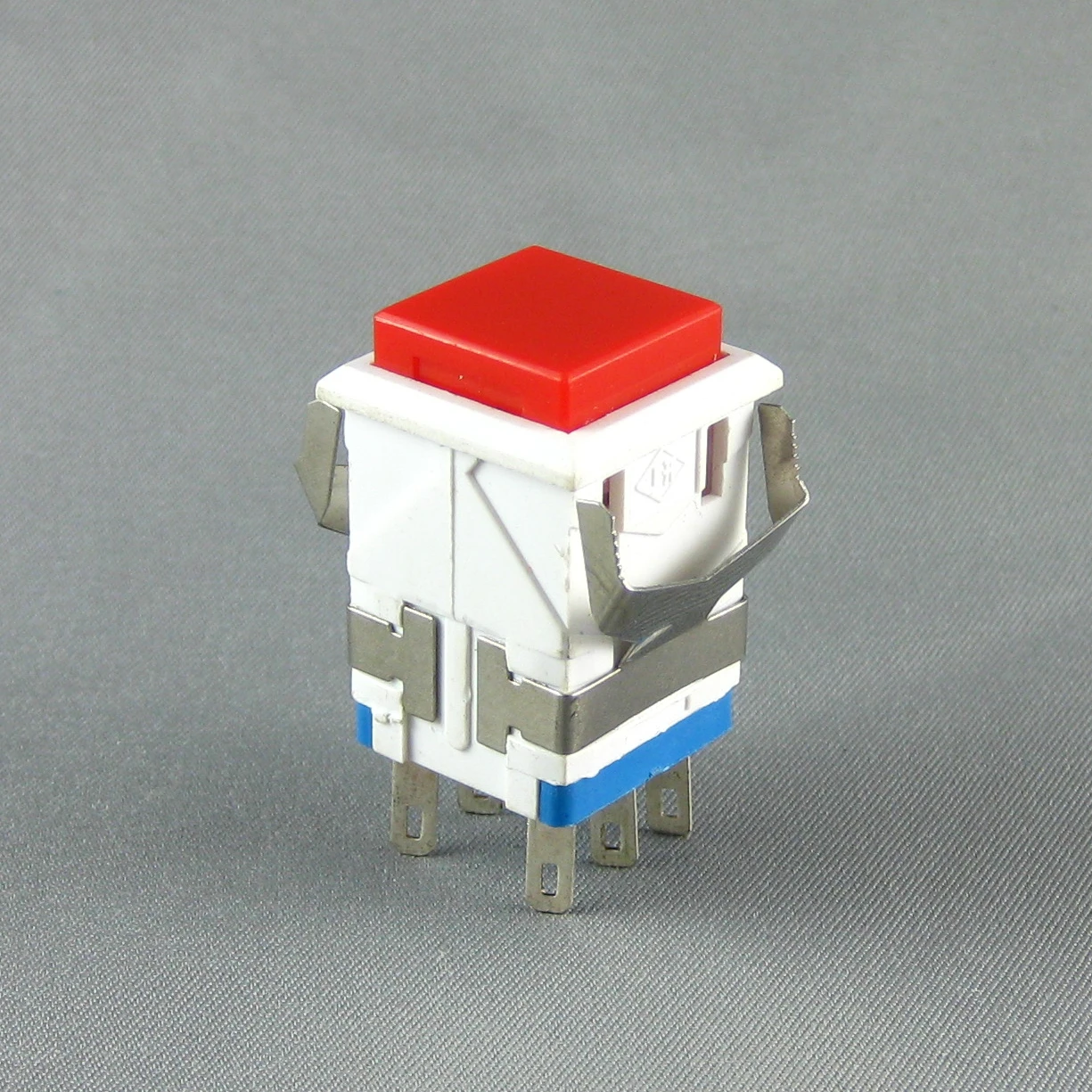

Why Choose Our Mini Plastic Push Button Switch?
Our Mini Plastic Push Button Switch stands out for its durability, efficiency, and cost-effectiveness. With a high button latching mechanism and an LED indicator, it provides reliable ON-OFF control in various industrial and commercial settings. The switch's IP40 protection rating ensures it can withstand harsh environments, making it a versatile choice for your needs.
What Are the Key Specifications?
Key specifications include a contact resistance of ≤50mΩ, insulation resistance of ≥100mΩ, dielectric strength of 1500V, and an electrical life of 10,000 cycles. It operates within a temperature range of -25℃ to +55℃ and is available with an LED indicator in 6V, 12V, and 24V lamp voltages.
Why Buy from Our Factory?
As a factory supplier, we offer competitive pricing, excellent after-sales service, and the assurance of buying directly from the source. Our Mini Plastic Push Button Switch is designed to meet the highest standards of quality and performance, ensuring your satisfaction and repeat business.
