Wholesale Mini Rocker Switch 2 Pins 6A 10A 250V SPST | Factory Supplier

Category: Tags: , ,
>= 5,000  pieces
$0.12
0 reviews

Wholesale mini rocker switches from factory supplier. Durable, certified, ideal for home appliances.

Description

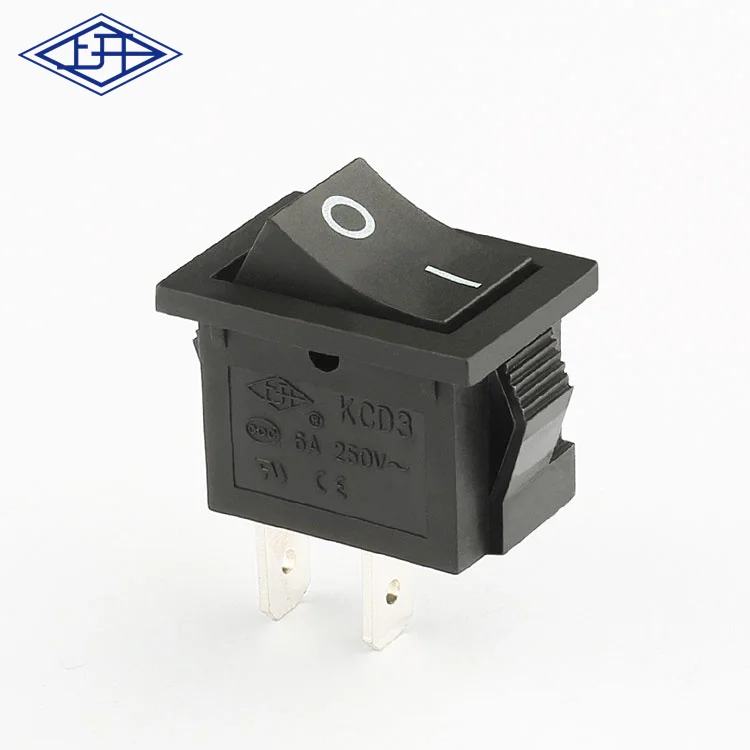

Our factory-direct wholesale mini rocker switches are a top choice for home appliances. These switches feature a sleek black plastic housing and are designed with 2 pins, offering SPST functionality. With a compact size of 19.3*13.1mm, they are perfect for space-saving applications. Our switches support a maximum current of 6A (also available in 10A options) and a voltage of 250V, ensuring reliable performance. Key specifications include a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and a mechanical life of 100,000 times. They are rated IP40 for dust protection and have an operating temperature range of T55, T85, T125. What sets our switches apart is their durability, with an electrical life of 10,000 cycles, and their compliance with CQC, CE, UL, CB, ENEC17, and ROHS certifications. As a trusted supplier, we offer competitive pricing and excellent after-sales service, making us your ideal partner for bulk purchases.
contact resistance
≤50MΩ
electronic life(cycles)
10000
insulation resistance
≥1000MΩ
operation temperature
T55,T105
IP code
IP40
max.rating current & voltage
6A 250V

Electronic component product image for cross-border e-commerceHigh-quality electronic device image for e-commerce


Why Choose Our Mini Rocker Switches?

Our mini rocker switches are engineered for durability and reliability, making them perfect for home appliances. With a mechanical life of 100,000 times and an electrical life of 10,000 cycles, they outperform many competitors. The compact size and sleek black plastic housing not only save space but also add a touch of elegance to your devices.

What Makes Our Switches Stand Out?

Our switches are factory-direct and available for wholesale, ensuring you get the best price without compromising on quality. They are certified by CQC, CE, UL, CB, ENEC17, and ROHS, guaranteeing safety and compliance. The IP40 rating provides adequate dust protection, extending the switch's lifespan in various environments.

How Can We Support Your Business?

As a trusted supplier, we offer excellent after-sales service and competitive pricing. Whether you're a small business or a large manufacturer, we can meet your bulk purchase needs. Our switches are designed to enhance the functionality and durability of your home appliances, making them a smart investment for your business.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16(4)A
Max. Voltage

250VAC
Place of Origin

Shanghai,China
Brand Name

Yongxing
Model Number

KCD3-11-CB1A
Application

Home Appliance
Material

plastic
Pins

2P
Whether the smart

NO
Mechanical Life

100000 times
IP level

IP40
Switch Action

ON-OFF
Termination Type

pin
Contact Resistance

≤50mΩ
Insulation Resistance

≥1000MΩ
Dielectric Strength

1500VAC 1 Minute
Operating temperature

T55 T85 T125
Electrical Life

10000
Color

Black
Certification

CQC CE UL CB ENEC17 ROHS
