Description

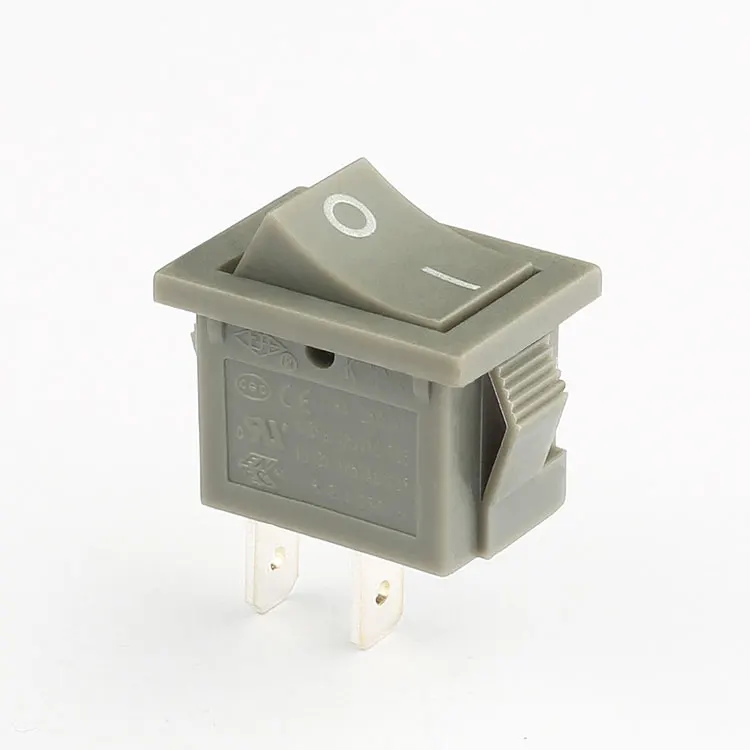

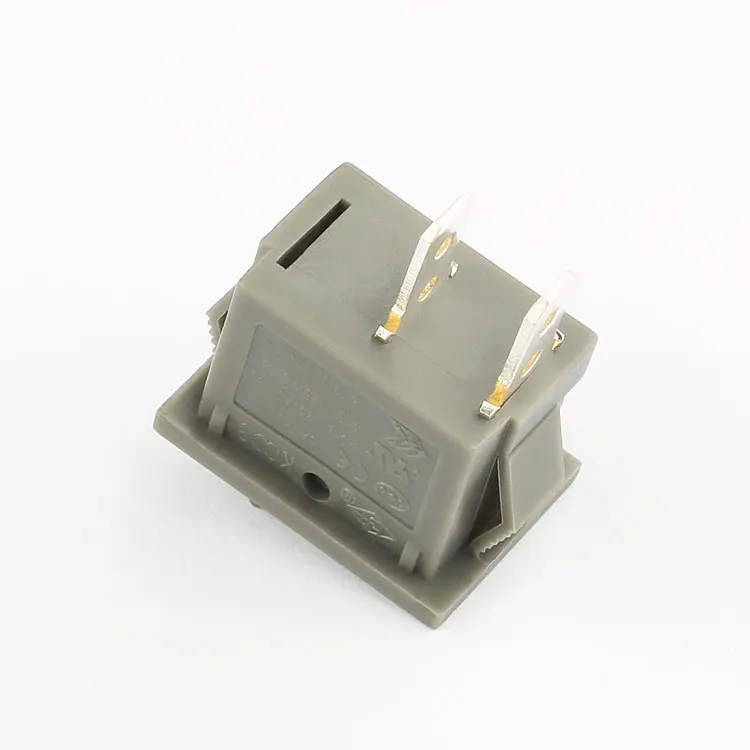

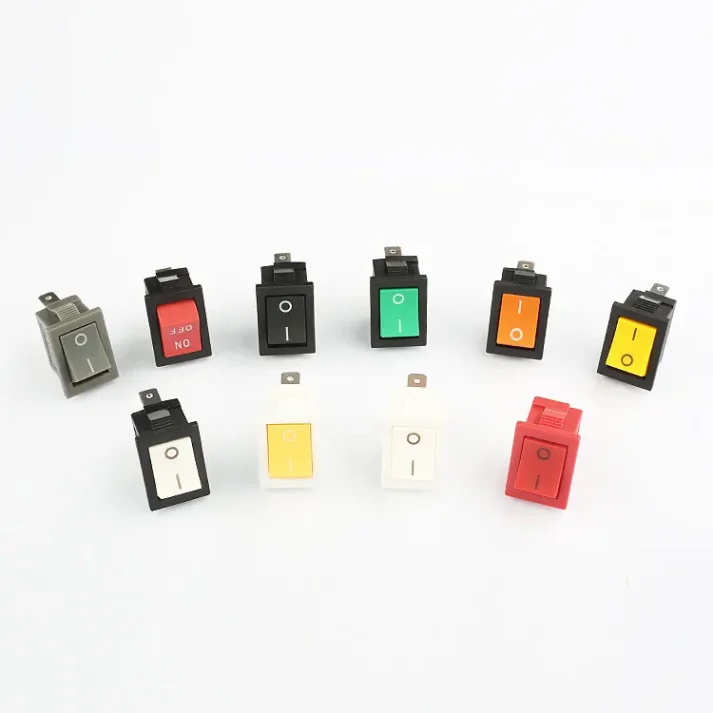

Our Mini Rocker Switch features a compact 15x21mm size, making it ideal for tight spaces. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it ensures long-lasting reliability. The switch comes in a variety of colors, including Red, Yellow, Green, Black, Blue, Orange, White, and Gray, to suit your design needs.
What sets our switch apart is its high insulation resistance (≥1000MΩ) and dielectric strength (1500VAC for 1 minute), ensuring safety and performance. It also has a low contact resistance (≤50mΩ) for efficient operation.
As a trusted supplier, we provide excellent customer service and support. Whether you’re looking for a single switch or bulk quantities, we’re here to meet your needs. Choose our Mini Rocker Switch for quality, reliability, and value.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CA1A-P-P-01
|
|
Max. Current
|
6A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
EB ENEC17 ROHS
|
|
Circuit
|
SPST rocker switch
|
|
Dimension Code
|
A1 (21.7×15)
|
|
Contact Piece Code
|
A (4.8×0.8 standard)
|
|
Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Function
|
On Off rocker switch
|
Why Choose Our Mini Rocker Switch?
Our Mini Rocker Switch stands out for its compact size, high current and voltage ratings, and long mechanical and electronic life. It's perfect for tight spaces and ensures reliable operation over thousands of cycles.
What Are the Key Features?
Key features include a variety of color options, high insulation and dielectric strength, low contact resistance, and UL certification. These features ensure safety, performance, and compatibility with a wide range of applications.
How Can We Help You?
As a factory supplier, we offer wholesale pricing and excellent customer service. Whether you need a single switch or bulk quantities, we're here to provide the support and products you need. Choose us for quality, reliability, and value.
