Description
Key specifications include a maximum current of 6A and a maximum voltage of 250V AC, making it suitable for various electrical setups. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, this switch guarantees longevity and durability. It features a contact resistance of ≤50mΩ and an insulation resistance of ≥1000MΩ, ensuring safe and efficient operation. Additionally, it boasts a dielectric strength of 1500VAC for 1 minute, providing an extra layer of safety.
Our rocker switch is designed with a compact dimension code of B1, with a 19.5x13mm mounting hole size, and a contact piece code of B, measuring 4.8×0.8x8mm. It is UL, CB, ENEC17, and ROHS certified, meeting international safety standards. The switch does not include a lamp, focusing solely on its primary on-off function.
What sets our product apart is its exceptional quality, backed by rigorous testing and certification. As a factory supplier, we offer customizable solutions and bulk orders, ensuring you have the flexibility to meet your specific needs. Choose our Mini SPST Rocker Switch for reliable performance, durability, and unbeatable value.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CB1B-B-B-01/UL
|
|
Max. Current
|
6A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST 2 Pin On Off Rocker Switch
|
|

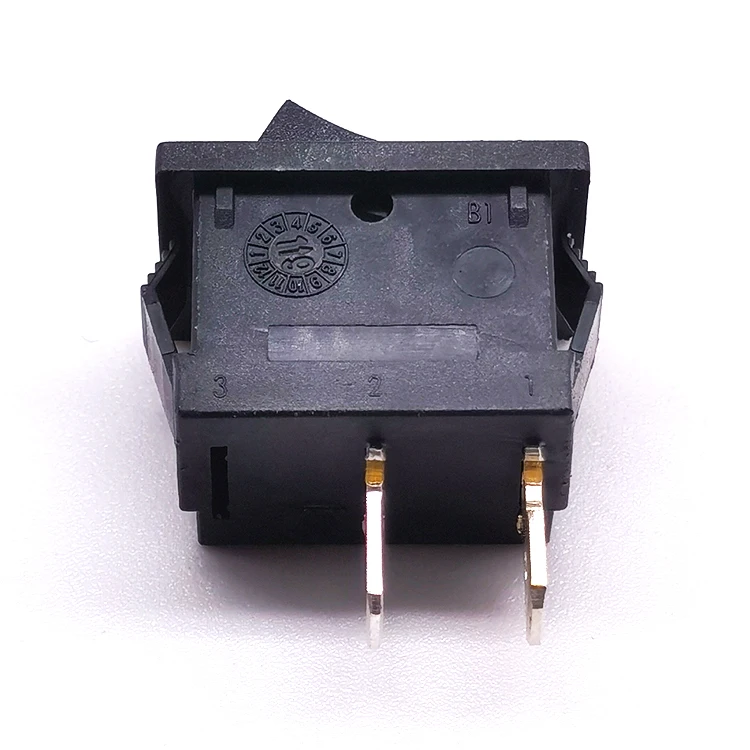

Dimension Code
|
B1, 19.5x13mm mounting hole size
|
|
Contact Piece Code
|
B, 4.8×0.8x8mm
|
|
Lamp voltage
|
No lamp
|
|
Function
|
On-Off SPST rocker switch
|
Why Choose Our Mini SPST Rocker Switch?
Our Mini SPST Rocker Switch is designed for reliability and durability, making it an ideal choice for electrical appliances, industrial equipment, and home automation systems. With a maximum current of 6A and a maximum voltage of 250V AC, it ensures safe and efficient operation in various settings.
What Are the Key Features?
Key features include a mechanical life of 50,000 cycles, an electronic life of 10,000 cycles, and a contact resistance of ≤50mΩ. It is UL, CB, ENEC17, and ROHS certified, meeting international safety standards. The compact design and easy installation make it a versatile choice for many applications.
Why Buy from Us?
As a factory supplier, we offer wholesale prices and customizable solutions. Our products are backed by rigorous testing and certification, ensuring you get the best quality and value. Choose us for reliable performance, durability, and unbeatable customer service.
