Description
Our switch stands out from the competition with its IP40 protection level, ensuring resistance to dust and limited water ingress. With a contact resistance of ≤50mΩ and an insulation resistance of ≥100mΩ, it guarantees reliable performance. Additionally, it boasts a dielectric strength of 1500V 1min and an electrical life of 10,000 times, ensuring longevity and durability.
The switch is designed to operate within a temperature range of -25℃ to +85℃, making it suitable for various environments. It is certified by CQC, CB, ROHS, and ISO9001, ensuring compliance with international standards. With a mounting hole size of 20*13.4 mm and a panel thickness of 1.2-2.5mm, it is easy to install and integrate into your systems.
Choose our Momentary Push Button Switch for its superior quality, reliability, and competitive pricing. As a factory supplier, we are committed to providing you with the best products and services.
|

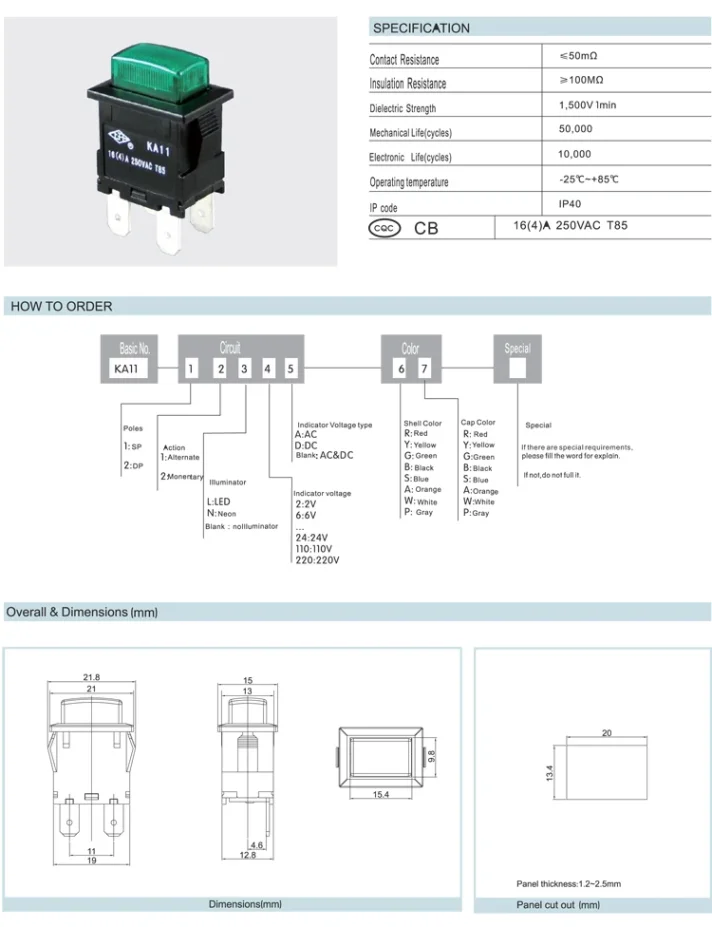

item
|
value
|
|
Place of Origin
|
Shanghai(China)
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA11-12-WR
|
|
Protection Level
|
IP40
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
1500V 1min
|
|
Electrical Life
|
10000times
|
|
Operating temperature
|
-25℃~+85℃
|
|
Certificate
|
CQC CB ROHS ISO9001
|
|
Color
|
white housing, red button
|
|
Mounting Hole Size
|
20*13.4 mm
|
|
Panel Thickness
|
1.2-2.5mm
|
Key Features

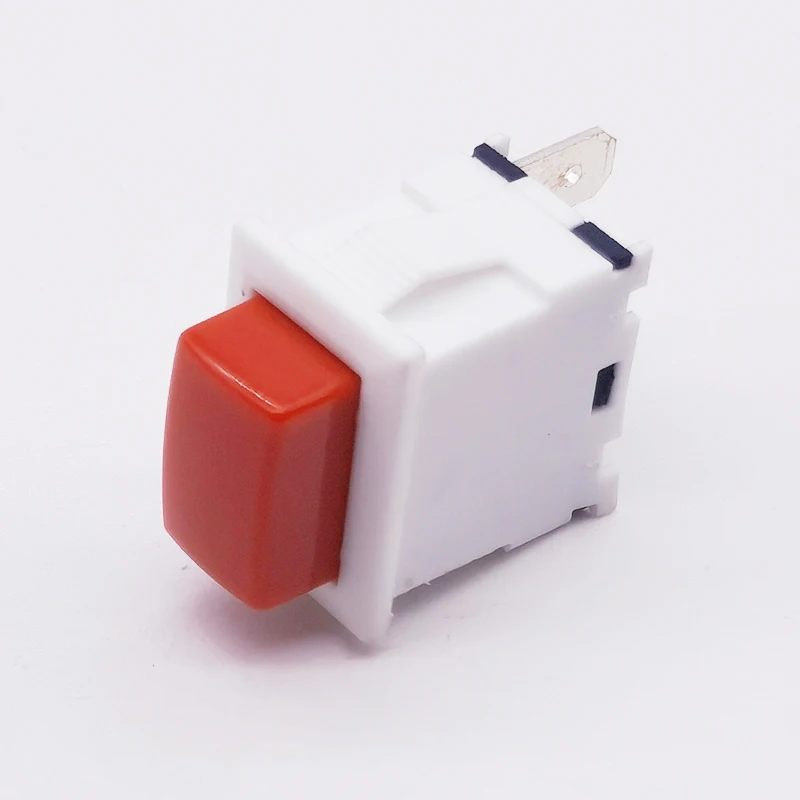

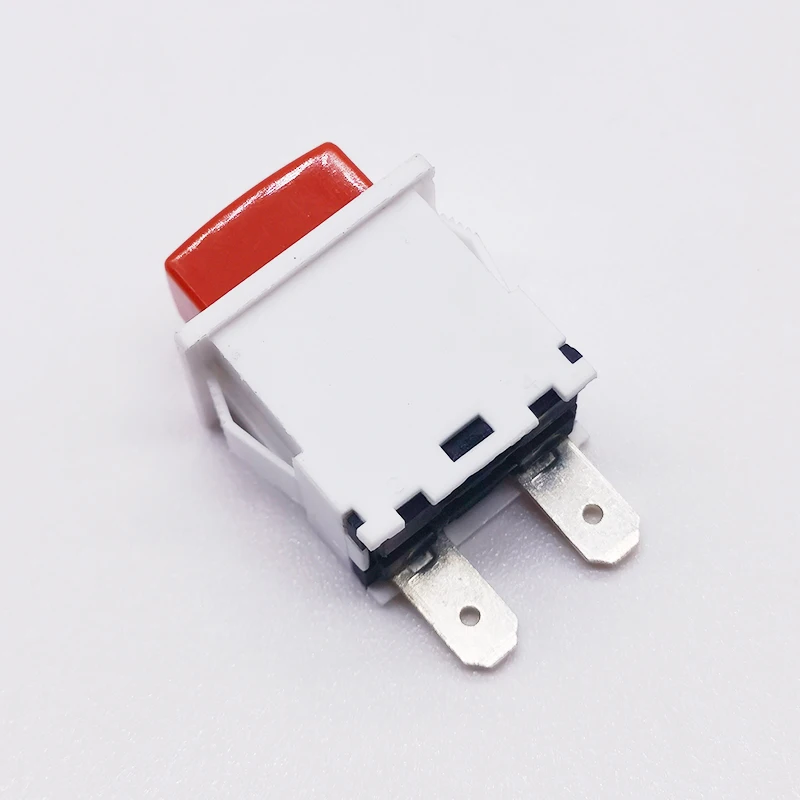

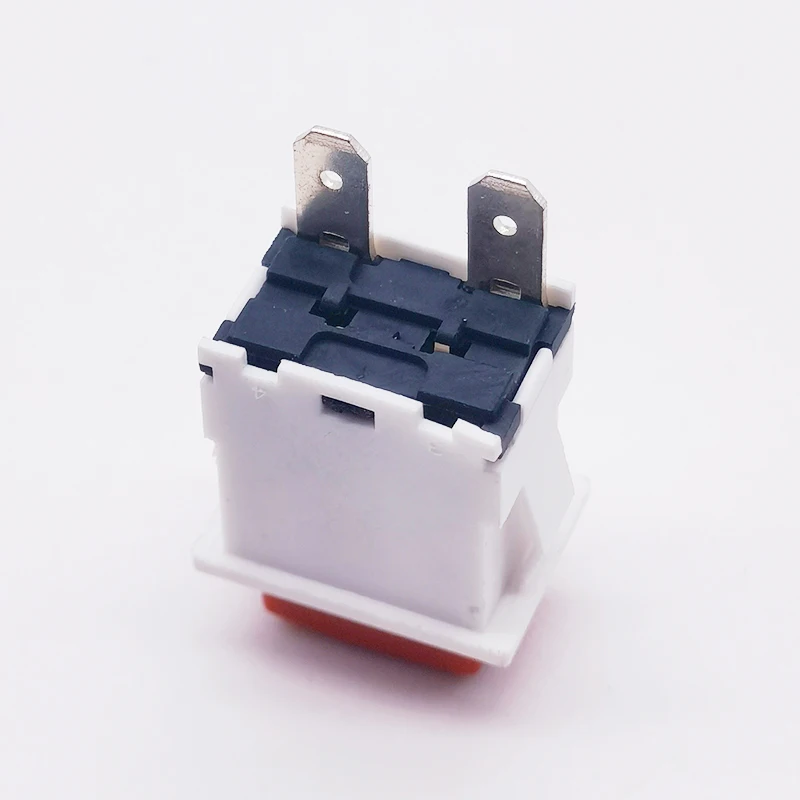

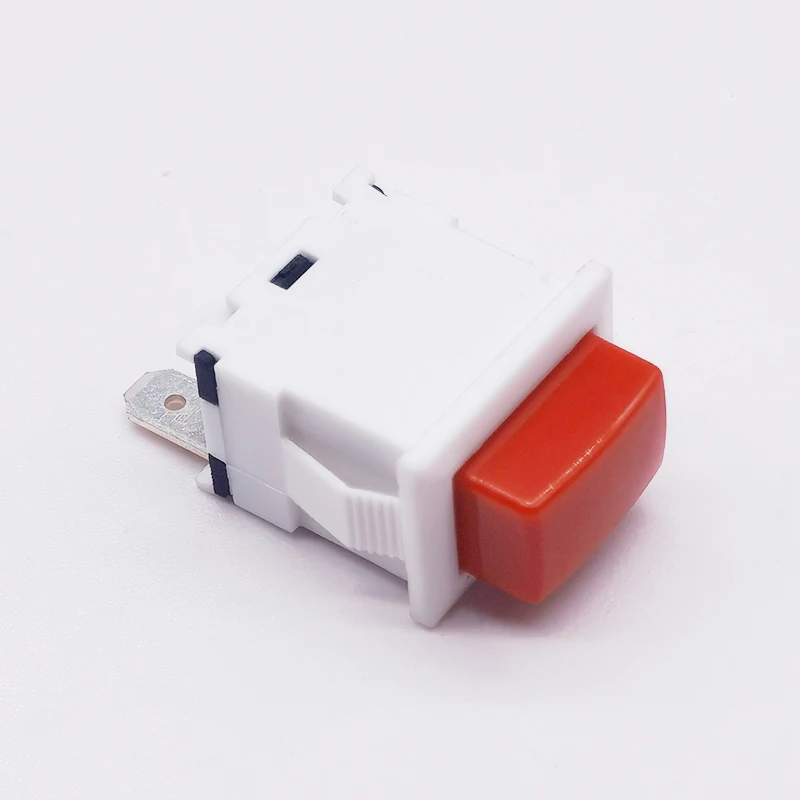

Our Momentary Push Button Switch is designed with durability and reliability in mind. Its plastic rectangular construction, combined with a white housing and red button, ensures easy identification and operation. Rated at 16A 250VAC, it is suitable for a wide range of electrical applications.
Superior Performance
With an IP40 protection level, our switch offers resistance to dust and limited water ingress, ensuring reliable performance in various environments. Its low contact resistance and high insulation resistance guarantee efficient electrical conduction and isolation.
Why Choose Us?
As a factory supplier, we offer wholesale pricing on our Momentary Push Button Switch, ensuring you get the best value for your money. Our switch is certified by multiple international standards, guaranteeing its quality and compliance. Choose us for superior products, competitive pricing, and excellent customer service.
