Description

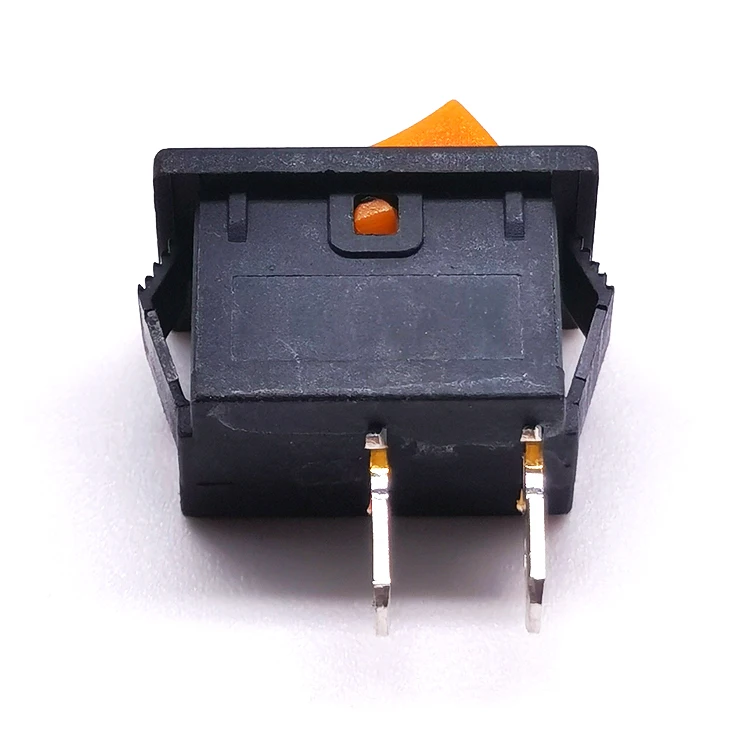

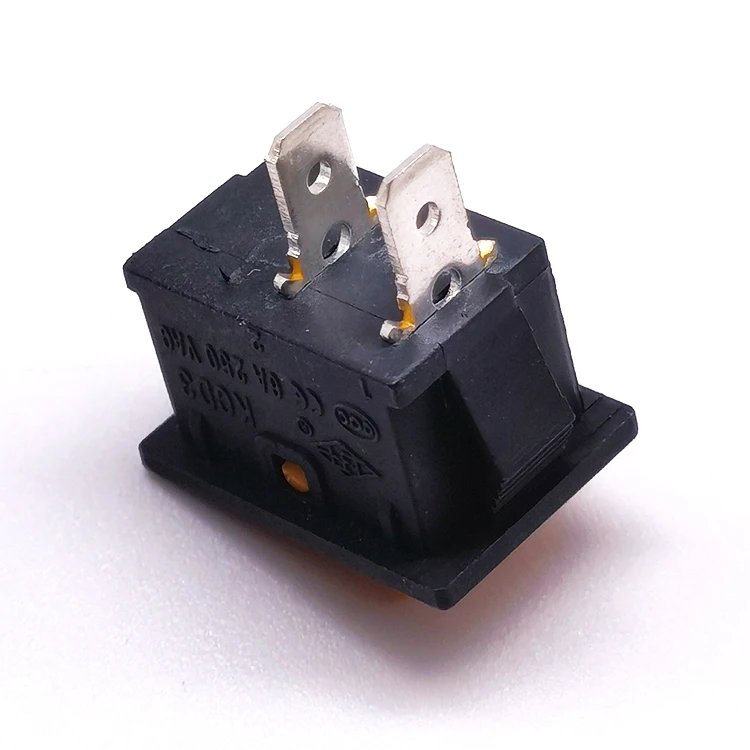

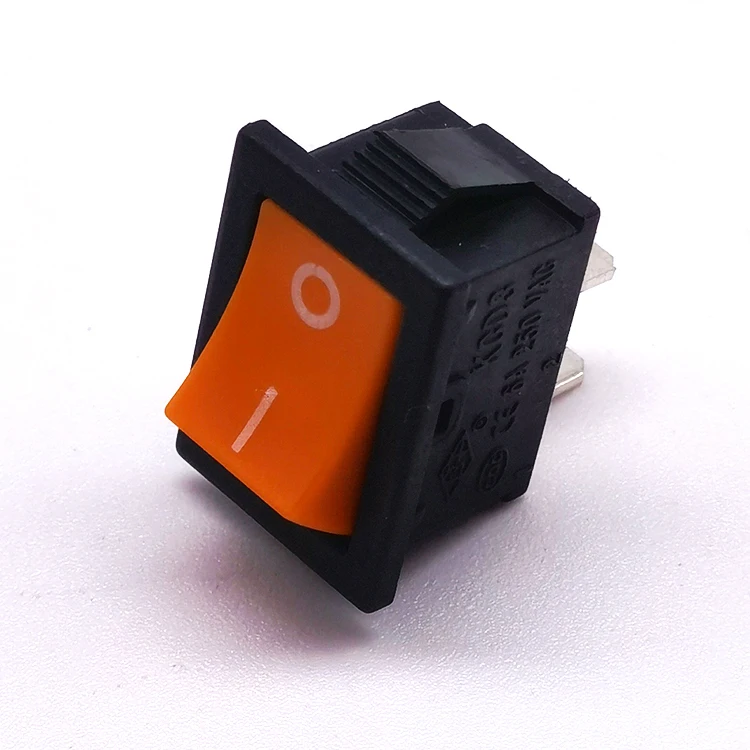

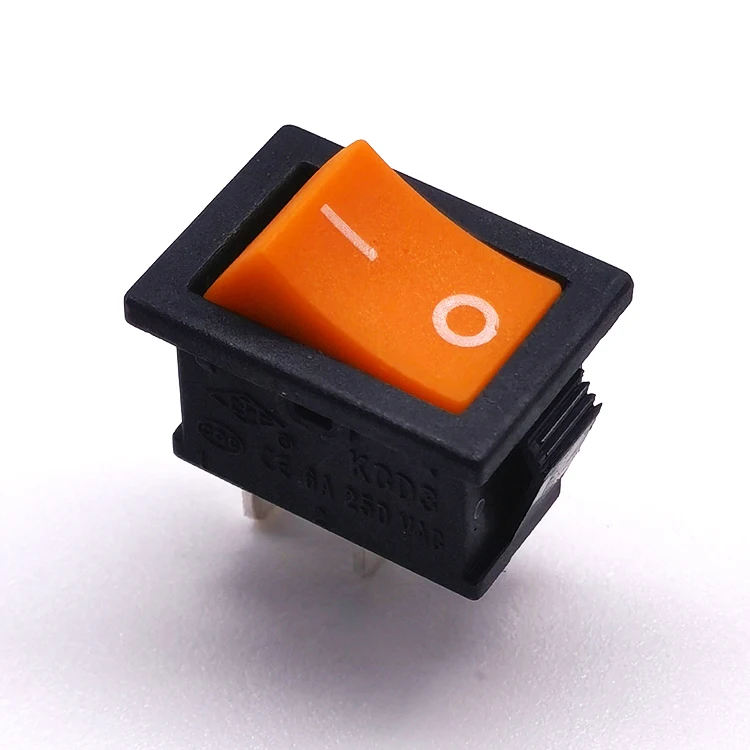

Our factory-direct wholesale Orange SPST 2 Pin Rocker Switch is a high-quality, reliable component designed for a wide range of applications. With a compact size of 15x21mm and a maximum current rating of 6A at 250V AC, this switch is perfect for use in electronic devices, machinery, and more. Key features include a mechanical life of 50,000 cycles, an electronic life of 10,000 cycles, and a contact resistance of ≤50mΩ, ensuring long-lasting performance. The switch is made of durable plastic, with an IP40 rating for dust and water resistance, and is certified by CQC, CE, UL, CB, ENEC17, and ROHS for safety and compliance. As a direct supplier from the factory, we offer competitive pricing and bulk discounts, making it an ideal choice for businesses looking to source reliable switches in large quantities. The switch’s vibrant orange color adds a visual appeal, making it stand out in any application. Choose our wholesale Orange SPST 2 Pin Rocker Switch for quality, durability, and value.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CB2B-B-R-01 (110203-243)
|
|
Max. Current
|
6A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST 2 Pin On Off Rocker Switch
|
|
Dimension Code
|
B2, 19.1×13.1mm mounting hole size
|
|
Contact Piece Code
|
B, 4.8×0.8x8mm
|
|
Lamp voltage
|
No lamp
|
|
Function
|
On-Off SPST rocker switch
|
Key Features
Our Orange SPST 2 Pin Rocker Switch stands out with its compact design, high current rating, and long mechanical and electronic life. The switch is made of durable plastic, ensuring reliability in various environments.
Why Choose Us?
As a factory supplier, we offer competitive pricing and bulk discounts. Our switches are certified by multiple international standards, ensuring safety and compliance. The vibrant orange color adds a unique touch to your designs.
Applications
Ideal for use in electronic devices, machinery, and industrial applications where reliable on-off control is essential. The switch's durability and low contact resistance make it a preferred choice for demanding environments.
